VENTECH Metallic Bullet Security Camera VT-R868C User Manual

1. Introdução

The VENTECH Metallic Bullet Security Camera VT-R868C is a versatile surveillance solution designed for both indoor and outdoor environments. This camera features a 1080P resolution sensor and supports four different video output formats: HD-CVI, HD-TVI, AHD, and traditional 960H Analog (CVBS). Equipped with 24 built-in IR LEDs, it provides clear day and night vision up to 65 feet. Its robust metallic housing ensures durability and waterproof performance, making it suitable for various installation scenarios.

2. Informações de segurança

• Fonte de energia: Use only the specified power adapter (AC/DC) for this camera. Incorrect voltage may damage the device or pose a fire hazard.
• Instalação: Ensure the camera is securely mounted to prevent it from falling. Professional installation is recommended for outdoor or high-altitude placements.
• Resistência à água: While the camera is waterproof (IP67 rated), avoid submerging it in water or exposing it to high-pressure water jets.
• Temperatura de operação: Do not operate the camera outside its specified temperature range to ensure optimal performance and longevity.
• Limpeza: Desligue a energia antes de limpar. Use um pano macio e seco. Evite produtos químicos agressivos ou abrasivos.

3. Conteúdo da embalagem

Please check the package contents upon receipt. Typically, the package includes:

• VENTECH Metallic Bullet Security Camera VT-R868C
• Parafusos e âncoras de montagem
• Manual do usuário (este documento)

4. Produto acabadoview

The VT-R868C camera is designed for reliable surveillance with its durable construction and advanced imaging capabilities.

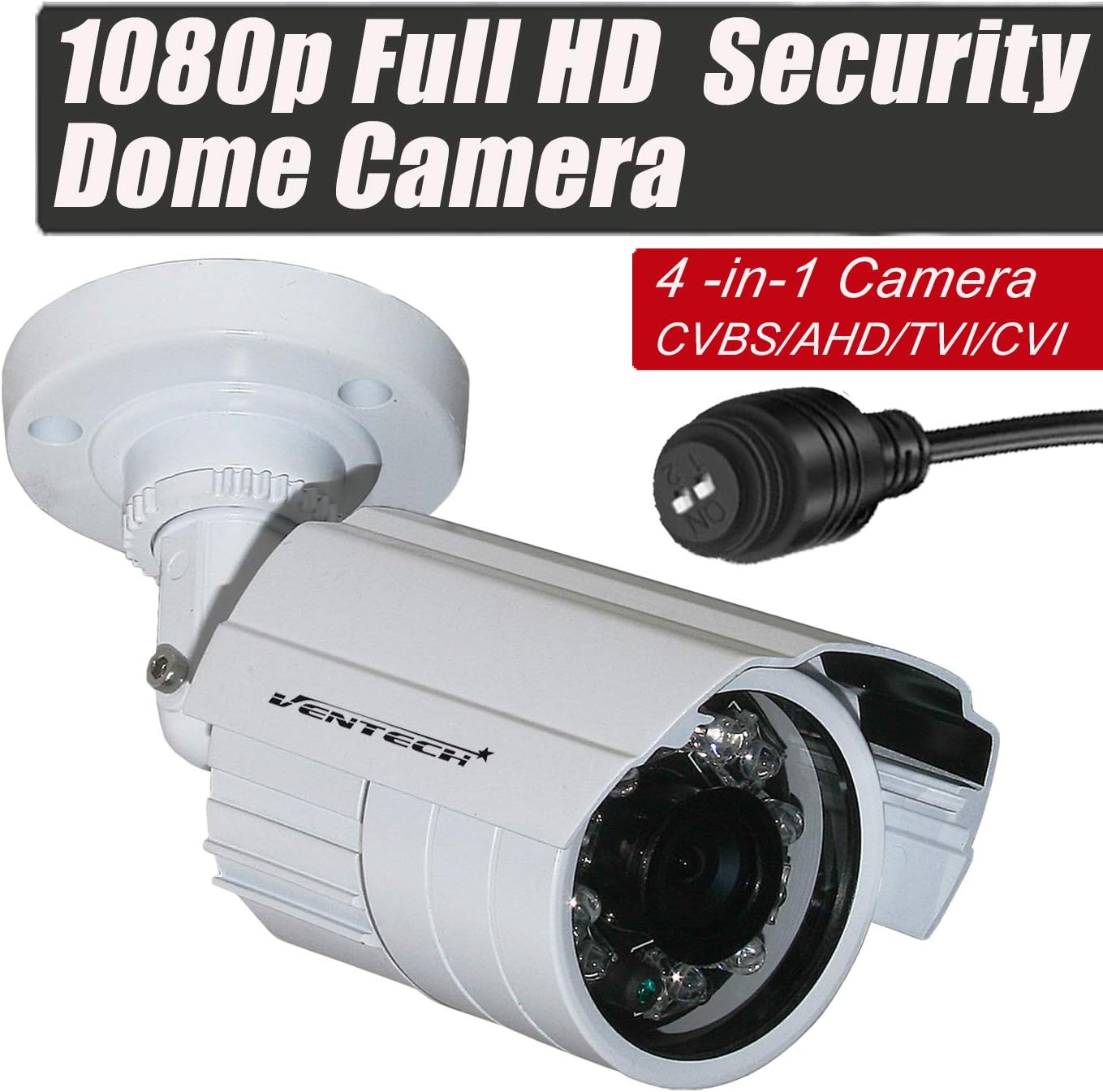

This image displays the VENTECH Metallic Bullet Security Camera, highlighting its robust metallic housing and the integrated cable for 4-in-1 video output (CVBS/AHD/TVI/CVI).

Principais características:

• Resolução Full HD 1080P: Fornece vídeos claros e detalhadostage.
• Hybrid 4-in-1 Output: Compatible with HD-CVI, HD-TVI, AHD, and 960H Analog (CVBS) DVRs.
• Visão diurna/noturna: 24 IR LEDs enable night vision up to 65 feet.
• Lente grande angular de 3.6 mm: Offers a broad field of view.
• À prova d'água (IP67): Adequado para uso externo em diversas condições climáticas.
• Metallic Housing: Ensures durability and protection.

This image visually compares the clarity and detail between 720p (1280x720) and 1080p (1920x1080) video resolutions, demonstrating the superior image quality of 1080p offered by this camera.

5. Configuração

5.1 Instalação Física

1. Escolha um local: Select an indoor or outdoor location that provides the desired viewing angle and is within reach of power and video cables. The camera is suitable for ceiling mount.
2. Monte a câmera: Use the provided screws and anchors to securely mount the camera to a wall or ceiling. Adjust the camera's angle for optimal coverage.

This image provides the physical dimensions of the camera, showing a length of 14 cm, a width of 10 cm (including mount), and a camera body diameter of 6 cm. The total weight is 290 grams.

5.2 fios

Connect the camera to your DVR/NVR system and power supply:

• Conexão de energia: Connect the camera's power input to a compatible 12V DC power adapter (not included).
• Conexão de vídeo: Connect the camera's BNC video output to an input channel on your DVR/NVR using a coaxial cable.

5.3 Video Mode Selection (DIP Switch)

The camera supports four video output modes. You must select the correct mode to match your DVR/NVR system. The default mode is TVI. Use the DIP switch located on the camera's cable to change the output mode.

This diagram illustrates how to configure the camera's video output mode (960H Analog/CVBS, AHD, CVI, TVI) using the DIP switches located on the cable. The default mode is TVI.

Refer to the diagram above for the correct DIP switch settings for each mode:

• 960H Analog / CVBS DVR: Switch 1 = OFF, Switch 2 = OFF
• AHD DVR: Switch 1 = ON, Switch 2 = OFF
• CVI DVR: Switch 1 = OFF, Switch 2 = ON
• TVI DVR (Default): Switch 1 = ON, Switch 2 = ON

Observação: Ensure the camera is powered off before changing the DIP switch settings.

6. Instruções de operação

6.1 Visão diurna e noturna

The camera automatically switches between day (color) and night (black and white infrared) modes based on ambient light conditions. The 24 IR LEDs activate in low light to provide clear images up to 65 feet.

This image demonstrates the camera's capability for 24/7 surveillance, showing a house under normal conditions and then with an overlay indicating night vision monitoring.

6.2 Backlight Compensation

The camera incorporates backlight compensation technology to improve image clarity in scenes where a bright light source is behind the subject, preventing the subject from appearing too dark.

This image compares two scenarios: one where backlight causes subjects to be underexposed (top) and another where backlight compensation technology improves visibility and clarity of subjects (bottom).

7. Manutenção

• Limpeza da lente: Gently wipe the camera lens with a soft, lint-free cloth to remove dust or smudges. For stubborn dirt, use a lens cleaning solution designed for optical surfaces.
• Limpeza de residências: Clean the camera's metallic housing with a damp cloth. Avoid using abrasive materials or strong chemical cleaners that could damage the finish.
• Inspeção de cabos: Periodically check all cables for signs of wear, damage, or loose connections. Ensure waterproof seals are intact for outdoor installations.
• Considerações ambientais: While waterproof, extreme weather conditions (e.g., heavy snow, ice, direct lightning strikes) can still affect performance. Ensure proper shelter if possible.

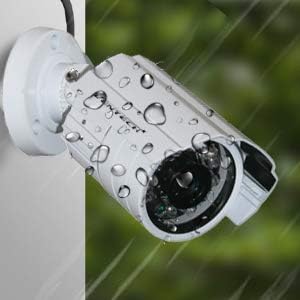

This image highlights the camera's waterproof design, suitable for outdoor installation and protection against various weather conditions.

8. Solução De Problemas

• No Image on Monitor/DVR:
  • Check power connection to the camera.
  • Verify video cable connection between camera and DVR.
  • Ensure the camera's video output mode (TVI/AHD/CVI/CVBS) matches your DVR's input settings using the DIP switch.
  • Test with a different video input on the DVR or a different cable if possible.
• Qualidade de imagem ruim / cintilação:
  • Check cable integrity; damaged cables can cause signal degradation.
  • Ensure power supply is stable and sufficient.
  • Limpe a lente da câmera.
  • Adjust camera position to avoid strong backlight or direct light sources if backlight compensation is insufficient.
• Visão noturna não funciona:
  • Ensure there are no obstructions blocking the IR LEDs.
  • Check if the camera is receiving adequate power.
  • Verify that the ambient light sensor is not covered.

9. Especificações

10. Informações de garantia

VENTECH products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact VENTECH customer support. Keep your proof of purchase for warranty claims.

11. Suporte ao cliente

If you encounter any issues or have questions regarding your VENTECH Metallic Bullet Security Camera VT-R868C that are not covered in this manual, please contact VENTECH customer support for assistance. Contact information can typically be found on the product packaging or the official VENTECH website.
