RISCO RPKEL0WT000A Elegant Touch Keypad User Manual

Introdução

This manual provides essential instructions for the installation, operation, and maintenance of your RISCO RPKEL0WT000A Elegant Touch Keypad. This device features an ultra-flat design with a 7-inch touchscreen, adjustable contrast and backlight, and adjustable buzzer volume. It is compatible with all versions of ProSYS systems.

Produto acimaview

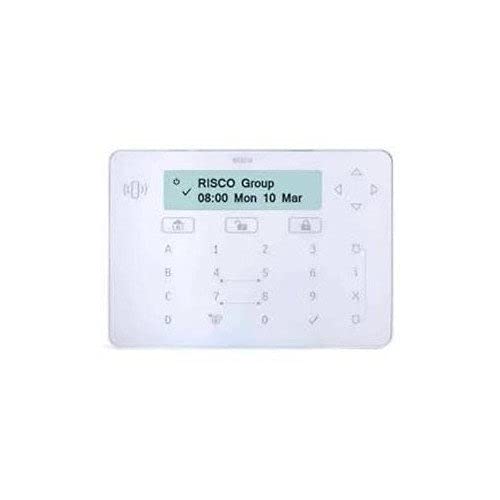

Figura 1: Frente view of the RISCO RPKEL0WT000A Elegant Touch Keypad, showcasinSeu design elegante e interface touchscreen.

Configurar

1. Desembalando e Conteúdo da Embalagem

Abra cuidadosamente a embalagem do produto e verifique se todos os componentes estão presentes. A embalagem deve conter:

• RISCO RPKEL0WT000A Elegant Touch Keypad (Plastic material)
• Cabo USB
• Este Manual do Usuário

2. Instalação Física

The keypad is designed for indoor use. Choose a suitable location for installation, ensuring it is easily accessible and protected from extreme temperatures or moisture. Mount the keypad securely using appropriate hardware (not included, unless specified in packaging). Connect the USB cable to the keypad and to your ProSYS system or designated connection point.

3. Inicialização da alimentação

Connect the power cable to the keypad and a suitable power source. The keypad will initiate its startup sequence. Follow any on-screen prompts for initial configuration or system pairing with your ProSYS system.

Instruções de operação

1. Funções básicas

• Interface da tela sensível ao toque: Navigate through menus and input commands using the 7-inch touchscreen.
• Luz de fundo ajustável: The keypad features a backlight. Adjust its intensity via the system settings for optimal visibility in various lighting conditions.
• Adjustable Buzzer Volume: The integrated buzzer provides audible feedback. Adjust its volume through the system settings to suit your preference.

2. Compatibilidade do sistema

This keypad is compatible with all versions of RISCO ProSYS security systems. Ensure your ProSYS system is updated to the latest firmware for optimal performance and feature compatibility.

3. Keypad Layout and Input

The virtual keypad features a QWERTY layout with 104 keys, providing a familiar input experience for text and numerical entries. Use the touchscreen to select characters and functions.

Manutenção

1. Limpando o teclado

To clean the touchscreen and plastic casing, use um pano macio e sem fiapos levemente dampened with water or a mild, non-abrasive cleaning solution. Do not spray cleaners directly onto the keypad. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the surface.

2. Atualizações de software

Information regarding guaranteed software updates for this product is not available. Please refer to the official RISCO website or your system integrator for any available firmware updates for your ProSYS system, which may include updates relevant to the keypad's functionality.

Solução de problemas

If you encounter issues with your RISCO RPKEL0WT000A keypad, please refer to the following common troubleshooting steps:

• Teclado não responde: Ensure the USB cable is securely connected and the keypad is receiving power. Try restarting the ProSYS system.
• Problemas de exibição: Check the backlight settings in the system menu. If the screen remains blank, verify power connection.
• A campainha não está funcionando: Check the buzzer volume settings in the system menu.
• Problemas de conectividade: Ensure the keypad is properly paired or connected to your ProSYS system according to the system's installation guide.

For persistent issues, consult the comprehensive ProSYS system manual or contact RISCO technical support.

Especificações

Informações de garantia

Specific warranty details for the RISCO RPKEL0WT000A Elegant Touch Keypad are not provided in this manual. For comprehensive warranty information, please refer to the official RISCO website or contact your authorized RISCO dealer or installer.

Apoiar

For technical assistance, product inquiries, or further support, please visit the official RISCO website or contact your local RISCO support representative. Contact information can typically be found on the RISCO website ou através do seu fornecedor de produtos.
