Informações importantes de segurança
Please read all instructions carefully before using the Xiaomi Mi Induction Cooker ZHF4045GL. Retain this manual for future reference. Failure to follow these safety guidelines may result in electric shock, fire, or personal injury.
- Não mergulhe o aparelho, o cabo de alimentação ou a ficha em água ou outros líquidos.
- Use the induction cooker on a stable, flat, heat-resistant, and non-metallic surface.
- Mantenha o aparelho fora do alcance de crianças e indivíduos com capacidades físicas, sensoriais ou mentais reduzidas.
- Do not touch hot surfaces. Always use oven mitts or pot holders when handling hot cookware.
- Utilize apenas panelas compatíveis com indução. Panelas incompatíveis não aquecerão.
- Ensure adequate ventilation around the unit during operation. Do not block air vents.
- Desconecte o aparelho da tomada quando não estiver em uso e antes de limpá-lo.
- Regularly inspect the power cord for any damage. Do not operate the appliance if the cord or plug is damaged.
- This appliance is intended for household use only. Do not use outdoors or for commercial purposes.
- Do not place metallic objects such as knives, forks, spoons, lids, cans, or aluminum foil on the induction plate, as they can become hot.
Produto acimaview
The Xiaomi Mi Induction Cooker ZHF4045GL is a portable and efficient cooking appliance designed for precise temperature control and versatile cooking. It features a minimalist design, an intuitive control knob, and an external temperature probe for enhanced accuracy.
The Xiaomi Mi Induction Cooker ZHF4045GL on a kitchen countertop, showcasing its minimalist design and compact form factor.

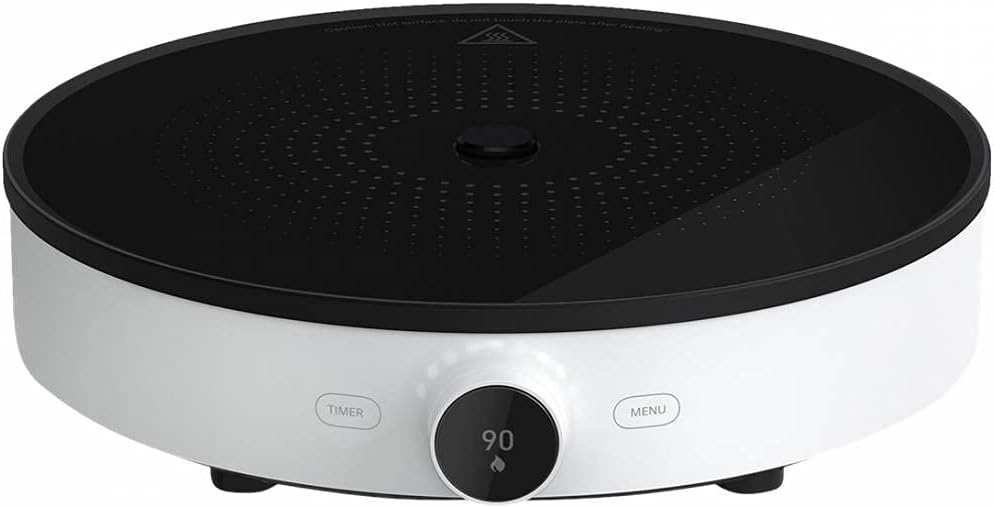

Careca view of the Xiaomi Mi Induction Cooker ZHF4045GL control panel, showing the timer, menu buttons, and central control knob with digital display.
Configuração e instalação
Follow these steps to set up your induction cooker:
- Descompacte: Carefully remove the induction cooker and all accessories from the packaging. Retain packaging for future transport or storage.
- Colocação: Place the induction cooker on a stable, level, and heat-resistant surface. Ensure there is at least 10-15 cm of clear space around all sides for proper ventilation. Do not place it near heat sources or on metallic surfaces.
- Conexão de energia: Connect the power cord to the induction cooker, then plug it into a suitable 220V electrical outlet. Ensure the outlet is compatible with the cooker's plug type (an adapter may be required for certain regions, e.g., Schuko to UK).
- Limpeza Inicial: Before first use, wipe the cooking surface with a soft, damp pano.

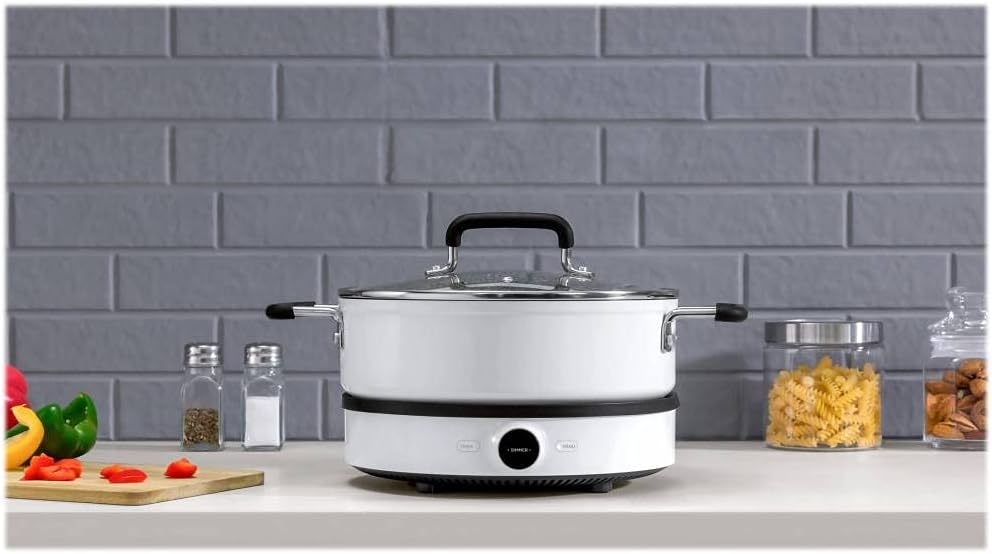

The Xiaomi Mi Induction Cooker ZHF4045GL positioned on a kitchen countertop with a pot, ready for use.
Instruções de operação
Operação básica
- Ligar/desligar: Press the central control knob to turn the cooker on or off. The LCD display will illuminate.
- Ajuste de potência/temperatura: Rotate the central control knob clockwise to increase power/temperature and counter-clockwise to decrease it. The current setting will be shown on the LCD display.
- Função do temporizador: Press the 'Timer' button to set a cooking duration. Use the control knob to adjust the time, then press the knob again to confirm.
- Seleção de menu: Press the 'Menu' button to cycle through various pre-set cooking modes or functions.
Recursos avançados
- Sonda de Temperatura Externa: The cooker includes an external metal temperature probe. Insert this probe into the bottom of your pot to accurately measure and maintain the temperature of your food. This is particularly useful for precise cooking methods.
- Cozimento em baixa temperatura: Benefit from the sensitive temperature probe and dual-frequency heating technology, which allows the cooker to maintain a stable low temperature for extended periods, ideal for sous-vide or slow cooking.
- Stable Heating: The dual-frequency heating technology ensures consistent heat delivery, preventing the intermittent heating issues common with traditional induction cookers, providing a cooking experience similar to a traditional stove.
- Modos de cozimento: Access over 100 cooking modes through the associated mobile application, allowing for a wide range of culinary preparations.
The Xiaomi Mi Induction Cooker ZHF4045GL in use, with a pot of boiling water, demonstrating its efficient heating capability.

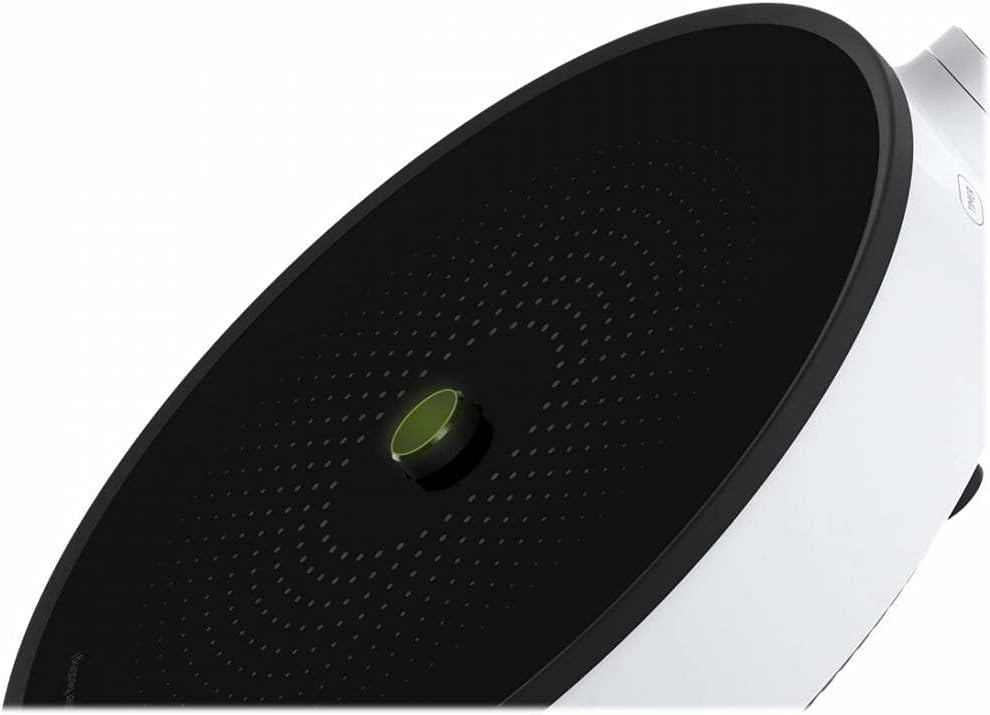

Um close-up view of the cooking surface of the Xiaomi Mi Induction Cooker ZHF4045GL, highlighting the integrated temperature probe for precise temperature measurement.
Limpeza e Manutenção
Proper cleaning and maintenance will extend the lifespan of your induction cooker:
- Antes da limpeza: Always unplug the induction cooker from the power outlet and allow it to cool completely before cleaning.
- Superfície de cozimento: Wipe the ceramic cooking surface with a soft, damp cloth. For stubborn stains, use a mild detergent specifically designed for ceramic or glass cooktops. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as they can scratch or damage the surface.
- Painel de controle: Limpe o painel de controle com um pano macio eamp cloth. Do not allow water to enter the control area.
- Sonda de temperatura: Clean the external temperature probe with a damp pano após cada uso.
- Silicone Ring: The anti-slip silicone ring on the panel can be easily disassembled for more convenient cleaning. Ensure it is properly re-seated before next use.
- Base and Vents: Periodically wipe the base and ensure the ventilation openings are free from dust and debris. Do not spray water directly into the vents.
- Armazenar: Guarde a panela em local seco quando não estiver em uso.
Solução de problemas
If you encounter issues with your induction cooker, refer to the following table for common problems and solutions:
| Problema | Possível causa | Solução |
|---|---|---|
| O fogão não liga. | Sem energia; Cabo de alimentação mal conectado; Mau funcionamento do aparelho. | Check if the power plug is securely inserted into the outlet. Ensure the outlet has power. Check the power cord for damage. |
| Cookware not heating | Cookware is not induction-compatible; Cookware is not centered on the cooking zone; Cookware is too small or too large. | Use only induction-compatible cookware (magnetic bottom). Center the cookware on the cooking zone. Ensure cookware diameter is within recommended range. |
| O visor mostra um código de erro. | Internal fault; Overheating; Sensor issue. | Turn off the cooker, unplug it, and wait for 10-15 minutes before plugging it back in. If the error persists, consult the full user manual or contact customer support. |
| Aquecimento desigual | Cookware base is not flat; Cookware is not suitable for induction. | Use cookware with a flat, thick base. Ensure the cookware is induction-compatible and of good quality. |
| Barulho alto do ventilador | Normal operation; Blocked ventilation. | The cooling fan operates during and after cooking. This is normal. Ensure ventilation openings are not blocked. |
Especificações
Technical specifications for the Xiaomi Mi Induction Cooker ZHF4045GL:
| Recurso | Especificação |
|---|---|
| Marca | XIAOMI |
| Número do modelo | ZHF4045GL |
| Cor | Branco |
| Material | Cerâmica |
| O quetage | 2100 watts |
| Volumetage | 220 Volts |
| Dimensões do produto (P x L x A) | 26.5P x 28L x 7A centímetros |
| Peso do item | 2.1 quilos |
| Tipo de controles | Touch, Rotary Knob |
| Elementos de aquecimento | 1 |
| Características especiais | Induction, LCD Display, External Temperature Probe |
| Componentes incluídos | Cabo de alimentação, Manual do usuário |
Diagram illustrating the dimensions of the Xiaomi Mi Induction Cooker ZHF4045GL: 28cm width, 26.5cm depth, and 7cm height.
Garantia e Suporte
For detailed warranty terms and conditions, please refer to the warranty card included with your Xiaomi Mi Induction Cooker ZHF4045GL. The warranty period and coverage may vary by region and retailer.
For technical support, service inquiries, or to report any issues with your product, please contact Xiaomi customer service through their official website ou as informações de contato fornecidas na documentação do produto.
