HOTT CD511 Portable CD Player Instruction Manual

1. Introdução

Thank you for choosing the HOTT CD511 Portable CD Player. This manual provides detailed instructions for the proper setup, operation, and maintenance of your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your CD player.

2. Produto acabadoview

2.1 Principais Características

• CD/MP3 Compatibility: Supports CD, CD-R, CD-RW, and MP3 discs.
• Electronic Anti-Skip/Anti-Shock Protection (ESP/ASP): Ensures smooth playback even during movement.
• Opções de fonte de alimentação: Can be powered by batteries or via USB charging.
• Função de bloqueio do botão: Prevents accidental button presses during use.
• Vários efeitos sonoros: Includes BBS, Classic, Jazz, Pop, and Rock EQ modes.
• Various Play Modes: Offers play in order, repeat a track, repeat all, intro (first 10 seconds), and shuffle.
• Função de resumo: Remembers the last played position even after power off.

2.2 Componentes e Controles

Familiarize yourself with the various parts and controls of your HOTT CD511 CD player.

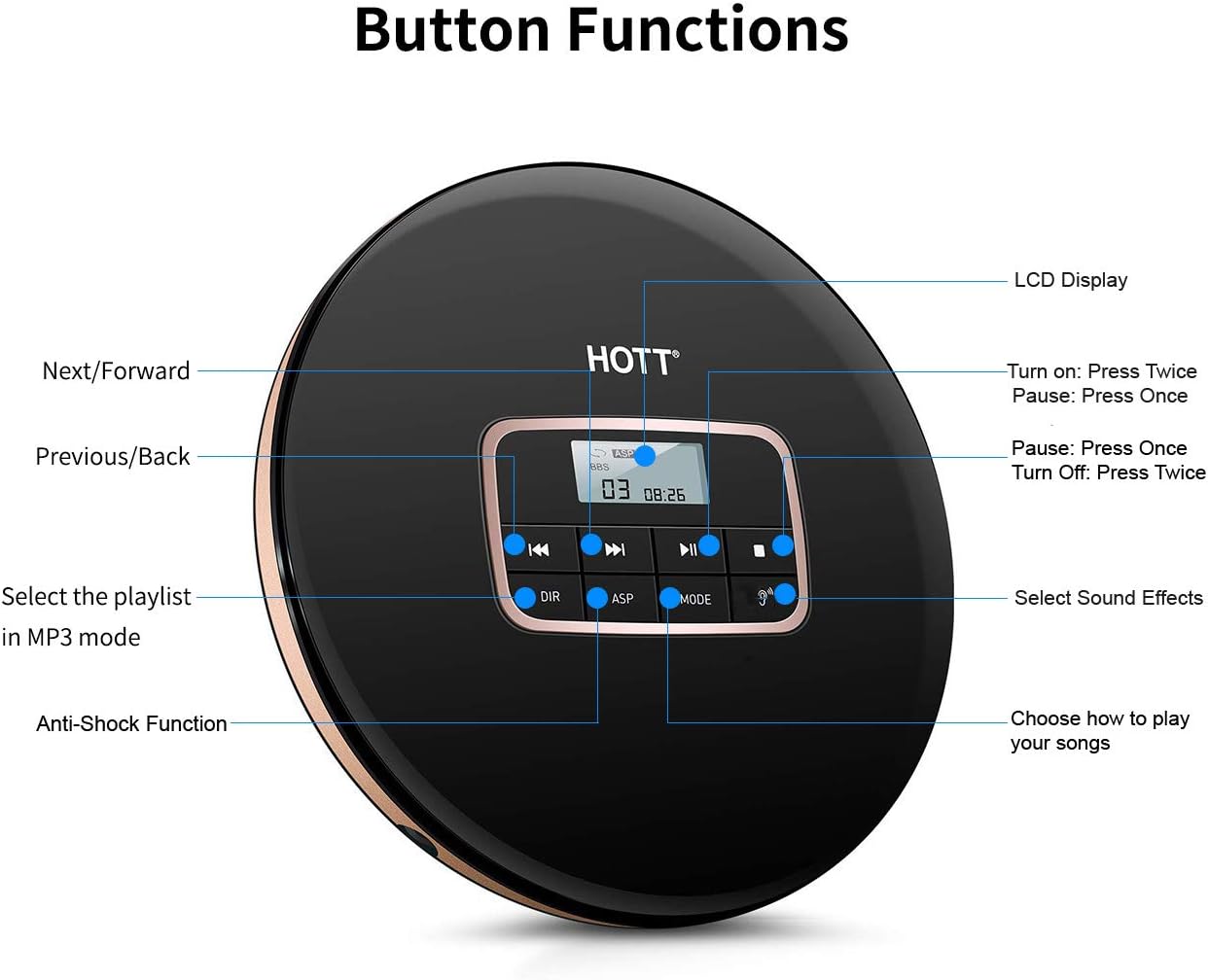

Imagem 1: Principal view of the HOTT CD511 Portable CD Player, highlighting the LCD display and various control buttons for navigation, sound effects, and play modes.

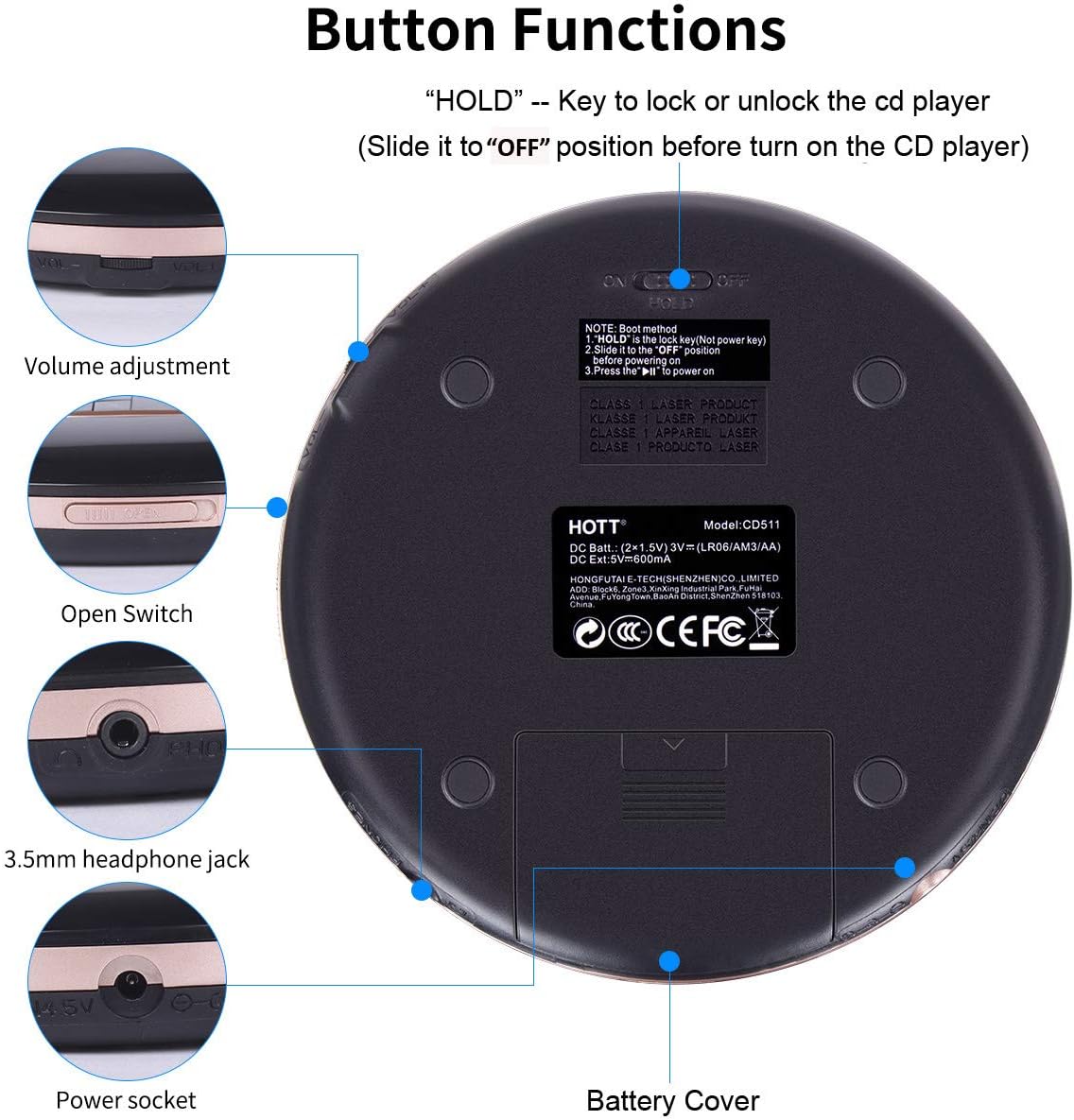

Imagem 2: Bottom and side view of the HOTT CD511 Portable CD Player, showing the HOLD switch, volume control, disc compartment open switch, headphone jack, power socket, and battery cover.

2.3 Compatibilidade

Imagem 3: The HOTT CD511 CD player supports various disc formats including standard CD, CD-R, CD-RW, and MP3 discs.

3. Configuração

3.1 Ligando o dispositivo

The HOTT CD511 can be powered in two ways:

1. Baterias: Open the battery cover on the bottom of the player. Insert two (2) 1.5V AA batteries, ensuring correct polarity. Close the battery cover securely.
2. Potência USB: Connect the provided USB cable to the power socket on the side of the player and to a USB power adapter (not included) or a computer's USB port.

Note: Ensure the "HOLD" switch is in the "OFF" position before turning on the CD player.

3.2 Inserindo um CD

1. Slide the "OPEN" switch to open the disc compartment lid.
2. Coloque o CD cuidadosamente no eixo central com o lado da etiqueta voltado para cima.
3. Pressione o CD suavemente até ouvir um clique e ele se encaixar no lugar.
4. Close the disc compartment lid firmly until it latches.

3.3 Conectando fones de ouvido

Insert your 3.5mm headphones into the headphone jack located on the side of the player.

4. Instruções de operação

4.1 Reprodução básica

• Ligar: Pressione o REPRODUZIR/PAUSAR botão duas vezes.
• Reproduzir/Pausar: Pressione o REPRODUZIR/PAUSAR button once to play or pause.
• Parar: Pressione o PARAR botão.
• Desligar: Pressione o PARAR botão duas vezes.

4.2 Navegação

• Próxima faixa: Pressione o PRÓXIMO/AVANÇAR botão.
• Faixa anterior: Pressione o PREVIOUS/BACK botão.
• Avanço rápido/Retrocesso: Pressione e segure o PRÓXIMO/AVANÇAR or PREVIOUS/BACK botão durante a reprodução.

4.3 Controle de volume

Ajuste o volume usando o VOLUME +/- buttons located on the side of the player.

4.4 Play Modes and Sound Effects

Imagem 4: The HOTT CD511 offers various play modes and sound effects for a customized listening experience.

• Botão MODE: Press to cycle through play modes: Single Repeat, All Repeat, Intro, Shuffle.
• Botão EQ: Press to cycle through sound effects: BBS, Pop, Jazz, Rock, Classic.
• DIR Button (MP3 mode only): Selects the playlist or folder when playing MP3 discs.

4.5 Função HOLD

Deslize o SEGURAR switch on the side of the player to the "ON" position to lock all buttons. This prevents accidental operation during transport. Slide it to "OFF" to unlock the buttons.

4.6 Anti-Skip/Anti-Shock Protection (ASP)

The ASP feature is automatically activated to prevent interruptions during playback caused by minor shocks or vibrations. The duration of anti-shock protection varies depending on the disc type (e.g., CD: 40 seconds, MP3 CD: 120 seconds).

4.7 Car Connectivity

Imagem 5: The HOTT CD511 can be connected to a car's auxiliary input using a 3.5mm audio cable for playback through the car's sound system.

The CD player supports connection to car audio systems via a 3.5mm auxiliary cable. Connect one end of the cable to the player's headphone jack and the other end to your car's AUX input. This feature is compatible with most car models including Toyota, Honda, and Hyundai.

4.8 Cenários de Uso

Imagem 6: The HOTT CD511 is suitable for various activities such as relaxation, learning, prenatal education, and travel.

5. Manutenção

• Limpeza: Use a soft, dry cloth to clean the exterior of the player. For the lens, use a specialized CD lens cleaning kit. Do not use abrasive cleaners or solvents.
• Cuidados com o disco: Manuseie os CDs pelas bordas. Mantenha-os limpos e sem arranhões. Guarde os discos em suas caixas quando não estiverem em uso.
• Substituição da bateria: Replace batteries when the low battery indicator appears on the LCD screen or when playback becomes inconsistent. Remove batteries if the player will not be used for an extended period.
• Armazenar: Store the player in a cool, dry place away from direct sunlight, high temperatures, and humidity.

6. Solução De Problemas

7. Especificações

• Modelo: CD511
• Dimensões do produto: 5.6 x 5.6 x 0.6 polegadas
• Peso do item: 15.5 onças
• Marca: QUENTE
• Cor: Preto
• Tecnologia de conectividade: Auxiliar, USB
• Recurso especial: Portátil
• Número de discos: 1
• Fabricante: QUENTE
• Primeiro disponível: 10 de março de 2019

8. Vídeo oficial do produto

9. Garantia e Suporte

For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official HOTT website. Guarde o recibo de compra como comprovante para solicitações de garantia.
