AOG L-Series 30-Inch 3-Burner Built-in Propane Gas Grill with Rotisserie (Model 30PBL) User Manual

1. Introdução

Thank you for choosing the AOG L-Series 30-Inch 3-Burner Built-in Propane Gas Grill with Rotisserie. This manual provides essential information for the safe and efficient installation, operation, maintenance, and troubleshooting of your new grill. Please read all instructions carefully before using the appliance and retain this manual for future reference.

This grill is designed for outdoor use only and must be installed by a qualified professional in accordance with all local codes and regulations.

2. Informações importantes de segurança

AVISO: Somente para uso externo. A instalação, o ajuste, a alteração, o serviço ou a manutenção inadequados podem causar ferimentos ou danos materiais. Leia atentamente as instruções de instalação, operação e manutenção antes de instalar ou realizar qualquer serviço neste equipamento.

2.1 Segurança de gás

• Always check for gas leaks after connecting the propane supply. Use a soap and water solution; never use an open flame.
• Não armazene ou use gasolina ou outros vapores e líquidos inflamáveis ​​nas proximidades deste ou de qualquer outro aparelho.
• Um cilindro de propano não conectado para uso não deve ser armazenado nas proximidades deste ou de qualquer outro aparelho.
• Ensure adequate ventilation around the grill. Do not obstruct the flow of combustion and ventilation air.

2.2 Precauções Gerais de Segurança

• Mantenha crianças e animais de estimação longe da churrasqueira durante a operação.
• Nunca deixe a churrasqueira sem supervisão durante o uso.
• Sempre use luvas de proteção ao manusear componentes quentes.
• Ensure the grill is installed on a stable, non-combustible surface.
• Mantenha as distâncias de segurança adequadas em relação a materiais combustíveis, conforme especificado nas instruções de instalação.

3. Configuração e instalação

This section provides general guidance. Refer to the separate detailed installation guide for specific instructions regarding built-in enclosure requirements, gas line connections, and electrical wiring.

3.1 Desembalagem e Inspeção

• Remova cuidadosamente todos os materiais de embalagem.
• Inspect the grill for any shipping damage. Report any damage to your dealer immediately.
• Certifique-se de que todos os componentes listados na lista de embalagem estejam presentes.

3.2 Built-in Enclosure Requirements

The AOG 30PBL grill is designed for built-in installation. The enclosure must be constructed from non-combustible materials and provide adequate ventilation. Consult the detailed installation guide for precise cutout dimensions and clearance requirements.

3.3 Conexão de gás (propano)

This grill operates on liquid propane (LP) gas. The gas connection must be performed by a qualified gas technician. Ensure the gas supply line is properly sized and all connections are leak-tested before initial use.

3.4 Conexão elétrica

The grill features interior halogen lighting and backlit knobs, requiring a 120-volt electrical connection. This connection should be made by a qualified electrician in accordance with local electrical codes.

Figura 1: Overview of the AOG L-Series 30-Inch Built-in Propane Gas Grill.

4. Instruções de operação

4.1 Queima Inicial

Before cooking food for the first time, operate the grill on high heat for 15-20 minutes with the hood closed. This will burn off any manufacturing residues and prepare the cooking surfaces.

4.2 Acendendo os queimadores principais

1. Ensure the propane supply valve is open.
2. Push in and turn a main burner control knob counter-clockwise to the HIGH position.
3. Press the electronic push-button ignition. You should hear a clicking sound and see the burner ignite.
4. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes, and repeat the process.
5. Once lit, adjust the flame to the desired cooking temperature.

Figura 2: Close view of the U-shaped main burner, designed for even heat distribution.

4.3 Using the Rotisserie Burner

The grill is equipped with a 10,000 BTU infrared back burner for rotisserie cooking.

1. Securely attach the food to the rotisserie spit rod.
2. Insert the spit rod into the rotisserie motor and support brackets.
3. Turn on the rotisserie burner control knob.
4. Activate the rotisserie motor (if applicable, usually a separate switch).
5. Monitor cooking progress. The main burners can be used simultaneously for additional heat if desired.

4.4 Interior Halogen Lighting and Backlit Knobs

For night grilling, the grill features interior halogen lighting and backlit control knobs. These are activated by a push button located on the right side of the grill control panel, requiring a 120-volt electrical connection.

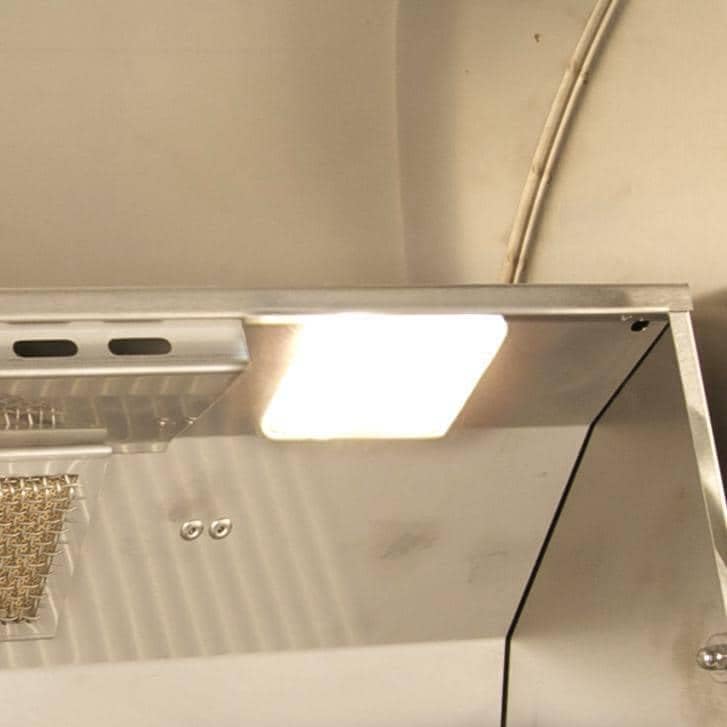

Figure 3: Interior halogen lighting illuminates the cooking surface for evening use.

Figure 4: Backlit control knobs provide visibility and precise temperature control in low light conditions.

5. Manutenção e Cuidados

A limpeza e a manutenção regulares garantirão a longevidade e o desempenho ideal da sua churrasqueira AOG.

5.1 Cleaning Cooking Grids

After each use, once the grill has cooled, clean the stainless steel cooking grids with a grill brush. For stubborn residue, use warm soapy water and a non-abrasive scrubber.

Figure 5: Durable stainless steel cooking grids for consistent grilling results.

5.2 Cleaning Vaporizer Panels

The stainless steel vaporizer panels (also known as flame tamers) help distribute heat evenly and minimize flare-ups. Periodically remove and clean them to prevent grease buildup. Use a plastic scraper or brush to remove debris.

Figure 6: Stainless steel vaporizer panels ensure even heat distribution and reduce flare-ups.

5.3 Limpeza do Exterior

Clean the stainless steel exterior with a mild detergent and warm water. Wipe in the direction of the grain to avoid scratching. Avoid abrasive cleaners or steel wool, which can damage the finish.

5.4 Sistema de Gerenciamento de Graxa

The funneled grease management system with a slide-out drip tray simplifies cleanup. Regularly empty and clean the drip tray to prevent grease fires and maintain hygiene.

5.5 Preparação para o inverno e armazenamento

If the grill will not be used for an extended period, especially in cold climates, disconnect the gas supply, clean the grill thoroughly, and cover it with a protective grill cover. Store the propane tank in a well-ventilated outdoor area, away from direct sunlight and heat sources.

6. Solução De Problemas

This section addresses common issues you might encounter with your grill. For problems not listed here, contact a qualified service technician.

7. Especificações

8. Garantia e Suporte

AOG products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty details, including coverage periods and terms, please refer to the warranty card included with your product or visit the official AOG website.

For technical support, replacement parts, or service inquiries, please contact your authorized AOG dealer or the manufacturer's customer service department. Ensure you have your model number (30PBL) and proof of purchase available when contacting support.
