Manual de Instruções do Congelador Horizontal Arctic King de 5.0 pés cúbicos

Introdução

Thank you for choosing the Arctic King 5.0 cu.ft. Deep Chest Freezer. This manual provides important information regarding the installation, operation, and maintenance of your new appliance. Please read this manual thoroughly before using the freezer to ensure safe and efficient operation. This freezer is designed to be garage-ready, tested to perform reliably in temperatures ranging from 0°F to 110°F.

Informações de segurança

AVISO: Para reduzir o risco de incêndio, choque elétrico ou ferimentos ao usar seu aparelho, siga estas precauções básicas:

• Leia todas as instruções antes de usar o freezer.
• Conecte somente a uma tomada devidamente aterrada.
• Não remova o pino de aterramento.
• Não utilize um adaptador.
• Não utilize extensão.
• Unplug the freezer before cleaning or making repairs.
• Use um limpador não inflamável.
• Não armazene substâncias explosivas, como latas de aerossol com propulsores inflamáveis, neste aparelho.
• Não opere na presença de vapores explosivos.
• Garanta ventilação adequada ao redor da unidade.
• Mantenha as aberturas de ventilação no gabinete do aparelho ou na estrutura embutida livres de obstruções.
• Não danifique o circuito refrigerante.
• Não utilize aparelhos elétricos dentro dos compartimentos de armazenamento de alimentos do aparelho, a menos que sejam do tipo recomendado pelo fabricante.

Configurar

1. Desembalagem:

   Carefully remove all packaging materials, including the base cushion and any adhesive tape. Inspect the freezer for any damage. If damage is found, contact your retailer immediately. It is recommended to keep the packaging materials for future transport or storage.

2. Colocação:

   Place the freezer on a flat, stable surface strong enough to support the unit when fully loaded. Ensure there is adequate air circulation around the freezer. Allow at least 4 inches (10 cm) of space on the sides and back, and 12 inches (30 cm) above the unit for proper ventilation. This freezer is designed to operate efficiently in garage environments with temperatures between 0°F and 110°F.



   Image: Arctic King chest freezer positioned in a garage, demonstrating suitable placement with surrounding space.

3. Nivelamento:

   The freezer has leveling legs at the bottom. Adjust these legs to ensure the unit is perfectly level. A level freezer operates more efficiently and reduces vibration.

4. Inicialização do sistema:

   After placing and leveling the freezer, wait at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle. Plug the freezer into a dedicated 110V grounded electrical outlet. Do not use extension cords or adapters. Allow the freezer to run empty for 24 hours to reach its optimal operating temperature before loading food.

Instruções de operação

Controle de temperatura

The temperature control dial is located on the front lower right side of the freezer. It is a manual dial with settings that typically range from 'Min' to 'Max' or numerical values indicating colder settings. There is no digital temperature display.

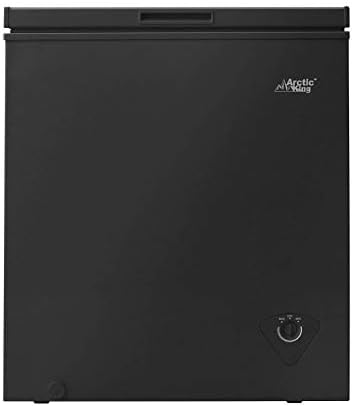

Imagem: Frente view of the freezer highlighting the manual temperature control dial.

• Turn the dial to adjust the internal temperature. Higher settings (e.g., 'Max' or higher numbers) will result in colder temperatures.
• Monitor the internal temperature with a separate freezer thermometer for precise control, as the dial does not indicate specific degrees.

Carregando o freezer

Once the freezer has reached its operating temperature, you can begin loading food. The 5.0 cu.ft capacity provides ample storage. The freezer includes a removable wire basket for organizing smaller or frequently accessed items.

Image: The freezer with its lid open, showing the interior filled with frozen goods and the convenient wire basket.

• Distribute food evenly to allow for proper air circulation.
• Avoid overloading the freezer, as this can hinder cooling efficiency.
• Use the wire basket for items you need to access easily without digging through the main compartment.

Manutenção

Limpeza

• Desligue sempre o congelador da tomada antes de limpá-lo.
• Limpe o interior com uma solução de detergente neutro e água morna. Seque bem.
• Limpe o exterior com um pano macio e detergente neutro.
• Do not use harsh chemicals, abrasive cleaners, or sharp objects, as they can damage the surfaces.
• Regularly vacuum or wipe the condenser coils at the back of the freezer to ensure efficient operation.

Descongelamento

This is a manual defrost freezer. Frost buildup on the interior walls is normal and should be removed periodically to maintain efficiency.

1. Preparação:

   Unplug the freezer. Remove all food items and store them in another freezer or cooler to keep them frozen. Remove the wire basket.

2. Processo de descongelamento:

   Leave the lid open to allow the frost to melt naturally. You can place towels at the bottom to absorb water. For faster defrosting, place bowls of hot water inside the freezer (ensure they are heat-safe). Do NOT use sharp objects or electric heaters to remove frost, as this can damage the cooling system. A plastic scraper is typically included for safe frost removal.

3. Cleaning and Restart:

   Once all frost has melted, clean and dry the interior thoroughly. Close the lid, plug the freezer back in, and allow it to cool down for several hours before returning food items.

Solução de problemas

Especificações

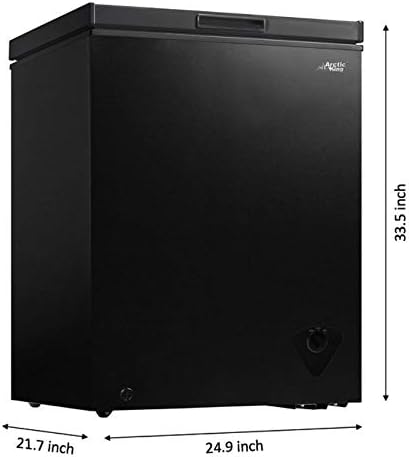

Image: Detailed dimensions of the Arctic King 5.0 cu.ft. Deep Chest Freezer.

Garantia e Suporte

Specific warranty details for your Arctic King 5.0 cu.ft. Deep Chest Freezer are typically provided with the product documentation at the time of purchase. Please refer to the warranty card or the full user manual included in your product packaging for comprehensive information regarding coverage, terms, and conditions.

For technical support, service inquiries, or to purchase replacement parts, please contact Arctic King customer service. Contact information can usually be found on the manufacturer's official website or on the product's rating label.

Note: Always have your model number (ARC050S0ARAB) and serial number ready when contacting customer service.
