Rademacher RolloTube C-line Medium Tubular Motor (CLIM 50/12PZ) Instruction Manual

1. Produto acabadoview

The Rademacher RolloTube C-line Medium (CLIM 50/12PZ) is a tubular motor designed for roller shutters. This motor features a self-learning function for automatic endpoint adjustment, a soft stop mechanism, and precise position and torque monitoring. It includes integrated blocking detection to protect the roller shutter system from damage.

Os principais recursos incluem:

• Self-Learning Setup: Automatic endpoint adjustment when used with rigid shaft connectors and stoppers.
• Manual Endpoint Adjustment: Option to set endpoints manually via a setting button and supply cable.
• Proteção do sistema: Soft stop function and integrated blocking detection in both directions.
• Parallel Switching: The motor supports parallel switching for multiple units.
• Instalação sem ferramentas: Features a lockable universal motor head for easy, tool-free installation and high compatibility.
• Pluggable Cable: Equipped with a 2.5 m PVC connection cable; additional lengths (5 m, 10 m) are available separately.
• Operação flexível: Compatible with timers, radio actuators, or standard roller shutter switches.

Image 1.1: Rademacher RolloTube C-line Medium Tubular Motor.

2. Conteúdo da embalagem

Verify that all components listed below are included in your package. If any parts are missing or damaged, contact your supplier.

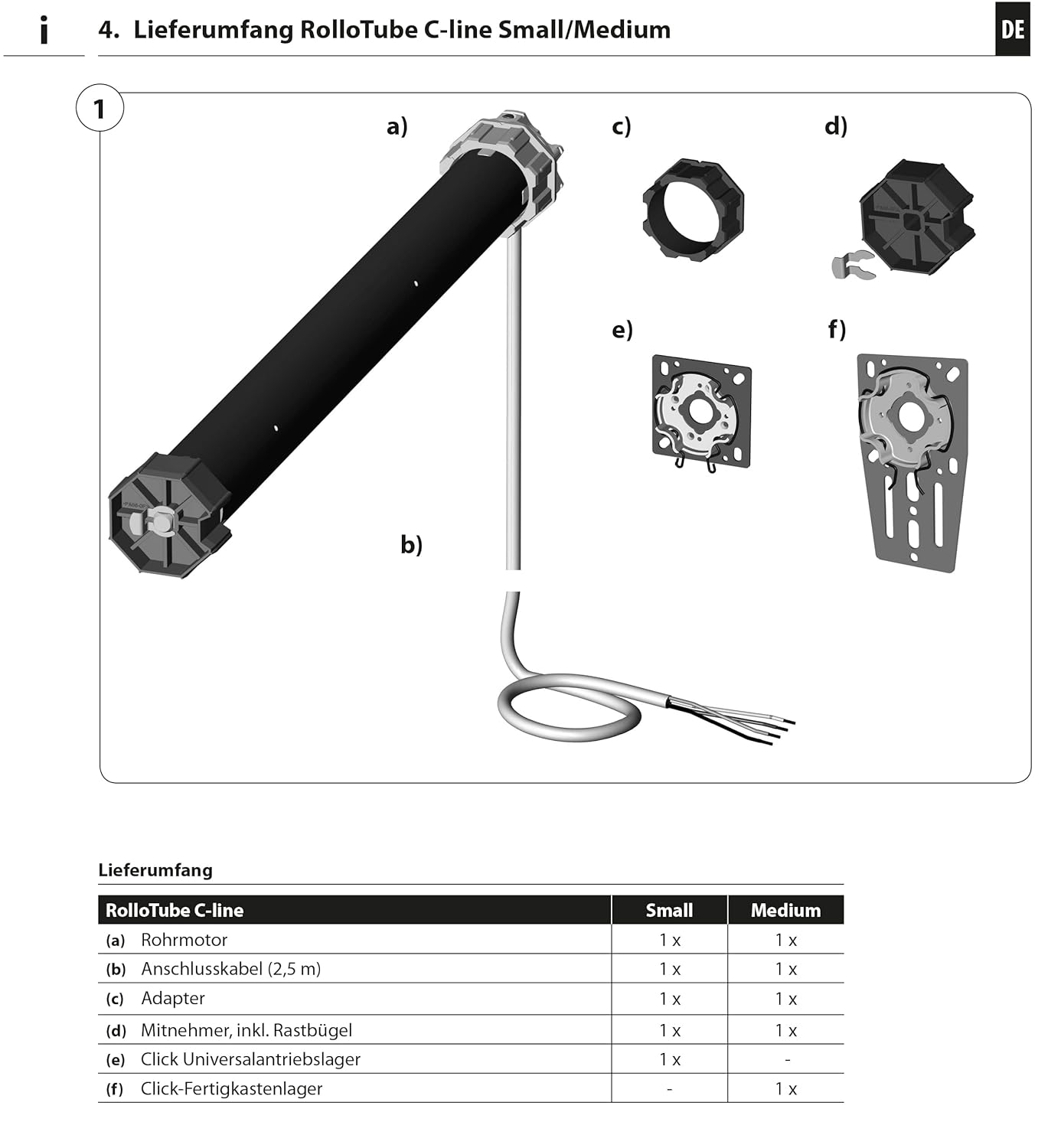

Image 2.1: Illustration of RolloTube C-line package contents.

3. Instruções de segurança

• Segurança elétrica: Installation and electrical connections must be performed by a qualified electrician in accordance with local regulations. Disconnect power before any installation or maintenance work.
• Uso pretendido: This motor is designed exclusively for driving roller shutters. Any other use is considered improper.
• Crianças e animais de estimação: Keep children and pets away from the operating area of the roller shutter.
• Obstruções: Ensure the roller shutter path is clear of obstructions before operation. The integrated blocking detection helps prevent damage, but manual inspection is always recommended.
• Dano: Do not operate the motor if it or the power cable is visibly damaged.
• Modificações: Do not attempt to modify the motor or its components. Unauthorized modifications can lead to hazards and void the warranty.

4. Instalação e configuração

4.1 Montagem do motor

1. Insert the tubular motor into the roller shutter shaft. Ensure a secure fit using the provided adapter and driver components.
2. Mount the shaft with the motor into the roller shutter box using the Click Ready-Box Bearing and other necessary mounting hardware. The universal motor head allows for tool-free installation in many standard systems.
3. Connect the motor's pluggable connection cable to the electrical supply. Ensure the power supply is off during connection.

4.2 Endpoint Adjustment

The RolloTube C-line Medium offers both automatic and manual endpoint adjustment.

Automatic Endpoint Adjustment (Recommended)

For systems using rigid shaft connectors and stoppers/stopper strips, the motor can self-learn its endpoints:

1. Ensure the roller shutter is fully lowered and the stoppers are correctly installed.
2. Apply power to the motor. The motor will perform a series of movements to detect the upper and lower endpoints automatically.
3. Observe the motor's movement. Once the self-learning process is complete, the motor will stop at the detected endpoints.

Manual Endpoint Adjustment

If automatic adjustment is not suitable or preferred, endpoints can be set manually:

1. Refer to the detailed instructions provided with your specific control unit (timer, switch, or radio actuator) for manual setting procedures.
2. Typically, this involves pressing a setting button on the motor or control unit and moving the shutter to the desired upper and lower limits, then confirming the positions.

5. Operação

The RolloTube C-line Medium motor can be operated using various control devices:

• Standard Roller Shutter Switches: Use a conventional up/down switch to control the movement of the roller shutter.
• Temporizadores: Program a compatible timer to automatically open and close your roller shutters at set times.
• Radio Actuators: Integrate the motor into a radio-controlled smart home system for remote operation via a remote control or smartphone app (requires compatible radio actuator).

Always ensure the path of the roller shutter is clear before initiating movement.

6. Manutenção

The Rademacher RolloTube C-line Medium motor is designed for long-term, maintenance-free operation. However, periodic checks are recommended:

• Limpeza: Keep the roller shutter and its guides clean from dirt and debris to ensure smooth operation. Do not use abrasive cleaners on the motor housing.
• Inspeção: Periodically inspect the roller shutter system for any signs of wear, damage, or loose connections.
• Verificação do cabo: Ensure the connection cable is not pinched, frayed, or damaged.
• Serviço profissional: For any internal motor issues or complex repairs, contact a qualified service technician. Do not attempt to open the motor housing.

7. Solução De Problemas

If troubleshooting steps do not resolve the issue, contact Rademacher customer support or a qualified technician.

8. Especificações técnicas

The following table provides detailed technical data for the Rademacher RolloTube C-line Medium (CLIM 50/12PZ) motor:

Image 8.1: Technical data for RolloTube C-line motors.

• Dimensões do produto: 54.6 x 4.5 x 4.5 cm
• Peso: 3.33 kg

9. Garantia e Suporte

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact Rademacher customer service or visit the official Rademacher website.

Fabricante: Rademacher

Número do modelo: CLIM 50/12PZ
