1. Introdução
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Summit Appliance ARS49ML Pharma-Vac Performance Series Refrigerator. Please read this manual thoroughly before operating the appliance and retain it for future reference.
The ARS49ML is a 49 cu.ft. upright pharmacy all-refrigerator designed for demanding life science, vaccine, laboratory, and medical cold storage applications, ensuring precise temperature control and stability.
2. Informações de segurança
AVISO: Para reduzir o risco de incêndio, choque elétrico ou ferimentos ao usar seu aparelho, siga estas precauções básicas:
- Leia todas as instruções antes de usar o aparelho.
- Não armazene substâncias explosivas, como latas de aerossol com propulsores inflamáveis, neste aparelho.
- Este aparelho deve ser instalado e localizado corretamente de acordo com as instruções de instalação antes de ser usado.
- Connect to a properly grounded outlet only. See 'Grounding Instructions' in the installation section.
- Nunca desligue o seu aparelho puxando pelo cabo de alimentação. Sempre segure o plugue com firmeza e puxe-o para fora da tomada.
- Desligue o seu aparelho antes de limpar ou fazer qualquer reparo.
- Não utilize dispositivos mecânicos ou outros meios para acelerar o processo de descongelamento, além daqueles recomendados pelo fabricante.
- Não danifique o circuito refrigerante.
- Não utilize aparelhos elétricos dentro dos compartimentos de armazenamento de alimentos do aparelho, a menos que sejam do tipo recomendado pelo fabricante.
- Garanta ventilação adequada ao redor da unidade.
3. Produto acabadoview

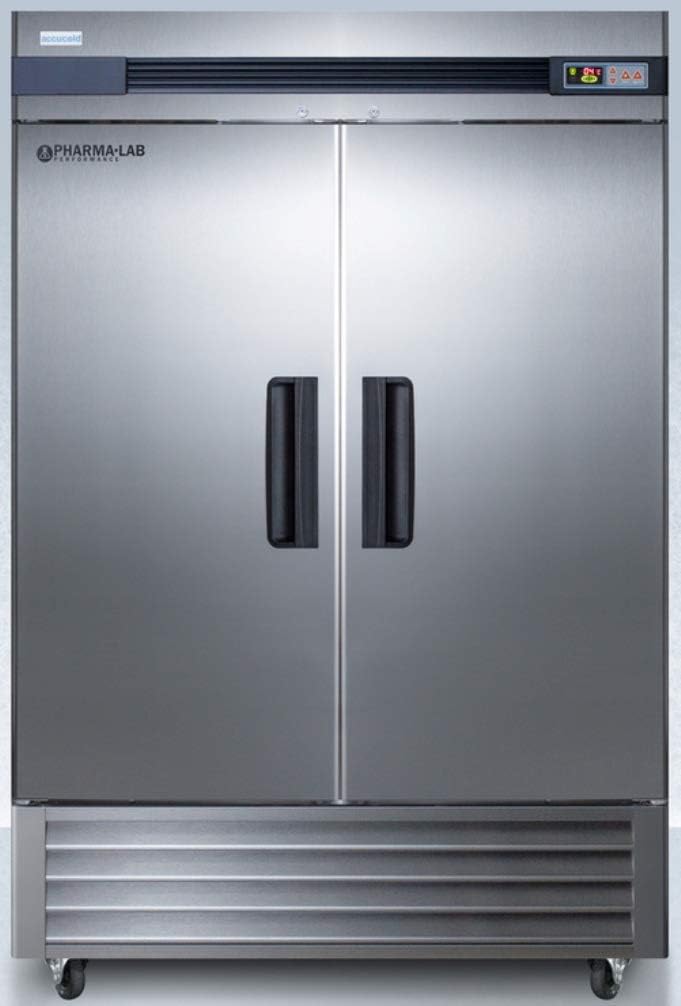

The Summit Appliance ARS49ML features a robust stainless steel exterior and interior, designed for durability and easy cleaning. It includes a sophisticated digital temperature controller and optimized forced air cooling for superior performance.
4. Instalação
4.1 Localização
Choose a location with a strong, level floor capable of supporting the refrigerator's weight (410 lbs. empty, plus contents). Ensure adequate air circulation around the unit. Avoid direct sunlight or heat sources. Maintain at least 4 inches of clearance from walls at the back and sides for proper ventilation.
4.2 Nivelamento
The refrigerator is equipped with wheels for easy movement. Once in its final position, ensure the unit is level to prevent door misalignment and ensure proper operation. Use a level and adjust the leveling feet (if present, or use shims under wheels if necessary) until the appliance is stable and level.
4.3 Conexão elétrica
Before plugging in the appliance, ensure the electrical supply matches the specifications: 115V AC/60Hz, 7.5 Amps. The appliance must be properly grounded to reduce the risk of electrical shock. Do not use extension cords or ungrounded adapters.
4.4 Inicialização inicial
After installation, allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, allow the unit to operate empty for several hours (e.g., 24 hours) to reach its stable operating temperature before loading products.
5. Operação

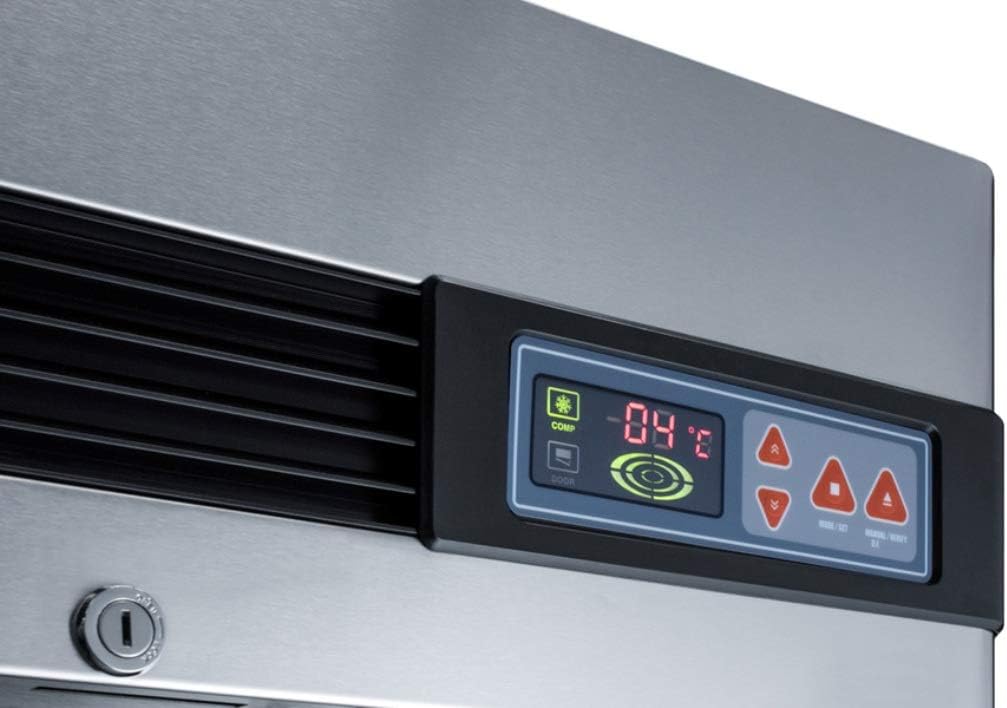

5.1 Digital Temperature Controller
The ARS49ML features an intelligent microprocessor digital temperature controller. The operating control range is adjustable from +2°C to +10°C (+35.6°F to +50°F).
- Exibição de temperatura: The digital display shows the current internal temperature. It can be viewed in Celsius or Fahrenheit to the nearest degree.
- Temperatura Mín./Máx: The controller tracks and displays the minimum and maximum temperatures recorded, updated in 15-minute increments. Consult the controller's specific instructions for accessing min/max readings.
- Sonda de temperatura: A separate temperature probe provides continuous product readout for improved accuracy. An additional sensor reads interior air temperature for superior control.
5.2 Ajuste de temperatura
Refer to the specific instructions provided with the digital controller for detailed steps on how to adjust the set temperature. Generally, this involves pressing a 'SET' button and using arrow keys to increase or decrease the desired temperature.
5.3 Alarmes
The unit is equipped with audible and visual alarms for high/low temperature excursions. If an alarm sounds, check the temperature display and take appropriate action to correct the issue. Consult the controller's manual for alarm silencing and reset procedures.

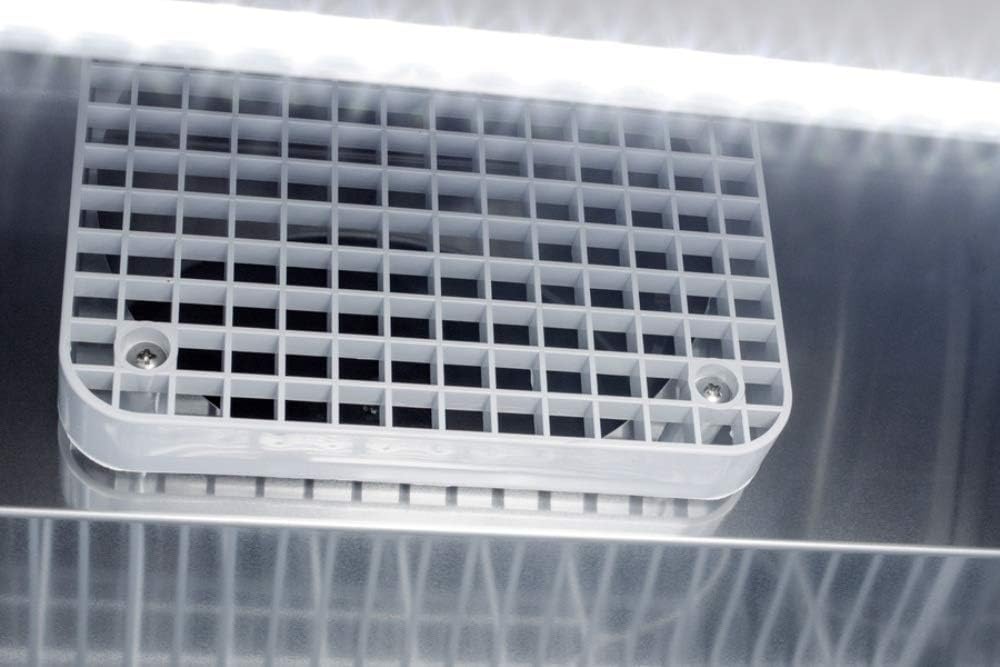

5.4 Forced Air Cooling
The optimized forced air cooling system ensures excellent temperature stability and uniformity throughout the cabinet. This system also facilitates rapid temperature recovery after door openings and product loading, minimizing temperature fluctuations.

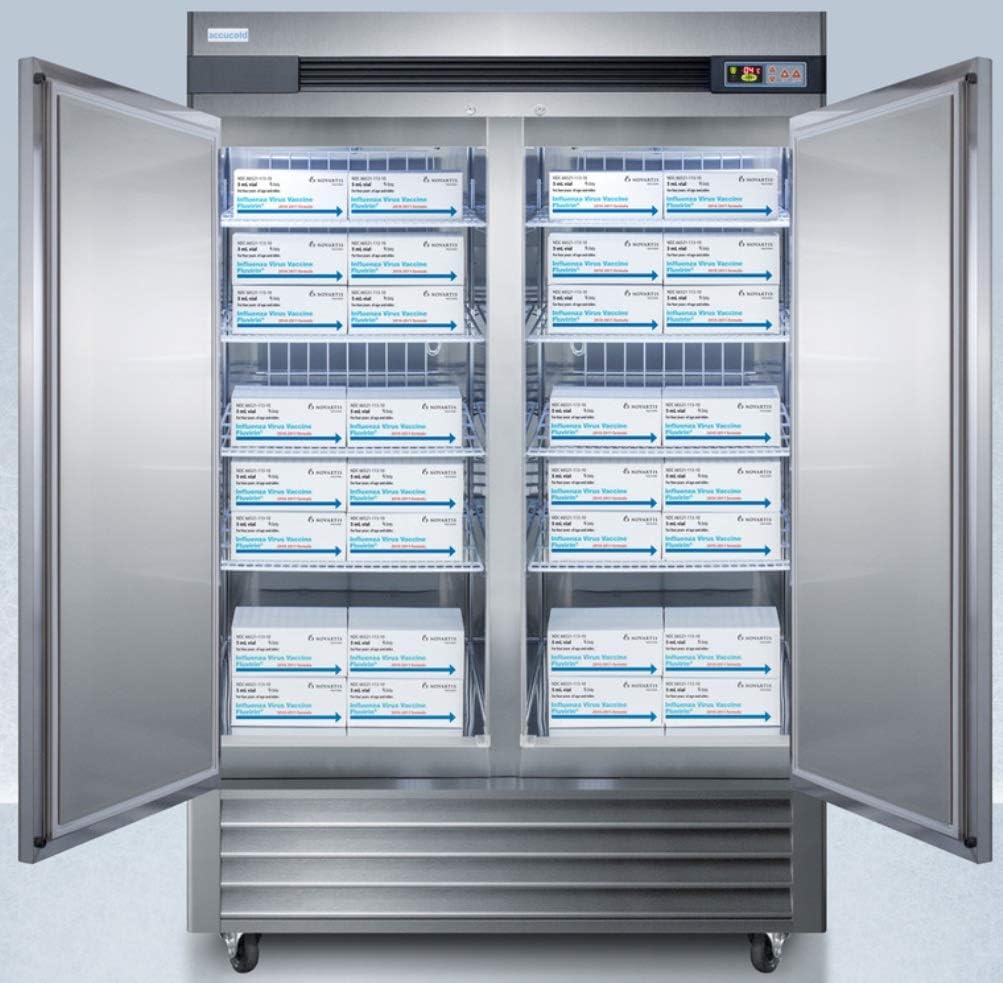

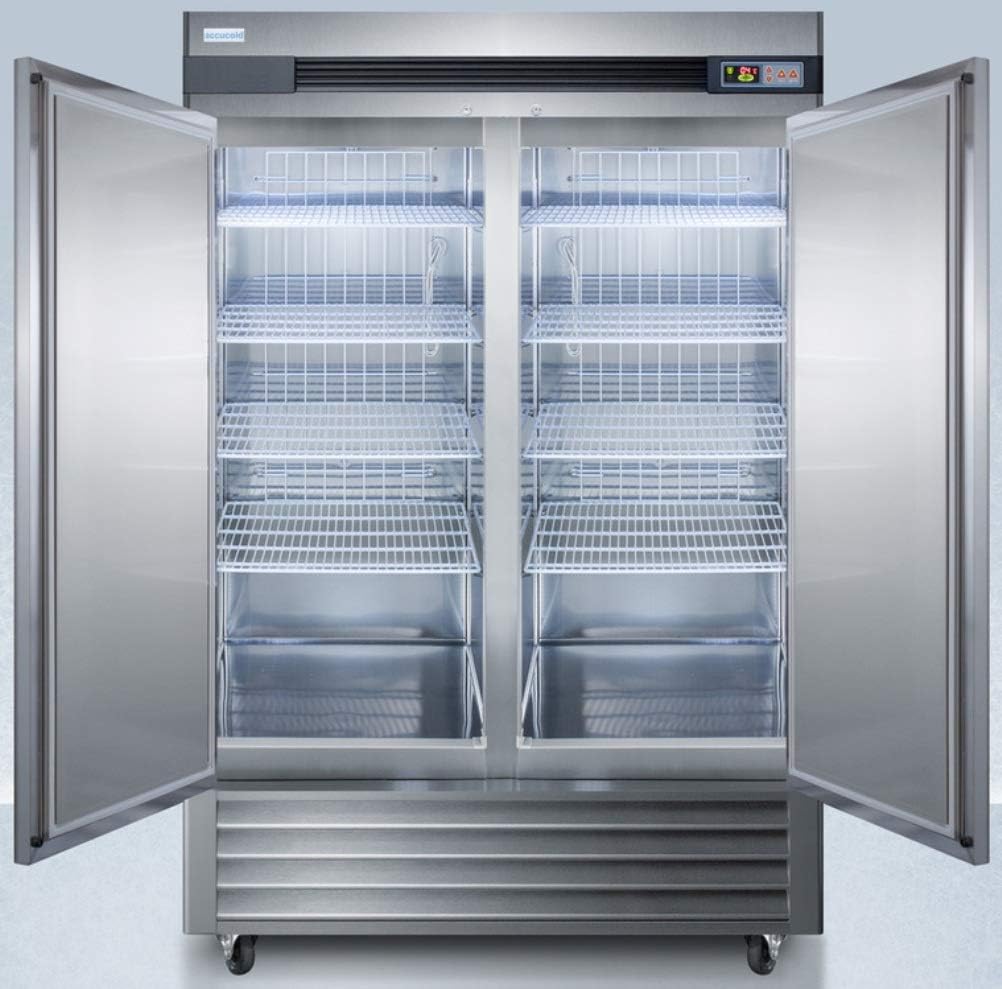

5.5 Carregando Produtos
When loading products, distribute them evenly on the wire shelves to allow for proper air circulation. Avoid blocking the air vents. The adjustable shelves allow for flexible storage configurations.
6. Manutenção
6.1 Limpeza
Regular cleaning of your refrigerator will help maintain its appearance and efficiency. Always unplug the unit before cleaning.
- Interior: Clean the interior surfaces and wire shelves with a mild detergent and warm water solution. Rinse thoroughly and dry with a soft cloth. Do not use abrasive cleaners or sharp objects.
- Exterior: Wipe down the stainless steel exterior with a soft cloth and a stainless steel cleaner or mild soap and water. Avoid harsh chemicals that can damage the finish.
- Serpentinas do condensador: Periodically clean the condenser coils (located at the bottom/rear of the unit) to ensure efficient operation. Use a vacuum cleaner or brush to remove dust and debris.
6.2 Descongelamento
The ARS49ML features an automatic defrost system. This means that frost buildup on the evaporator coils is periodically melted and drained, eliminating the need for manual defrosting. Ensure the drain pan is clear and not obstructed.
7. Solução De Problemas
Antes de entrar em contato com o serviço de atendimento ao cliente, verifique os seguintes problemas comuns:
| Problema | Possível causa | Solução |
|---|---|---|
| O refrigerador não funciona | Not plugged in; Circuit breaker tripped/fuse blown; Power switch off | Ensure plug is secure; Reset breaker/replace fuse; Turn power switch on |
| A temperatura está muito quente | Door left open; Door gasket faulty; Excessive door openings; Unit overloaded; Poor ventilation; Set temperature too high | Close door fully; Check/replace gasket; Reduce door openings; Do not overload; Ensure proper clearance; Adjust set temperature lower |
| Ruído excessivo | Unit not level; Objects vibrating against unit; Fan obstruction | Level the unit; Remove vibrating objects; Check for fan obstruction |
| Alarme soando | High/low temperature excursion; Door ajar | Check temperature and product integrity; Ensure door is fully closed; Consult controller manual for alarm reset |
8. Especificações
| Recurso | Especificação |
|---|---|
| Modelo | ARS49ML |
| Marca | Accucold (Summit Appliance) |
| Capacidade | 49 cu.ft. |
| Dimensões (A x L x P) | 83.75" x 55.25" x 31" |
| Profundidade com Alça | 32.75" |
| Profundidade com porta a 90° | 56.5" |
| Dimensões internas (A x L x P) | 51.5" x 50.5" x 27" |
| Weight (Net/Shipping) | 410 libras / 430 libras |
| Tipo de degelo | Automático |
| Material da porta/armário | Aço inoxidável |
| Electrical (Voltage/Frequência/Amps) | 115 V CA / 60 Hz / 7.5 A |
| Tipo de termostato | Digital |
| Tipo de refrigerante | R290a |
| Shelf Type / Quantity | Wire / 8 (Adjustable) |
| Certificações de Segurança | UL, ULC, ETL-S |
| Rodas | 4 |
9. Garantia e Suporte ao Cliente
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Accucold/Summit Appliance website. For immediate assistance, you may contact the seller, VetSupplyOnline, through the Amazon platform. Please retain your proof of purchase for any warranty claims.
Retornos: This product is eligible for 30-day easy returns as per Amazon's policy.
