EXERPEUTIC Indoor Cycling Bike

1. Introdução

Thank you for choosing the EXERPEUTIC Indoor Cycling Bike, Model 4208E. This manual provides essential information for the safe assembly, setup, operation, and maintenance of your new fitness equipment. Please read all instructions carefully before use to ensure your safety and the optimal performance of the bike. This bike is designed for indoor use and integrates with the MyCloudFitness application for enhanced workout tracking and programs.

Figura 1: Overview of the EXERPEUTIC Indoor Cycling Bike, Model 4208E.

2. Informações de segurança

Your safety is paramount. Adhere to the following guidelines to prevent injury and ensure safe operation of the cycling bike:

• Leia todas as instruções: Before assembling or operating the bike, read and understand the entire manual.
• User Weight and Height: The maximum user weight capacity is 100 kg (220 lbs). Recommended user height is between 1.52 m (5'0") and 1.87 m (6'2").
• Medical Check-up: Consulte seu médico antes de iniciar qualquer programa de exercícios.
• Vestuário adequado: Use roupas e calçados esportivos adequados para exercícios. Evite roupas largas que possam ficar presas em partes móveis.
• Área de liberação: Maintain a minimum clearance of 0.6 meters (2 feet) around the bike during use.
• Superfície estável: Place the bike on a solid, level surface. Do not use on uneven ground or thick carpet.
• Crianças e animais de estimação: Keep children and pets away from the equipment during operation. This equipment is not a toy.
• Inspecione antes de usar: Before each use, check all bolts, nuts, and connections to ensure they are securely fastened.
• Parada de emergência: Familiarize yourself with the emergency stop function on the resistance knob.
• Forma adequada: Always maintain proper posture and form during your workout. Stop immediately if you feel pain, dizziness, or shortness of breath.

3. Instruções de montagem

Assembly typically requires two people. Ensure all parts are present before beginning. Tools may be included or required (e.g., wrenches, Allen keys).

3.1. Attach Stabilizers

Attach the front and rear stabilizers to the main frame using the provided bolts and washers. The front stabilizer includes transport wheels.

Figure 2: Front stabilizer with integrated transport wheels.

3.2. Instale os pedais

Identify the left (L) and right (R) pedals. The left pedal typically has a reverse thread. Thread the pedals into the crank arms by hand, then tighten securely with a wrench. Ensure the toe cages are properly oriented.

Figure 3: Aluminum alloy pedals with secure toe cages.

3.3. Attach Seat Post and Seat

Insert the seat post into the frame and secure it with the adjustment knob. Attach the padded seat to the seat post using the provided hardware.

3.4. Install Handlebar Post and Handlebars

Insert the handlebar post into the frame and secure it. Attach the multi-grip handlebars to the handlebar post, ensuring the tablet holder is correctly positioned.

Figure 4: Multi-grip handlebars with integrated tablet/phone holder.

4. Configuração e ajustes

Proper adjustment of the seat and handlebars is crucial for comfort and effective workouts.

4.1. Ajustando o assento

The ergonomic padded seat offers 4-way adjustment (up/down and front/back).

• Ajuste de altura: Loosen the vertical adjustment knob on the seat post. Raise or lower the seat to a comfortable height where your leg has a slight bend at the knee when the pedal is at its lowest point. Tighten the knob securely.

Figure 5: Seat vertical adjustment knob.
• Ajuste Horizontal: Loosen the horizontal adjustment knob located beneath the seat. Slide the seat forward or backward to find a comfortable position relative to the handlebars. Tighten the knob securely.

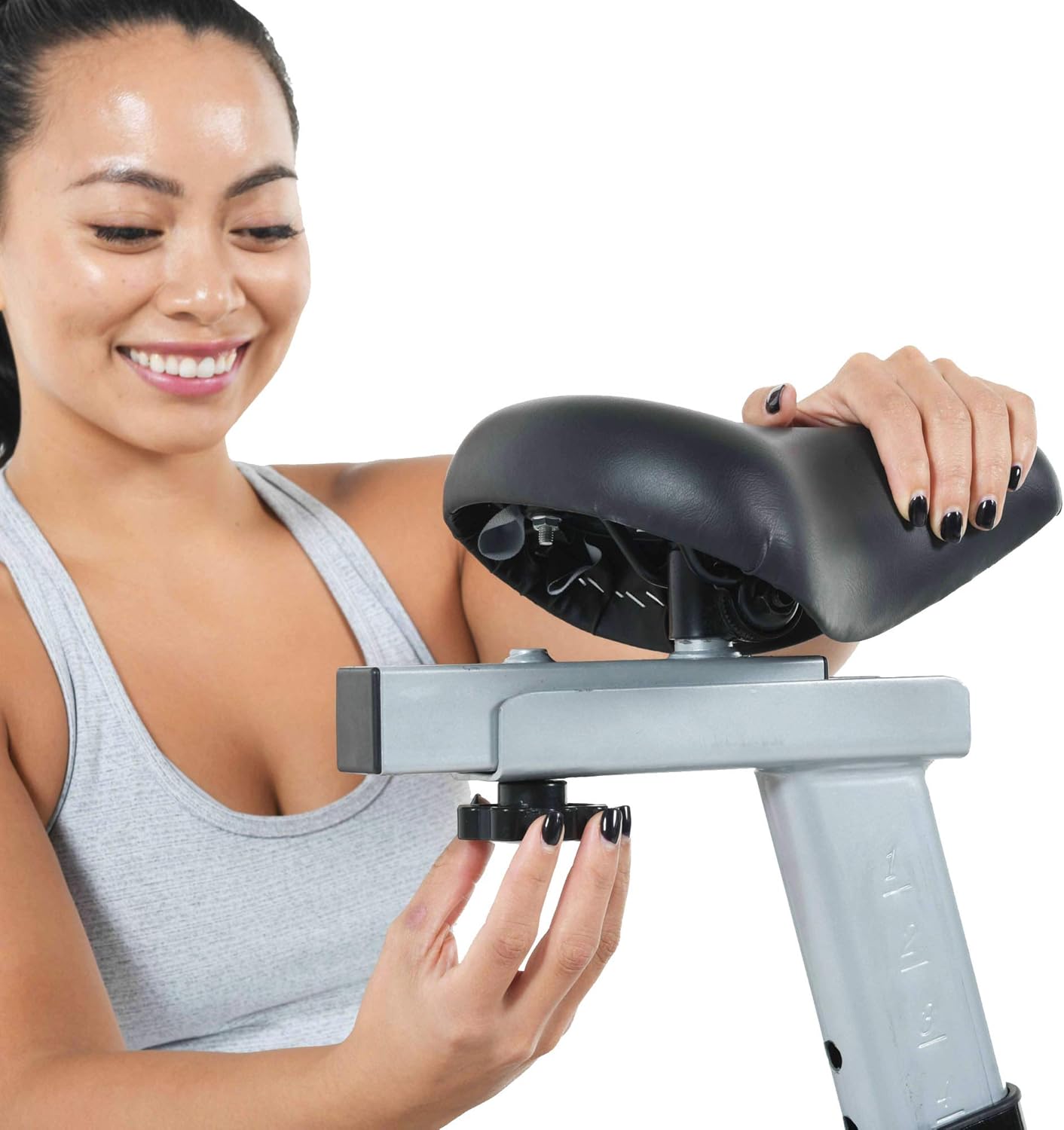

Figure 6: Seat horizontal adjustment mechanism.

4.2. Adjusting the Handlebars

The multi-grip handlebars can be adjusted vertically.

• Loosen the handlebar adjustment knob. Raise or lower the handlebars to a height that allows for a comfortable, slightly forward-leaning posture without straining your back or shoulders. Tighten the knob securely.

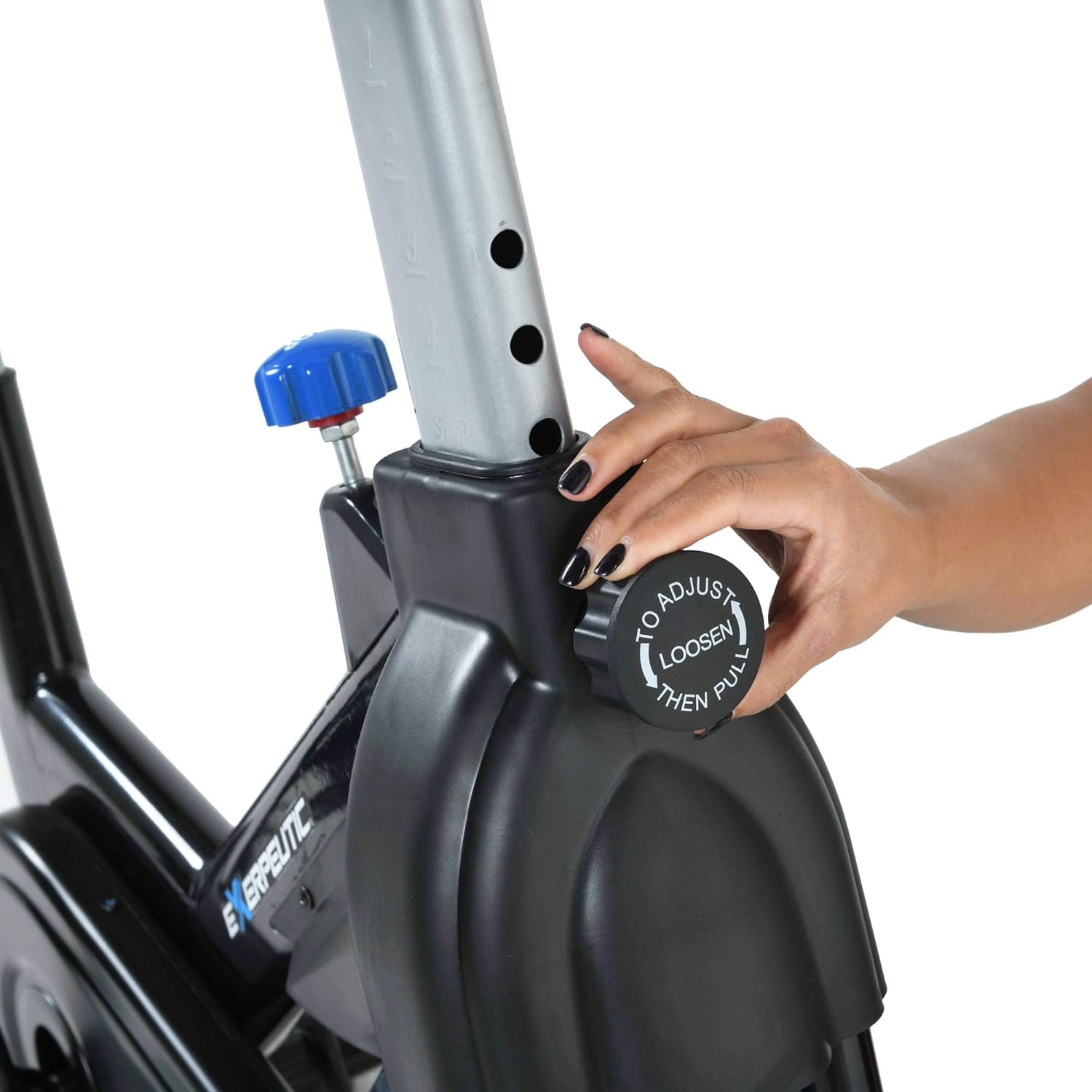

Figure 7: Handlebar height adjustment knob.

5. Instruções de operação

5.1. Iniciando seu treino

• Ensure the bike is on a stable surface and all adjustments are secure.
• Step onto the bike, placing your feet into the toe cages and securing the straps.
• Comece a pedalar em um ritmo confortável.

5.2. Ajustando a resistência

The bike features friction resistance with an 8 kg cast iron flywheel for smooth pedaling.

• Aumentar a resistência: Turn the resistance knob clockwise to increase the pedaling difficulty.
• Diminuir a resistência: Turn the resistance knob counter-clockwise to decrease the pedaling difficulty.
• Parada de emergência: In case of an emergency or to quickly stop the flywheel, press down firmly on the resistance knob.

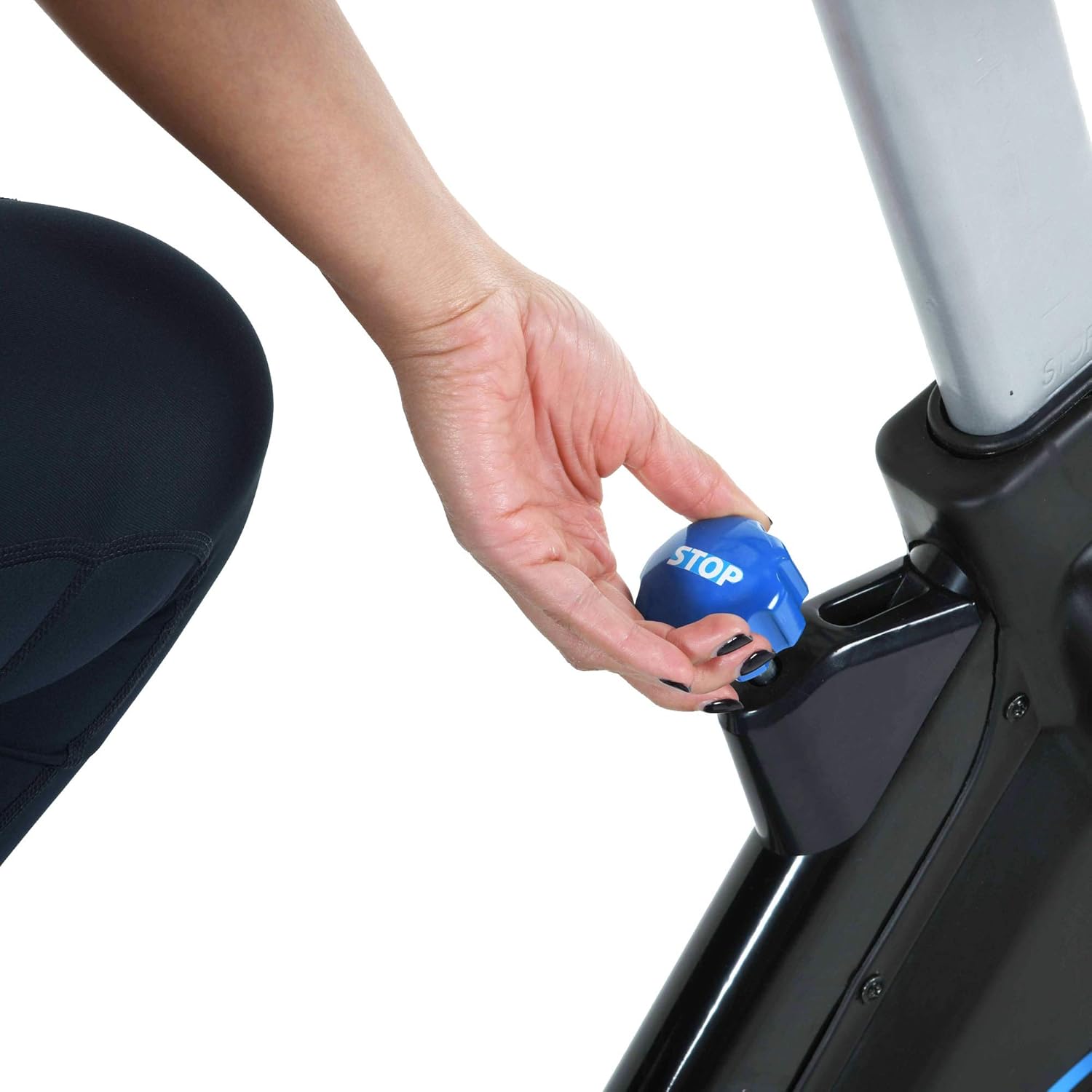

Figure 8: Resistance adjustment knob with push-down emergency stop function.

5.3. Using the MyCloudFitness App

The EXERPEUTIC Indoor Cycling Bike is equipped with smart Bluetooth technology to connect with the free MyCloudFitness app (available on Android and iOS).

• Baixe o aplicativo: Procurar "MyCloudFitness" in your device's app store and install it.
• Conecte-se por Bluetooth: Enable Bluetooth on your device. Open the MyCloudFitness app and follow the on-screen instructions to pair with your EXERPEUTIC bike.
• Acompanhe seu progresso: The app records workout data including time, distance, speed, RPM, and calorie consumption.
• Defina metas: Utilize the app's 3 workout goal settings: time, distance, and calorie consumption.
• Suporte para tablet/celular: Place your device securely in the adjustable holder on the handlebars, which accommodates devices up to 20 cm (7.9 inches) wide.

Figure 9: Adjustable tablet/phone holder for your device.

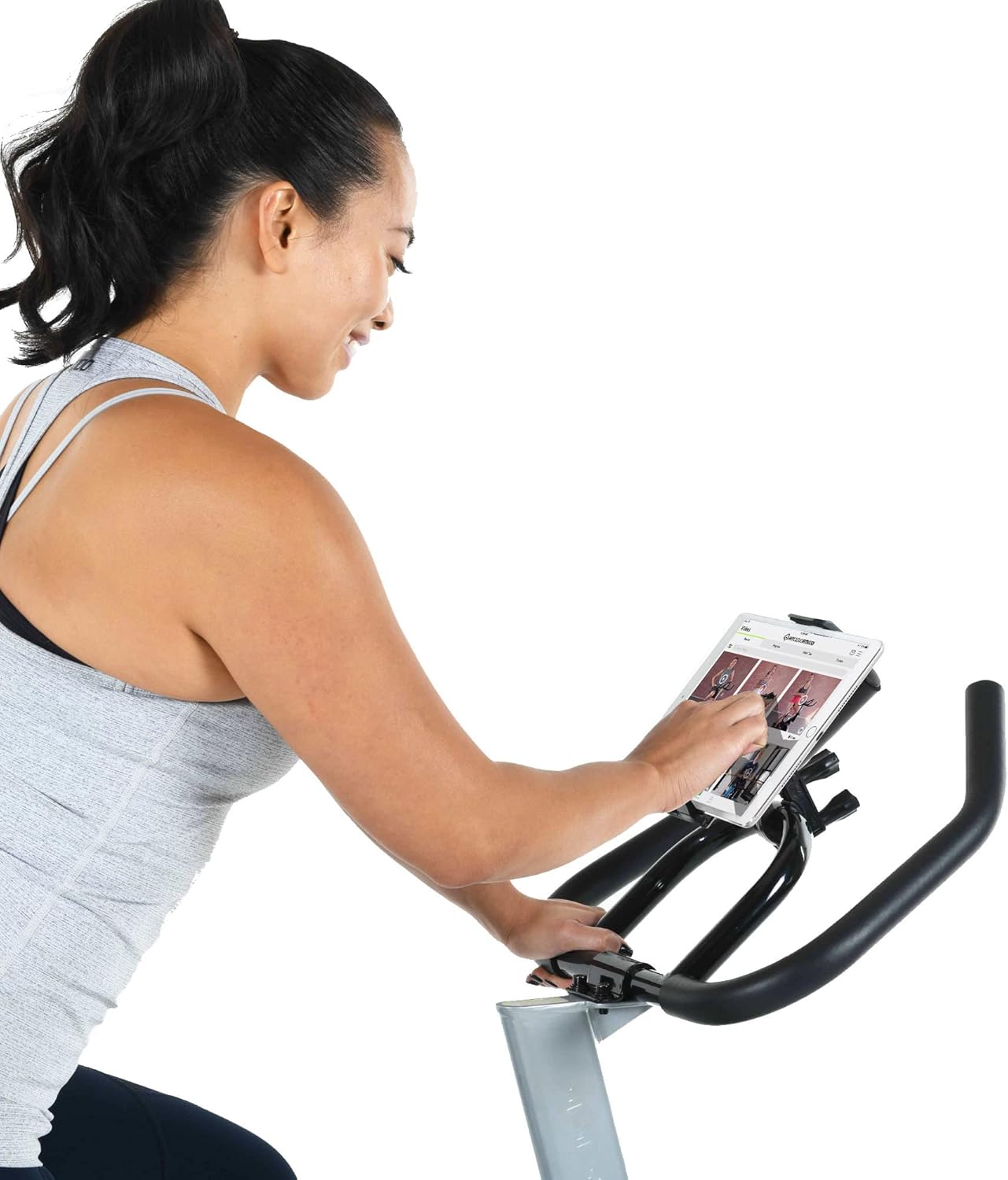

Figure 10: User interacting with the MyCloudFitness app on a tablet while cycling.

6. Manutenção

Regular maintenance ensures the longevity and safe operation of your cycling bike.

• Limpeza: Limpe a bicicleta com anúncioamp Limpe com um pano após cada uso para remover o suor e a poeira. Evite produtos de limpeza abrasivos.
• Verifique os fixadores: Periodically inspect all nuts, bolts, and screws to ensure they are tight. Tighten any loose fasteners.
• Belt Drive Inspection: The belt drive system is generally low maintenance. Check for any signs of wear or damage.
• Lubrificação: No regular lubrication is typically required for the belt drive or friction resistance system. Refer to specific instructions if any squeaking occurs.
• Armazenar: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures. The integrated transport wheels allow for easy relocation.

Figure 11: The bike can be easily moved using its front transport wheels.

7. Solução De Problemas

If you encounter issues with your EXERPEUTIC Indoor Cycling Bike, refer to the table below for common problems and solutions.

8. Especificações do produto

Key specifications for the EXERPEUTIC Indoor Cycling Bike, Model 4208E:

9. Garantia e Suporte

For warranty information, technical support, or to order replacement parts, please refer to the documentation included with your purchase or visit the official EXERPEUTIC webGuarde o comprovante de compra como prova para eventuais solicitações de garantia.
