NorthStar Electric Total Start/Stop Commercial Pressure Washer - User Manual

1. Introdução

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your NorthStar Electric Total Start/Stop Commercial Pressure Washer. This robust unit is designed for demanding cleaning tasks, featuring a powerful electric motor and a high-performance pump to deliver 2000 PSI and 1.5 GPM for effective dirt and grime removal.

Please read this manual thoroughly before operating the pressure washer to ensure proper use and to prevent injury or damage to the equipment. Keep this manual for future reference.

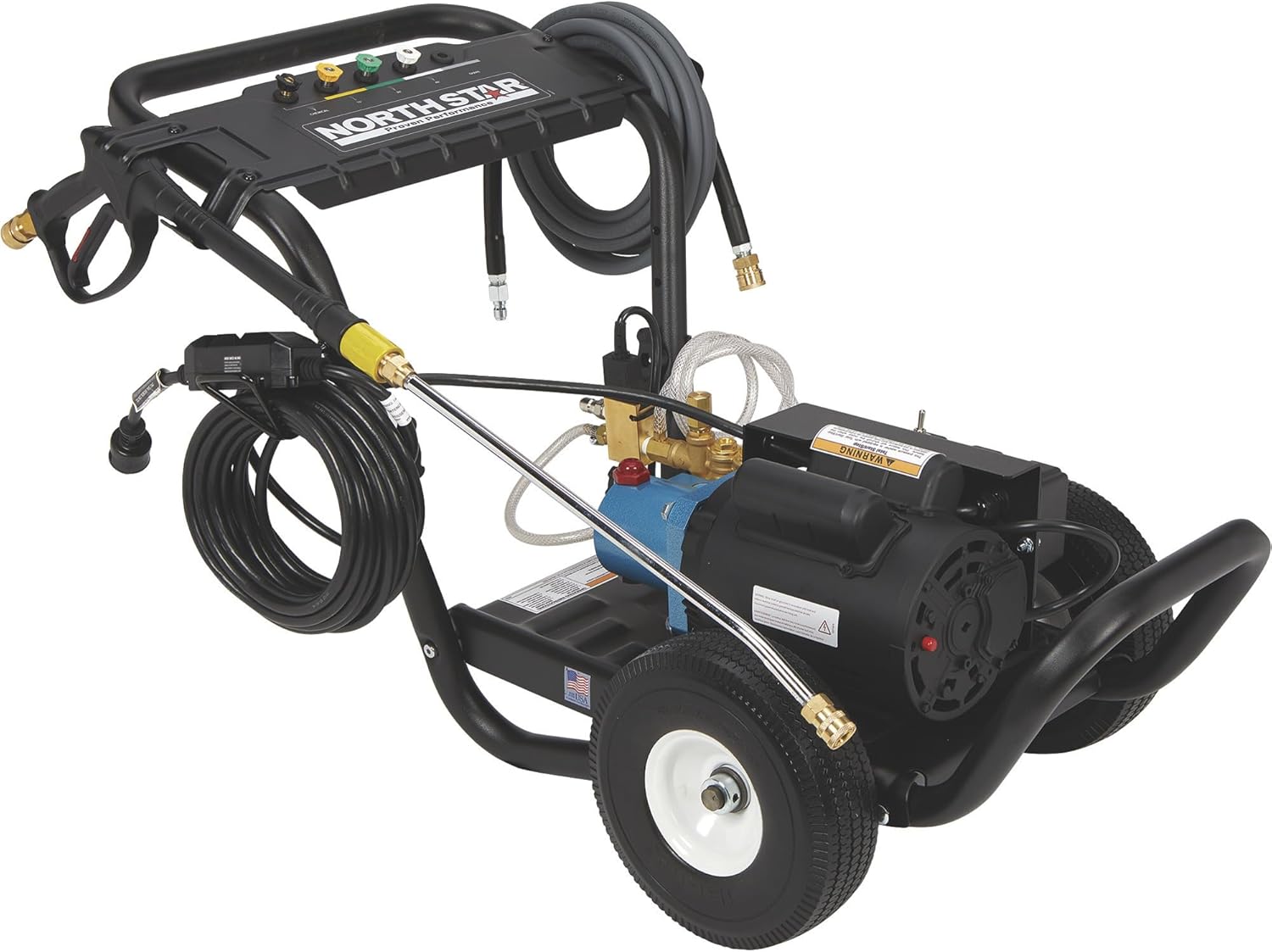

Figure 1: NorthStar Electric Total Start/Stop Commercial Pressure Washer, showing its overall design with hose and gun attached.

2. Informações de segurança

Observe sempre as seguintes precauções de segurança para reduzir o risco de lesões ou danos.

Avisos gerais de segurança

• Leia todas as instruções antes de usar o aparelho.
• Não utilize o aparelho se alguma peça estiver danificada ou faltando.
• Mantenha crianças e animais de estimação afastados da lavadora de alta pressão durante o funcionamento.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and protective footwear.
• Never point the spray gun at people, animals, or electrical devices.
• Certifique-se de que todas as conexões estejam seguras antes de ligar o aparelho.

Segurança elétrica

• Conecte somente a uma tomada aterrada.
• Do not use extension cords unless absolutely necessary, and ensure they are rated for outdoor use and the power requirements of the unit.
• Never operate the pressure washer in standing water.
• Inspecione o cabo de alimentação quanto a danos antes de cada uso.

Segurança de Pressão

• High-pressure spray can cause serious injury. Always hold the spray gun firmly with both hands.
• Never attempt to stop leaks with your hand or body.
• Ensure the trigger lock is engaged when the unit is not in use or when changing nozzles.

3. Configuração

Uma configuração adequada é crucial para uma operação segura e eficaz.

Desembalagem e montagem

1. Retire todos os componentes da embalagem.
2. Attach the handle assembly to the main unit, securing it with the provided hardware.
3. Connect the high-pressure hose to the pump outlet and the spray gun inlet. Ensure connections are tight.
4. Attach the desired nozzle to the spray lance.

Figure 2: Pressure washer fully assembled, ready for water and power connections.

Conectando o abastecimento de água

• Use a garden hose (minimum 5/8 inch diameter) to connect the pressure washer to a cold water source.
• Ensure the water supply is clean and free of debris.
• Turn on the water supply completely to purge air from the system before starting the motor.

Conectando energia

• Ligue o cabo de alimentação a uma tomada elétrica aterrada de 120 volts.
• The unit features a Total Start/Stop system, meaning the motor will only run when the trigger is engaged.

Figure 3: The pressure washer indicating its standard 120 Volts power requirement.

4. Operação

Follow these steps for effective and safe operation.

Iniciando a Unidade

1. Ensure water supply is fully open and the garden hose is connected.
2. Conecte o cabo de alimentação.
3. Squeeze the spray gun trigger to release any trapped air and allow water to flow through the system for about 30 seconds.
4. Release the trigger. The motor will start when the trigger is squeezed again.

Usando bicos

The unit includes 4 quick-connect nozzles (15°, 25°, 40°, and chemical) for various cleaning tasks.

• Bocal de 15°: For intense cleaning of stubborn stains.
• Bocal de 25°: General purpose cleaning.
• Bocal de 40°: For light cleaning of delicate surfaces.
• Chemical Nozzle: Para aplicação de detergentes em baixa pressão.

Figure 4: Pressure washer in use, illustrating the 1.5 GPM high flow rate for efficient cleaning.

Figure 5: Pressure washer in use, demonstrating the 2000 PSI high pressure for tough cleaning tasks.

Aplicando Detergente

1. Fill the detergent tank with pressure washer safe detergent.
2. Attach the chemical nozzle.
3. Squeeze the trigger to apply detergent at low pressure.
4. Após aplicar o detergente, troque para um bico de alta pressão e enxágue bem.

Shutting Down and Storage

1. Desligue o fornecimento de água.
2. Squeeze the spray gun trigger to release residual pressure.
3. Desconecte o cabo de alimentação.
4. Desconecte a mangueira de jardim e a mangueira de alta pressão.
5. Drain all water from the pump and hoses to prevent freezing damage.
6. Store the unit in a dry, protected area.

Figure 6: The pressure washer featuring durable 10-inch flat-free tires for easy mobility.

5. Manutenção

A manutenção regular garante o desempenho ideal e prolonga a vida útil da sua lavadora de alta pressão.

Manutenção da bomba

• Check pump oil level regularly. Refer to the pump manufacturer's instructions for specific oil type and change intervals.
• Inspect the pump for leaks or damage.

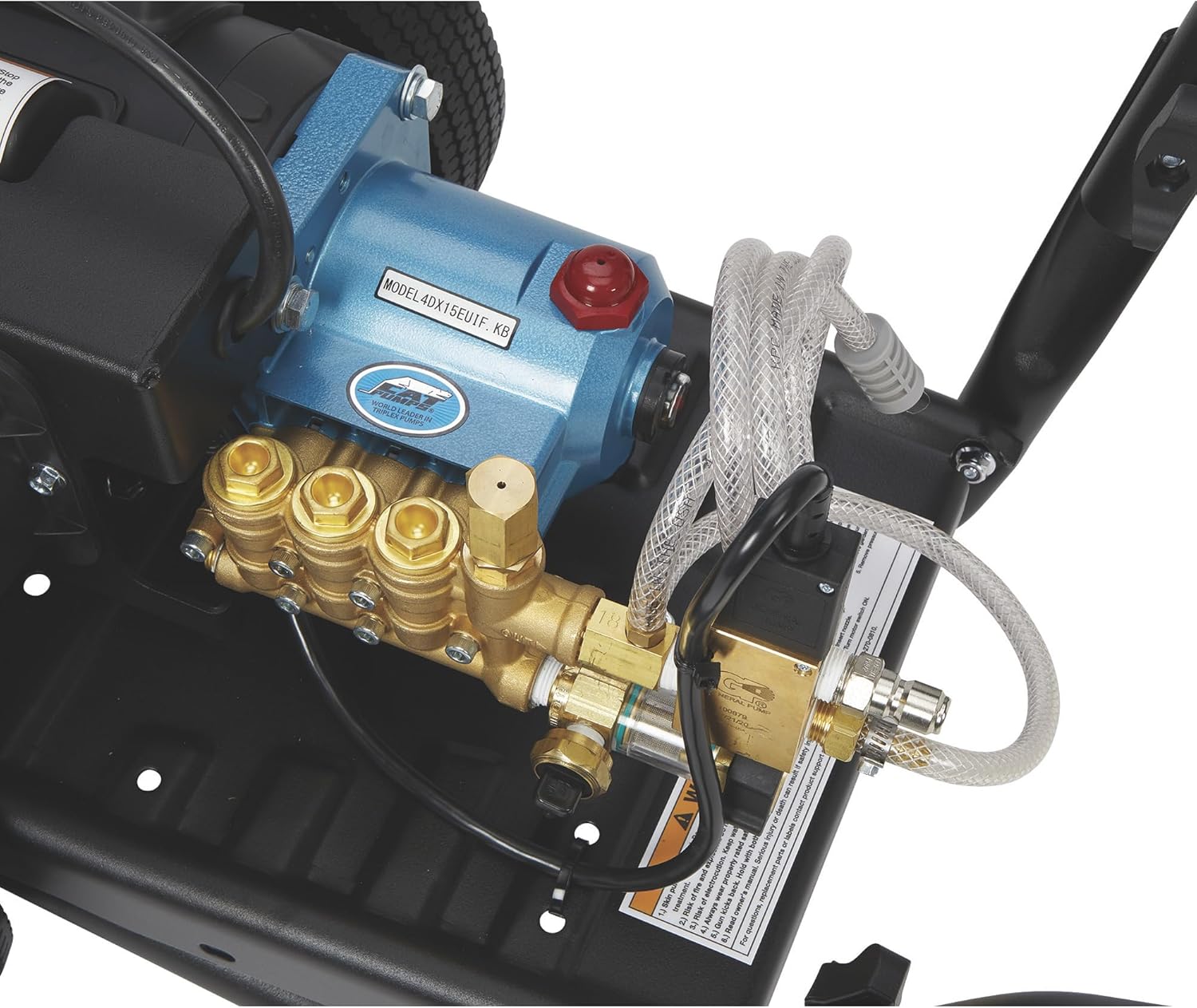

Figura 7: Close view of the CAT 4DX direct drive triplex plunger pump, highlighting its robust construction.

Hose and Nozzle Care

• Inspect the high-pressure hose for cuts, kinks, or abrasions before each use. Replace if damaged.
• Clean nozzles regularly to prevent clogging. Use the provided nozzle cleaning tool if necessary.

Winterização

• If storing in an area where temperatures may drop below freezing, winterize the pump to prevent damage.
• Use a pump protector or RV antifreeze solution according to product instructions.

6. Solução De Problemas

Consulte esta seção para obter soluções para problemas operacionais comuns.

7. Especificações

8. Garantia e Suporte

For warranty information, please refer to the documentation included with your product or visit the official NorthStar website. For technical support, parts, or service inquiries, please contact NorthStar customer support.

Você também pode encontrar recursos adicionais e perguntas frequentes em Loja NorthStar na Amazon.
