Manual de Instruções do Recarregador RollEase Acmeda para Motores CC MTDCB-CHARGE

1. Introdução

This instruction manual provides essential information for the safe and effective use of the RollEase Acmeda MTDCB-CHARGE Recharger. This device is designed to charge RollEase Automate Li-ion DC motors used in window covering applications. Please read this manual thoroughly before operating the recharger and retain it for future reference.

2. Produto acabadoview

The RollEase Acmeda MTDCB-CHARGE is a dedicated recharger for RollEase Automate Li-ion DC motors. It features a 13.1-foot lead for convenient access to motors. The charger is designed for efficiency, typically charging a drained lithium-ion motor within 4 to 8 hours, depending on the motor size.

Figure 2.1: The RollEase Acmeda MTDCB-CHARGE Recharger. This image displays the white charger unit with its attached power cord and charging cable.

Figura 2.2: parte superior view of the recharger, showing the two-prong plug and the coiled charging cable.

3. Informações de segurança

WARNING: To reduce the risk of fire or electric shock, carefully follow these instructions.

• Use this charger only with 12V rechargeable window shade motors as specified by RollEase Acmeda.
• Não exponha o carregador à chuva ou umidade excessiva.
• Não opere o carregador se ele estiver danificado de alguma forma.
• Verifique a voltagem da tomada.tage matches the charger's input specifications (100-240V 50/60Hz).
• Mantenha o carregador longe de fontes de calor e da luz solar direta.
• Não tente desmontar ou modificar o carregador. Encaminhe todos os serviços de manutenção a pessoal qualificado.
• Desconecte o carregador da tomada quando não estiver em uso ou antes de limpá-lo.

Figura 3.1: Lateral view of the recharger, highlighting the warning label indicating use only with 12V rechargeable window shade motors.

4. Configuração

1. Unpack the Recharger: Carefully remove the MTDCB-CHARGE recharger from its packaging.
2. Inspecione quanto a danos: Before use, visually inspect the recharger and its cables for any signs of damage. Do not use if damaged.
3. Preparar o motor: Ensure the RollEase Automate Li-ion DC motor you intend to charge is accessible and its charging port is clean and free of debris.

Figure 4.1: The recharger with its cable neatly coiled, ready for use or storage.

5. Operating Instructions: Charging Process

Follow these steps to charge your RollEase Automate Li-ion DC motor:

1. Conectar ao motor: Plug the charging cable from the MTDCB-CHARGE recharger into the charging port of your RollEase Automate Li-ion DC motor. Ensure a secure connection.
2. Conectar à energia: Plug the recharger's power adapter into a standard 100-240V AC wall outlet.
3. Carregamento do monitor: The motor's indicator light (if present) will typically show the charging status. Refer to your motor's specific manual for details on its charging indicator.
4. Tempo de carregamento: A fully drained motor will typically take 4 to 8 hours to charge completely. Charging time may vary based on motor size and remaining battery level.
5. Desconectar: Once charging is complete (as indicated by the motor or after the recommended charging time), first unplug the recharger from the wall outlet, then disconnect the charging cable from the motor.

Note: The charger is designed to maintain the battery's health. Overcharging is generally prevented by the motor's internal battery management system, but it is good practice to disconnect once fully charged.

6. Compatibilidade

The RollEase Acmeda MTDCB-CHARGE Recharger is compatible with the following:

• All RollEase Automate Li-ion (12VDC Version) Motors.
• Specifically designed for Automate and Li-Ion Rechargeable DC Motors, including 18mm, 25mm, 28mm, 35mm, and 45mm sizes.

The following diagram illustrates compatible motors and connection cables:

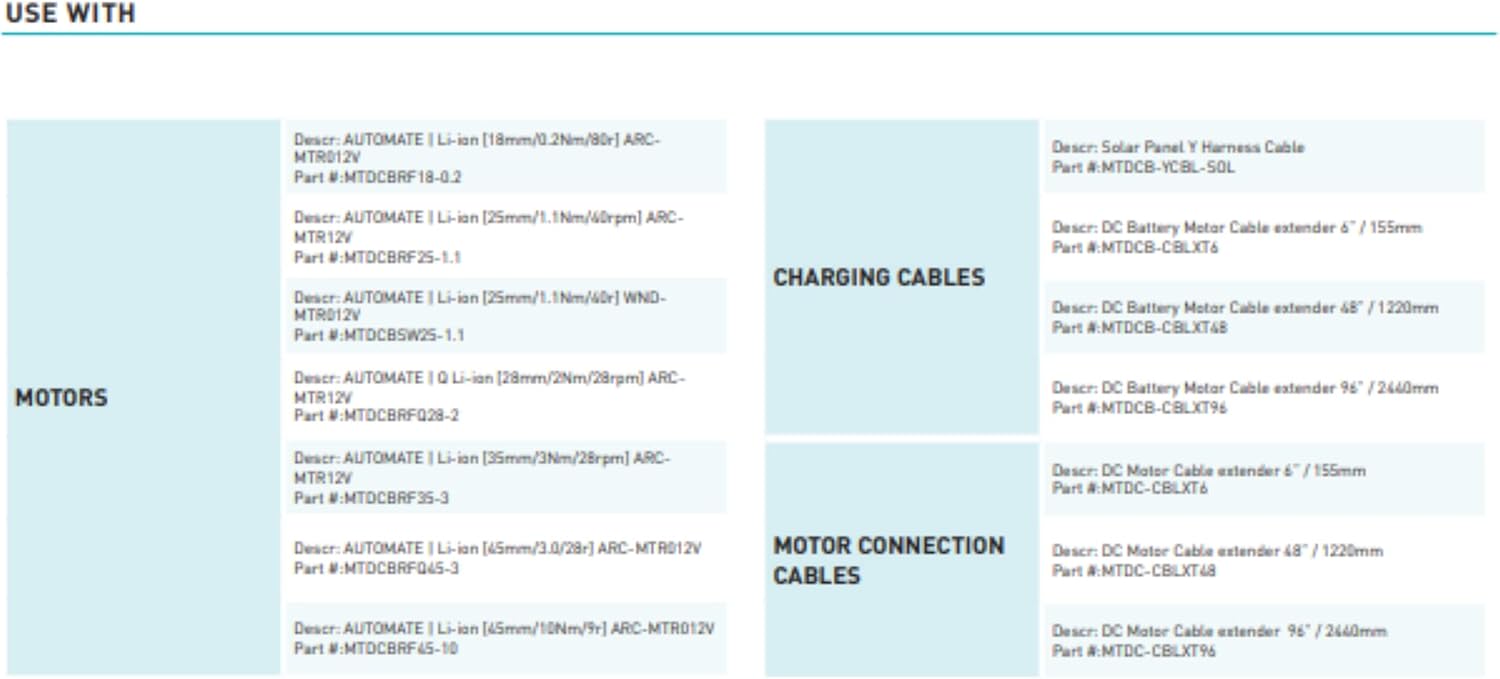

Figure 6.1: Diagram detailing various compatible RollEase Automate Li-ion motors and available charging/motor connection cables.

7. Manutenção

• Limpeza: Disconnect the recharger from the power outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols.
• Armazenar: Store the recharger in a cool, dry place away from direct sunlight and extreme temperatures. Keep the cable neatly coiled to prevent damage.
• Cuidados com os cabos: Avoid bending or crimping the charging cable excessively. Do not pull on the cable to disconnect it from the motor or wall outlet; always grasp the plug.

8. Solução De Problemas

9. Especificações

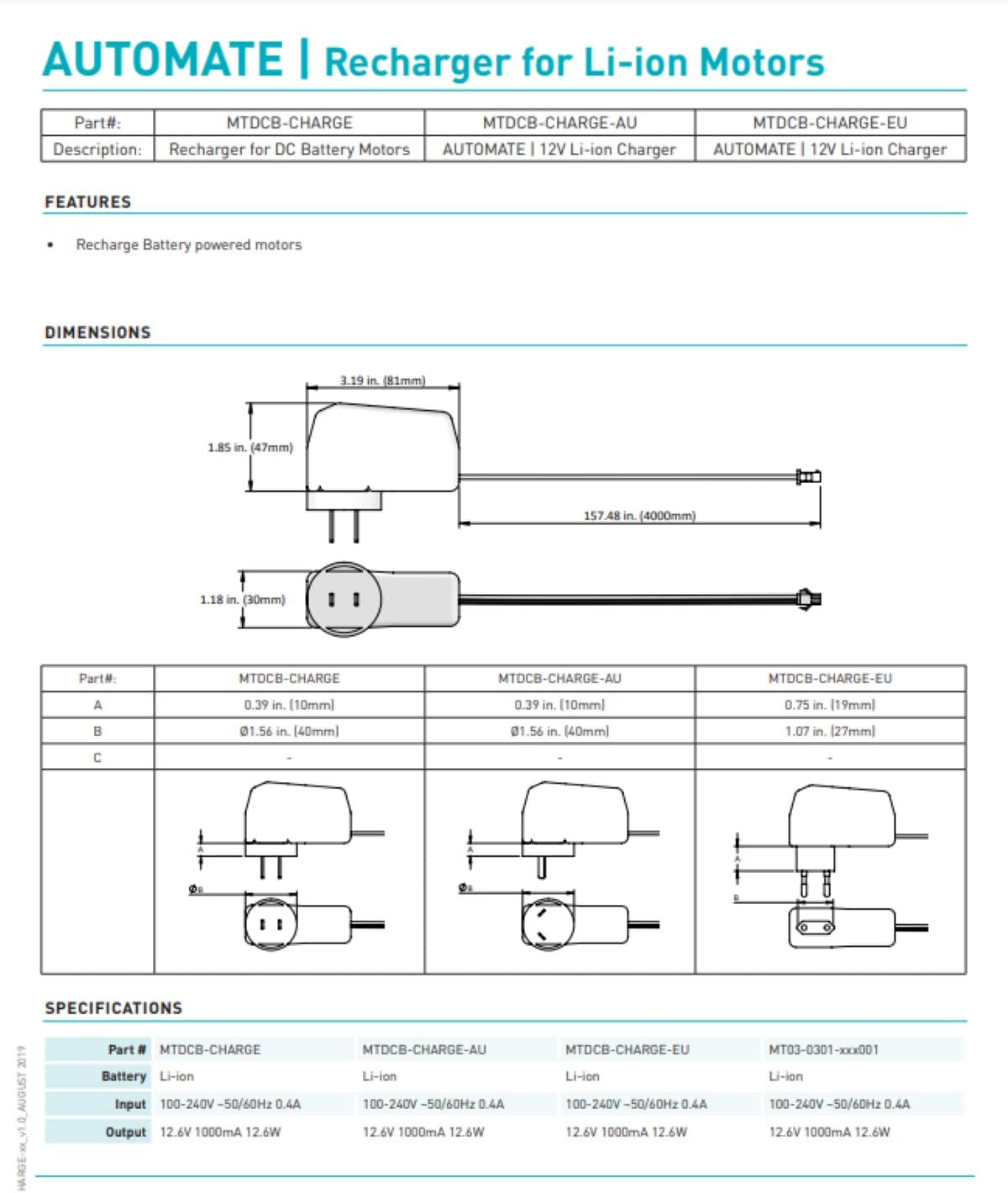

Figure 9.1: Detailed dimensions and electrical specifications for the MTDCB-CHARGE and other regional variants.

• Modelo: MTDCB-CHARGE
• Entrada: 100-240 V CA, 50/60 Hz
• Saída: 12.6V DC, 1A (12.6W)
• Comprimento do fio: 13.1 pés (aproximadamente 4 metros)
• Motores compatíveis: RollEase Automate Li-ion (12VDC Version) Motors (18mm, 25mm, 28mm, 35mm, 45mm)
• Tempo de carregamento: 4 to 8 hours (depending on motor size)
• Certificações: Listado pela UL
• Cor: Branco
• Peso do item: 5.3 onças (0.15 quilogramas)
• Dimensões da embalagem: 4.37 x 3.5 x 2.05 polegadas

10. Garantia e Suporte

For warranty information and technical support, please refer to the official RollEase Acmeda webou entre em contato diretamente com o serviço de atendimento ao cliente. Os termos específicos da garantia podem variar de acordo com a região e a data da compra.

Fabricante: RollEase
