Manual de Instruções do Microfone Dinâmico para Karaokê VOYZ VZ-638G

1. Introdução

Thank you for choosing the VOYZ Dynamic Karaoke Microphone VZ-638G. This manual provides essential information for the proper setup, operation, and maintenance of your new microphone. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

2. Conteúdo da embalagem

Verifique se todos os itens listados abaixo estão incluídos em seu pacote:

VOYZ Dynamic Karaoke Microphone (VZ-638G)
15ft XLR to 1/4'' Audio Cable

VOYZ VZ-638G Dynamic Karaoke Microphone and included 15ft XLR to 1/4 inch cable

Image: The VOYZ VZ-638G Dynamic Karaoke Microphone shown with its included 15ft XLR to 1/4 inch audio cable.

3. Produto acabadoview

The VOYZ VZ-638G is a handheld dynamic microphone designed for vocal applications, particularly karaoke. It features a durable metal body and an integrated ON/OFF switch for convenient control during use.

Principais características:

Padrão polar unidirecional: Concentra-se no som frontal, reduzindo o ruído de fundo.
Microfone dinâmico: Robust and suitable for various vocal performances.
Chave ON / OFF: Provides immediate control over audio output.
Metal Body: Ensures extended durability and a professional feel.
Conector XLR: Standard professional audio connection.

Close-up of VOYZ VZ-638G microphone showing the ON/OFF switch

Imagem: Uma imagem detalhada view of the VOYZ VZ-638G microphone, highlighting the ON/OFF switch located on the microphone body.

Image: A close-up of the microphone's grille, which protects the internal components and contributes to its sound capture.

4. Configuração

Follow these steps to connect your VOYZ VZ-638G microphone to your audio system:

Conecte o cabo XLR: Take the provided 15ft XLR to 1/4'' audio cable. Connect the XLR (3-pin) end of the cable firmly into the XLR port at the base of the microphone. Ensure it clicks into place securely.
Connect to Audio Input: Plug the 1/4'' (6.35mm) jack end of the cable into the microphone input port of your karaoke machine, mixer, or audio interface. This port is typically labeled "Mic In" or has a microphone icon.
Ligue seu dispositivo de áudio: Ensure your connected audio device (karaoke machine, mixer) is powered on and its volume is set to a low level before testing the microphone.

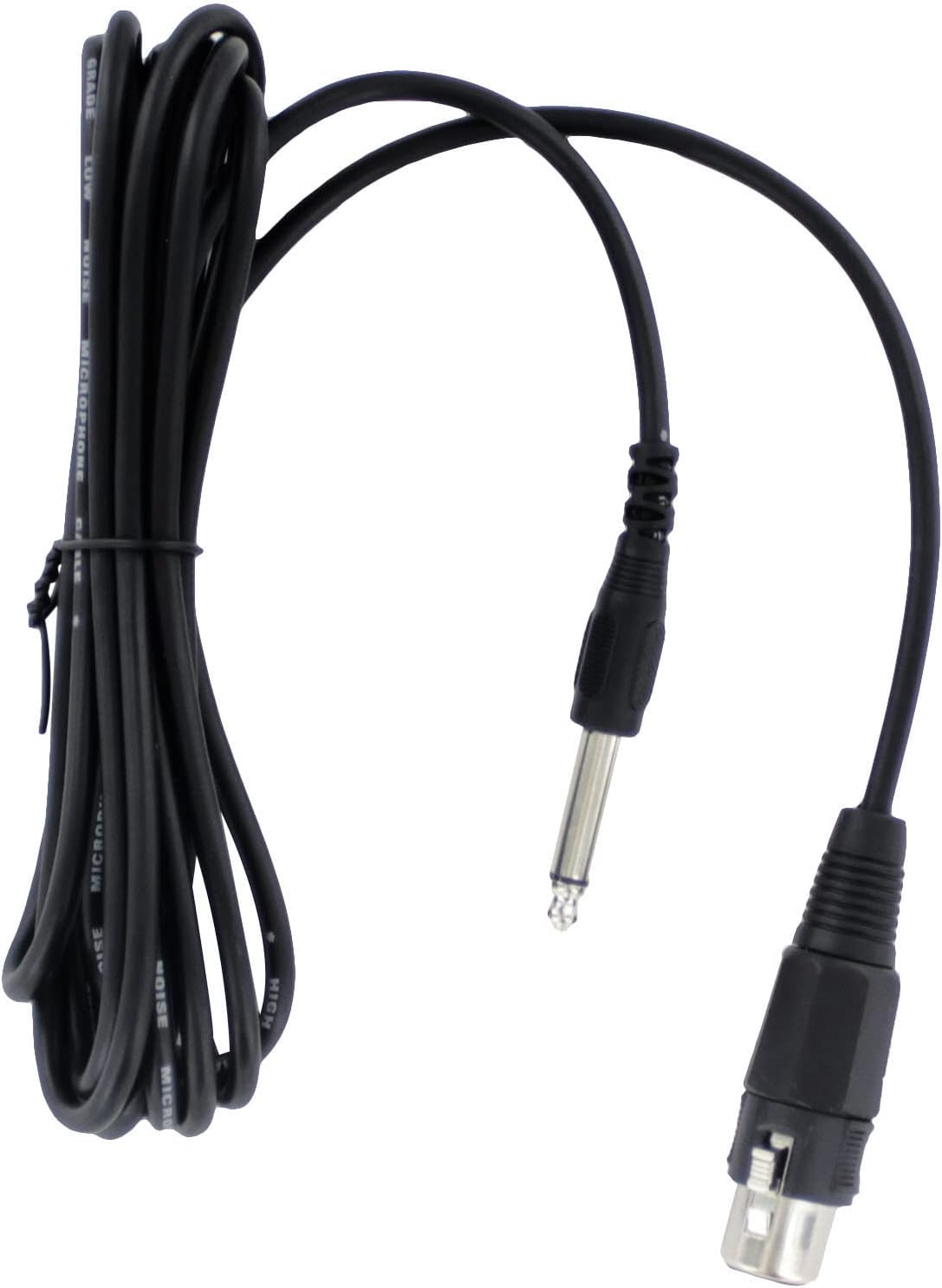

Close-up of the 15ft XLR to 1/4 inch audio cable

Image: The 15ft XLR to 1/4 inch audio cable, showing both connector types for proper identification during setup.

VOYZ VZ-638G microphone mounted on a stand and connected via cable

Image: The VOYZ VZ-638G microphone shown connected to an audio cable and mounted on a microphone stand, illustrating a typical setup.

5. Instruções de operação

Using your VOYZ VZ-638G microphone is straightforward:

Turn On the Microphone: Locate the ON/OFF switch on the microphone body. Slide the switch to the "ON" position.
Ajustar volume: Gradually increase the volume on your connected audio device until the desired sound level is achieved. Avoid setting the volume too high initially to prevent feedback or damage to speakers.
Uso ideal: For best vocal performance, hold the microphone approximately 2-6 inches (5-15 cm) from your mouth. Speak or sing directly into the grille. The unidirectional pattern helps to capture your voice clearly while minimizing ambient noise.
Desligue após o uso: When finished, slide the ON/OFF switch to the "OFF" position before disconnecting the microphone or turning off your audio equipment. This prevents sudden loud noises and protects your equipment.

Hand holding the VOYZ VZ-638G microphone

Image: A hand demonstrating the proper grip for holding the VOYZ VZ-638G microphone during use.

6. Manutenção

Proper care will extend the life of your microphone:

Limpeza: Use a soft, dry cloth to wipe the microphone body. For the grille, a soft brush can be used to gently remove dust or debris. Do not use liquid cleaners directly on the microphone.
Armazenar: Store the microphone in a cool, dry place away from direct sunlight and extreme temperatures. Keep it protected from dust and physical impact.
Cuidados com os cabos: Avoid sharp bends or kinks in the cable. Coil it loosely when storing to prevent damage to the internal wiring.

7. Solução De Problemas

If you encounter issues with your microphone, refer to the following common problems and solutions:

Problema	Possível causa	Solução
Nenhuma saída de som	O interruptor do microfone está DESLIGADO. Cabo não conectado corretamente Audio device volume too low Faulty cable or input port	Deslize o interruptor ON/OFF para a posição "ON". Certifique-se de que ambas as extremidades do cabo estejam firmemente conectadas. Aumente o volume do seu dispositivo de áudio. Faça o teste com um cabo ou porta de entrada diferente, se disponível.
Qualidade de som ruim / Microfonia	Microfone muito longe da fonte Volume muito alto Microphone pointed incorrectly	Hold microphone closer to your mouth (2-6 inches). Diminua o volume do seu dispositivo de áudio. Ensure the microphone grille is facing the sound source.

8. Especificações

Technical specifications for the VOYZ VZ-638G Dynamic Karaoke Microphone:

Modelo: VZ-638G
Tipo de microfone: Dinâmico
Padrão polar: Unidirecional
Resposta de frequência: 80-12500 Hz
Sensibilidade: -73±3dB
Impedância: 600 ohms
Tipo de conector: XLR (microphone end), 1/4'' (cable end)
Comprimento do cabo: 15 pés
Material: Corpo de metal
Dimensões (C x L x A): 12 x 5.5 x 3 polegadas (dimensões do produto)
Peso do item: 10.5 onças

9. Garantia e Suporte

For warranty information or technical support, please contact VOYZ customer service through their official channels. Retain your proof of purchase for any warranty claims.

AVISO: This product can expose you to lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, please visit the official California Proposition 65 Warnings Website.
