1. Introdução
Obrigado pela compra.asing the AMBITFUL A2 RGB Tube Light. This full-color RGB tube light is designed for professional video and photography lighting, offering versatile color control, various lighting effects, and convenient app integration. Please read this manual thoroughly before use to ensure proper operation and to maximize the product's potential.
Figure 1: AMBITFUL A2 RGB Tube Light
2. Conteúdo da embalagem
Verifique se todos os itens listados abaixo estão incluídos em seu pacote. Caso algum item esteja faltando ou danificado, entre em contato com o suporte ao cliente.

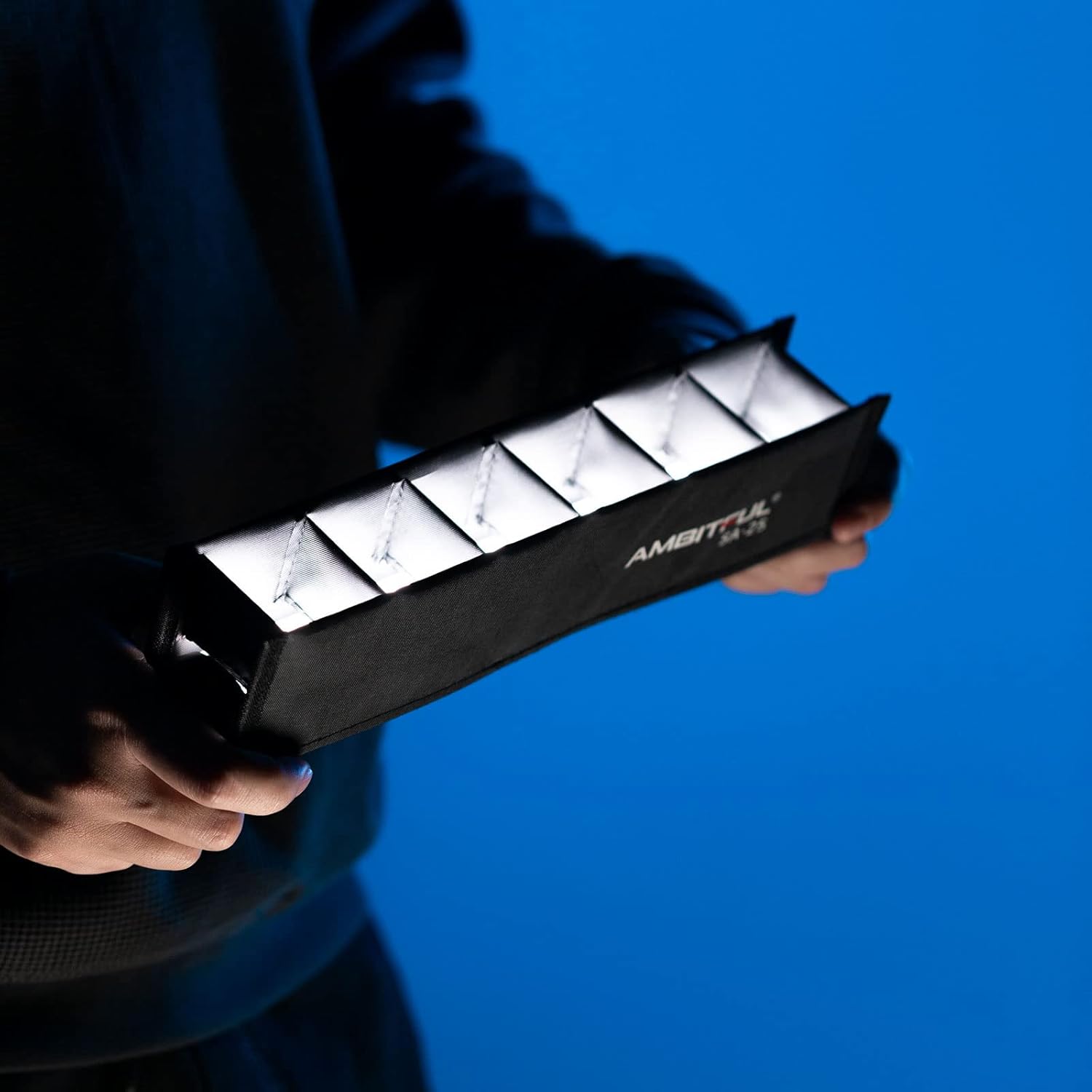

- AMBITFUL A2 RGB Tube Light (2 units for A2 2PCS with Grid model)
- Grid (for A2 2PCS with Grid model)
- Cabo de carregamento USB
- Manual de instruções
Figure 2: Package contents including the tube light and grid.
3. Configuração
3.1 Carregando o dispositivo
Before first use, fully charge the AMBITFUL A2 RGB Tube Light. The device features a built-in 2500mAh lithium battery that supports PD fast charging. A full charge provides approximately 60 minutes of operation at full power output.
- Connect the provided USB charging cable to the charging port on the light.
- Conecte a outra extremidade do cabo USB a um adaptador de energia USB compatível (não incluído).
- O indicador de carregamento no visor mostrará o estado do carregamento.
Figure 3: Built-in lithium battery with 2500mAh capacity and 60-minute endurance.
3.2 Opções de Montagem
The AMBITFUL A2 offers flexible mounting solutions:
- Design magnético: The top of the two ends of the light features a magnetic design, allowing it to be placed on metal surfaces like desktops, corners, or table edges.
- 1/4" Screw Design: Both ends of the light include a 1/4" screw design, enabling attachment to tripods, light stands, or brackets for various setups.
Figure 4: Magnetic design for easy placement on metal surfaces.
4. Instruções de operação
4.1 Ligar/Desligar
Press and hold the power button located on the control panel to turn the light on or off.
4.2 Painel de controle sobreview
The light features an intuitive control panel with a display screen and buttons for various adjustments.
Figure 5: Control panel for manual adjustments.
4.3 modos de iluminação
The AMBITFUL A2 supports multiple lighting modes for creative flexibility:
- Modo HSI: Adjust hue (0-360°), saturation (0-100%), and brightness (0-100%) to achieve 36,000 kinds of color light output. Includes 40 preset light colors.
- Modo CCT: Adjust color temperature from 2500K to 8500K to create effects like tungsten, daylight, midday, or evening sunlight.
- Modo RGBW: Free DIY color mode allowing users to choose red, green, blue, and cool white. The 5 groups of warm white lamp beads are adjustable to 100 levels.
- FX Light Effects: Features 22 built-in special effects for dynamic lighting scenarios.
Figure 6: HSI Mode offers 36,000 color options.
Figure 7: CCT Mode for adjusting color temperature.
Figure 8: RGBW Mode for custom color mixing.
Figure 9: Built-in FX effects for creative lighting.
4.4 APP Bluetooth Control
Control your AMBITFUL A2 RGB Tube Light wirelessly using the dedicated AMBITFUL mobile application.
- Download and install the AMBITFUL app on your smartphone.
- Certifique-se de que o Bluetooth esteja ativado em seu smartphone.
- Open the AMBITFUL app and follow the on-screen instructions to connect to your light.
- Once connected, you can easily control various settings, including modes, colors, brightness, and effects.
Figure 10: AMBITFUL App for wireless control.
Video 1: Demonstration of AMBITFUL A2 RGB Tube Light features, including CCT, HSI, FX modes, and app control.
5. Manutenção
5.1 Limpeza
To maintain the performance and appearance of your light, clean it regularly:
- Certifique-se de que o dispositivo esteja desligado e desconectado de qualquer fonte de energia antes de limpá-lo.
- Use a soft, dry cloth to wipe the exterior of the light.
- Do not use harsh chemicals, solvents, or abrasive cleaners, as these may damage the finish or internal components.
5.2 Armazenamento
When not in use for extended periods, store the light in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to partially charge the battery (around 50%) before long-term storage to preserve battery health.
6. Solução De Problemas
If you encounter issues with your AMBITFUL A2 RGB Tube Light, refer to the following common problems and solutions:
| Problema | Possível causa | Solução |
|---|---|---|
| A luz não acende. | Bateria fraca ou botão liga/desliga não pressionado corretamente. | Charge the light fully. Ensure the power button is pressed and held for a few seconds. |
| O aplicativo não consegue se conectar à lâmpada. | Bluetooth is off, app issue, or light is out of range. | Ensure Bluetooth is enabled on your phone. Restart the app and the light. Try connecting from a closer distance. Check for app updates. (Note: Some users have reported Android app connectivity issues.) |
| Buttons on the device are unresponsive. | Firmware issue or temporary glitch. | Restart the light. If the issue persists, contact customer support. (Note: Some users have reported button unresponsiveness.) |
| Light gets excessively hot during use. | Prolonged use at high brightness. | Reduce brightness or allow the light to cool down. Avoid continuous use at maximum output for extended periods. |
If the problem persists after trying these solutions, please contact AMBITFUL customer support.
7. Especificações
| Recurso | Detalhe |
|---|---|
| Marca | AMBIENTE |
| Número do modelo | OPEND AMBITFUL A2 RGB Tube Light |
| Temperatura de cor | 2500K-8500K (CCT Mode) |
| Modos de cor | HSI, CCT, RGBW, FX Effects |
| FX Light Effects | 22 tipos |
| Conectividade | Bluetooth (APP Control) |
| Capacidade da bateria | 2500mAh |
| Duração da bateria (carga máxima) | Aproximadamente 60 minutos |
| Carregando | Carregamento rápido PD |
| Montagem | Magnetic, 1/4" Screw Hole |
| Nível de resistência à água | Não resistente à água |
8. Garantia
The AMBITFUL A2 RGB Tube Light comes with a Garantia de 60 dias a partir da data da compra. Esta garantia cobre defeitos de fabricação e mau funcionamento sob condições normais de uso. Guarde o comprovante de compra para solicitações de garantia.
A garantia não cobre:
- Danos causados por uso indevido, abuso ou operação inadequada.
- Danos causados por reparos ou modificações não autorizadas.
- Desgaste normal.
- Damage from accidents or external causes.
9. Suporte ao cliente
For technical assistance, warranty claims, or any questions regarding your AMBITFUL A2 RGB Tube Light, please contact AMBITFUL customer support through the following channels:
- Website: Visit the official AMBITFUL webSite com recursos de suporte e informações de contato.
- E-mail: Consulte a embalagem do produto ou o manual oficial. website para o endereço de e-mail do serviço de atendimento ao cliente.
When contacting support, please provide your product model (A2) and a detailed description of the issue.
