1. Introdução
Thank you for choosing the Vivilumens AS1T-W Bluetooth Speaker. This device combines a portable Bluetooth speaker, an aromatherapy diffuser, and an LED night light into a single, compact unit. Designed with a vintage record player aesthetic, it offers a unique blend of audio entertainment, ambient fragrance, and soft illumination. This manual provides essential information for safe and effective use of your new device.
2. Produto acabadoview
Principais características:
- Vinhotage Record Player Design: Aesthetic appeal with functional elements.
- Conectividade Bluetooth 5.1: Stable wireless audio streaming up to 32.8 feet.
- Difusor de aromaterapia: Integrated diffuser with rotating turntable for scent dispersion.
- Luz noturna LED: Soft amber light for ambient illumination.
- Portátil e recarregável: Built-in Lithium Ion battery for on-the-go use.
- Controles intuitivos: Easy-to-use physical controls for power, volume, and light.
Conteúdo da embalagem:
- 1 x Vivilumens AS1T-W Aromatherapy Speaker
- 3 x Aromatherapy Tablets (Freesia Scent)
- 1 x cabo de carregamento USB
- 1 x Product Manual (This document)
- 1 x After-Sales Card

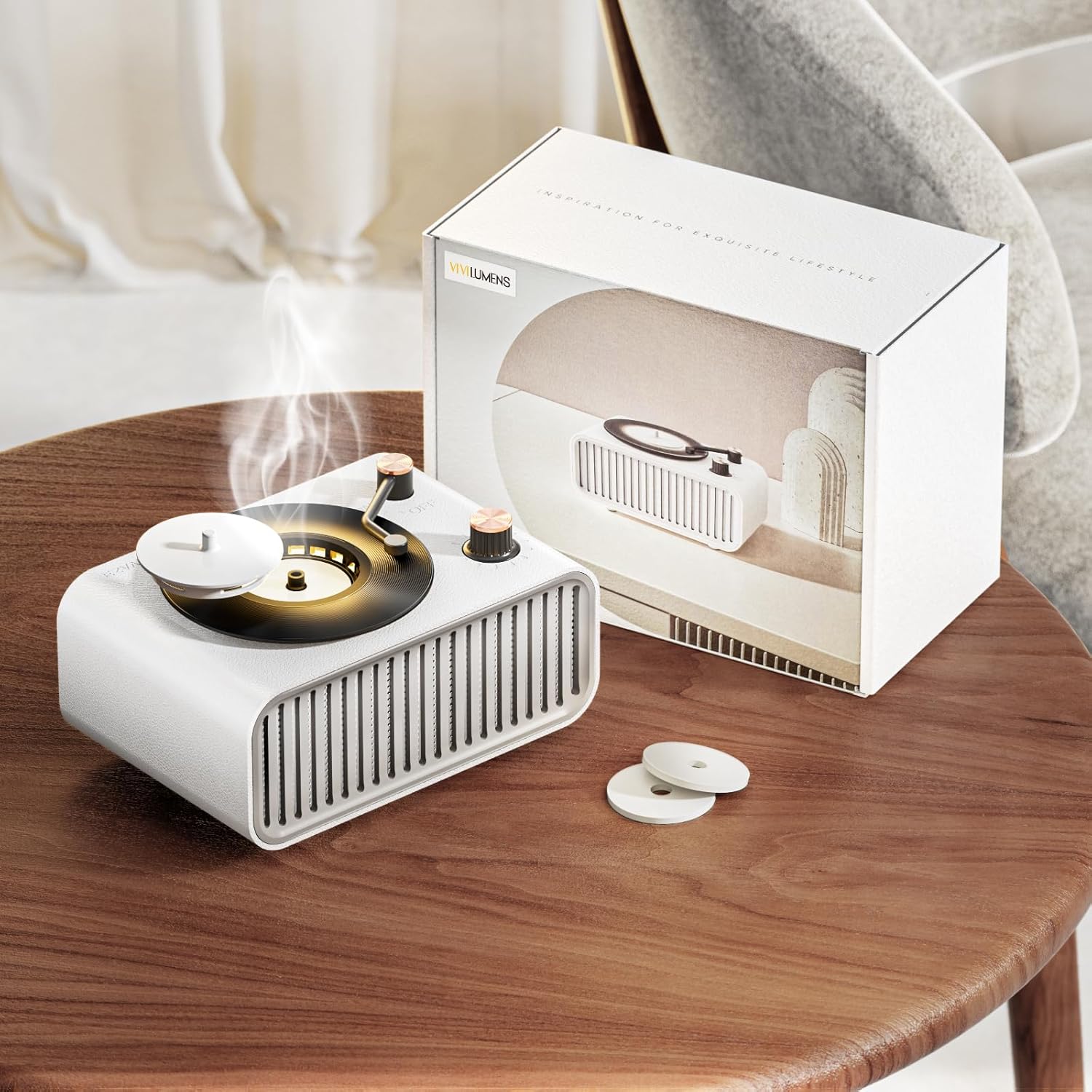

Image: The Vivilumens AS1T-W Bluetooth Speaker shown with its retail packaging.
3. Informações de segurança
- Do not expose the device to water or excessive moisture. This product is not water-resistant.
- Keep away from direct sunlight, heat sources, and open flames.
- Use apenas o cabo USB fornecido para carregar.
- Do not attempt to disassemble, repair, or modify the device. Contact customer support for assistance.
- Keep aromatherapy tablets out of reach of children and pets. Do not ingest.
- If you experience any allergic symptoms from the aromatherapy tablets, discontinue use immediately and seek medical attention.
4. Configuração
4.1 Carregando o alto-falante
- Locate the Type-C charging port on the rear of the speaker.
- Connect the provided USB charging cable to the speaker and a compatible USB power source (e.g., computer, wall adapter).
- The charging indicator light will illuminate during charging. The speaker can be used while charging.
4.2 Inserting Aromatherapy Tablets
- Gently open the white upper lid on the turntable.
- Place one of the provided aromatherapy tablets into the designated slot.
- Close the upper lid securely.
Image: A hand placing an aromatherapy tablet into the speaker's turntable compartment.
Video: This video demonstrates how to insert the aromatherapy tablet, power on the speaker, connect via Bluetooth, and adjust volume.
5. Instruções de operação
5.1 Ligar/Desligar
To power on the speaker, gently push the stylus (record arm) over the turntable. The turntable will light up, indicating the device is active. To power off, push the stylus back to its resting position.
5.2 Emparelhamento Bluetooth
- Verifique se o alto-falante está ligado.
- No seu smartphone ou tablet, ative o Bluetooth e procure os dispositivos disponíveis.
- Select "AS1T-W" from the list to pair. A confirmation sound will indicate successful pairing.
5.3 Reprodução de música e controle de volume
- Reproduzir/Pausar: Single-click the rotary switch (the knob next to the stylus) to play or pause music.
- Aumentar o volume: Rotate the rotary knob clockwise to increase the volume.
- Volume baixo: Rotate the rotary knob counter-clockwise to decrease the volume.
5.4 Função da Aromaterapia
When music is playing, the turntable plate will automatically rotate, diffusing the scent from the inserted aromatherapy tablet. Ensure a tablet is correctly placed as described in Section 4.2.
5.5 Função de luz noturna
The turntable features a hidden amber LED light. To turn the light on or off, double-click the rotary switch.
Imagem: Uma imagem detalhada view of the speaker's stylus, rotary switch, and volume knob.
Image: The speaker emitting a soft amber glow from its night light feature in a dimly lit setting.
6. Manutenção
- Limpeza: Limpe o alto-falante com um pano macio e seco. Não use produtos de limpeza abrasivos ou solventes.
- Aromatherapy Tablet Replacement: Replace aromatherapy tablets when the scent diminishes. Additional tablets may be purchased separately.
- Armazenar: Guarde a caixa de som em local fresco e seco quando não estiver em uso por longos períodos.
7. Solução De Problemas
| Emitir | Possível causa | Solução |
|---|---|---|
| O dispositivo não liga | Bateria fraca ou desligamento automático. | Charge the device using the provided USB cable. Ensure the stylus is pushed over the turntable to power on. |
| Sem som do alto-falante | Volume too low, device not paired, or audio source issue. | Increase volume on both the speaker and your connected device. Re-pair the Bluetooth connection. Check audio playback on your source device. |
| A conexão Bluetooth falha | Device out of range, interference, or pairing mode not active. | Ensure the speaker and your device are within 32.8 feet. Turn off and on Bluetooth on your device. Restart the speaker. |
| Aromaterapia não está funcionando | No tablet inserted, tablet scent depleted, or music not playing. | Insert a new aromatherapy tablet. Ensure music is playing for the turntable to rotate and diffuse scent. |
| Night light not turning on/off | Operação incorreta. | Double-click the rotary switch to toggle the night light. |
8. Especificações
| Recurso | Detalhe |
|---|---|
| Número do modelo | AS1T-W |
| Marca | Vivilumens |
| Material | Plástico |
| Cor | Branco |
| Dimensões do produto | 7"P x 5"L x 4"A |
| Peso do item | 0.51 onças (14.46 gramas) |
| Tecnologia de Conectividade | Bluetooth |
| Tecnologia de comunicação sem fio | Bluetooth 5.1 |
| Alcance Bluetooth | 32.8 pés |
| Tipo de alto-falante | Coaxial |
| Potência máxima de saída do alto-falante | 5 Watts |
| Tamanho do driver de áudio | 50 milímetros |
| Modo de saída de áudio | Cercar |
| Fonte de energia | Cabo elétrico com fio (USB-C) |
| Tipo de Bateria | 1 íon de lítio (incluído) |
| Capacidade da bateria | 1200 Miliamp Horas |
| Nível de resistência à água | Não resistente à água |
| Tipo de montagem | Suporte de mesa |
Image: The Vivilumens AS1T-W speaker with its dimensions labeled: 7 inches (length), 5 inches (width), 4 inches (height).
Imagem: Uma explosão view illustrating the internal speaker components, including the woofer and other sound elements.
9. Garantia e Suporte
Your Vivilumens AS1T-W Bluetooth Speaker comes with a limited warranty. Please refer to the included After-Sales Card for specific warranty terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact Vivilumens customer service through the contact information provided on your After-Sales Card or visit the official Vivilumens website.
