ThiEYE Vackit2 Cordless Handheld Vacuum Cleaner User Manual

1. Introdução

Obrigado pela compra.asing the ThiEYE Vackit2 Cordless Handheld Vacuum Cleaner. This compact and powerful device is designed for efficient cleaning in both your home and vehicle. Featuring strong suction, a removable battery, and versatile attachments, it offers convenience and performance. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Instruções de segurança

Do not use the vacuum cleaner to pick up liquids, flammable or combustible materials, or hot ashes.
Keep the appliance away from water and high humidity.
Ensure the charging cable and adapter are undamaged before charging.
Do not operate the vacuum cleaner without the dust cup and filters properly installed.
Este aparelho não se destina ao uso por pessoas (incluindo crianças) com capacidades físicas, sensoriais ou mentais reduzidas, ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instruções sobre o uso do aparelho de uma pessoa responsável pela sua segurança.
Não bloqueie as entradas ou saídas de ar durante a operação.
Only use original ThiEYE accessories and replacement parts.

3. Conteúdo da embalagem

Por favor, verifique se a embalagem contém os seguintes itens:

ThiEYE Vackit2 Handheld Vacuum Cleaner
Pacote de bateria removível
2-in-1 Crevice Tool / Brush Head
Cabo de carregamento
Suporte de montagem em parede
Manual do usuário

4. Produto acabadoview

Familiarize yourself with the components of your ThiEYE Vackit2 vacuum cleaner.

ThiEYE Vackit2 vacuum cleaner demonstrating two suction modes, 7000Pa and 10000Pa, cleaning pet food crumbs from a wooden floor next to a small dog.

Imagem: The ThiEYE Vackit2 vacuum cleaner in action, illustrating its two suction modes (Standard 7000Pa and Powerful 10000Pa) by cleaning up pet food crumbs. A small dog is visible in the background.

Botão de energia: Turns the vacuum on/off and switches between suction modes.
Copo de pó: Collects dust and debris. Transparent for easy monitoring.
Sistema de filtragem: Includes a washable HEPA filter and stainless steel filter for efficient particle capture.
Luz LED: Illuminates dark areas for improved visibility during cleaning.
Porta de carregamento: Para conectar o cabo de carregamento.
Bateria removível: Allows for easy charging and potential replacement.

5. Configuração

5.1 Carregamento Inicial

Before first use, fully charge the battery. The removable battery pack (2200mAh x 3 cells) requires approximately 4-5 hours for a full charge using the provided charging cable.

ThiEYE Vackit2 removable battery pack being charged, with indicators for lithium-ion battery, 2200mAh*3 capacity, 15-25 minutes operating time, and 4-5 hours charging time.

Imagem: A close-up of the ThiEYE Vackit2's removable battery pack, highlighting its lithium-ion technology, 2200mAh x 3 capacity, 15-25 minutes of operating time, and 4-5 hours charging time.

5.2 Anexando Acessórios

Select the appropriate attachment for your cleaning task. The 2-in-1 crevice tool can be used as a narrow nozzle for tight spaces or with the brush extended for upholstery and delicate surfaces. Simply push the desired attachment onto the suction nozzle until it clicks into place.

6. Instruções de operação

6.1 Ligar/Desligar e Modos de Sucção

Press the power button once to turn on the vacuum in Standard mode (7000Pa suction). This mode provides up to 25 minutes of continuous cleaning.
Press the power button a second time to switch to Powerful mode (10000Pa suction). This mode provides approximately 15 minutes of continuous cleaning for tougher messes.
Pressione o botão liga/desliga uma terceira vez para desligar o aspirador.

6.2 Usando a luz LED

The integrated LED light automatically illuminates when the vacuum is turned on, helping you spot dust and debris in dark corners or under furniture.

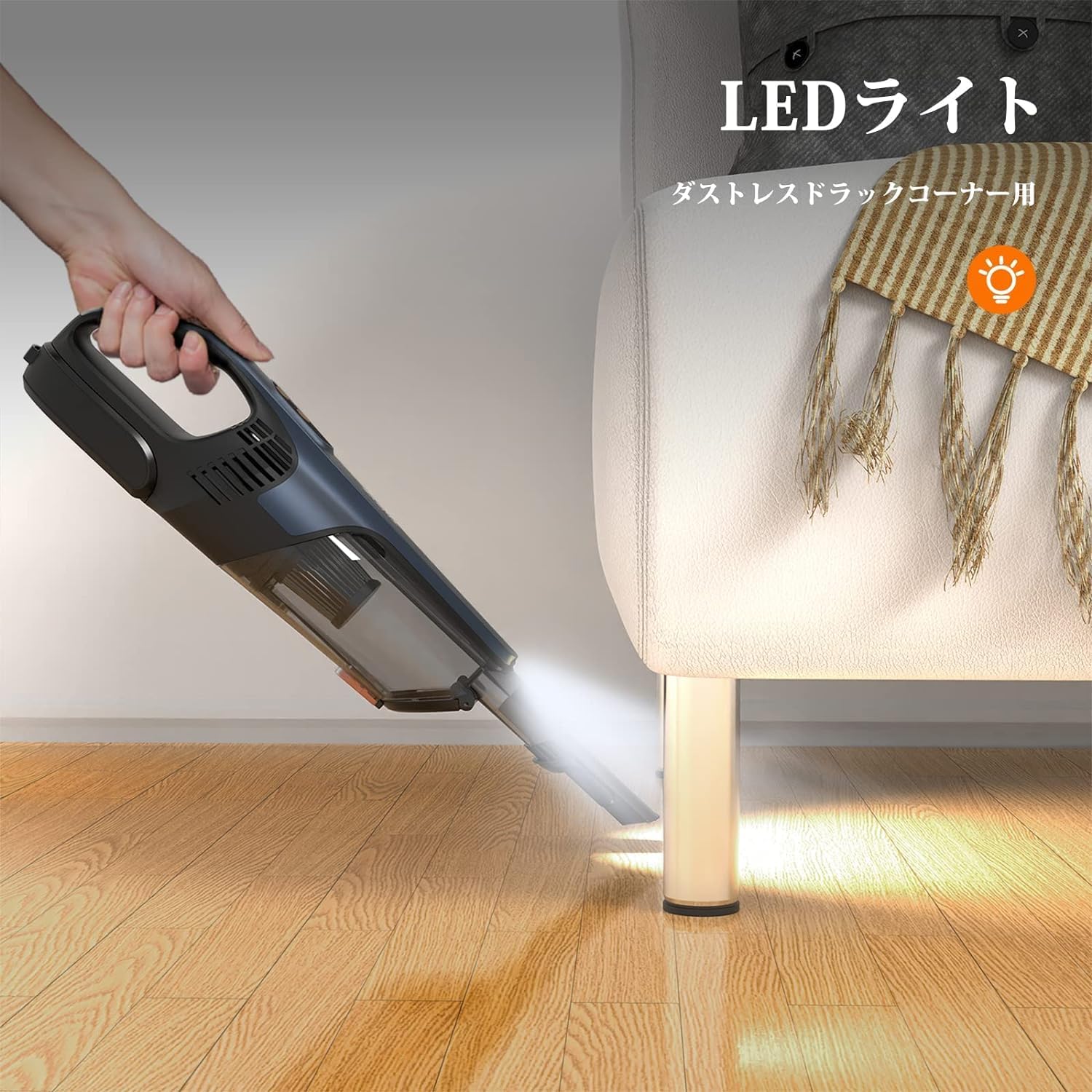

ThiEYE Vackit2 handheld vacuum cleaner with its LED light on, illuminating dust under a sofa, demonstrating its utility in dark areas.

Imagem: The ThiEYE Vackit2 handheld vacuum cleaner with its LED light activated, effectively illuminating a dark area under a sofa to reveal hidden dust and debris.

6.3 Cleaning Car Interiors

The cordless design and compact size make the Vackit2 ideal for cleaning car interiors. Use the crevice tool for tight spots between seats and the brush head for dashboard and upholstery.

A person using the ThiEYE Vackit2 handheld vacuum cleaner to clean crumbs from a car seat, highlighting its cordless and portable design for vehicle use.

Imagem: A user cleaning a car seat with the ThiEYE Vackit2 handheld vacuum cleaner, demonstrating its effectiveness and ease of use for automotive interiors.

7. Manutenção

7.1 Esvaziando o reservatório de pó

To maintain optimal suction, empty the dust cup regularly. Press the release button to detach the dust cup, then press the one-touch empty button to release debris directly into a trash bin without touching the contents.

ThiEYE Vackit2 handheld vacuum cleaner demonstrating its one-touch empty feature, releasing collected debris into a trash can.

Imagem: The ThiEYE Vackit2 vacuum cleaner showing its one-touch dirt ejection mechanism, allowing for hygienic disposal of collected debris into a waste bin.

7.2 Limpando os Filtros

The Vackit2 features a dual-layer filtration system with a HEPA filter and a stainless steel filter. Both are washable and reusable. After emptying the dust cup, remove the filters and rinse them under running water. Ensure they are completely dry before reassembling to prevent damage and maintain suction power.

7.3 Cuidados com a bateria

To prolong battery life, avoid fully discharging the battery frequently. If the battery's lifespan diminishes, the removable design allows for easy replacement with a new battery pack (sold separately).

8. Solução De Problemas

Problema	Possível causa	Solução
O vácuo não liga	Bateria está descarregada	Carregue a bateria totalmente.
Baixo poder de sucção	Dust cup is full or filters are clogged	Empty the dust cup and clean the filters. Ensure filters are dry before reinstallation.
Ruído incomum durante a operação	Obstruction in the nozzle or dust cup	Turn off the vacuum and check for any blockages.
Bateria não carrega	Charging cable or adapter faulty; battery not properly inserted	Check connections. Try a different compatible charging cable/adapter. Ensure battery is securely in place.

9. Especificações

Marca: ThiEYE
Modelo: Vackit2
Potência de sucção: Up to 10kPa
Capacidade da bateria: 6000mAh (2200mAh x 3 Lithium-ion cells)
Tempo de operação: 15-25 minutos (dependendo do modo)
Tempo de carregamento: 4-5 horas
Capacidade do coletor de pó: 500 ml
Tipo de filtro: HEPA and Stainless Steel (washable)
Poder: 100 W
Dimensões (C x L x A): 44 x 16.2 x 10.7 cm
Peso: Aproximadamente 900g
Características: Cordless, Portable, LED Light, Removable Battery, Wall Mountable

ThiEYE Vackit2 handheld vacuum cleaner mounted on a wall bracket, connected to a charger, demonstrating its space-saving storage solution.

Imagem: The ThiEYE Vackit2 vacuum cleaner stored on its wall mount bracket, illustrating a convenient and space-saving storage and charging method.

10. Informações de garantia

ThiEYE products are manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your package or visit the official ThiEYE website para obter termos e condições detalhados da garantia.

11. Suporte

For technical assistance, troubleshooting, or general inquiries about your ThiEYE Vackit2, please contact our customer support team. You can find contact information on the ThiEYE official website or through your purchase platform. Please have your model number (Vackit2) and purchase details ready when contacting support.
