INFURIDER YF-5800G Portable Ammonia Gas Detector User Manual

1. Introdução

The INFURIDER YF-5800G is a portable ammonia gas detector designed for accurate measurement of NH3 gas concentration, as well as ambient temperature and humidity. This device features a high-sensitivity sensor, a large LCD color screen for clear readings, and adjustable visual and audible alarms to ensure safety in various environments. It is equipped with a USB rechargeable lithium battery and a tripod mount for continuous monitoring.

2. Produto acabadoview

Familiarize yourself with the components of your INFURIDER YF-5800G detector:

Figure 2.1: Device Components
This image displays the INFURIDER YF-5800G detector with key parts labeled for easy identification. These include the sensor, screen, charging port, charging indicator light, alarm indicator light, temperature unit button (°C/°F), alarm setting button, alarm value increase/decrease buttons, mode button, and power button.

• Sensor: Located at the top, detects ammonia gas.
• Tela: Large LCD display showing NH3 concentration, temperature, and humidity.
• Porta de carregamento: USB port for recharging the device.
• Luz indicadora de carregamento: Indica o status de carregamento.
• Luz indicadora de alarme: Flashes when an alarm threshold is exceeded.
• Botão °C/°F: Alterna entre as unidades de temperatura Celsius e Fahrenheit.
• Botão de alarme: Used to access and adjust alarm settings.
• Botão MODE: Used to cycle through display modes and access settings like auto power-off.
• Botões para cima / para baixo: Used to adjust alarm values or navigate menus.
• Botão de energia: Liga/desliga o dispositivo.

3. Configuração

3.1. Carregando o dispositivo

Before first use, fully charge the detector. Use the provided USB cable to connect the device to a compatible USB power source.

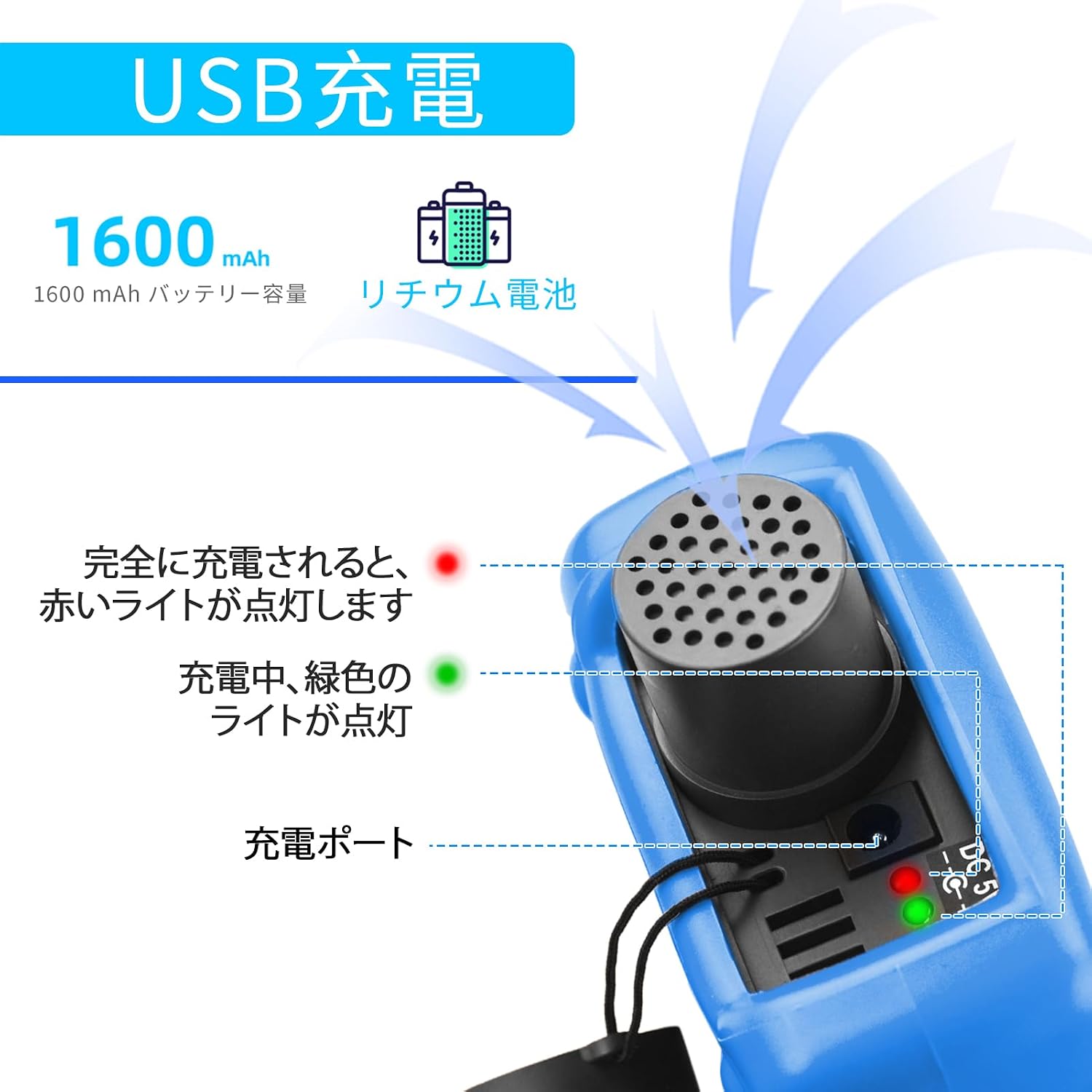

Figure 3.1: USB Charging Port and Indicators
The image shows the USB charging port and the indicator lights. A green light illuminates during charging, and a red light indicates that the device is fully charged.

• Conecte o cabo USB à porta de carregamento do dispositivo.
• During charging, a green indicator light will be visible.
• Once fully charged, the indicator light will turn red.

3.2. Ligar / desligar

To power on the device, press and hold the Power button until the screen illuminates. To power off, press and hold the Power button again until the screen turns off.

4. Instruções de operação

4.1. Medição Básica

Upon powering on, the device will automatically begin measuring and displaying the current NH3 concentration, temperature, and humidity on the LCD screen.

Figure 4.1: Measurement Range and Accuracy
The display shows the ammonia concentration in ppm, along with temperature and humidity. The measurement range for NH3 is 0-100 ppm, with a resolution of 0.1 ppm and an accuracy of +/-2%.

4.2. Adjusting Alarm Settings

The device features adjustable visual and audible alarms (AL1 and AL2) for ammonia concentration. When the measured value exceeds the set alarm threshold, the device will flash and emit a beeping sound.

• Pressione o ALARME botão para entrar no modo de configuração do alarme.
• Use o Para cima/para baixo buttons to adjust the AL1 (low alarm) and AL2 (high alarm) values.
• Pressione o ALARME button again to confirm and save the settings.

4.3. Comutação da unidade de temperatura

To switch between Celsius (°C) and Fahrenheit (°F) temperature units, press the ° C / ° F botão.

4.4. Auto Power-Off Function

The device includes an auto power-off function to conserve battery life. This can be enabled or disabled via the MODO configurações do botão.

• Pressione o MODO button to access the auto power-off setting.
• Use o Para cima/para baixo buttons to select ON or OFF for the auto power-off function.
• Confirm your selection to save the setting.

5. Safety Guidelines: Understanding Ammonia Levels

It is crucial to understand the potential health risks associated with different ammonia gas concentrations. The following index provides general guidance:

Figure 5.1: Ammonia Gas Human Risk Index
This chart illustrates the potential health effects of various ammonia gas concentrations on humans.

• 100ppm: Most people feel uncomfortable but generally harmless.
• 250ppm: Irritates nose, throat, eyes, and other senses.
• 400ppm: Eye pain and tearing can last for 30 minutes.
• 700ppm: The limit the human body can tolerate; prolonged exposure is not recommended.
• 2500ppm: Severe cough, throat, and nose inflammation; possible death within 15 minutes.

Always take appropriate safety measures when ammonia levels are elevated.

6. Ampla gama de aplicações

The INFURIDER YF-5800G ammonia gas detector is suitable for a variety of environments where ammonia monitoring is essential:

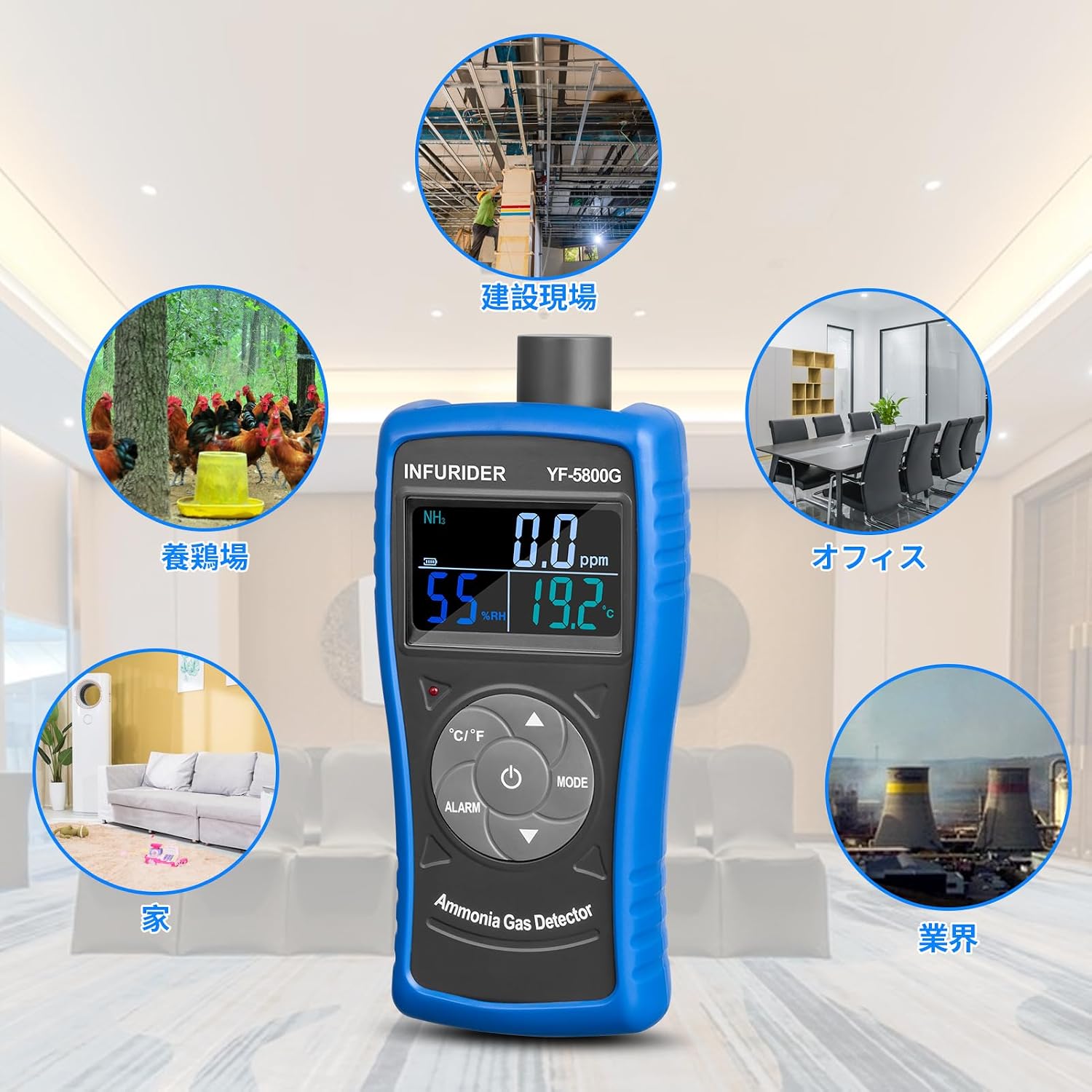

Figure 6.1: Common Application Areas
The image displays several environments where the YF-5800G detector can be effectively used, including construction sites, poultry farms, offices, homes, and industrial settings.

• Agricultural Settings: Pig farms, chicken farms, livestock facilities, horse stables.
• Ambientes industriais: Workspaces, factories, and other industrial areas where ammonia may be present.
• Residential and Commercial: Homes, offices, and other indoor spaces for air quality monitoring.
• Gestão de Resíduos: Landfills and areas with potential ammonia emissions.

7. Especificações

Technical specifications for the INFURIDER YF-5800G Ammonia Gas Detector:

Figura 7.1: Dimensões do dispositivo
This image provides a visual representation of the detector's dimensions, showing its height, width, and depth.

8. Manutenção

Proper maintenance ensures the longevity and accuracy of your ammonia gas detector.

• Limpeza: Limpe o dispositivo com um pano macio e seco. Não utilize produtos de limpeza abrasivos ou solventes.
• Armazenar: Guarde o detector em local fresco e seco, longe da luz solar direta e de temperaturas extremas quando não estiver em uso.
• Cuidados com a bateria: Recharge the battery regularly, even if the device is not frequently used, to maintain battery health. Avoid fully discharging the battery for extended periods.
• Proteção do sensor: Keep the sensor area clean and free from obstructions. Avoid exposing the sensor to harsh chemicals or liquids.

9. Solução De Problemas

If you encounter issues with your INFURIDER YF-5800G, refer to the following common problems and solutions:

• Dispositivo não liga: Ensure the battery is charged. Connect the device to a USB power source and try again.
• Leituras imprecisas: Ensure the sensor is clean and unobstructed. Avoid using the device in environments with extreme temperature or humidity fluctuations immediately after moving it from a different environment. Allow it to stabilize.
• Alarme não soa: Check alarm settings (AL1, AL2) to ensure they are configured correctly. Verify that the audible alarm is enabled in the device settings.
• Screen display issues: If the screen is dim or flickering, ensure the battery is charged. If the issue persists, contact customer support.

For problems not listed here, please contact customer support.

10. Garantia e Suporte

INFURIDER provides a warranty for this product against defects in materials and workmanship under normal use. The specific warranty period may vary by region and retailer. Please retain your purchase receipt as proof of purchase.

For technical assistance, warranty claims, or any questions regarding your INFURIDER YF-5800G Portable Ammonia Gas Detector, please contact INFURIDER customer support through the retailer where you purchased the product or visit the official INFURIDER website para informações de contato.

Suporte ao cliente: Refer to your product packaging or the INFURIDER official webAcesse o site para obter as informações de contato mais atualizadas.
