Motorola Solutions NNTN8235A Remote Speaker Microphone User Manual

Introdução

The Motorola Solutions NNTN8235A Remote Speaker Microphone (RSM) is designed for use with SRX2200 Combat Radios. This rugged microphone features an IP57 submersible rating and Windporting technology, ensuring clear communication in challenging environments. Its Coyote Brown color is suitable for military applications.

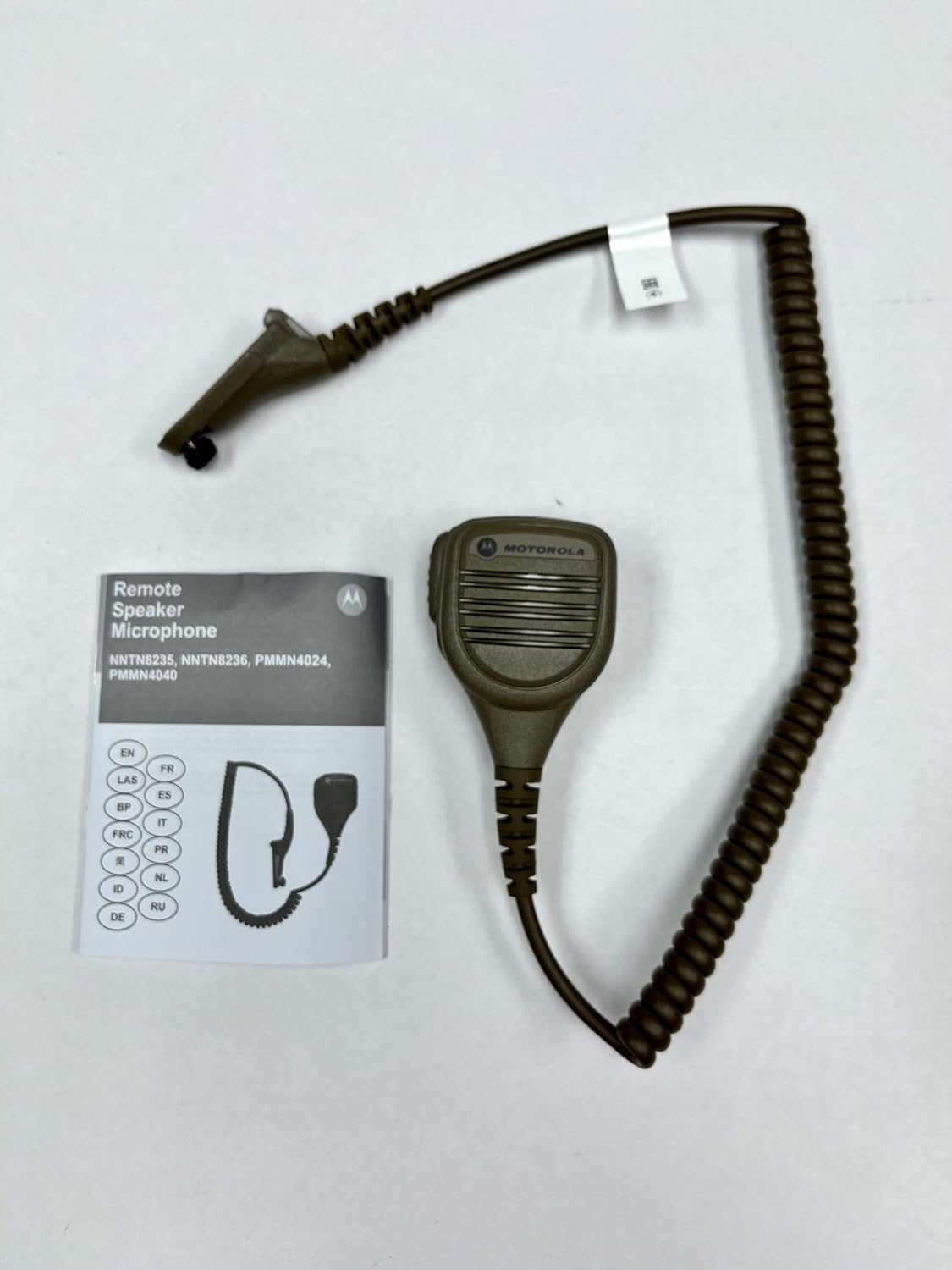

Image: The NNTN8235A Remote Speaker Microphone shown with its accompanying documentation.

Principais características:

• SRX2200 Military Designed: Optimized for compatibility and performance with SRX2200 Combat Radios.
• Windporting Technology: Effectively reduces background noise from high winds and severe weather for clearer audio.
• IP57 Submersible Rating: Provides protection against dust and water immersion up to 1 meter for 30 minutes.
• Intrinsically-Safe Rated: Designed for safe operation in hazardous environments.
• Coyote Brown: Color matched for military and tactical applications.

Configurar

Follow these steps to properly connect your NNTN8235A Remote Speaker Microphone to your SRX2200 Combat Radio.

1. Desligar o rádio: Ensure your SRX2200 radio is powered off before connecting any accessories.
2. Locate Accessory Connector: Identify the accessory connector port on the side of your SRX2200 radio. This port is typically covered by a protective cap.
3. Remova a tampa protetora: Carefully remove the protective cap from the radio's accessory connector.
4. Connect RSM: Align the connector of the NNTN8235A RSM with the radio's accessory port. Gently push the connector in until it clicks securely into place. Ensure a firm connection to maintain the IP57 rating.
5. Conexão segura (se aplicável): Some radio models may have a screw or locking mechanism to further secure the accessory. If present, tighten it hand-tight.
6. Ligue o rádio: Once the RSM is securely connected, power on your SRX2200 radio. The radio should recognize the connected microphone.

Image: An SRX2200 Combat Radio, compatible with the NNTN8235A RSM.

Instruções de operação

The NNTN8235A Remote Speaker Microphone provides convenient and clear communication. Familiarize yourself with its functions for optimal use.

Botão PTT (Push-to-Talk):

• Transmitir: Press and hold the large PTT button located on the side of the RSM to transmit your voice. Speak clearly into the microphone grille.
• Receber: Release the PTT button to stop transmitting and listen for incoming communications through the RSM's speaker.

Palestrante:

The integrated speaker on the front of the RSM allows you to hear incoming radio transmissions directly from the microphone, providing clear audio output.

Imagem: Detalhada view of the NNTN8235A RSM, highlighting the speaker grille and PTT button area.

Windporting Technology:

The Windporting feature is automatically active. It uses a specialized microphone port design to minimize wind noise and other environmental sounds, ensuring your voice is transmitted clearly even in adverse conditions.

Accessory Jack (if present):

Some RSM models may include an accessory jack (e.g., 3.5mm) for connecting an external earpiece. If present, insert your compatible earpiece into this jack for private listening.

Manutenção

Proper maintenance ensures the longevity and reliable performance of your NNTN8235A Remote Speaker Microphone.

• Limpeza:
  • Wipe the exterior of the RSM with a soft, damp pano.
  • Não utilize produtos químicos agressivos, solventes ou produtos de limpeza abrasivos.
  • Ensure the microphone grille and speaker openings are free from dirt and debris. Use a soft brush if necessary.
• Exposição à água:
  • While the RSM is IP57 rated, always ensure the accessory connector is securely attached to the radio to maintain its water resistance.
  • After exposure to water, especially saltwater, rinse the RSM with fresh water and dry thoroughly with a clean cloth before storage or further use.
• Armazenar:
  • Store the RSM in a clean, dry environment away from extreme temperatures.
  • Avoid kinking or sharply bending the coiled cable to prevent internal wire damage.

Solução de problemas

If you encounter issues with your NNTN8235A Remote Speaker Microphone, refer to the following common problems and solutions.

If the problem persists after trying these solutions, contact Motorola Solutions customer support or your authorized dealer.

Especificações

Informações de garantia

The Motorola Solutions NNTN8235A Remote Speaker Microphone comes with a standard manufacturer's warranty.

Descrição da garantia: 1 Year Standard Manufacturer Warranty.

For detailed terms and conditions, or to initiate a warranty claim, please refer to the official Motorola Solutions warranty documentation provided with your product or visit the official Motorola Solutions website.

Apoiar

For further assistance, technical support, or inquiries regarding your Motorola Solutions NNTN8235A Remote Speaker Microphone, please contact Motorola Solutions directly.

• Oficial Website: Visite o Motorola Solutions oficial website Para informações sobre o produto, perguntas frequentes e recursos de suporte.
• Atendimento ao Cliente: Refer to your product packaging or the Motorola Solutions website for specific customer service contact numbers or email addresses in your region.
• Revendedores autorizados: Contact the authorized Motorola Solutions dealer from whom you purchased the product for local support and service.

When contacting support, please have your product model number (NNTN8235A) and any relevant purchase information ready.
