1. Introdução
Obrigado pela compra.asing the Clihome 88" Wi-Fi Electric Fireplace Heater. This manual provides essential information for the safe operation, installation, and maintenance of your new electric fireplace. Please read this manual thoroughly before installation and use, and retain it for future reference.
This electric fireplace offers a luxurious experience with realistic log and crystal flame effects, adjustable flame colors, and multiple control options including Wi-Fi, remote control, and a touch screen panel. It is designed for both wall-mounted and recessed installations, providing warmth and ambiance to your living space.
2. Avisos de segurança importantes
AVISO: Para reduzir o risco de incêndio, choque elétrico ou ferimentos, observe o seguinte:
- Leia todas as instruções antes de usar este aquecedor.
- This fireplace is SGS certified and equipped with safety cut-off devices for overheating protection. If the heater overheats, it will automatically shut off. Unplug the unit and wait 10 minutes before plugging it back in.
- Since it is not a real flame, electric fireplace inserts produce no harmful gases, dust, or ash, making them a safer alternative to traditional fireplaces.
- Não opere nenhum aquecedor com um cabo ou plugue danificado ou após o aquecedor não funcionar corretamente, tiver caído ou danificado de qualquer maneira.
- Não passe o fio por baixo do carpete. Não cubra o fio com tapetes, passadeiras ou coberturas semelhantes. Arrume o fio longe da área de tráfego e onde não haja tropeços.
- Sempre desligue o aquecedor quando não estiver em uso.
- Não insira nem permita que objetos estranhos entrem em nenhuma abertura de ventilação ou exaustão, pois isso pode causar choque elétrico ou incêndio, ou danificar o aquecedor.
3. Conteúdo da embalagem
Carefully unpack all components and check against the list below. Ensure all items are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- 1 x Unidade de Lareira Elétrica
- 1 x Controle Remoto
- 1 x Log & Crystal Set (for flame bed)
- 1 x Screw & Hardware Set (for installation)
- 1 x Installation & User Manual (this document)

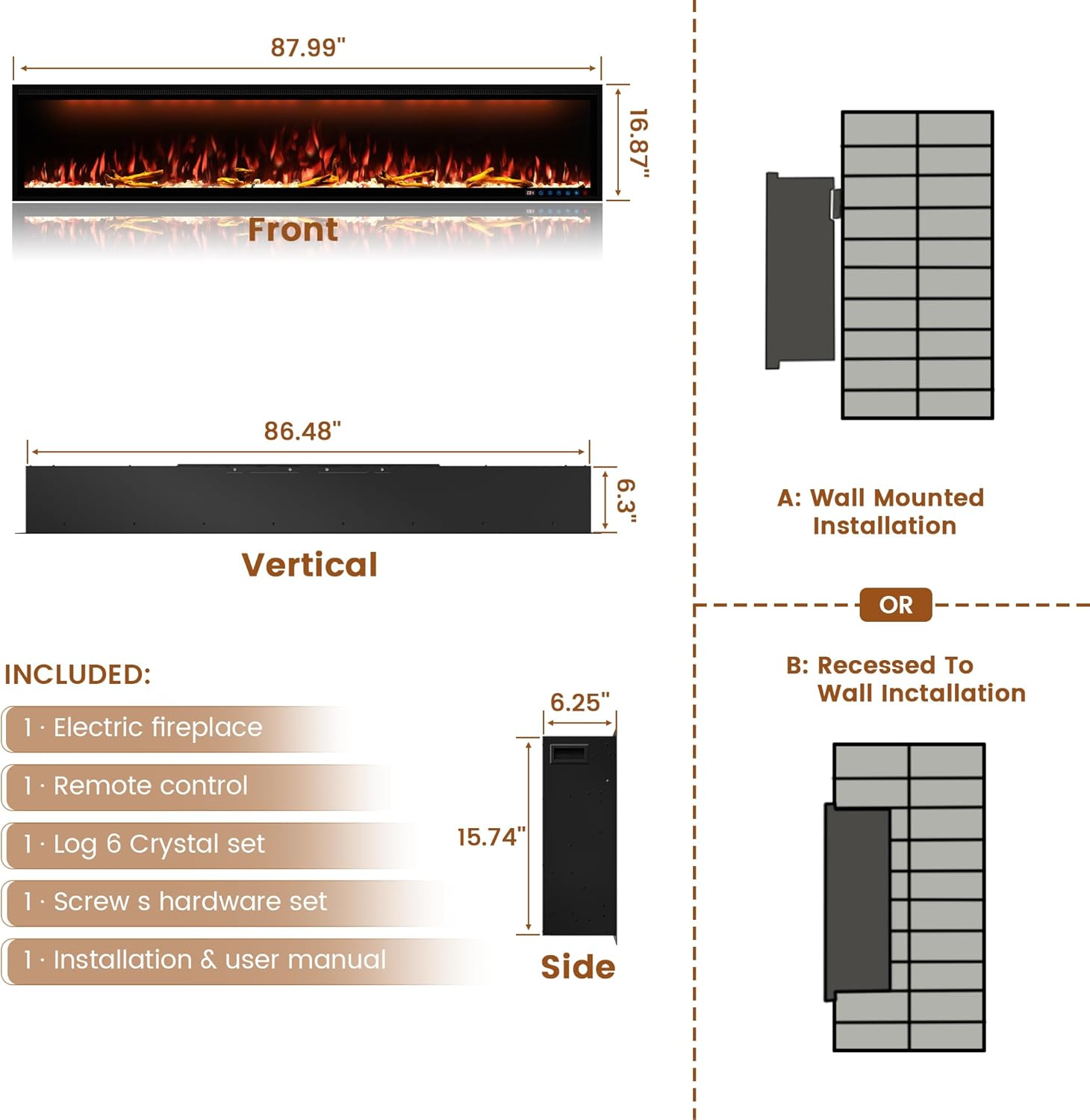

Image: Included components and dimensional overview of the fireplace, showing front, vertical, and side views, along with installation options.
4. Especificações do produto
| Recurso | Especificação |
|---|---|
| Marca | Clima |
| Modelo | 88" Wi-Fi Electric Fireplace Heater (B0CLNSC8M3) |
| Fonte de energia | CA/CC |
| Dimensões do produto (C x L x A) | 88"P x 16.87"L x 6.3"A |
| Material | Metal |
| Tipo de acabamento | Pintado |
| Tipo de instalação | Montagem na parede / Embutido |
| Recurso especial | Corded, Wi-Fi, Remote Control, Touch Screen, Timer, Adjustable Flame Color, Voice Control (Alexa) |
| Estilo | Moderno |
| Tipo de quarto | Quarto sala de estar |
| Tipo de ventilação | Sem ventilação |
| Profundidade da Câmara | 16.8 polegadas |
| Tipo de queimador | Quartzo |
5. Instalação
The Clihome electric fireplace offers two primary installation methods: wall-mounted and recessed. Choose the method that best suits your space and aesthetic preferences. Always ensure the installation surface is sturdy and can support the weight of the fireplace.
5.1 Instalação na parede
For wall-mounted installation, the fireplace is hung directly on the wall like a picture frame. Ensure you use the provided mounting hardware and secure it into wall studs for maximum stability. Mark the desired height and position, drill pilot holes, and attach the mounting bracket before carefully lifting and securing the fireplace onto the bracket.
5.2 Instalação embutida
For a seamless look, the fireplace can be recessed into a wall. This requires constructing a suitable opening within the wall structure that matches the fireplace's dimensions (88"D x 16.87"W x 6.3"H). Ensure proper ventilation and access to the power outlet. Consult a professional if you are unsure about wall construction or electrical wiring.
Image: The 88-inch electric fireplace seamlessly integrated into a modern living room wall, showcasing a recessed installation.
6. Instruções de operação
Your Clihome electric fireplace offers multiple convenient ways to control its functions: a touch screen panel, a remote control, and a mobile application via Wi-Fi.
6.1 Control Methods Overview
Image: Visual representation of the three control methods available for the fireplace: the integrated touch panel, the handheld remote control, and the mobile application interface.
6.2 Touch Screen Panel
The fireplace features an intuitive touch screen panel located on the unit itself. This panel allows direct control over various functions.
Image: Detailed diagram illustrating the functions of the touch screen panel, including Timer, Heater (750W/1500W), Top Light (F1 yellow, F2 blue, F3 purple), Log Flame (C1-C13 cycle), Flame (L1-L13 cycle), and Power ON/OFF.
6.3 Controle Remoto
The included remote control provides convenient operation from a distance. Ensure the remote has working batteries.
Image: The remote control with an LCD display and the mobile application interface, demonstrating the wireless control options for the fireplace.
6.4 Wi-Fi and APP Control
For advanced control and convenience, connect your fireplace to your home Wi-Fi network and use the dedicated mobile application. This allows for control via your smartphone or voice commands through Alexa.
- Ligar/desligar: Ligue ou desligue a unidade.
- Temporizador: Set the operating timer for 1-9 hours.
- Chama: Adjust the flame brightness and style (13 different colors and 3 flame bright levels).
- Aquecedor: Select between 750W or 1500W heat settings.
- Chama de tronco: Control the illumination of the log and crystal bed.
- Luz superior: Adjust the top light color (yellow, blue, purple).
Image: A visual representation of the 13 distinct flame color options available, allowing users to customize the ambiance of their fireplace.
Image: Infographic highlighting key features: a 1-9 hour timer, low noise operation, 13 flame color options, and efficient heat output from the bottom vent.
7. Manutenção
A manutenção regular garante a longevidade e o desempenho ideal da sua lareira elétrica. Desligue sempre o aparelho da tomada antes de realizar qualquer manutenção.
7.1 Limpeza
- Exterior: Limpe as superfícies exteriores com um pano macio, damp cloth. Do not use abrasive cleaners, polishes, or chemical solvents as they may damage the finish.
- Saídas de ar: Periodically vacuum or wipe the air intake and exhaust vents to prevent dust buildup, which can impede airflow and affect heating efficiency.
- Painel de vidro: Clean the glass panel with a soft cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the fireplace.
7.2 Armazenamento
If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location, preferably in its original packaging to protect it from damage.
8. Solução De Problemas
If you encounter issues with your electric fireplace, refer to the following common problems and solutions. If the problem persists, contact customer support.
| Problema | Possível causa | Solução |
|---|---|---|
| A lareira não liga. | No power, power cord not fully plugged in, main power switch off, circuit breaker tripped. | Ensure unit is plugged into a working outlet. Check main power switch. Reset circuit breaker if tripped. |
| Sem saída de calor. | Função de aquecimento não ativada, termostato configurado para uma temperatura muito baixa, proteção contra sobreaquecimento ativada. | Activate heater function via remote, app, or touch panel. Increase thermostat setting. Unplug unit for 10 minutes to reset overheating protection. |
| As chamas não são visíveis ou são fracas. | A intensidade da chama está muito baixa, o efeito de chama está desligado. | Adjust flame brightness settings. Ensure flame effect is turned on. |
| O controle remoto não funciona. | Batteries dead or incorrectly inserted, remote out of range, sensor blocked. | Replace batteries. Ensure line of sight to the fireplace sensor. Move closer to the unit. |
| Wi-Fi/APP control issues. | Incorrect Wi-Fi password, poor signal, app not updated, fireplace not connected to Wi-Fi. | Verify Wi-Fi credentials. Ensure strong Wi-Fi signal. Update app. Follow app instructions to reconnect fireplace to Wi-Fi. |
9. Garantia e Suporte ao Cliente
Clihome stands behind the quality of its products. While specific warranty details may vary, we are committed to providing excellent after-sales service.
If you encounter any problems with your product, or have questions regarding its operation, installation, or maintenance, please do not hesitate to contact our customer support team. We aim to provide a satisfactory solution within 24 hours.
For support, please refer to the contact information provided on your purchase receipt or visit the official Clihome store page on Amazon: Clihome Amazon Store.
