Manual do usuário do suporte veicular JOYROOM Magsafe JR-ZS403-DB

1. Introdução

Welcome to the user manual for your new JOYROOM Magsafe Car Mount, Model JR-ZS403-DB. This manual provides detailed instructions on how to set up, operate, and maintain your car mount to ensure optimal performance and longevity. Please read this manual thoroughly before using the product.

2. Produto acabadoview

The JOYROOM Magsafe Car Mount is designed to securely hold your smartphone in your vehicle, providing convenient access to navigation, music, and calls. Its all-metal construction and powerful N55 magnets ensure stability and durability.

2.1 Principais Características

• Rotação flexível de 360°: Allows for super flexible adjustment of viewângulos de inclinação.
• Upgrade Axle Anti-loosening: Engineered for durability with over 10,000 rotations tested.
• N55 Powerful Magnets: Provides 8 lbs of magnetic force for a secure hold.
• Brand-new Nano 3M Adhesive: Ensures strong adhesion with high and low temperature resistance.
• Construção totalmente metálica: Durable and premium design.
• Design dobrável: Oferece vários viewing positions (Upward, Semi Fold, Fold) for convenience.
• Ampla compatibilidade: Supports various phone models, including Magsafe-compatible iPhones and other phones with or without a metal ring.

2.2 componentes do produto

The package includes the JOYROOM Magsafe Car Mount unit. Ensure all components are present and undamaged upon unboxing.

Figura 1: Overview of the JOYROOM Magsafe Car Mount, showcasinSeu design elegante e formato compacto.

Figure 2: Dimensions of the folded JOYROOM Magsafe Car Mount, measuring approximately 2.28 inches in width and 1.04 inches in height.

3. Configuração

3.1 Etapas de instalação

1. Escolha um local: Select a flat, clean, and smooth surface on your car's dashboard or console where you intend to mount the device. Ensure it does not obstruct your view ou interferir nos controles de condução.
2. Limpe a superfície: Thoroughly clean the chosen surface with an alcohol wipe or a damp cloth, then dry it completely. Any dust, oil, or residue will compromise the adhesive's strength.
3. Aplicar adesivo: Carefully peel off the protective film from the bottom of the mount's 3M adhesive base.
4. Fixe a montagem: Place the mount firmly onto the cleaned surface. Press down with significant pressure for at least 30 seconds to ensure good contact.
5. Tempo de adesão permitido: For optimal and long-lasting adhesion, allow the mount to cure for at least 12 hours before attaching your phone or applying any significant force. This allows the 3M adhesive to bond properly with the surface.

Figure 3: The base of the car mount featuring the Nano 3M adhesive, designed for strong and temperature-resistant attachment to surfaces.

3.2 Compatibilidade com telefones

The JOYROOM Magsafe Car Mount offers wide compatibility:

• For iPhone 12/13/14/15/16 series: Works directly without a metal ring, or with a Magsafe-compatible case.
• For ALL other phones (e.g., Samsung, Google, iPhone X/11 series): Requires the included metal ring to be attached to the back of the phone or phone case.
• For Smooth and Flat Cell Phone Cases: The included metal ring can be attached to the exterior of smooth, flat cases.

Note: Not compatible with uneven phone cases such as those with textures, patterns, or made of materials like suede, or cases that are too thick.

Figure 4: Visual guide illustrating the wide compatibility of the car mount with various phone models and case types, and highlighting incompatible cases.

4. Instruções de operação

4.1 Conectando seu telefone

Once the mount is securely installed, simply bring your Magsafe-compatible phone (or phone with the attached metal ring) close to the magnetic ring of the mount. The powerful N55 magnets will automatically align and secure your phone in place.

Figure 5: Illustration of the N55 powerful magnets within the car mount, providing 8 lbs of magnetic force for a strong and reliable hold.

4.2 Ajuste Viewângulo de engate

The JOYROOM Magsafe Car Mount features a 360° flexible rotation and an adjustable arm, allowing you to customize your viewing angle for optimal visibility and comfort. Gently pivot the magnetic ring and adjust the arm to achieve your desired position.

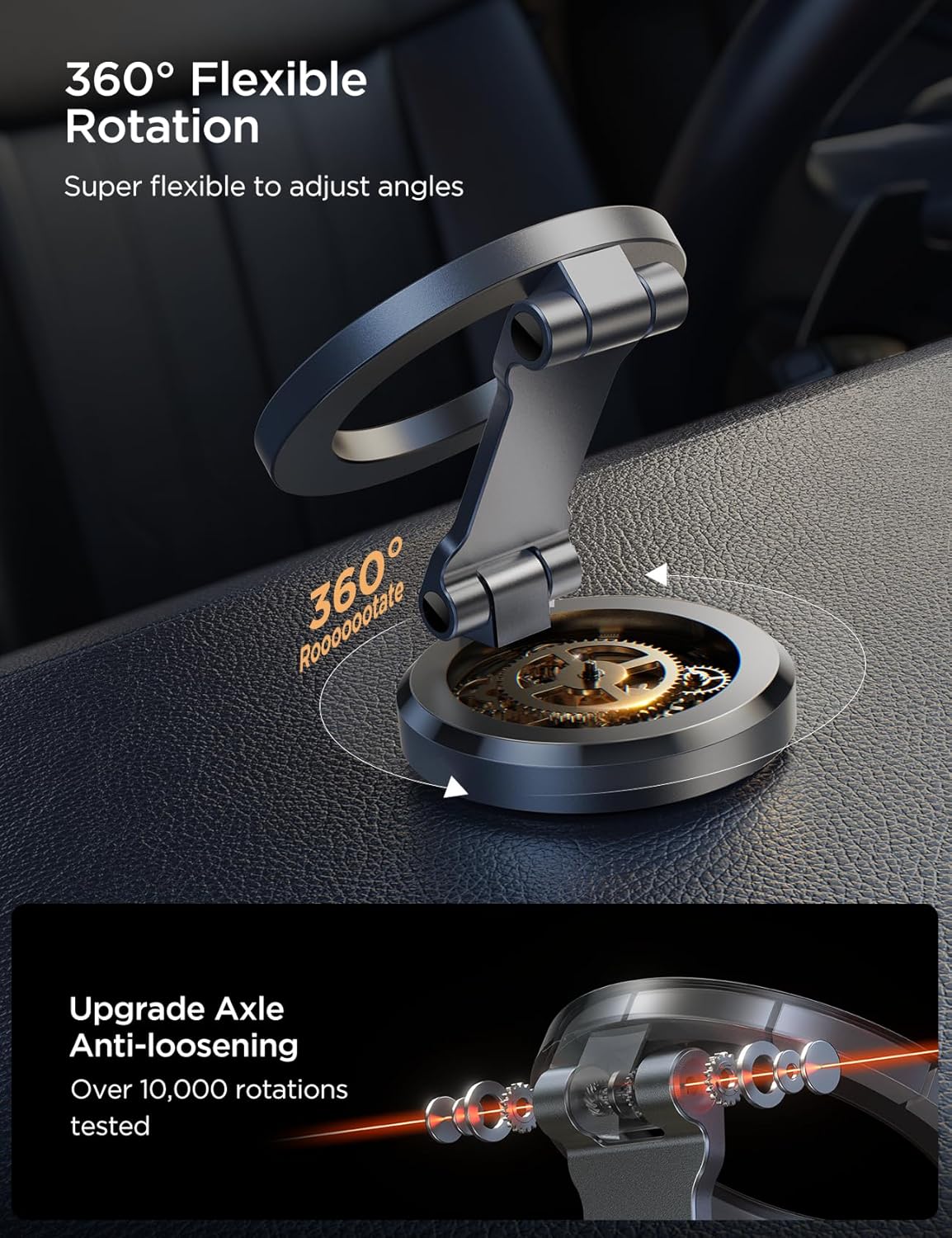

Figure 6: Demonstrates the 360° flexible rotation capability and the upgraded anti-loosening axle, ensuring smooth and durable adjustments.

4.3 Dobrar e Desdobrar

The mount's foldable design allows for various configurations to suit your needs, from an upright position to a compact folded state when not in use.

• Para cima: Fully extended for maximum visibility.
• Semi Fold: Partially folded for a lower profile.
• Dobrar: Completely folded for storage or when not in use, keeping your dashboard tidy.

Figure 7: Illustrates the three main positions of the car mount: Upward, Semi Fold, and Fold, demonstrating its versatility.

Figure 8: The all-metal Magsafe car mount securely holding a phone in a car interior, providing a stable and convenient viewing experience for navigation.

5. Manutenção

To ensure the longevity and optimal performance of your JOYROOM Magsafe Car Mount, follow these simple maintenance guidelines:

• Limpeza: Wipe the surface of the mount regularly with a soft, dry, or slightly damp cloth to remove dust and fingerprints. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Verificação adesiva: Periodically check the adhesion of the mount to your dashboard. If it feels loose, gently press down on the base to re-secure it. If the adhesive has significantly weakened, consider replacing the 3M adhesive pad.
• Superfície Magnética: Keep the magnetic surface clean and free of debris to ensure a strong connection with your phone.
• Evite temperaturas extremas: While the adhesive is temperature-resistant, prolonged exposure to extreme heat or cold can affect the product's materials.

6. Solução De Problemas

If you encounter any issues with your JOYROOM Magsafe Car Mount, refer to the following common problems and their solutions:

7. Especificações

8. Garantia e Suporte

For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact the seller/manufacturer directly. JOYROOM is committed to providing quality products and customer satisfaction.

You can often find support information on the official JOYROOM website ou através do revendedor onde você comprou o produto.
