Veken SHF3
Veken SHF3 Replacement Filter User Manual
Model: SHF3
Introdução
Thank you for choosing the Veken SHF3 Replacement Filters. This manual provides essential information for the proper installation, operation, and maintenance of your new filters, ensuring you receive the best performance and purified water for your shower.
These filters are designed exclusively for Veken SHF3 model handheld shower heads, offering a 10-stage filtration system to reduce chlorine, heavy metals, and other impurities from hard water.
Produto acimaview
The Veken SHF3 replacement filter utilizes a multi-stage filtration process to enhance water quality, contributing to healthier skin and hair. Each filter provides effective purification for approximately 1 to 3 months, depending on water quality and usage.
10-Stage Sistema de Filtração
The filter cartridge contains various layers, each designed to target specific impurities:
- Tela de aço inoxidável de alta densidade: Initial filtration of larger particles.
- Cleaning Ball: Assists in maintaining filter efficiency.
- Vitamina C: Neutralizes chlorine, reduces limescale, and supports skin health.
- Pedra medicinal: Balances water pH, reduces skin irritation.
- Carvão ativado: Absorbs organic pollutants, dechlorinates, and removes odors.
- Calcium Sulfite: Highly effective in removing chlorites.
- KDF: Further reduces chlorine and heavy metals.
- Magnetic Ball: Helps to soften water.
- Zeólito: Adsorbs impurities and heavy metals.
- Tela de aço inoxidável de alta densidade: Final filtration layer.
Imagem: Detalhada view of the Veken 10-stage filter cartridge, illustrating each filtration layer.

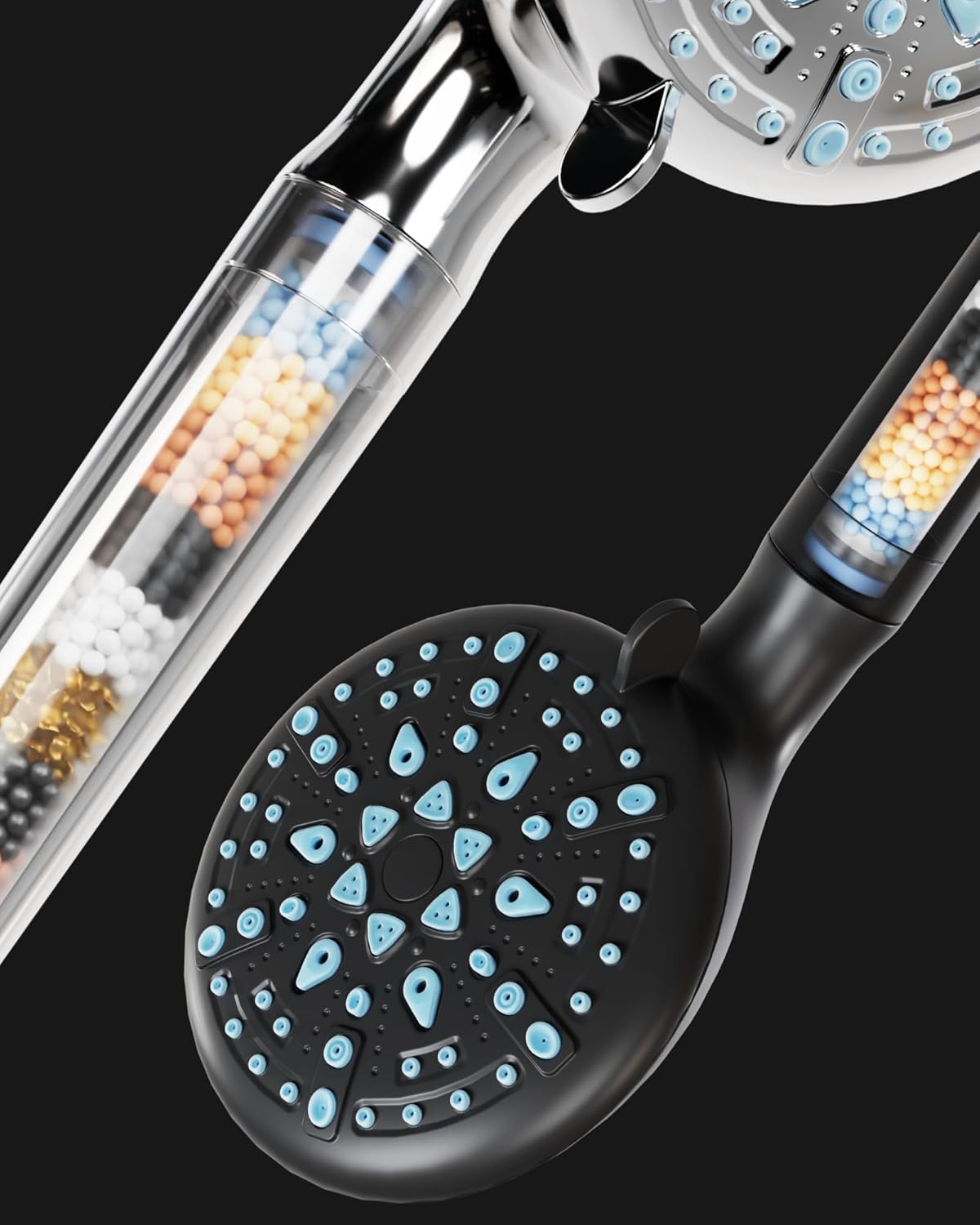

Image: Veken shower heads with integrated filter cartridges.
Instruções de instalação
These replacement filters are designed for easy, tool-free installation into your Veken SHF3 model handheld shower head.
Verificação de compatibilidade
Ensure you have the correct filter type for your Veken shower head. These filters are specifically for the SHF3 model, which typically uses a transparent cartridge filled with various media balls.
Image: Visual guide for choosing the correct Veken shower head filter.
Instalação passo a passo
- Desligue o abastecimento de água: Before beginning, ensure the water supply to your shower is turned off to prevent leaks.
- Unscrew Shower Head Handle: Gently twist the handle of your Veken SHF3 shower head counter-clockwise to separate it from the main shower head body.
- Remover filtro antigo: Carefully extract the used filter cartridge from the handle. Dispose of the old filter responsibly.
- Inserir novo filtro: Place the new Veken replacement filter cartridge into the shower head handle. Ensure it is seated correctly and fully inserted.
- Reattach Shower Head Handle: Screw the handle back onto the shower head body by twisting clockwise until it is hand-tight. Do not overtighten.
- Verifique se há vazamentos: Turn on the water supply and check for any leaks around the connection points. If leaks occur, ensure the filter is properly seated and the handle is securely tightened.
- Filtro de descarga: Allow water to run through the shower head for a few minutes to flush out any loose media particles and prepare the filter for use.
Instruções de operação
Once installed, the Veken SHF3 replacement filter operates automatically with your shower head. Simply use your shower as normal. The filtration process begins as water flows through the cartridge, providing purified water for your shower experience.
Manutenção e Substituição do Filtro
To ensure continuous optimal performance and water quality, regular filter replacement is necessary.
- Frequência de Substituição: Each Veken SHF3 replacement filter is designed to last approximately 1 a 3 meses. This duration can vary based on your local water quality (e.g., hardness, sediment levels) and frequency of shower use.
- Indicadores para Substituição: You may notice a decrease in water flow, a return of unpleasant odors, or a reduction in the beneficial effects on your skin and hair. These are signs that the filter media is exhausted and needs to be replaced.
- Procedimento de Substituição: Follow the "Installation Instructions" outlined in the Setup section to replace the old filter with a new one.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Fluxo de água reduzido | O filtro está entupido ou próximo do fim de sua vida útil. | Replace the filter cartridge. Ensure proper installation. |
| Water Leaks from Shower Head | Filter not seated correctly or handle not tightened. | Ensure the filter is fully inserted and the shower head handle is securely hand-tightened. Check for damaged O-rings. |
| Water Quality Not Improved | Filter is exhausted or incorrect filter type. | Replace the filter. Verify that you are using the correct Veken SHF3 replacement filter. |
Especificações
- Marca: Veken
- Número do modelo: SHF3V204 (compatible with SHF3 shower heads)
- Material: Acrylonitrile Butadiene Styrene (ABS) casing, various filtration media
- Dimensões do produto: Aproximadamente 4.7 x 0.8 x 0.8 polegadas
- Peso do item: Approximately 2.72 ounces per filter
- Vida útil do filtro: 1-3 months (dependent on water quality and usage)
- Componentes incluídos: Spare Filter Cartridge (2-pack)
- Código UPC: 850051133857
Garantia e Suporte
Veken is committed to providing high-quality products. For specific warranty information or technical support regarding your Veken SHF3 replacement filters, please refer to the original product packaging or visit the official Veken website. You may also contact Veken customer service directly for assistance.
Informações de contato: Please check the Veken official webPara obter os dados de contato mais recentes do suporte ao cliente, consulte o site ou a documentação da sua compra.
