Manual de Instruções da Bateria AGM PowerStar 12V 35AH U1

1. Informações importantes de segurança

Please read and understand all safety instructions before installing, operating, or maintaining this battery. Failure to follow these instructions may result in serious injury or property damage.

• Ácido da bateria: Esta bateria contém ácido sulfúrico, que é corrosivo. Evite o contato com a pele, os olhos ou as roupas. Em caso de contato, lave imediatamente com água e procure atendimento médico.
• Gases Explosivos: Batteries generate hydrogen gas, which is highly explosive. Keep sparks, flames, and smoking materials away from the battery. Ensure adequate ventilation during charging and operation.
• Proteção para os olhos: Use sempre proteção ocular adequada (óculos de segurança ou protetores oculares) ao trabalhar com baterias.
• Manuseio: Batteries are heavy. Use proper lifting techniques or assistance to prevent injury. Do not drop the battery.
• Curto-circuitos: Do not allow metal objects to bridge the battery terminals, as this can cause a short circuit, leading to sparks, heat, and potential explosion.
• Carregamento: Use only chargers designed for AGM batteries. Overcharging can damage the battery and pose a safety risk.
• Disposição: Dispose of batteries responsibly according to local regulations. Do not incinerate.
• Aviso da Proposta 65: Este produto contém produtos químicos conhecidos pelo Estado da Califórnia por causar câncer e defeitos congênitos ou outros danos reprodutivos.

2. Produto acabadoview

The PowerStar 12V 35AH U1 AGM Battery is a sealed lead-acid (SLA) battery designed for reliable power in various applications, particularly lawn tractors and zero-turn mowers. This Absorbent Glass Mat (AGM) technology battery offers enhanced performance and durability.

Principais características:

• Volumetage: 12V
• Capacidade: 35 Amp-Horas (AH)
• Arranque a frio Amp(CCA): 220CCA
• Tipo de Bateria: Sealed Lead Acid (SLA) / Absorbent Glass Mat (AGM)
• Tamanho do grupo: U1
• Tipo de terminal: Square Hole Nut and Bolt (NB, J)
• Terminal Orientation: Positive (+) terminal on the left side.
• Sem manutenção: AGM design eliminates the need for water additions.
• Durabilidade: Designed for resistance to shock, vibration, and heat.

Image: PowerStar 12V 35AH U1 AGM Battery, angled view with carrying handle.

Image: PowerStar AGM Battery demonstrating its robust construction and resistance to impact.

Aplicações:

This battery is suitable for a wide range of general-purpose applications requiring reliable 12V power, including:

• Cortadores de grama
• Tratores de jardim
• Zero-Turn Mowers
• Utility Vehicles
• Iluminação de emergência
• Sistemas de alarme de incêndio
• Bombas de depósito

Image: Collage showing the PowerStar battery used in a lawnmower, fire alarm system, exit sign, and sump pump setup, illustrating its versatility.

3. Compatibilidade

The PowerStar U1 battery is designed as a replacement for Group U1 batteries and is compatible with various models from popular brands. Please verify your equipment's specific battery requirements before installation.

Modelos compatíveis (lista parcial):

• Grasshopper Zero-Turn Mowers: 120, 120K, 218, 220, 225, 720, 223, 227, 233, 327, 432, 718KH2, 614, 718, 721, 616, 618, 723KH2, 727K2, 725K, 729G2, Front Mount 616T, 620T, 723T, 727T, 729BT, 729T, 735BT, 932, Mid Mount 120K, 124, 220, 223, 227, 329, 329B, 335, 432.
• Gravely Zero-Turn Mowers: 1447, 148Z, 152Z, 160Z, 252Z, 260Z, 272Z, Compact-Pro 34, 44, PM 250Z, Pro-Ride 254, 260, 266, Pro-Turn 148, 152, 160, 252, 260, 266, 272, 452, 460, 472, ZT 34, 42, 50, ZT HD 44, 48, 52, 60, ZT X 42, 52, ZT XL 42, 48, 54, 52, 60.
• GREAT DANE Zero-Turn Mowers: Brutus, Chariot, Chariot 48, 52, 61, Chariot Jr., Chariot XL 61, 72, Gateway 52, Scamper, Super Surfer 48, 52, 61, Surfer.
• HUSQVARNA Zero-Turn Mowers: IZ4217T, IZ4817T, IZ4218, IZ4818, IZ4819T, IZ4821T, IZ5221T, IZ52237, IZ5225TXP, IZ6123T, IZ6125T, ZTH4218, ZTH4218QL, ZTH4221QL, ZTH4818, ZTH4820, ZTH4821, ZTH5221, ZTH5223, ZTH5223L, ZTH5223XL, ZTH5225, ZTH5225XP, ZTH5225XPQL, ZTH6125, ZTH6126.
• JOHN DEERE Garden Tractors: 100, 108, 110, 111, 112, 112L, 116, 116H, 130, 160, 165, 170, 175, 180, 185, 200, 208, 240, 260, 322, 330, 332, 415, 425, 445EFI, 455 Gas, 50, 56, 60, 66, 67, 68, 70, G100, G110, GT242, GT262, GT275, LX186, LT140, S80, S82, S83, S92 SRX100, STX30, SX75, SX85, SX95, X300, X304, X320, X324, X340, X465, X475, X485.
• JOHN DEERE Lawn Tractors: L100, L110, L118LE, L120, L130, LA105, LA115, LA125, LA135, LA145, LA165, LA175, LT133, LT155, LT150, LT160 42C, LT160 Freedom, LT166, LTR166, LT180, LT190, LTR180, SST15, SST16, SST18.
• JOHN DEERE Zero-Turn Mowers: 647, 647A Quik Trak, 657, 667, 737, 757, 657A Quik Trak, 667A Quik Trak, 717A Mini Z-Trak, 727A Mini Z-Trak, 737 Mid Z-Trak, 757 Mid Z-Trak, 777 Max Z-Trak, 777, 797, 797 Max Z-Trak, F687 Front Z-Trak, Z-Trak Pro Z910A, Z920A, Z925A, Z930A, Z950A, Z960A, Z970A, Z-Trak Z335E 42", Z335M 42", Z345M 42", Z345R 42", Z355E 48", Z355R 48", Z375R 54", Z435-48", Z435-54", Z445 48", Z445 54", Z465-62", Z525E-48", Z525E-54", Z535M-48", Z535M-54", Z535M-62", Z535R-54", Z540M-48", Z540M-54", Z540M-62", Z540R-48", Z540R-54", Z540R-62", Z710A, Z720A, Z915B, Z920M, Z920R.
• MURRAY OHIO MFG. CO. Riding Mowers: 10 Hp/30, 12 Hp/38, 12 Hp/40, 12.5 Hp/38, 12.5 Hp/40, 14 Hp/40, 14 Hp/46, 14.5 Hp/42, 16 Hp/42, 16 Hp/46, 17.5 Hp/46, 18 Hp/42, 18 Hp/46, 18 Hp/46 LTX, 20 Hp/52in. cut, 31515, 31704, 35560, 36502, 36506, 36508, 36519, 36523, 36534, 36557, 36560, 3662, 3666, 3667, 3697, 38219, 40713, 4169.
• NOMA Lawn & Garden Equipment: 13543 Signature, 14.5 Hp/40in., 14.5 Hp/43in., 14450 Signature, 15 Hp/43in., 16 Hp/43in., 18 Hp/43in. Command, 19 Hp/46in. Automatic Drive, GT1-1646, GT18 Hp/43in., GT18 Hp/46in., GTX-1846, LT-1239, LX1-1340, LX1-1440, LX1-1646, LX-1240.
• SABRE (BY JOHN DEERE) Lawn & Garden Tractors: 1538GS, 1538HS, 1542GS, 1642GS, 1642HS, 1642HV, 1646HS, 1646HV, 1842GV, 1842HV, 1843HV, 1848GV, 1848HV, 2048HV, 22354HV.
• SCAG Zero-Turn Mowers: FREEDOM Z, Sabre Tooth Turf Tiger, Tiger Cat, Tiger Cub, Turf Tiger, Wild Cat, Z Cat.
• SCOTTS (BY MURRAY) Garden Tractors: 42531X8, 42561X8, 46561X8, 46562X8, 50560X8, 50563XS, S2048, S2348, S2546, S2554.

4. Configuração e instalação

Proper installation is crucial for the battery's performance and longevity. Always wear safety glasses and gloves during installation.

Verificações de pré-instalação:

1. Verify the new battery's dimensions and terminal configuration match your equipment's requirements.
2. Ensure the battery tray is clean, dry, and free of corrosion.
3. Confirm the equipment's ignition is off and all accessories are disconnected.

Etapas de instalação:

1. Desconecte a bateria antiga: Always disconnect the negative (-) terminal first, followed by the positive (+) terminal. Remove any hold-down clamps.
2. Remova a bateria antiga: Carefully lift and remove the old battery.
3. Limpar a bandeja da bateria: Clean any corrosion or debris from the battery tray and cable terminals. Use a wire brush and a baking soda solution if necessary.
4. Instale a bateria nova: Carefully place the PowerStar U1 battery into the battery tray. Ensure it is seated securely.
5. Conecte a nova bateria: Connect the positive (+) cable first, then the negative (-) cable. Ensure connections are tight and secure. The positive terminal is on the left side of the battery.
6. Bateria segura: Install any hold-down clamps to prevent battery movement during operation.
7. Proteção Terminal: Aplique uma fina camada de graxa dielétrica ou spray anticorrosivo nos terminais para evitar a corrosão.

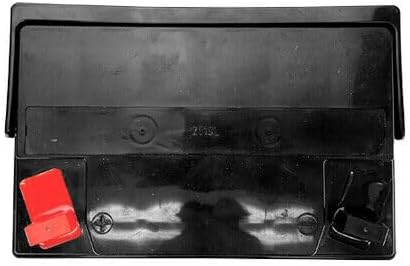

Imagem: Topo view of the PowerStar U1 battery, clearly showing the positive (red cap) and negative (black cap) terminals for correct connection.

5. Operação

The PowerStar U1 AGM battery is designed for immediate use. However, proper charging and usage practices will maximize its lifespan.

Uso inicial:

While AGM batteries are typically shipped fully charged, it is recommended to perform an initial charge before the first use to ensure peak performance, especially if the battery has been stored for an extended period.

Diretrizes de cobrança:

• Use a charger specifically designed for AGM batteries with a 12V output.
• Avoid overcharging, as this can reduce battery life. Many modern chargers have automatic shut-off features.
• For optimal performance, charge the battery in a well-ventilated area.
• If the battery is deeply discharged, a slower charge rate may be beneficial.

Operação normal:

Ensure your equipment's charging system is functioning correctly to maintain the battery's charge during use. Regularly check the battery's voltage if your equipment has a voltmeter.

6. Manutenção

The PowerStar U1 AGM battery is largely maintenance-free, but periodic checks can help ensure its longevity and reliable performance.

Inspeção regular:

• Visually inspect the battery for any signs of damage, cracks, or swelling.
• Check the battery terminals and cable connections for tightness and corrosion.
• Ensure the battery hold-down is secure.

Limpeza:

If corrosion is present on the terminals, disconnect the battery (negative first, then positive) and clean the terminals with a wire brush and a solution of baking soda and water. Rinse with clean water and dry thoroughly before reconnecting.

Armazenar:

Se a bateria for armazenada por um período prolongado:

• Carregue totalmente a bateria antes de armazená-la.
• Armazene em local fresco e seco, longe da luz solar direta e de temperaturas extremas.
• Verifique periodicamente o vol da bateriatage (every 1-3 months) and recharge if it drops below 12.5V to prevent sulfation.

7. Solução De Problemas

This section addresses common issues you might encounter with your PowerStar U1 battery.

Problemas e soluções comuns:

• Bateria não mantém carga:
  • Check charging system: Ensure the equipment's alternator or charging system is functioning correctly.
  • Parasitic drain: Investigate if there's an electrical component drawing power when the equipment is off.
  • Battery age: Batteries have a finite lifespan. If the battery is old, it may need replacement.
• Low Cranking Power:
  • Check charge level: Ensure the battery is fully charged.
  • Terminal connections: Verify that battery terminals are clean and tightly connected. Loose or corroded connections can impede current flow.
  • Cold weather: Battery performance decreases in cold temperatures.
• Battery Swelling or Leaking:
  • This indicates a serious issue, often due to overcharging or internal damage. Immediately disconnect the battery and replace it. Do not attempt to charge or use a swollen or leaking battery.

If you experience persistent issues not covered here, consult a qualified technician or contact PowerStar customer support.

8. Especificações

9. Garantia e Suporte

Informações sobre garantia:

This PowerStar U1 battery comes with a Garantia de 2 anos a partir da data da compra. Esta garantia cobre defeitos de materiais e de fabricação sob uso e serviço normais.

A garantia não cobre danos resultantes de:

• Instalação ou manutenção inadequada.
• Abuse, neglect, or accident.
• Overcharging or undercharging.
• Freezing.
• Use in applications for which the battery was not designed.

Guarde o comprovante de compra para reclamações de garantia.

Suporte ao cliente:

For technical assistance, warranty claims, or further inquiries, please contact PowerStar customer support through your retailer or the official PowerStar website.
