Omzer OM-CLB Automatic Self-Cleaning Cat Litter Box User Manual

1. Introdução

Thank you for choosing the Omzer OM-CLB Automatic Self-Cleaning Cat Litter Box. This device is designed to provide a clean and hygienic environment for your cat(s) by automating the litter cleaning process. It features app control, health monitoring, and a large capacity suitable for multiple cats.

Image: The Omzer OM-CLB Automatic Self-Cleaning Cat Litter Box, showcasing its compact design next to a cat and travel luggage, highlighting its suitability for maintaining pet care while owners are away.

2. Instruções de segurança

• Leia todas as instruções antes de operar o dispositivo.
• Mantenha o dispositivo longe de água e umidade.
• Verifique se o cabo de alimentação não está danificado e se está devidamente conectado a uma tomada aterrada.
• Não permita que crianças ou animais de estimação brinquem com o dispositivo.
• Use only recommended cat litter types (clumping clay litter is generally suitable).
• Não tente desmontar ou reparar a unidade por conta própria. Entre em contato com o suporte ao cliente para obter assistência.
• Certifique-se de que o dispositivo esteja colocado em uma superfície estável e nivelada.

3. Produto acabadoview

The Omzer OM-CLB features an enclosed design with an internal rotating drum, a waste collection bin, and various sensors for safe and efficient operation.

Imagem: Uma explosão view diagram of the Omzer OM-CLB, illustrating the locations and functions of its three integrated sensors: the Entrance Infrared Sensor for cat detection, the Waste Collecting Box Infrared Sensor for capacity monitoring, and the Gravity Sensor for differentiating multiple cats.

Componentes principais:

• Unidade principal: Houses the rotating drum and control panel.
• Tambor giratório: Contains the cat litter and sifts waste.
• Waste Collection Bin: Located beneath the drum, collects sifted waste.
• Painel de controle: Botões e indicadores para operação manual e status.
• Sensores: Includes an Entrance Infrared Sensor (halts rotation upon cat detection), a Waste Collecting Box Infrared Sensor (alerts when full), and a Gravity Sensor (differentiates multiple cats).
• Adaptador de energia: Para conectar a unidade a uma tomada elétrica.

4. Configuração

4.1 Desembalagem

1. Remova cuidadosamente todos os componentes da embalagem.
2. Verify that all parts are present and undamaged.
3. Guarde a embalagem para transporte ou armazenamento futuros.

4.2 Posicionamento

• Place the litter box on a firm, level surface indoors.
• Ensure there is adequate space around the unit for ventilation and access.
• Evite colocar perto de fontes de calor ou sob luz solar direta.

4.3 Filling with Litter

1. Open the top access point of the rotating drum.
2. Pour clumping cat litter into the drum.
3. Ensure the litter level is between the MIN and MAX lines indicated inside the drum. Do not overfill.
4. Close the top access point securely.

Image: A hand demonstrating the process of adding cat litter to the Omzer OM-CLB, with a visual cue for the maximum fill level to ensure proper operation and prevent litter from sticking.

4.4 Conexão de Energia

1. Connect the power adapter to the unit's power input.
2. Conecte o adaptador de alimentação a uma tomada elétrica padrão.
3. The unit will power on, and indicator lights may illuminate.

4.5 App Connection (Omzer Smart App)

The Omzer OM-CLB supports 2.4G Wi-Fi for app control and monitoring.

1. Download the 'Omzer Smart' app from your device's app store.
2. Crie uma conta ou faça login.
3. Follow the in-app instructions to add your Omzer OM-CLB device. This typically involves putting the device into pairing mode and connecting to your home 2.4G Wi-Fi network.
4. Once connected, you can access remote control, health monitoring, and scheduling features.

Image: A smartphone screen showing the Omzer Smart app's interface, which provides status reminders, multi-cat data insights, timing functions, and remote cleaning control for the Omzer OM-CLB Automatic Self-Cleaning Cat Litter Box.

5. Instruções de operação

5.1 Ciclo de limpeza automática

• The device is designed to automatically initiate a cleaning cycle a few minutes after your cat exits the litter box.
• The internal drum will rotate, sifting clean litter and depositing waste into the collection bin.
• The Entrance Infrared Sensor ensures the drum stops rotation immediately if a cat approaches during a cycle.

5.2 Limpeza manual

• Press the 'Clean' button on the control panel to initiate a cleaning cycle manually.
• Alternatively, use the Omzer Smart app to start a cleaning cycle remotely.

5.3 Recursos do aplicativo

• Controle remoto: Start/stop cleaning cycles from anywhere.
• Monitoramento de saúde: Track your cat's litter box usage, frequency, and duration. This data can provide insights into your cat's health.
• Status Reminders: Receive notifications for waste bin full, litter levels, or maintenance alerts.
• Agendamento: Set custom cleaning schedules.

6. Manutenção

6.1 Emptying the Waste Collection Bin

1. When the Waste Collecting Box Infrared Sensor detects a full bin, you will receive an alert via the app or an indicator light on the unit.
2. Pull out the waste collection bin from the front of the unit.
3. If using a drawstring liner, pull the drawstring to seal the bag and dispose of the waste.
4. Replace the liner (if applicable) and slide the bin back into the unit until it clicks into place.

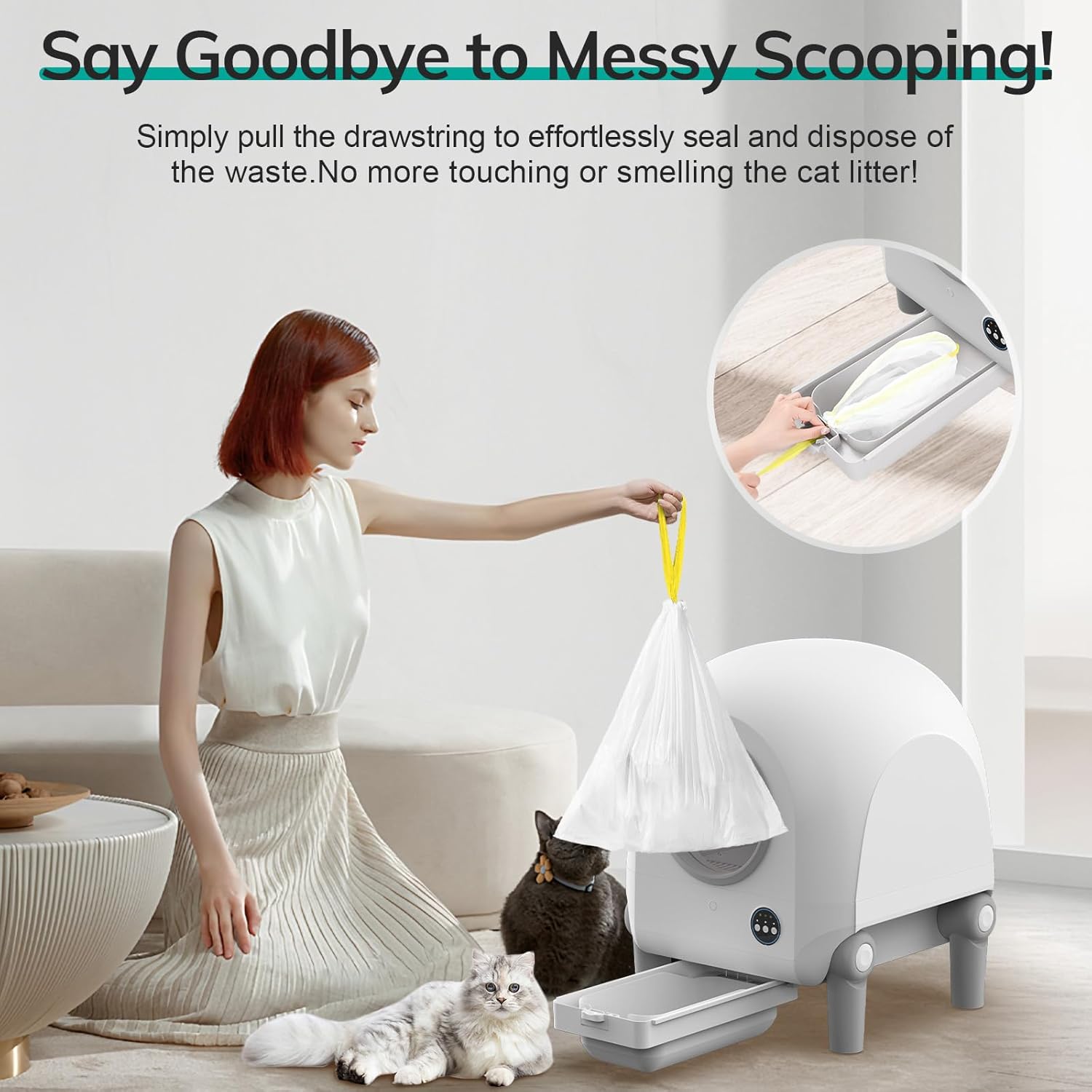

Image: A user demonstrating the waste disposal process by pulling the drawstring of a liner bag from the Omzer OM-CLB's waste collection bin, illustrating a hygienic and hands-free method of waste removal.

6.2 Limpando a Unidade

• Exterior: Limpe as superfícies externas com adamp pano e detergente neutro. Evite produtos químicos agressivos.
• Interior Drum: For a deeper clean, empty all litter from the drum. The drum can be removed for washing with water and mild soap. Ensure it is completely dry before reassembling.
• Sensores: Gently wipe sensors with a soft, dry cloth to ensure proper function.
• Always unplug the unit before performing any deep cleaning.

6.3 Substituição da areia higiênica

• Regularly check the litter level and replenish as needed to maintain optimal performance.
• Completely replace all litter every 2-4 weeks, or as necessary, depending on usage and odor.

7. Solução De Problemas

8. Especificações

9. Garantia e Suporte

Omzer provides 24/7 U.S.-based customer support for any inquiries or issues you may encounter with your OM-CLB Automatic Self-Cleaning Cat Litter Box.

For assistance, please contact our support team through the Omzer Smart app or visit our official website para informações de contato.
