1. Introdução
Thank you for choosing the Amaze-Heater 600W Maxi Convection Panel Heater. This energy-efficient, silent, and space-saving heater is designed to provide comfortable warmth for rooms up to 300 sq ft. Its innovative design ensures even heat distribution without circulating dust or allergens, making it ideal for various indoor spaces.
Figure 1: Amaze-Heater 600W Maxi Convection Panel Heater installed in a room.
2. Instruções de segurança
Leia atentamente todas as instruções de segurança antes da instalação e utilização. O não cumprimento destas instruções pode resultar em choque elétrico, incêndio ou ferimentos graves.
- Wall-Sense Safety Sensor: The heater is equipped with a wall-sense safety sensor that cuts power if the unit is removed from the wall. Ensure proper wall mounting for operation.
- Proteção contra superaquecimento: Built-in overheat protection automatically shuts off the heater if it reaches an unsafe temperature.
- Superfície não condutora: The heating panels are triple-insulated and made of non-conducting materials, ensuring they do not cause burns even when hot to the touch.
- Construção Reforçada: Panels are reinforced with premium fiberglass mats to prevent cracks and enhance durability.
- Colocação: Do not cover the heater. Maintain adequate clearance from combustible materials.
- Somente para uso interno: This heater is designed for indoor use in dry locations only.
- Crianças e animais de estimação: While the surface remains safe to touch, always supervise children and pets around any heating appliance.
Figure 2: Safety features of the Amaze-Heater, including non-conductive panel and fiberglass reinforcement.
3. Conteúdo da embalagem
- Amaze-Heater 600W Maxi Convection Panel Heater
- Wall Mount Kit (screws, anchors, brackets)
- Detailed Instructions Guide (template for installation is part of the packaging)
4. Instalação
The Amaze-Heater is designed for quick and easy wall-mounted installation. A template is provided within the product packaging to assist with accurate placement of mounting holes.
- Prepare a parede: Choose a suitable wall location, ensuring at least 12 inches of clearance above and below the heater.
- Usar modelo: Carefully remove the installation template from the product box. Position the template on the wall at the desired height and use a level to ensure it is straight.
- Marque os furos: Mark the drilling points indicated on the template.
- Furos de perfuração: Faça furos-piloto nos pontos marcados. Insira buchas de parede, se necessário.
- Fixar suportes: Fixe os suportes de montagem na parede utilizando os parafusos fornecidos.
- Cabo de alimentação Roteador: Before mounting, ensure the power cord is routed correctly through the designated channel on the back of the heater. Adjust excess cord length by winding it around the integrated cord management system.
- Aquecedor de montagem: Carefully align the heater with the wall brackets and secure it in place. The wall-sense safety sensor will ensure the heater only operates when properly mounted.
- Conecte: Conecte o aquecedor a uma tomada elétrica padrão de 120 V.
Figura 3: O profissional esguiofile and easy installation features of the heater.
5. Instruções de operação
The Amaze-Heater operates silently and efficiently to warm your space.
- Ligar/desligar: Once properly installed and plugged in, use the integrated controls or a compatible external thermostat to turn the heater on or off.
- Compatibilidade do termostato: This heater is compatible with most external thermostats and Wi-Fi smart plugs (sold separately), allowing you to easily adjust the temperature and set timers for optimal comfort and energy savings.
- Operação silenciosa: The fanless design ensures noiseless operation, making it suitable for bedrooms, offices, and other quiet environments. It also prevents dust recirculation.

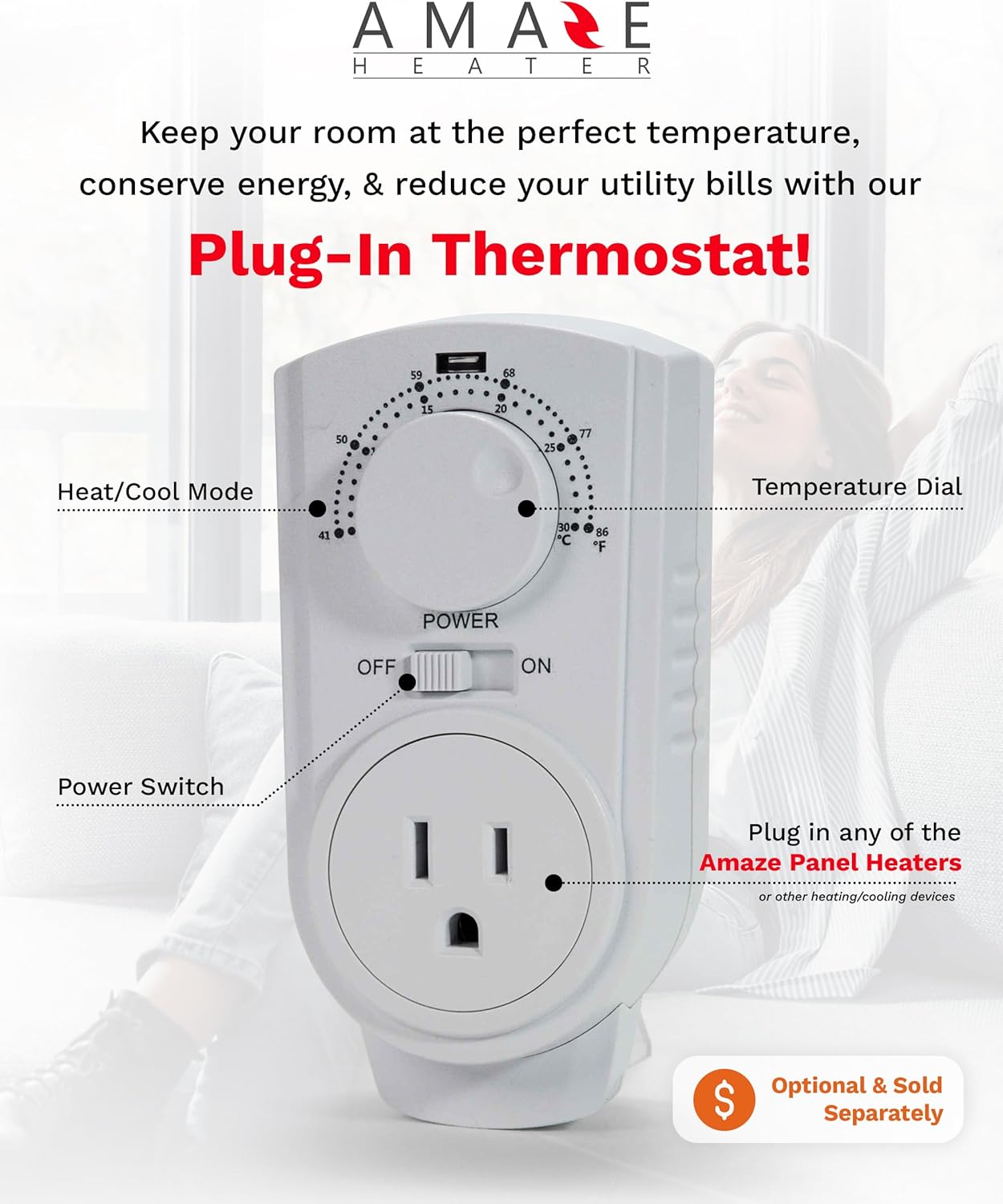

Figure 4: Heater shown with an optional plug-in thermostat for temperature control.
6. Características
- Aquecimento eficiente: Spreads even heat up to 300 sq ft rooms with 600W (2046 BTU/hr), 120V, and 5.0A.
- Design ultrafino: Measures 1"D x 36"W x 24"H, making it space-saving and discreet.
- Silent & Clean Air: Fanless convection design ensures noiseless operation and no dust recirculation, beneficial for allergy sufferers.
- Paintable Surface: The heater's surface can be painted to match your interior wall color.
- Segurança aprimorada: Features triple-insulated, non-conducting materials and fiberglass-reinforced panels to prevent burns and cracks. Includes a wall-sense safety sensor.
- Certificado ETL: Complies with UL 2021 standards for safety.
Figure 5: Natural convection heating process of the panel heater.
Figure 6: Silent operation and clean air benefits of the fanless design.
7. Manutenção
To ensure optimal performance and longevity of your Amaze-Heater, follow these simple maintenance guidelines:
- Limpeza: Ensure the heater is unplugged and completely cool before cleaning. Wipe the surface with a soft, damp pano. Não use produtos de limpeza abrasivos ou solventes.
- Filtro: The fanless design means there is no filter to clean or replace, contributing to lower maintenance.
- Armazenar: Se for guardar o aquecedor por um período prolongado, certifique-se de que esteja limpo e seco. Guarde-o em local fresco e seco, de preferência na embalagem original.
8. Solução De Problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Aquecedor não liga. | Not properly mounted to the wall. | Ensure the heater is securely attached to the wall. The wall-sense safety sensor prevents operation if not correctly installed. |
| Heater emits a slight odor during initial use. | Initial burn-off of manufacturing residues. | This is normal for new heating appliances. The odor should dissipate after a few hours of operation. Ensure adequate ventilation during initial use. |
| O aquecedor desliga inesperadamente. | Proteção contra superaquecimento ativada. | Unplug the heater and allow it to cool down. Check for any obstructions blocking airflow. Ensure proper clearance around the heater. |
9. Especificações
- Marca: Amaze-Heater
- Modelo: Maxi
- Poder: 600 Watts
- Volumetage: 120V
- Ampidade: 5 Amps
- Cobertura de aquecimento: Até 300 pés quadrados
- Dimensões do produto: 1"P x 24"L x 36"A
- Peso do item: 17.6 libras
- Cor: Branco
- Características especiais: Noiseless, Overheat Protection, Wall-Mounted, Paintable Surface
- Certificações: ETL certified by Intertek, complies with UL 2021 standards
- Código UPC: 854208008364
- ASIN: B0DF2Q2YMV
10. Vídeo oficial do produto
Watch this official video from Amaze-Heater LLC for an overview of the Maxi Convection Panel Heater.
Video: AP - Amaze Heaters Maxi. This video provides a visual guide to the features and benefits of the Amaze-Heater Maxi model.
11. Garantia e Suporte
Amaze Heaters has been manufacturing innovative and energy-efficient wall panel heaters since 2011. For any questions, technical support, or warranty inquiries, please refer to the contact information provided in your product packaging or visit the official Amaze-Heater website.
