sytiry Smart Walking Pad Treadmill User Manual

1. Instruções gerais de segurança

Please read all instructions carefully before using the sytiry Smart Walking Pad Treadmill. Keep this manual for future reference.

• Certifique-se de que a esteira esteja colocada em uma superfície plana e estável.
• Mantenha crianças e animais de estimação longe da esteira durante a operação.
• Use calçado e roupa adequados para a prática de desporto.
• Não utilize a esteira se ela estiver danificada ou apresentar mau funcionamento.
• Unplug the treadmill from the power outlet when not in use or before cleaning.
• Não utilize a esteira ao ar livre ou em ambientes fechados.amp ambientes.
• Consulte um médico antes de iniciar qualquer programa de exercícios.
• Do not attempt to disassemble or repair the treadmill yourself. Contact customer support for assistance.

2. Produto acabadoview

The sytiry Smart Walking Pad Treadmill is designed for home and office use, offering a convenient way to integrate walking into your daily routine. It features a powerful yet quiet 2.5HP motor, a robust 300 lb weight capacity, and smart control options via a remote and a dedicated mobile application. Its compact, installation-free design with built-in wheels allows for easy movement and storage.

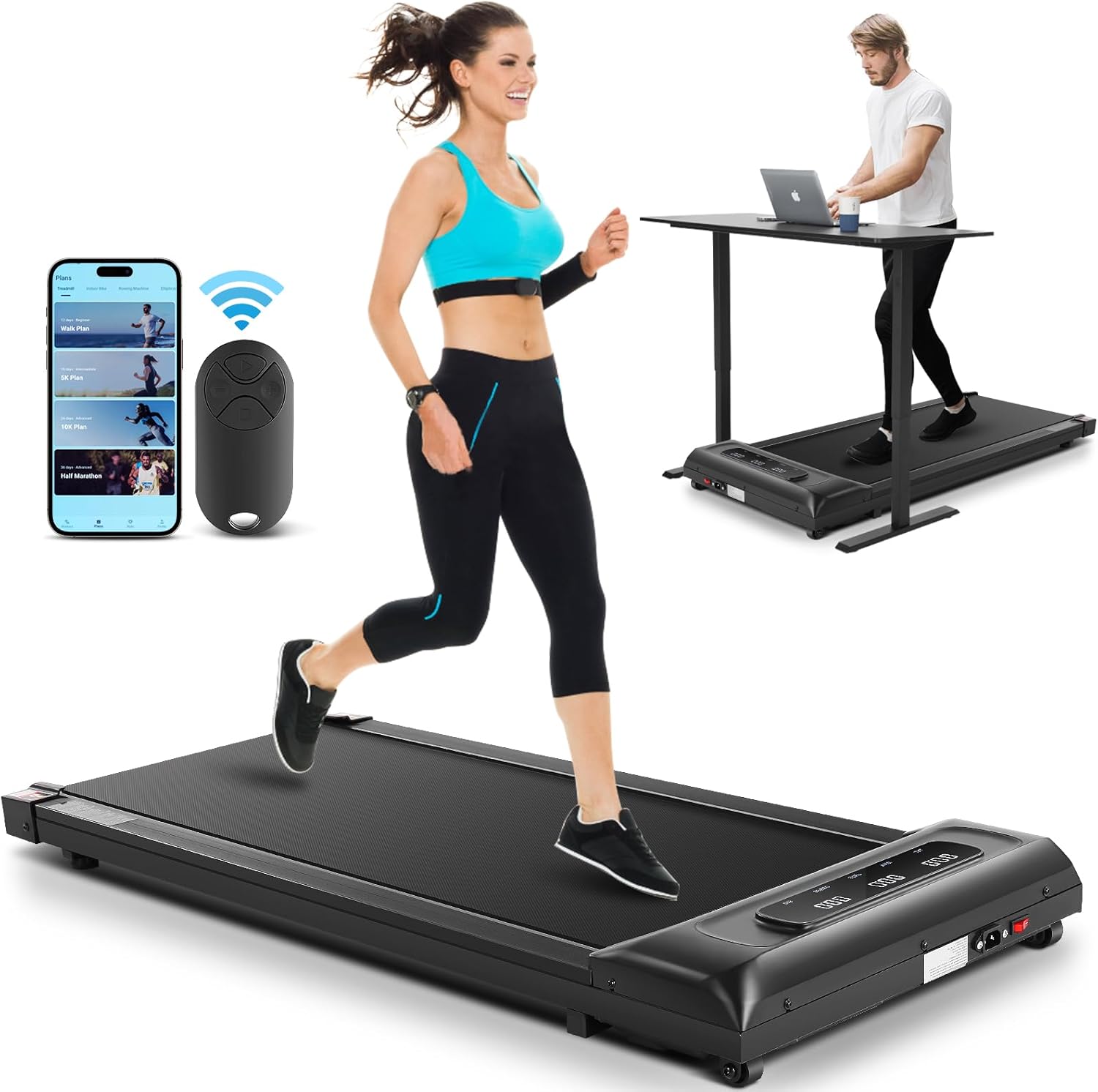

Figure 2.1: The sytiry Smart Walking Pad Treadmill in a typical usage scenario, highlighting its compact design and suitability for both running and walking under a desk.

3. Conteúdo da embalagem

Por favor, marque a caixa para os seguintes itens:

• sytiry Smart Walking Pad Treadmill
• Cabo de alimentação
• Controle remoto
• Lubrificante
• Kit de ferramentas
• Manual do usuário (este documento)

4. Configuração

The sytiry Smart Walking Pad Treadmill is designed for quick and easy setup with no assembly required.

1. Desembale a esteira: Retire cuidadosamente a esteira da embalagem.
2. Escolha um local: Place the treadmill on a firm, level surface with adequate space around it for safe operation. Ensure there is at least 2 feet of clear space behind the treadmill.
3. Conecte a energia: Plug the power cord into the treadmill's power input port, then plug the other end into a grounded electrical outlet.
4. Ligar: Locate the main power switch (usually near the power cord input) and switch it to the 'ON' position. The LED display should illuminate.

Figure 4.1: The treadmill features built-in wheels for easy relocation and storage, making it convenient to move after setup.

5. Instruções de operação

5.1 Métodos de Controle

The sytiry Smart Walking Pad Treadmill can be controlled using the included remote control or via the dedicated mobile application.

Controle remoto

The remote control allows for basic functions such as starting/stopping the treadmill and adjusting speed. Ensure the remote has working batteries.

Mobile Application (APP)

For advanced features and tracking, download the sytiry companion app from your device's app store. Follow the in-app instructions to pair your treadmill. The app provides detailed workout data, program options, and comprehensive control over the treadmill.

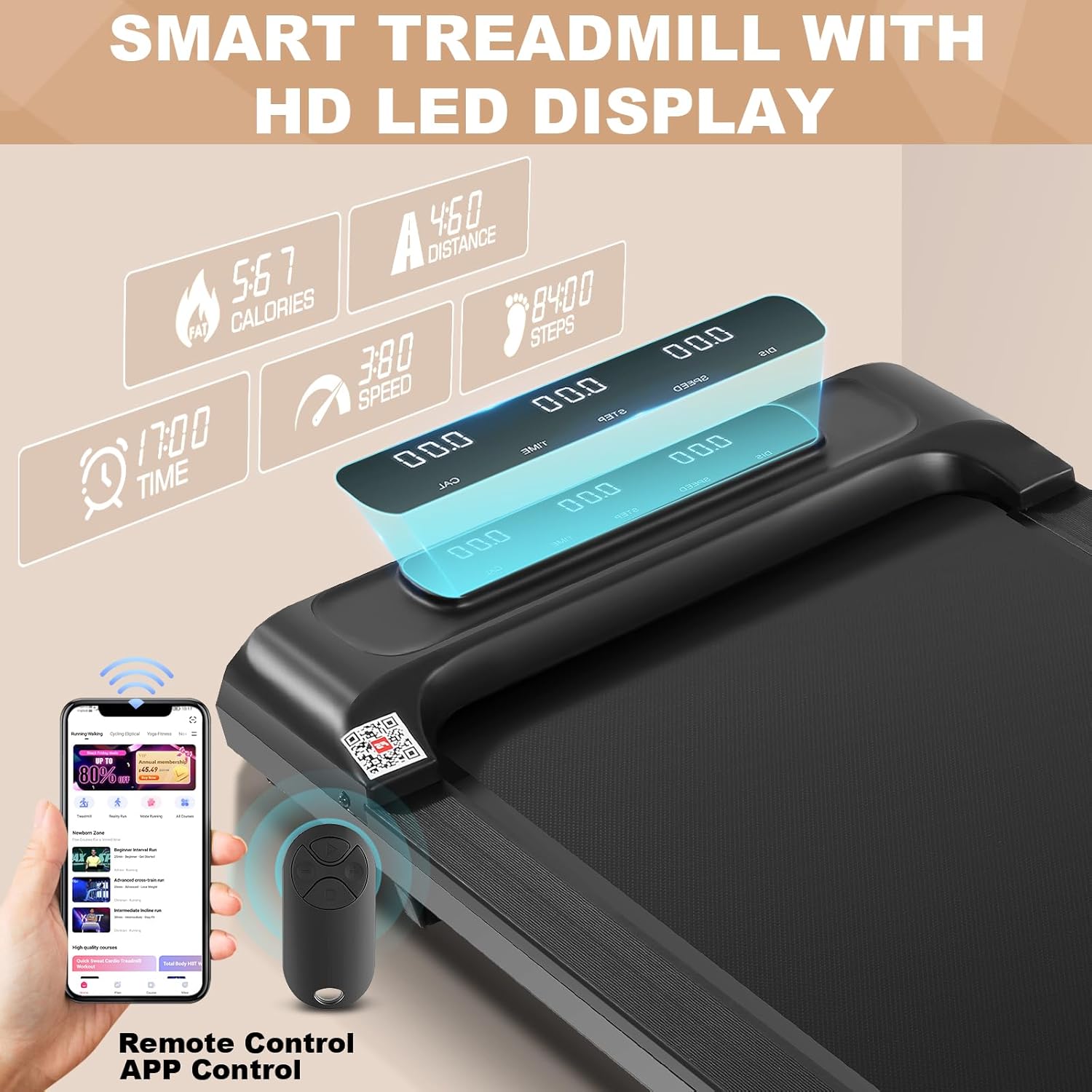

Figure 5.1: The treadmill's LED display, remote control, and mobile app provide multiple ways to monitor and control your workout.

Ajuste de Velocidade 5.2

The treadmill offers a speed range of 0.6 to 3.8 miles per hour (MPH). Use the speed adjustment buttons on the remote control or within the mobile app to increase or decrease the walking belt speed. Start at a low speed and gradually increase to a comfortable pace.

5.3 Informações de Exibição

The integrated HD LED display provides real-time workout metrics:

• Tempo: Duração do seu treino.
• Velocidade: Current walking belt speed in MPH.
• Distância: Distância total percorrida durante o treino.
• Calorias: Calorias estimadas queimadas.
• Etapa: Número de passos dados.

6. Manutenção

A manutenção regular garante a longevidade e o desempenho ideal da sua esteira.

• Limpeza: Limpe a esteira com um pano úmido.amp Limpe com um pano após cada uso para remover o suor e a poeira. Não utilize produtos de limpeza abrasivos.
• Lubrificação: The walking belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the included lubricant instructions for proper application frequency (typically every 3-6 months depending on usage).
• Ajuste do cinto: If the walking belt feels loose or slips, it may need adjustment. Use the provided tool kit to tighten the rear rollers evenly until the belt is centered and taut. Refer to the specific instructions in the tool kit for detailed steps.
• Armazenar: When not in use, the treadmill can be easily moved and stored upright or flat under furniture due to its compact design and wheels.

7. Solução De Problemas

Consulte a tabela abaixo para obter informações sobre problemas comuns e suas soluções.

If the problem persists after attempting these solutions, please contact sytiry customer support.

8. Especificações

9. Garantia e Suporte

The sytiry Smart Walking Pad Treadmill comes with a Garantia de 3 ano from the date of purchase, covering manufacturing defects and significant malfunctions under normal use. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or any questions regarding your product, please contact sytiry customer service. Contact information can typically be found on the product packaging or the official sytiry website. When contacting support, please have your model number and purchase date ready.
