LG F4NX1009NWB 9 kg Front Load Washing Machine User Manual

1. Produto acabadoview

The LG F4NX1009NWB is a 9 kg front-load washing machine designed for efficient and thorough laundry care. It features advanced technologies such as 6 Motion Direct Drive for optimized washing movements, Wi-Fi connectivity for smart control, and Allergy Care Steam Wash for enhanced hygiene. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting.

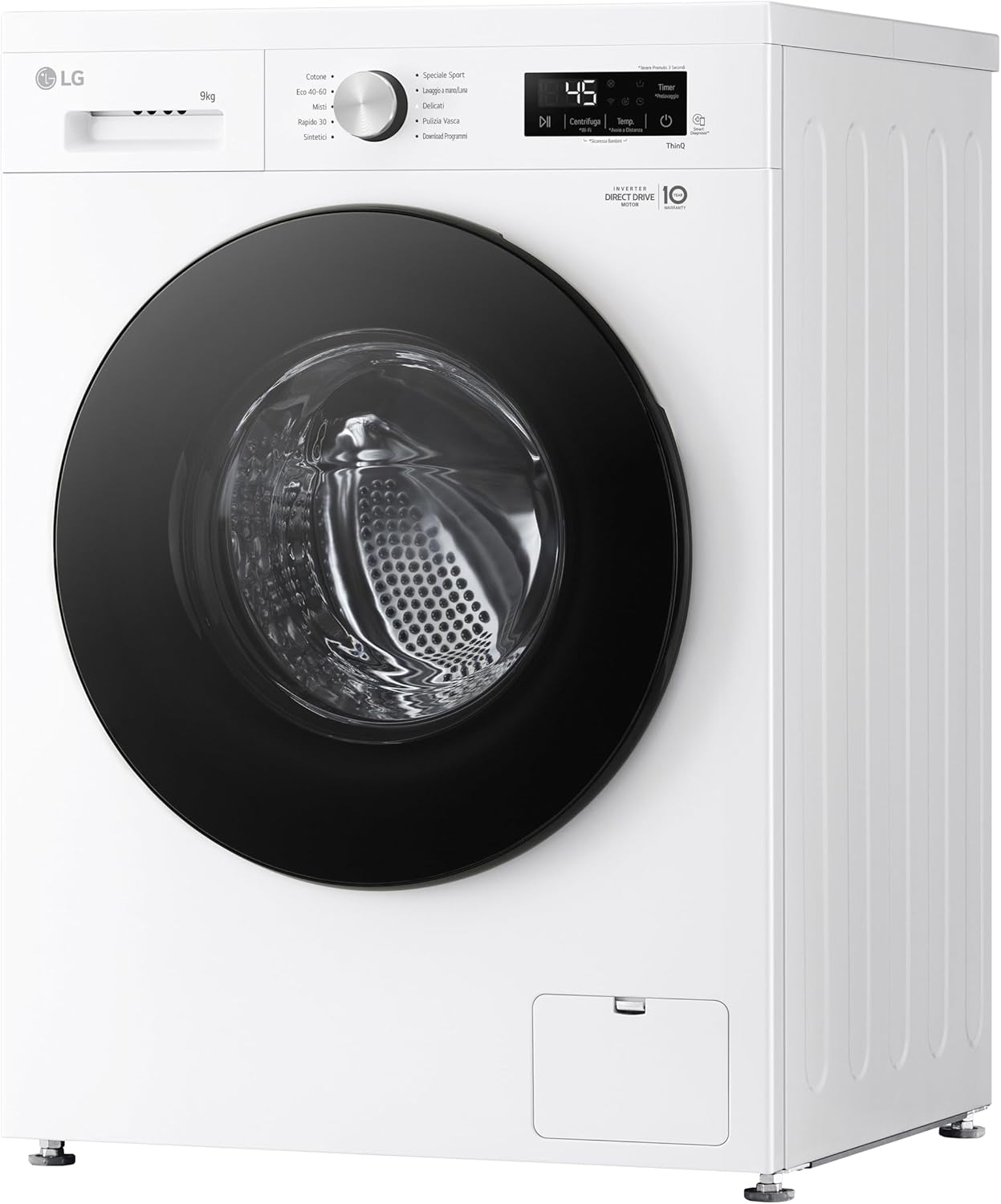

Figura 1: Frente view of the LG F4NX1009NWB washing machine.

2. Informações de segurança

Read all instructions carefully before using the appliance to prevent accidents and ensure proper operation. Keep this manual for future reference.

Precauções gerais de segurança

• Certifique-se de que o aparelho esteja devidamente aterrado.
• Não permita que crianças brinquem sobre ou dentro do aparelho.
• Mantenha a área ao redor da máquina de lavar livre de materiais inflamáveis.
• Do not wash items that have been soiled with gasoline, dry-cleaning solvents, or other flammable or explosive substances.
• Desligue o aparelho da tomada antes de limpá-lo ou realizar qualquer manutenção.
• Não tente reparar ou substituir qualquer peça do aparelho, a menos que seja especificamente recomendado neste manual.

3. Instalação

Desembalando

Remove all packaging materials, including the base packaging and any protective film. Ensure all transit bolts are removed from the rear of the machine before operation. Failure to remove transit bolts will cause severe vibration and damage.

Localização e nivelamento

Place the washing machine on a firm, level surface. Adjust the leveling feet to ensure the machine is stable and does not rock. Proper leveling is crucial to minimize noise and vibration during operation.

Abastecimento e drenagem de água

• Connect the inlet hoses to the hot and cold water taps and to the corresponding inlets on the back of the machine.
• Prenda firmemente a mangueira de drenagem a um tubo vertical ou tanque de lavar roupa, certificando-se de que não esteja dobrada ou obstruída.

Conexão elétrica

Ligue o cabo de alimentação a uma tomada elétrica devidamente aterrada. Não utilize extensões ou adaptadores.

Removable Top for Under-Counter Installation

The top panel of the LG F4NX1009NWB can be removed to allow for under-counter installation, providing flexibility for various spaces. Consult a qualified technician for removal if necessary.

Figure 2: The removable top allows for under-counter installation.

Dimensões

Refer to the diagram below for detailed product dimensions and recommended installation clearances.

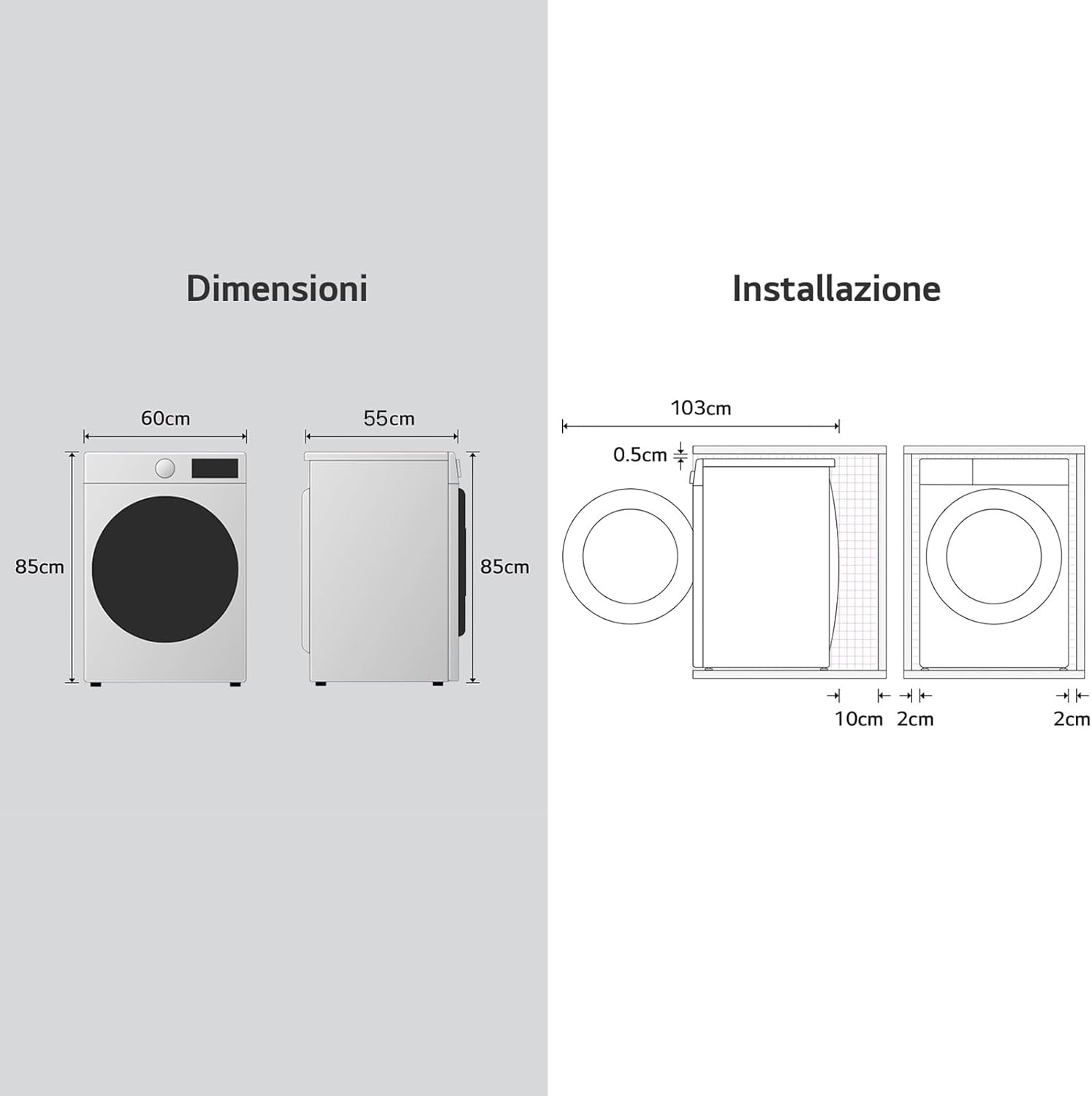

Figure 3: Product dimensions (55P x 60l x 85H cm) and installation guide.

4. Instruções de operação

Painel de controle

The control panel features a program selector dial, a digital display, and touch buttons for various options. Use the dial to select your desired wash program and the touch buttons to customize settings like temperature, spin speed, and special functions.

Figure 4: The intuitive control panel with program dial and touch display.

Dispensador de Detergente

Open the detergent dispenser drawer and add the appropriate amount of detergent and fabric softener to their respective compartments. Refer to your detergent packaging for recommended dosages.

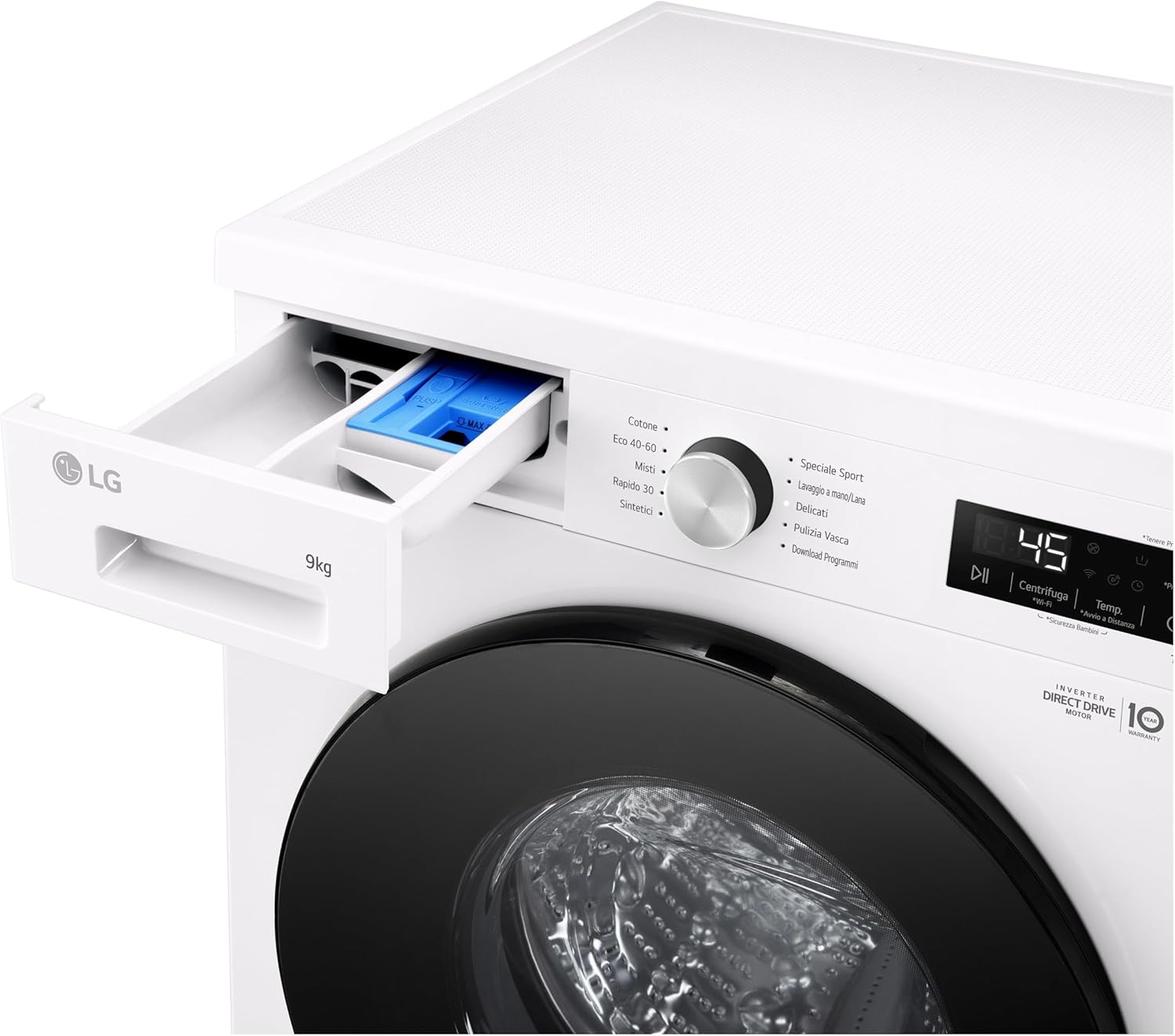

Figure 5: Detergent dispenser drawer for detergent and softener.

Carregando roupa suja

Open the washing machine door and load laundry into the drum. Do not overload the machine. Ensure items are evenly distributed to prevent imbalance during the wash cycle.

Figure 6: The stainless steel drum with bubble-shaped texture for fabric care.

Selecionando um programa

Gire o seletor de programas para escolher um dos 15 programas de lavagem disponíveis. Os programas mais comuns incluem:

• Algodão: Para tecidos de algodão.
• Eco 40-60: Programa de eficiência energética para roupas de algodão com sujidade normal.
• Misturado: For a mix of different fabric types.
• Sintéticos: Para tecidos sintéticos.
• Delicados: Para itens delicados que requerem cuidado especial.
• Rápido 30: A fast wash cycle for lightly soiled items.
• Special Sport: Optimized for sportswear.
• Cuidados com alergias: Uses steam to reduce allergens.
• Download Program: Access additional cycles via the ThinQ app.

Funções especiais

• 6 Movimentos Acionamento Direto: This technology uses 6 distinct drum movements (Stepping, Filtration, Scrubbing, Tumble, Rolling, Swing) to provide optimized washing for different fabric types, mimicking hand washing for better care and cleaning performance.

Figure 7: The 6 Motion Direct Drive technology provides tailored drum movements.
• Wi-Fi with ThinQ App: Connect your washing machine to your home Wi-Fi network to control it remotely using the LG ThinQ app on your smartphone. Receive notifications, download new wash programs, and perform smart diagnosis.


Figure 8: Control your washing machine remotely with the LG ThinQ app.

• Allergy Care Steam Wash: This function uses steam to sanitize clothes, effectively eliminating germs, bacteria, and common allergens like dust mites. It also helps to relax fabric fibers, improving washing effectiveness.


Figure 9: Allergy Care Steam Wash reduces allergens by 99.9%.

Iniciando um Ciclo de Lavagem

After loading laundry, adding detergent, and selecting your program and options, press the Start/Pause button to begin the wash cycle.

5. Manutenção

A manutenção regular garante o desempenho ideal e prolonga a vida útil da sua máquina de lavar roupa.

Limpeza do Exterior

Limpe as superfícies exteriores com um pano macio, damp pano. Não use produtos de limpeza abrasivos ou solventes.

Limpando o dispensador de detergente

Periodically remove and clean the detergent dispenser drawer to prevent detergent buildup. Rinse it under running water and dry thoroughly before reinserting.

Limpeza do filtro da bomba de drenagem

The drain pump filter should be cleaned regularly to prevent blockages and ensure proper drainage. Locate the filter access panel at the bottom front of the machine, open it, and carefully remove and clean the filter. Refer to the full manual for detailed steps.

Cuidados com o tambor

Run a 'Tub Clean' cycle periodically to remove detergent residue and odors from the drum. Leave the door slightly ajar after each wash to allow the drum to air dry.

6. Solução De Problemas

Se você tiver problemas com sua máquina de lavar, consulte os problemas e soluções comuns a seguir antes de entrar em contato com a assistência técnica.

7. Especificações

Technical specifications for the LG F4NX1009NWB washing machine.

For more detailed energy information, scan the QR code on the energy label or visit eprel.ec.europa.eu/qr/2020171.

Figure 10: Energy label for the LG F4NX1009NWB.

8. Garantia e Suporte

Garantia do produto

This LG washing machine comes with a Garantia do fabricante de 2 anos. Please retain your proof of purchase for warranty claims. The Inverter Direct Drive motor is guaranteed for 10 years.

Suporte ao cliente

For technical assistance, service requests, or further information, please contact LG Customer Support. You can find contact details on the official LG website ou na documentação fornecida com o seu aparelho.
