Manual do usuário da lavadora de alta pressão sem fio Maxipact

1. Introdução

This manual provides essential information for the safe and efficient operation of your Maxipact Cordless Pressure Washer. Please read it thoroughly before first use and retain it for future reference.

The Maxipact Cordless Pressure Washer features a powerful brushless motor, offering up to 1100 PSI for effective cleaning. Its portable design, powered by two 4.0Ah batteries, provides flexibility for various cleaning tasks without the need for a power outlet. Key features include a 3-speed adjustment LCD touchscreen and a versatile 6-in-1 nozzle.

Image: The Maxipact Cordless Pressure Washer with its complete set of accessories, including the main unit, batteries, charger, hose, suitcase, foam bottle, water stop adapter, quick connect adapters, water filter, faucet adapter, and 6-in-1 nozzle.

Image: A man holding the portable cordless pressure washer, highlighting its maximum 1100 PSI and 2.6 GPM, 3-speed adjustment LCD touchscreen, 6-in-1 nozzle, dual battery power, and brushless motor.

2. Informações de segurança

Sempre observe as precauções básicas de segurança ao usar aparelhos elétricos para reduzir o risco de incêndio, choque elétrico e ferimentos pessoais.

• Leia todas as instruções antes de usar.
• Utilize equipamento de proteção individual adequado, incluindo proteção ocular.
• Do not operate the pressure washer in the rain or in wet locations.
• Certifique-se de que todas as conexões estejam seguras antes de ligar o aparelho.
• Mantenha crianças e animais de estimação longe da área de operação.
• Disconnect the battery when not in use or before performing maintenance.

3. Componentes Sobreview

Your Maxipact Cordless Pressure Washer comes with several components designed for versatile cleaning.

Imagem: Close-up views of the 3-speed LCD touchscreen, premium brushless motor, faucet adapter, easy assembly connection, 6-in-1 nozzle, and water filter.

Acessórios incluídos:

Image: A diagram illustrating the pressure washer's dimensions and a visual list of included accessories: suitcase, 2 x batteries, charger, foam bottle, water stop adapter, 200-inch hose, 2 x quick connect adapters, water filter, faucet adapter, and 6-in-1 nozzle.

• Unidade principal: The core pressure washer with integrated handle and battery slot.
• Batteries (2x): 4.0Ah Lithium-Ion batteries for cordless operation.
• Carregador: Para recarregar as baterias.
• Bocal 6 em 1: Adjustable spray patterns for various tasks.
• Foam Bottle: For applying soap or detergent.
• Filtro de água: Protects the pump from debris.
• Adaptador de torneira: For connecting to a standard water faucet.
• Water Stop Adapter: Ensures water flow control.
• Hose (200 inch): Fornece ample reach for water intake.
• Quick Connect Adapters (2x): For easy hose connections.
• Mala: Para facilitar o armazenamento e o transporte.

Image: A visual representation of the 6-in-1 spray nozzle, demonstrating how to rotate it to select different spray modes, from a concentrated jet to a wide fan.

Image: An illustration detailing the 21V Lithium-Ion battery, indicating a 30-minute runtime and 4-hour charging time, powered by a 48VF motor torque system for increased power.

Image: A comparison chart highlighting the advantages of the Premium Brushless Motor (extremely long service life, sturdy and stable, avoids overheating, low temperature, high efficiency, stronger power output, low noise, more power saving) over a Carbon Brush Motor (short service life, overheats quickly, low power, unreliable, generates sparks and smoke).

4. Instruções de configuração

Follow these steps to assemble and prepare your pressure washer for use.

1. Install Nozzle/Accessories:

   Attach the desired accessory (e.g., 6-in-1 nozzle or foam bottle) to the front of the pressure washer unit by aligning and twisting until secure.

   Video: Demonstrates the installation of the 6-in-1 nozzle and foam bottle onto the pressure washer unit, showing the twisting motion for secure attachment.

2. Connect Water Hose and Filter:

   Attach the water filter to one end of the hose. Connect the water stop adapter to the other end of the hose, then connect the water stop adapter to the pressure washer's water inlet. Ensure all connections are tight to prevent leaks.



   Image: Shows the water filter submerged in water and the faucet adapters connected to a spigot, illustrating the water intake methods.


   Image: A man connecting the faucet adapter to the pressure washer, demonstrating how easily it connects to faucet water, emphasizing portability.

3. Instale a bateria:

   Slide a charged 48V battery into the battery slot on the underside of the pressure washer until it clicks into place.

Quick Assembly Steps:

Image: A step-by-step visual guide for easy assembly and operation: Rotate Install (nozzle), Connect Hose, Plug On Battery, Start Mode (press power button), Hold Trigger.

5. Instruções de operação

Learn how to effectively use your cordless pressure washer for various cleaning tasks.

1. Ligar:

   Press the power button on the unit. The LCD touchscreen will illuminate, indicating the current speed setting.

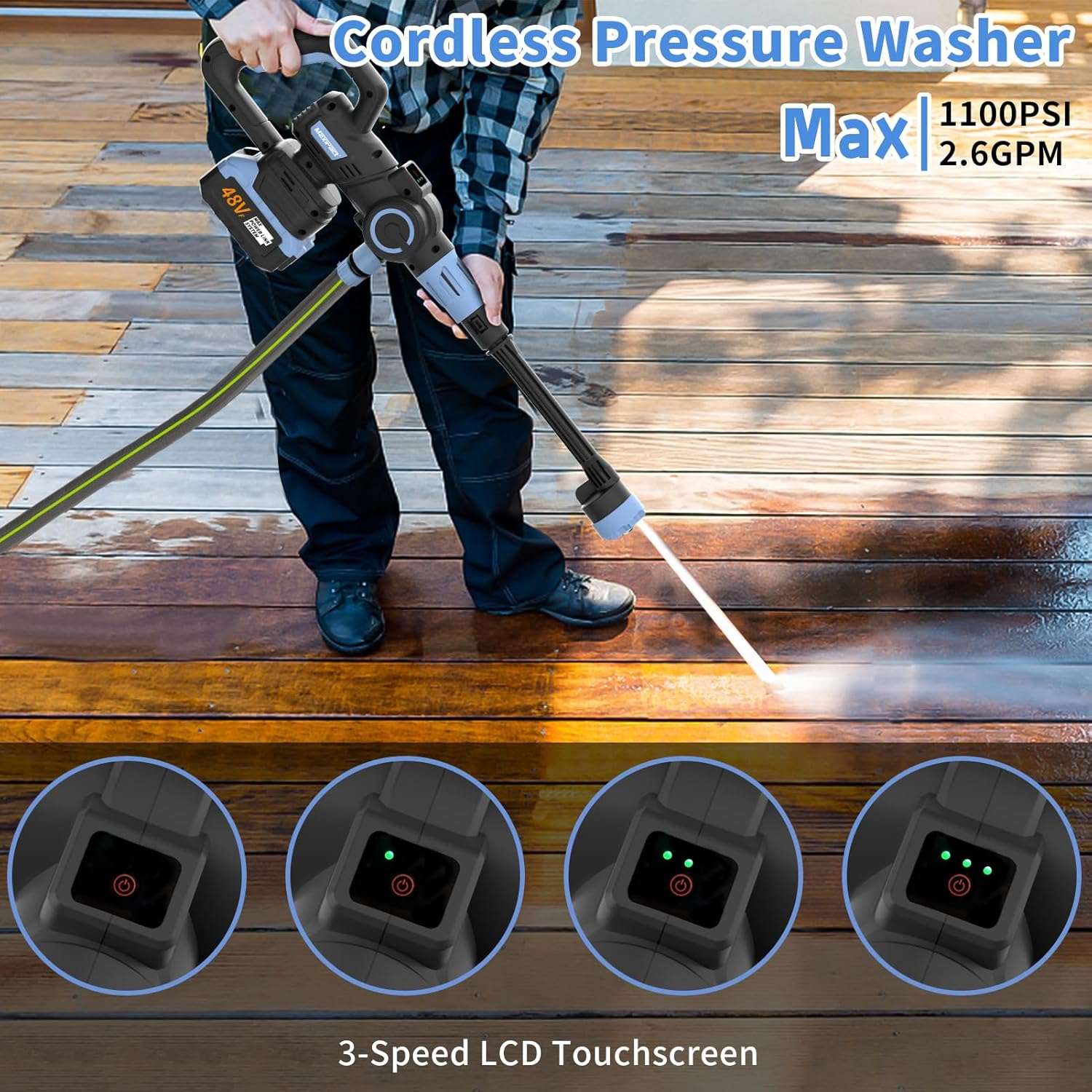

   Image: A person operating the pressure washer, with an inset showing the 3-speed LCD touchscreen displaying different power levels indicated by green lights.

2. Ajustar velocidade:

   Use the LCD touchscreen to cycle through the 3-speed settings (low, medium, high) to match the cleaning intensity required for your task.

3. Selecione o padrão de pulverização:

   Rotate the 6-in-1 nozzle to choose the appropriate spray pattern for your application (e.g., narrow jet for tough stains, wide fan for general cleaning, or rinse mode).
4. Comece a limpeza:

   Point the nozzle at the surface to be cleaned and press the trigger to start the water flow. Maintain a safe distance from the surface to avoid damage.

   Video: A comprehensive demonstration of the cordless pressure washer in action, showing various cleaning applications such as road cleaning, super cleaning of a manhole cover, and general surface cleaning.

   Video: Shows the pressure washer being used for long-distance cleaning, such as watering plants or cleaning high areas, and demonstrates the 3-speed adjustment feature.
5. Applying Detergent (with Foam Bottle):

   Fill the foam bottle with appropriate pressure washer detergent. Attach it to the unit. Spray the detergent onto the surface, allow it to dwell, then rinse with clean water using the appropriate nozzle setting.

Aplicações típicas:

Image: A collage showing the pressure washer being used for cleaning various items and surfaces, including fences, cars, gardens, flooring, and bicycles.

Image: A man safely cleaning a tiled roof with the pressure washer, demonstrating its effectiveness for thorough cleaning of elevated surfaces.

6. Manutenção

A manutenção regular garante a longevidade e o desempenho ideal da sua lavadora de alta pressão.

• Após cada uso:
  • Flush the system with clean water to remove any detergent residue.
  • Remove and clean the water filter.
  • Limpe o exterior da unidade com anúncioamp pano.
• Armazenar:
  • Store the pressure washer and accessories in a dry, frost-free environment.
  • Ensure batteries are fully charged before long-term storage and recharge them periodically.
• Cuidados com a bateria:
  • Não exponha as baterias a temperaturas extremas.
  • Use only the provided charger for recharging.

7. Solução De Problemas

Se você encontrar problemas, consulte estas dicas comuns de resolução de problemas.

8. Especificações

9. Garantia e Suporte

For warranty information or technical support, please contact Maxipact customer service through the retailer where the product was purchased or visit the official Maxipact website. Por favor, tenha em mãos o número do modelo e a data da compra ao entrar em contato com o suporte.
