1. Introdução
The ORFOFE LED Neon Light Strip (Model UI17XQ55073Y) is a versatile and decorative lighting solution designed for various indoor and outdoor applications. This flexible silicone strip features energy-efficient LEDs, providing uniform and soft illumination. Its robust IP66 waterproof rating ensures durability in diverse environments. This manual provides essential information for the safe and effective installation, operation, and maintenance of your LED neon light strip.

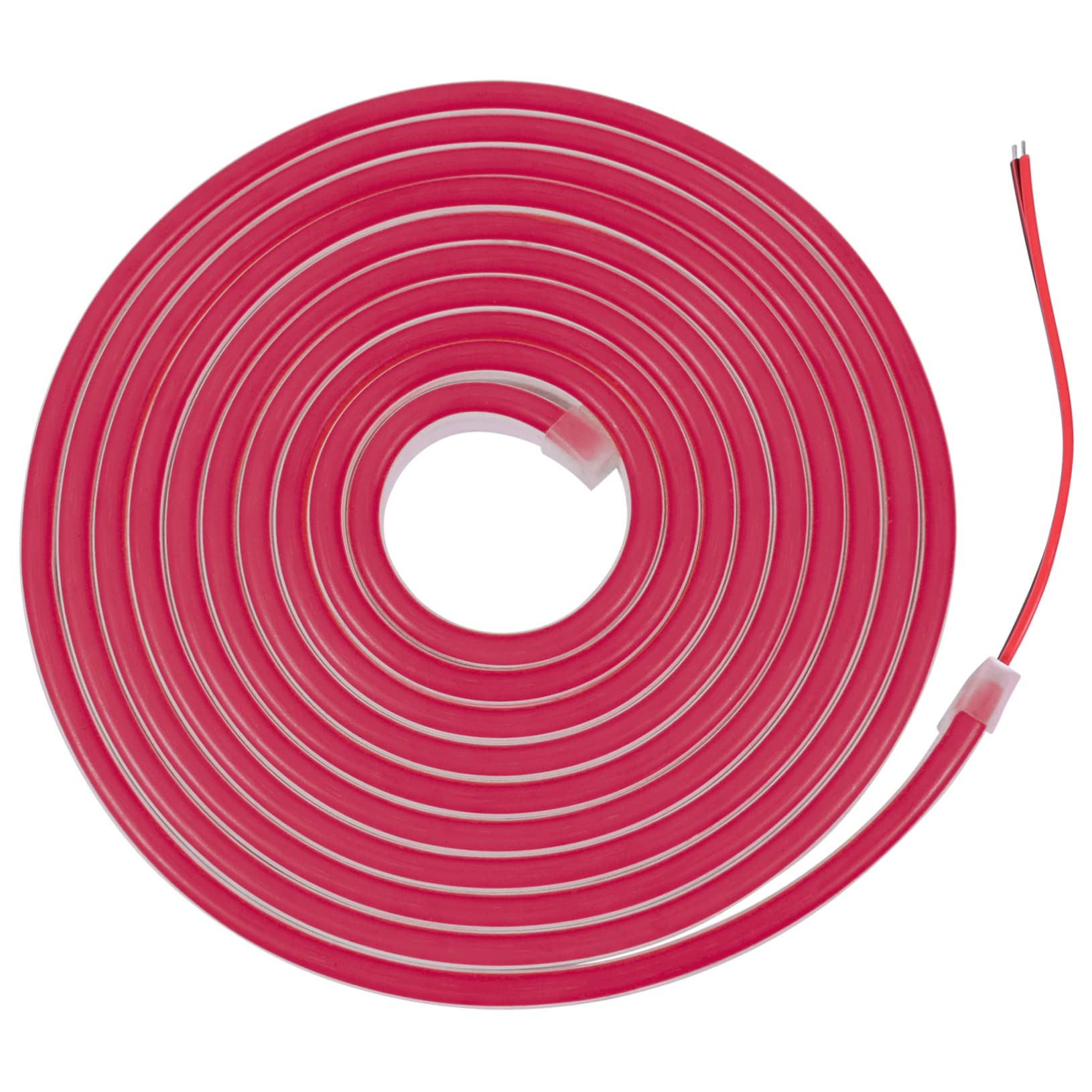

Figure 1: ORFOFE LED Neon Light Strip, 300cm length.
2. Conteúdo da embalagem
Ao abrir a embalagem, verifique se todos os componentes estão presentes e sem danos.
- 1 x Set of ORFOFE LED Neon Light Strip
Figure 2: Contents of the ORFOFE LED Neon Light Strip package.
3. Especificações
| Recurso | Especificação |
|---|---|
| Número do modelo | UI17XQ55073Y |
| Vol de entradatage | 12V |
| Poder | 3.84 W |
| Número de LED Lamp Contas | 120 (pcs/meter) |
| Único Lamp Bead Lumens | 28 (lm) |
| CRI | 80 |
| Tipo de fonte de luz | LIDERADO |
| Material | Plastic and Copper (Silicone covering) |
| Classificação à prova d'água | IP66 |
| Cor | Red (as per product image) |
| Uso interno/externo | Interior/Exterior |
| Fonte de energia | Battery Powered (requires 12V power supply, not included) |
4. Informações de segurança
- Certifique-se de que a fonte de alimentação esteja desconectada antes da instalação ou manutenção.
- Only use a 12V DC power supply with this LED strip. Using an incorrect voltage can damage the product and pose a safety risk.
- Do not expose the bare wires to moisture or direct contact. Ensure all connections are properly insulated.
- Avoid bending the strip sharply at angles less than 90 degrees to prevent damage to the internal circuitry.
- Do not cut the strip at any point other than the designated cutting marks. Cutting elsewhere will damage the circuit and render that section unusable.
- Mantenha fora do alcance de crianças.
5. Configuração e instalação
The ORFOFE LED Neon Light Strip is designed for easy installation. Follow these steps for proper setup:
5.1 Preparing the Strip
- Unroll the Strip: Carefully unroll the LED neon light strip from its packaging.
- Determinar comprimento: If a shorter length is required, identify the designated cutting marks on the strip. These marks are typically indicated by a small scissor icon or copper pads. Cut only at these marks.
- Shape the Strip: The strip is highly flexible and can be bent into various shapes. Gently bend it to achieve your desired design. Avoid sharp, acute bends.
Figure 3: Demonstrating the flexibility of the LED Neon Light Strip.
5.2 Conexão de Energia
- Identificar os fios: The strip comes with two bare wires (typically red for positive and black for negative).
- Connect to 12V DC Power Supply: Connect the red wire to the positive (+) terminal of your 12V DC power supply and the black wire to the negative (-) terminal. Ensure a secure and insulated connection. (Note: A 12V DC power supply is not included and must be purchased separately.)
- Conexões isoladas: Use electrical tape or heat shrink tubing to properly insulate all exposed wire connections to prevent short circuits and ensure safety, especially for outdoor use.
Figure 4: Power connection end of the LED Neon Light Strip.
5.3 Montagem da fita
The strip can be mounted using clips, adhesive, or channels (not included) depending on your application. Ensure the mounting surface is clean and dry.
Figura 5: Examples of LED Neon Light Strip applications in different environments.
6. Instruções de operação
Once the LED neon light strip is properly installed and connected to a 12V DC power supply, operation is straightforward:
- Ligar: Connect the 12V DC power supply to a power outlet. The LED strip will illuminate.
- Desligar: Disconnect the 12V DC power supply from the power outlet to turn off the lights.
The strip features a side brightness design, ensuring uniform and soft light output, ideal for decorative purposes.
7. Manutenção
The ORFOFE LED Neon Light Strip requires minimal maintenance to ensure longevity and optimal performance.
- Limpeza: Gently wipe the silicone surface with a soft, damp cloth to remove dust or dirt. Do not use harsh chemicals or abrasive cleaners. Ensure the power is off before cleaning.
- Inspeção: Periodically inspect the strip and its connections for any signs of wear, damage, or loose connections.
- Recurso à prova d'água: The IP66 waterproof wrap protects the strip from rain and splashes. However, it is not designed for prolonged submersion in water.
- Resistência à temperatura: The strip is designed to operate effectively across a wide temperature range, from freezing conditions (e.g., -28°C) to high temperatures (e.g., 100°C), as demonstrated in testing.
Figure 6: Durability and temperature resistance of the LED Neon Light Strip.
8. Solução De Problemas
If you encounter issues with your LED neon light strip, refer to the following common problems and solutions:
| Problema | Possível causa | Solução |
|---|---|---|
| A faixa não acende. | No power supply; Incorrect voltage; Loose connection; Damaged strip section. | Ensure 12V DC power supply is connected and working. Check all wire connections for security and proper polarity. Inspect the strip for visible damage, especially at cut points. |
| As luzes estão fracas ou piscando | Insufficient power supply; Loose connection; Voltage cai em longos períodos. | Verify power supply output matches strip requirements. Check connections. For very long strips, consider a more powerful supply or shorter segments. |
| Only a section of the strip is lit | Damage to the internal circuit in the unlit section; Incorrect cutting. | Inspect the unlit section for physical damage. Ensure cuts were made only at designated marks. Damaged sections may need to be replaced. |
If you are unable to resolve the issue after following these steps, please contact customer support.
9. Garantia e Suporte
ORFOFE products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims. For technical assistance, troubleshooting beyond this guide, or inquiries about replacement parts, please contact ORFOFE customer support through the retailer where the product was purchased or visit the official ORFOFE brand store online.
Loja online da marca: ORFOFE Store on Amazon
