1. Introdução
This manual provides essential instructions for the safe and effective operation and maintenance of your VEEAPE Portable Air Compressor Model 1666. Please read this manual thoroughly before using the device to ensure proper function and to prevent damage or injury. Keep this manual for future reference.
The VEEAPE Portable Air Compressor is designed for inflating various items such as car tires, motorcycle tires, bicycle tires, sports balls, and other inflatables. It features dual power input (AC 220-240V and DC 12V), a digital display for pressure monitoring, and an automatic shut-off function.
Figure 1: VEEAPE Portable Air Compressor with included accessories, including different nozzles and power cables for AC and DC power sources.
2. Informações de segurança
AVISO: O não cumprimento destas instruções de segurança pode resultar em choque elétrico, incêndio ou ferimentos graves.
- Read all instructions before operating the air compressor.
- Certifique-se de que a fonte de alimentação corresponda ao volumetage requirements of the compressor (220-240V AC or 12V DC).
- Não utilize o compressor em condições de umidade ou o exponha à chuva.
- Mantenha crianças e animais de estimação longe do compressor durante a operação.
- Avoid over-inflating items. Always refer to the manufacturer's recommended pressure for the item being inflated.
- Do not operate the compressor continuously for more than 10 minutes. Allow it to cool down for at least 15 minutes after each 10-minute use to prevent overheating.
- If using the 12V DC power source in a vehicle, ensure the vehicle engine is running to prevent draining the car battery.
- Disconnect the power cable from the source when not in use or before performing any maintenance.
- Do not attempt to modify or repair the compressor. Contact qualified service personnel for repairs.
- Utilize somente acessórios e conexões aprovados pelo fabricante.
3. Conteúdo da embalagem
Verifique se todos os itens estão presentes na embalagem:
- VEEAPE Portable Air Compressor Unit
- AC Power Cable (220-240V)
- DC Power Cable (12V Car Cigarette Lighter Adapter)
- Adapter Nozzles (various types for different inflatables)
- Manual do usuário
4. Produto acabadoview
The VEEAPE Portable Air Compressor features a compact design with a handle for easy portability. It includes a digital LCD display for clear pressure readings and an integrated LED light for illumination in low-light conditions.

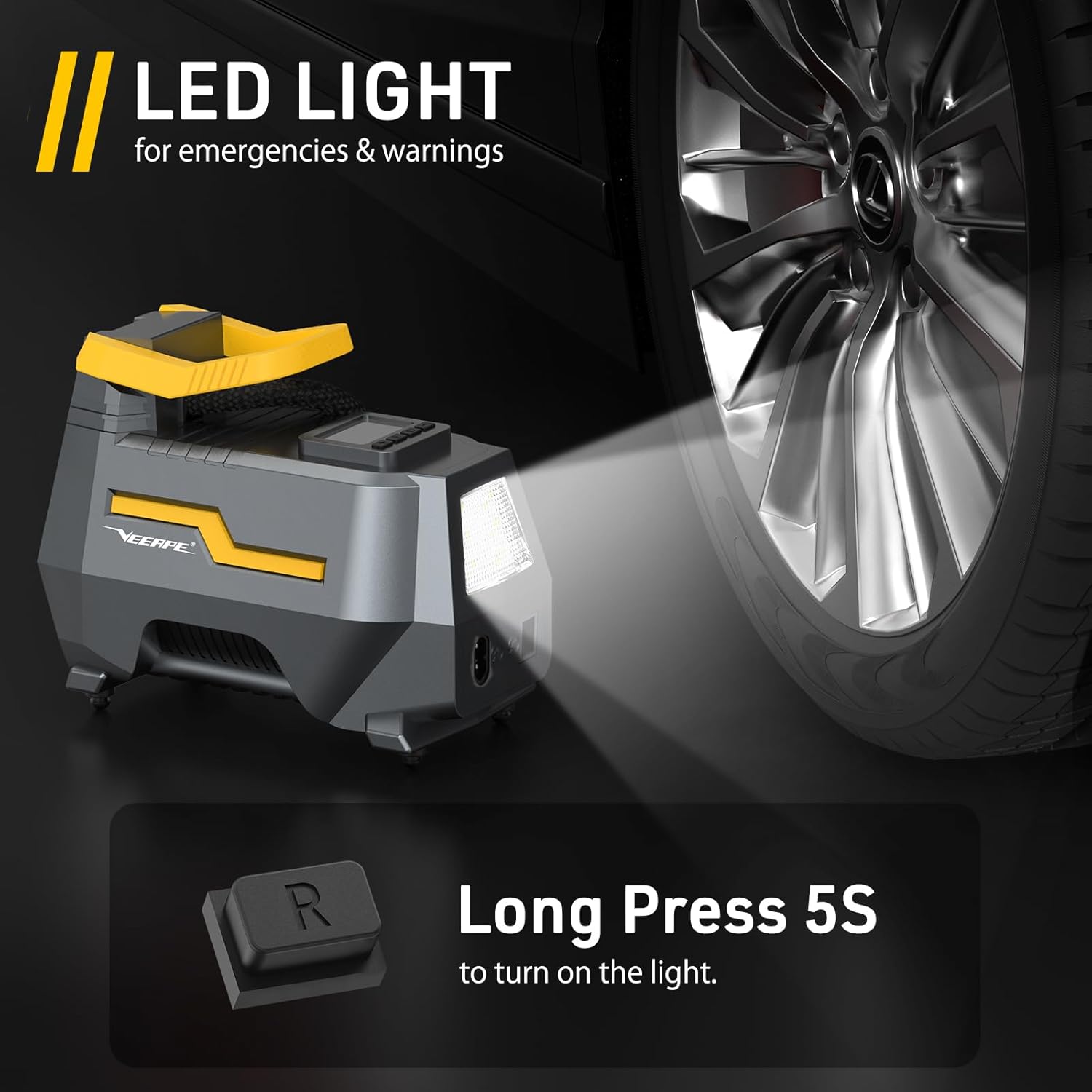

Figure 2: The compressor features an integrated LED light for improved visibility during nighttime use or in dark environments.
5. Configuração
5.1 Conexão de Energia
The compressor supports two power input methods:
- AC Power (220-240V Household Outlet): Connect the AC power cable to the compressor's AC input port, then plug the other end into a standard 220-240V wall outlet.
- DC Power (12V Vehicle Cigarette Lighter): Connect the DC power cable to the compressor's DC input port, then plug the cigarette lighter adapter into your vehicle's 12V power socket. Ensure the vehicle engine is running when using this power source.
Figure 3: Illustration of connecting the compressor to a 230V AC home power supply and a 12V DC car power supply.
5.2 Attaching the Air Hose and Nozzle
- Uncoil the air hose from the compressor.
- Select the appropriate adapter nozzle for the item you wish to inflate.
- Securely attach the nozzle to the air hose valve.
- Connect the air hose valve to the item's inflation port. Ensure a tight seal to prevent air leakage.
6. Instruções de operação
6.1 Etapas básicas da inflação
- Ligar: Connect the compressor to a power source as described in Section 5.1. The digital display will illuminate.
- Escolha a unidade: Press the 'R' button (Mode/Unit button) to cycle through pressure units: PSI, BAR, KPA, or Kg/cm². Select the desired unit.
- Valor de pressão definido: Use the '+' and '-' buttons to set the target pressure. The display will show the current pressure of the connected item and the target pressure.
- Inflação inicial: Press the power button (usually marked with a power symbol) to begin inflation. The compressor will automatically stop once the preset pressure is reached.
- Desconectar: Once inflation is complete, disconnect the air hose from the item and then disconnect the compressor from its power source.

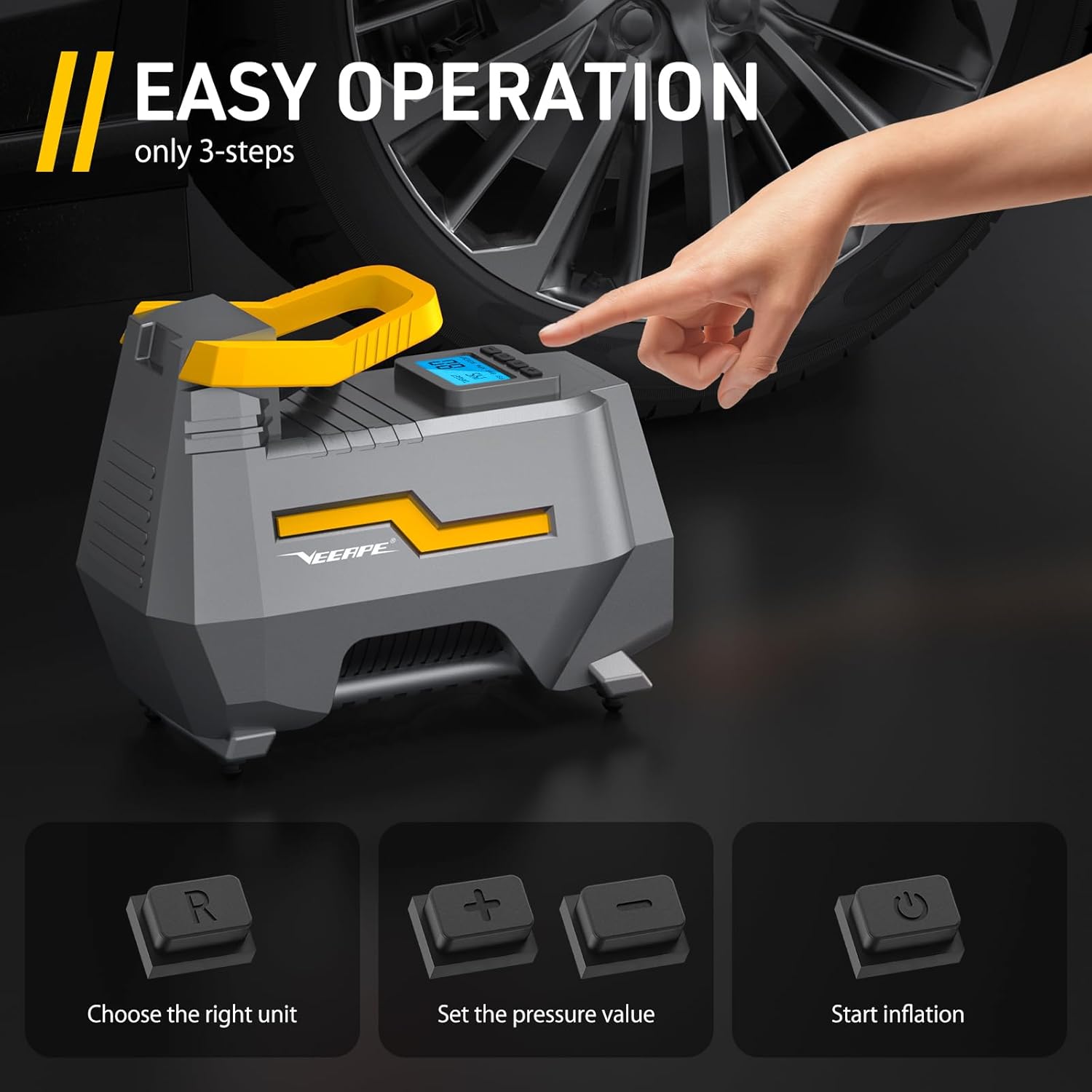

Figure 4: Simplified three-step process for operating the VEEAPE Portable Air Compressor.
6.2 Digital Display and Auto-Shutoff
The digital display provides real-time pressure readings. The compressor's smart pressure monitoring system allows you to preset a target pressure. Upon reaching this value, the compressor will automatically shut off, preventing over-inflation and ensuring safety.
Figure 5: The digital display allows users to set a target pressure and select units (PSI, BAR, KPA, Kg/cm²).
6.3 Using the LED Emergency Light
To activate the integrated LED light, long-press the designated button (typically marked 'R' or a light symbol) for approximately 5 seconds. This feature is useful for operating the compressor in dark conditions or as an emergency light.
6.4 Applications and Adapters
The VEEAPE Portable Air Compressor comes with multiple valve adapters to suit various inflation needs:
- Pneus de carro: Standard Schrader valve connection.
- Pneus de bicicleta: Adapters for Presta and Dunlop valves may be included.
- Bolas esportivas: Needle adapter for basketballs, footballs, etc.
- Insufláveis: Cone-shaped nozzles for air mattresses, swimming rings, and other inflatable structures.
Note: This compressor is not suitable for large truck tires (LT, HT) or tires with a width exceeding 245mm.
Figura 6: Examples of items that can be inflated using the provided adapters, such as car tires, bicycle tires, and various recreational inflatables.
7. Manutenção
7.1 Limpeza
- Ensure the compressor is disconnected from all power sources before cleaning.
- Limpe a parte externa do compressor com um pano macio e seco.amp pano. Não use produtos químicos agressivos ou produtos de limpeza abrasivos.
- Mantenha as entradas de ar livres de poeira e detritos para garantir a dissipação adequada do calor.
7.2 Armazenamento
- Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures.
- Coil the power cables and air hose neatly to prevent tangling and damage.
- Keep all adapters and accessories together with the main unit.
8. Solução De Problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Compressor não liga | No power connection or faulty power cable. | Check if the power cable is securely connected to both the compressor and the power source. Ensure the power outlet is functional. If using 12V DC, ensure the vehicle engine is running. |
| Compressor inflates slowly or not at all | Air leakage from hose/nozzle connection or item valve. Incorrect pressure setting. | Ensure all connections are tight. Check the item's valve for damage. Verify the target pressure is set correctly and is higher than the current pressure. |
| O compressor superaquece e desliga. | Continuous operation for too long. Blocked air vents. | Allow the compressor to cool down for at least 15 minutes. Ensure air vents are clear. Avoid continuous operation exceeding 10 minutes. |
| Leitura de pressão imprecisa | Sensor malfunction or unit setting error. | Ensure the correct pressure unit (PSI, BAR, KPA, Kg/cm²) is selected. If the issue persists, contact customer support. |
9. Especificações
- Modelo: 1666
- Marca: VEEAPE
- Cor: Cinza
- Material: AC/DC-12V/220V (referring to power input capability)
- Fonte de energia: Elétrico (CA 220-240V / CC 12V)
- Pressão Máxima: 150 PSI/10.3 Barra
- Capacidade de fluxo de ar: 35 litros por minuto
- Comprimento da mangueira: 5 metros
- Dimensões do produto: 22.1C x 11.9L x 17A Centímetros
- Peso do item: 1.25 quilos
10. Garantia e Suporte
For warranty information and customer support, please refer to the documentation provided with your purchase or contact VEEAPE customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
