Instruções importantes de segurança
Please read and understand all safety instructions before using this humidifier. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Sempre coloque o umidificador em uma superfície firme, plana e impermeável, a pelo menos 30 cm (12 polegadas) de distância de paredes e eletrodomésticos.
- Não coloque o umidificador diretamente sobre carpetes, toalhas ou outras superfícies absorventes.
- Não mergulhe a base do umidificador em água ou outros líquidos.
- Desligue o humidificador da tomada antes de o encher, limpar ou mover.
- Não opere o umidificador com um cabo ou plugue danificado.
- Mantenha o umidificador fora do alcance de crianças e animais de estimação.
- Use only clean, cool tap water. Do not add essential oils directly into the water tank as this may damage the unit.
- Não bloqueie a saída de névoa.
- Esvazie e limpe o tanque de água regularmente para evitar o crescimento de mofo e bactérias.
Produto acimaview
The Dreamzy 3L Humidifier is designed to provide comfortable humidity levels in your bedroom or large room. It features a 3-liter water tank, quiet operation, automatic humidity sensing, and an ambient night light.
Figura 1: Key features of the Dreamzy 3L Humidifier. This image highlights the double spray nozzle, 3L super fog volume, ambient night light, silver ion sterilization, quiet humidification, and Type-C charging capabilities.
Componentes:
- Reservatório de água (capacidade de 3 litros)
- Base Unit with Control Panel
- Mist Outlet/Nozzle
- Adaptador de energia
- Manual do usuário (este documento)
- Filters (2 included)
Configurar
- Desembale o umidificador: Remova cuidadosamente todos os materiais de embalagem e certifique-se de que todos os componentes estejam presentes.
- Coloque em uma superfície estável: Position the humidifier on a flat, stable, and waterproof surface away from direct sunlight, heat sources, and electronic devices. Ensure there is adequate space around the unit for proper mist dispersion.
- Encha o tanque de água:
- Remova o tanque de água da base.
- Desparafuse a tampa do tanque de água.
- Fill the tank with clean, cool tap water. Do not exceed the maximum fill line.
- Securely screw the cap back onto the water tank.
- Recoloque o reservatório de água cheio na base, certificando-se de que esteja encaixado corretamente.
- Conecte a energia: Conecte o adaptador de energia à porta de alimentação do umidificador e, em seguida, conecte o adaptador a uma tomada elétrica padrão.

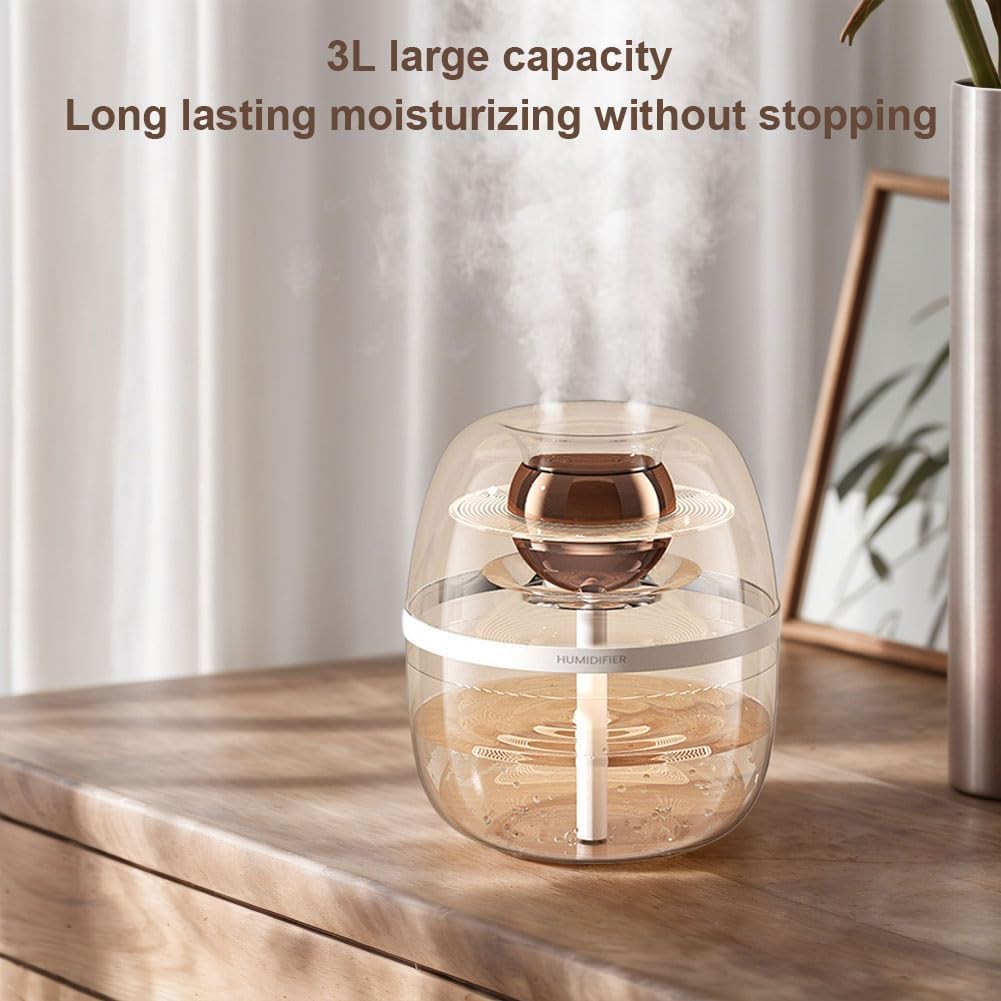

Figura 2: The 3L large capacity water tank ensures extended operation. This image illustrates the humidifier's substantial water capacity, allowing for prolonged humidification without frequent refills.
Instruções de operação
Ligar/desligar:
- Press the Power button once to turn the humidifier on.
- Press the Power button again to turn the humidifier off.
Ajuste da emissão de névoa:
The humidifier features multiple mist output levels. Press the Mist button repeatedly to cycle through low, medium, and high mist settings.
Modo Automático:
Engage the Automatic Mode by pressing the Auto button. In this mode, the built-in humidity sensor will detect the room's current humidity level and automatically adjust the mist output to maintain a comfortable and healthy humidity range.
Luz ambiente noturna:
To activate the ambient night light, press the Light button. The light will turn on after approximately 1.5 seconds. Press again to turn it off.

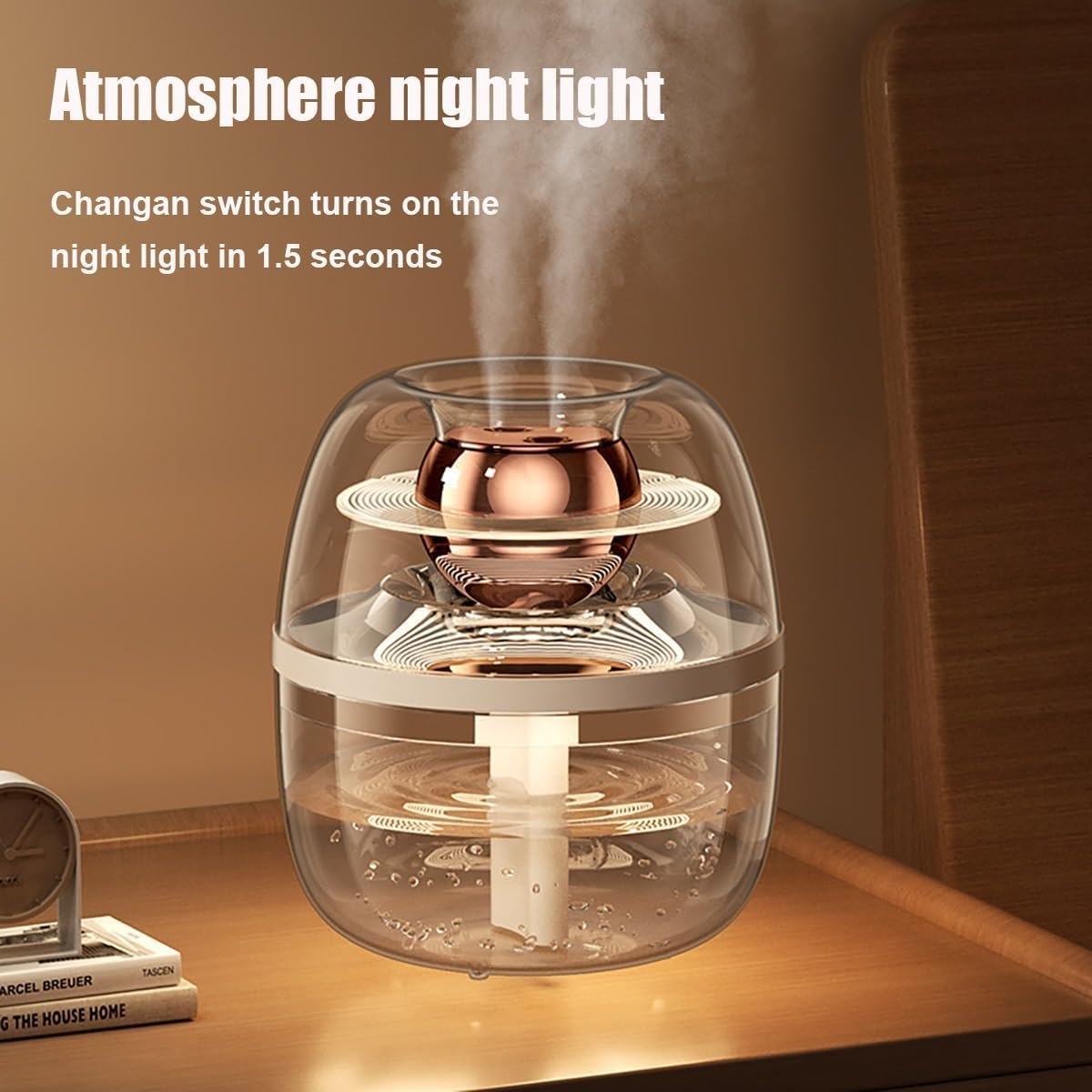

Figura 3: The ambient night light feature provides a soft glow. This image demonstrates the humidifier's night light, which can be activated for a gentle illumination in a dark room.
Operação silenciosa:
The humidifier is designed with advanced noise reduction technology to ensure whisper-quiet operation, making it suitable for use in bedrooms and offices without disturbance.
Figura 4: The humidifier operates with minimal sound, promoting peaceful sleep. This image illustrates the humidifier's quiet performance, ideal for maintaining a serene environment.
Manutenção
Regular cleaning and maintenance are crucial for optimal performance and to prevent the growth of mold and bacteria.
Manutenção diária:
- Esvazie toda a água restante do tanque e da base.
- Enxágue o tanque de água com água fresca.
- Wipe the base and mist outlet with a clean, damp pano.
Limpeza Semanal:
- Desconecte a energia: Desligue sempre o humidificador da tomada antes de o limpar.
- Limpe o tanque de água:
- Remova o reservatório de água.
- Fill the tank with a mixture of 1 teaspoon of white vinegar and 1 gallon of water.
- Let it stand for 30 minutes, then rinse thoroughly with clean water.
- Limpe a unidade base:
- Pour the vinegar solution into the base reservoir and let it soak for 30 minutes.
- Use a soft brush or cloth to clean any mineral deposits.
- Rinse the base thoroughly with clean water, ensuring no vinegar residue remains.
- Clean the Mist Outlet: Gently wipe the mist outlet with a damp pano.
Substituição do filtro:
The humidifier includes 2 filters. Replace filters regularly to maintain optimal performance and air quality. Refer to the filter packaging for specific replacement intervals. To replace, simply remove the old filter and insert a new one into the designated slot.

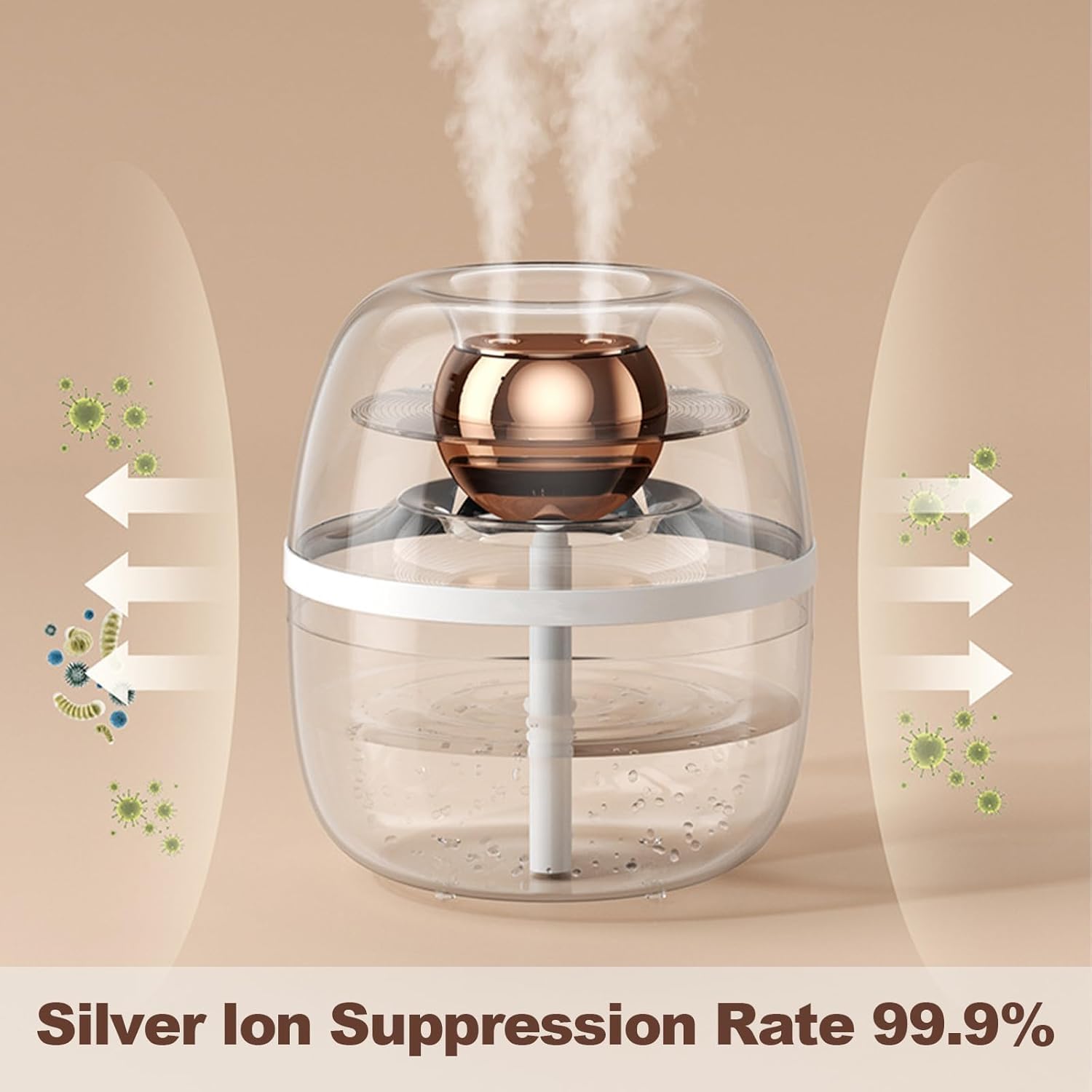

Figura 5: Silver ion suppression technology helps maintain clean mist. This image illustrates the humidifier's ability to suppress bacteria and viruses, contributing to healthier air quality.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Sem névoa ou com baixa emissão de névoa. |
|
|
| Odor incomum |
|
|
| Vazamento de água |
|
|
| Umidificador não liga |
|
|
Especificações
| Recurso | Detalhe |
|---|---|
| Nome do modelo | YX003-K30 |
| Marca | Genérico |
| Capacidade | 3 Liters (Note: Product description states 3L, specifications list 2 Liters. Using 3L as per product title and feature bullets for consistency.) |
| Cor | Branco |
| Características especiais | 3L Water Tank, Automatic Humidity Sensor, Cool Mist, Desktop Design, Large Room Coverage |
| Cobertura da área útil | 400 pés quadrados |
| Modo de operação | Automático |
| Dimensões do produto | 8"D x 8"W x 12"H (20.32 cm de diâmetro x 20.32 cm de largura x 30.48 cm de altura) |
| Peso do item | 2.5 libras (1.13 kg) |
| Tipo de quarto | Quarto sala de estar |
| Volumetage | 120 Volts |
| O quetage | 25 watts |
| Componentes incluídos | Humidifier, Power Adapter, User Manual |

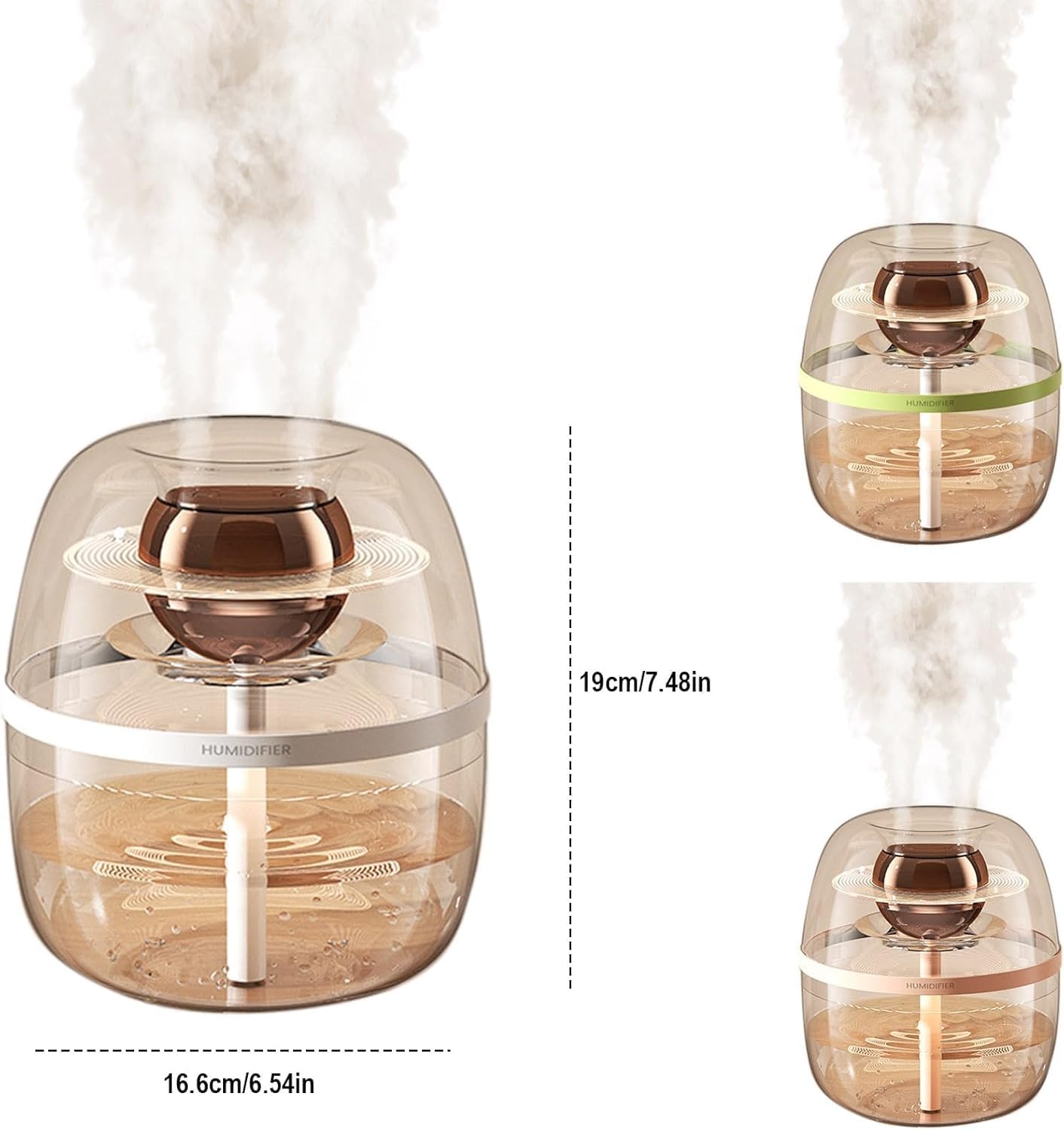

Figura 6: Dimensions of the Dreamzy 3L Humidifier. This image provides a visual representation of the humidifier's size, with measurements for width and height, and also displays other available color options.
Garantia e Suporte
This product is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions, including warranty duration and coverage details.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact the retailer or manufacturer directly. Contact information can typically be found on the product packaging or the retailer's website.
Please have your model number (YX003-K30) and purchase date available when contacting support.
