AIRHOT Foldable Electric Wheelchair User Manual

1. Introdução

This manual provides essential information for the safe and effective use of your AIRHOT Foldable Electric Wheelchair. Please read this manual thoroughly before operating the wheelchair and retain it for future reference. This electric wheelchair is designed to provide mobility assistance for adults, offering portability and ease of use.

2. Informações de segurança

Sua segurança é primordial. Siga sempre as seguintes diretrizes de segurança:

• Always ensure the wheelchair is fully unfolded and locked before use.
• Engage the electronic brake system when stationary, especially on inclines.
• Use the adjustable safety belts at all times.
• Avoid operating the wheelchair on excessively steep slopes or uneven terrain beyond its specified capabilities.
• Não exceda a capacidade máxima de peso de 350 libras.
• Mantenha as mãos e roupas afastadas de peças móveis.
• Ensure all electrical connections are secure before operation or charging.

3. Produto acabadoview

The AIRHOT Foldable Electric Wheelchair features a robust design with user-friendly controls and safety mechanisms.

Principais características:

• Motor potente: Equipped with a 24V250W dual motor for stable performance.
• Long Travel Range: 12AH lead-acid battery provides up to 15 miles per charge.
• Design dobrável: Ultra-portable for easy storage and transportation.
• Rodas para todos os terrenos: Handles various surfaces including gravel, grass, dirt, and asphalt.
• Controle de precisão: Sensitive 360° joystick for effortless maneuverability.
• Segurança aprimorada: Electronic brake system, anti-tilt wheels, and adjustable safety belts.

Componentes:

Professional Remote Controller: Features a 360° joystick, emergency call, voice assistant, speed deceleration/acceleration, horn, battery indicator, and power on/off button.

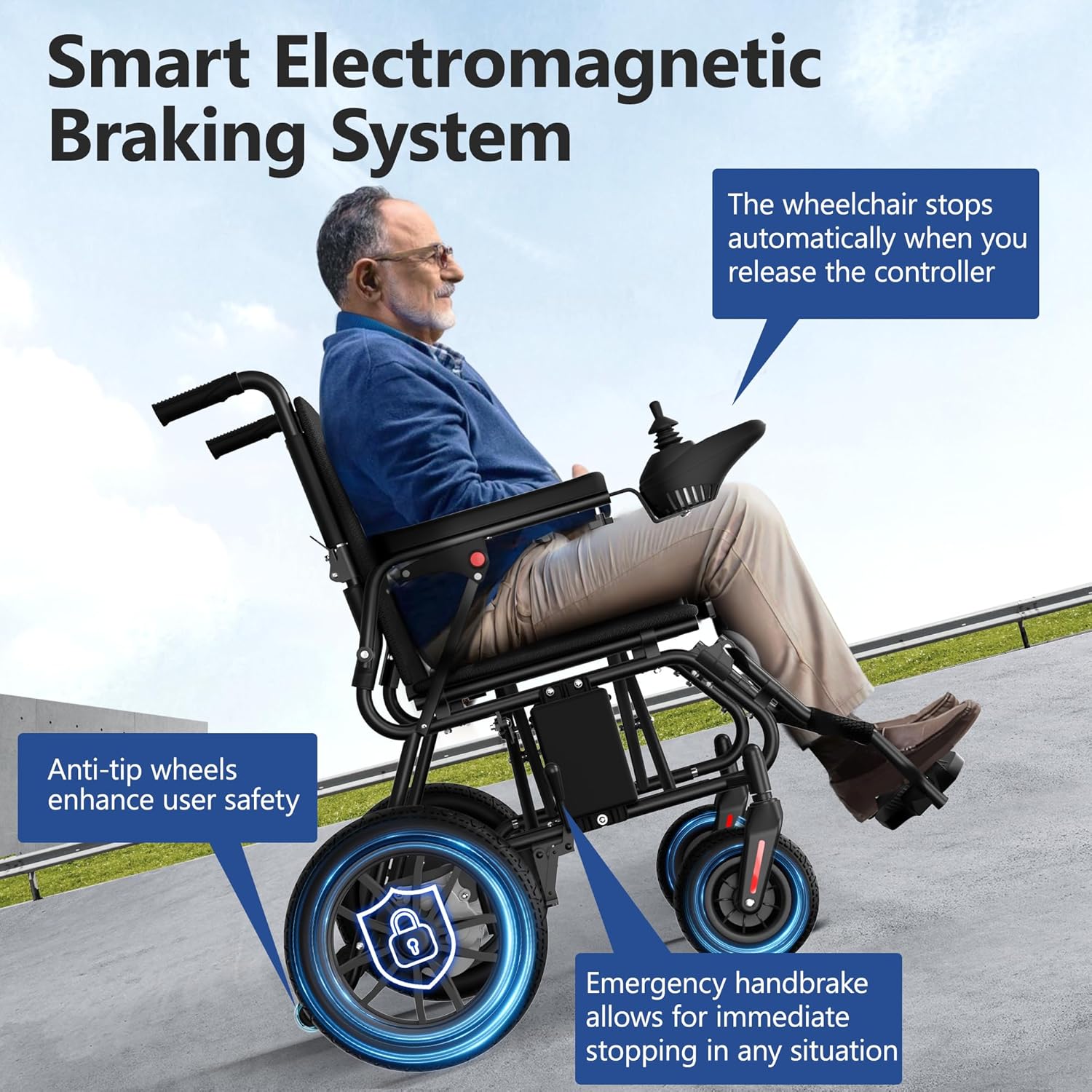

Smart Electromagnetic Braking System: The wheelchair stops automatically when the controller is released. Includes anti-tip wheels for enhanced safety and an emergency handbrake for immediate stopping.

500W All-copper Motor: Energy-efficient, quiet operation, and long-lasting performance for various terrains including grass, ramps, bumpy roads, and floor tiles.

Shock-absorbing Wheels: Durable, shock-absorbing, and silent wheels that require no inflation, eliminating the risk of punctures.

4. Configuração e montagem

Follow these steps to set up your electric wheelchair:

1. Desdobrando a cadeira de rodas: Carefully unfold the wheelchair frame until it locks into place. Ensure all locking mechanisms are secure.
2. Attaching the Joystick: Mount the joystick controller onto the armrest. Secure it firmly using the provided knob.
3. Installing Anti-Tip Wheels: Insert the anti-tip wheels into the designated pins at the rear of the wheelchair. These enhance stability.
4. Conexão de energia: Connect the wheelchair's red power cord. Ensure the left and right motor wires are correctly plugged in to avoid incorrect operation direction.
5. Ajuste dos apoios de braço: Press the red button on the armrest to lift and adjust its position for comfortable entry and exit.

Braços ajustáveis: Press the red button to lift the armrests, facilitating easy entry and exit from the wheelchair.

Dobragem compacta: The wheelchair folds compactly to fit in most car trunks, making it ideal for travel.

Installation and Operation Video:

5. Instruções de operação

Familiarize yourself with the controls and functions for smooth operation.

Using the Joystick Controller:

• Ligar/desligar: Pressione o botão liga/desliga para ligar ou desligar a cadeira de rodas.
• Movimento: Use the 360° joystick to control direction and speed. Push forward to move forward, pull back to reverse, and move left/right to turn.
• Ajuste de velocidade: Use the speed acceleration (+) and deceleration (-) buttons to adjust the wheelchair's speed.
• Frenagem: Release the joystick to engage the electromagnetic brake system, bringing the wheelchair to a stop. For immediate stopping, use the emergency handbrake.
• Buzina: Press the horn button to alert others.
• Voice Assistant/Emergency Call: Utilize these features as needed for assistance.

Manual Mode (Pushing without Power):

To push the wheelchair manually without power, ensure the handbrake is in the down position and pull out the clutches on both sides of the wheelchair. This disengages the motors, allowing for manual propulsion. Remember to re-engage the clutches for powered operation.

Operational Demonstrations:

6. Bateria e carregamento

The wheelchair is equipped with a 12AH lead-acid battery. To ensure optimal performance and longevity:

• Only use the charger provided by AIRHOT.
• Carregue a bateria em uma área bem ventilada, longe de materiais inflamáveis.
• Não carregue a bateria por mais de 12 horas.
• Evite descarregar completamente a bateria antes de recarregá-la.
• When installing the wheelchair, connect the wheelchair's red power cord. Failure to do so may result in the charging indicator lighting up while charging, but not actually charging.

7. Manutenção

Regular maintenance helps ensure the reliability and safety of your wheelchair.

Limpeza:

• Limpe a estrutura e os componentes com detergente.amp pano. Evite usar produtos de limpeza abrasivos ou solventes.
• Keep the joystick and electrical connections dry and free of debris.

Cuidados com os pneus:

• Inspect tires regularly for wear and tear.
• Since the tires are solid, no inflation is needed.

Cuidados com a bateria:

• Store the wheelchair with a charged battery if not in use for extended periods.
• Evite temperaturas extremas durante o armazenamento.

8. Solução De Problemas

If you encounter issues with your wheelchair, refer to the following common problems and solutions:

• Wheelchair does not power on: Ensure the battery is charged and properly connected. Check all wiring connections, especially the red power cord.
• Wheelchair does not move or moves incorrectly: Verify that the handbrake is fully disengaged and the clutches on both sides are pressed down for powered operation. If the wheelchair operates in the opposite direction, check if the left and right motor wires are plugged in backwards and correct them.
• Joystick unresponsive: Check for any obstructions around the joystick. Ensure the power is on and the battery has sufficient charge.

For more detailed troubleshooting or issues not listed here, please contact customer support.

9. Especificações

Dimensões e capacidade: Visual representation of the wheelchair's key measurements and its 350 LBS weight capacity.

10. Garantia e Suporte

AIRHOT is committed to providing quality products and customer satisfaction. Your purchase includes lifetime support.

For any questions, assistance, or warranty claims, please contact our dedicated customer service team. You can reach us through the seller page on Amazon or via the contact information provided with your product packaging.

Vendedor: AIRHOT-ZM
