Hikity 4+64G Android Car Radio User Manual

1. Introdução

This manual provides detailed instructions for the installation, operation, and maintenance of your Hikity 4+64G Android Car Radio. This unit is designed to enhance your driving experience with advanced features such as wireless CarPlay, Android Auto, a 9-inch Incell touchscreen, Bluetooth 5.0, GPS navigation, FM/RDS radio, and rear camera support. It is specifically compatible with Fiat Doblo models from 2010-2015 and Opel Combo models from 2011-2018.

Imagem: Acimaview of the Hikity Android Car Radio's key features and user interface.

2. Informações de segurança

Please read all safety instructions carefully before installation and operation. Improper installation or use can lead to damage to the device, vehicle, or personal injury. Always consult a professional for installation if you are unsure.

• Não utilize o dispositivo de forma que o distraia da condução.
• Certifique-se de que toda a fiação esteja conectada corretamente para evitar curtos-circuitos ou riscos elétricos.
• Keep the device away from water and excessive heat.
• Utilize somente acessórios especificados pelo fabricante.

3. Conteúdo da embalagem

Verifique se todos os itens listados abaixo estão incluídos em seu pacote:

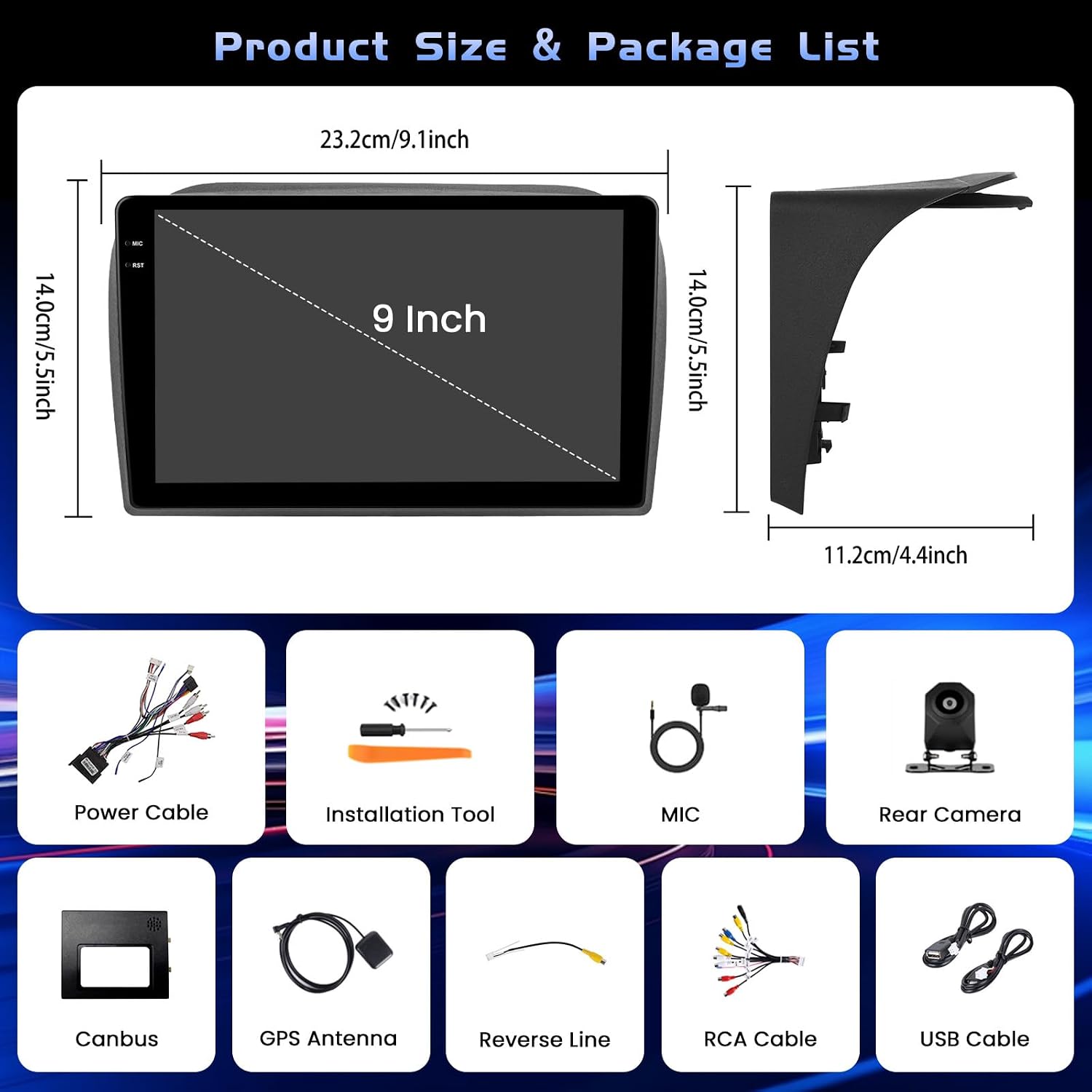

Image: Product dimensions and a visual representation of all included accessories.

• 1 x Android Car Radio
• 1 x Cabo de alimentação
• 1 x Antena GPS
• 1 x Input Cable for Reversing Camera
• 1 x cabo RCA
• 2 x cabos USB
• 2 x suportes de montagem
• 4 x Parafusos
• 1 x Manual de Instruções
• 1 x Reversing Camera
• 1 x Microfone
• 1 x Canbus

4. Configuração e instalação

Proper installation is crucial for optimal performance. If you are not experienced with car audio installation, it is recommended to seek professional assistance.

4.1 Instalação Geral

Image: Before and after installation view of the car radio in a compatible vehicle dashboard.

The unit is designed for a seamless fit in Fiat Doblo (2010-2015) and Opel Combo (2011-2018) models. Ensure the dashboard opening matches the unit's dimensions before proceeding.

4.2 Wire Harness Connection

Connect the main power cable, RCA cables, USB cables, reversing input cable, and GPS antenna to their respective ports on the back of the head unit. Refer to the diagram for correct connections.

Image: Detailed diagram for connecting the main wire harness components.

4.3 Reversing Camera Wiring

Connect the reversing camera as shown in the diagram. The backup input cable must be plugged in, even if the camera is not in use, to avoid affecting Bluetooth and WiFi signal reception.

Image: Wiring instructions for the reversing camera system.

4.4 Configuração dos controles do volante (SWC)

To enable steering wheel controls, connect the RX/TX cable and configure settings via the Canbus Box. Navigate to: Settings > Factory Setup (1234) > Can Settings.

Image: Instructions for setting up steering wheel controls.

5. Instruções de operação

5.1 Android System and Performance

The unit features a 4GB RAM and 64GB ROM configuration, ensuring stable processing and quick switching between applications like maps and music. The latest Android system provides a responsive and smooth user experience.

5.2 Recursos de exibição

The 9-inch Incell touchscreen offers a resolution of 1280 x 720 pixels, displaying vivid and clear colors. The Incell technology makes the screen thinner, brighter, sharper in sunlight, and smoother to touch.

Image: Explanation of Incell screen advantage.

The unit supports multiple UI designs and a split-screen display mode, allowing you to easily switch between maps, media, and contacts simultaneously.

Imagem: Examples of different user interfaces and split-screen mode.

5.3 Connectivity (CarPlay, Android Auto, Bluetooth, WiFi)

Enjoy seamless integration with your smartphone via wireless or wired CarPlay/Android Auto. This allows for hands-free calls, music playback, and navigation.

Image: Wired and wireless connectivity options including CarPlay, Android Auto, and Mirror Link.

Bluetooth 5.0 ensures stable connections for hands-free calling and clear music streaming. The integrated 5G WiFi provides fast data transmission for online navigation and media playback.

Image: Bluetooth, SWC, FM RDS, and EQ features.

5.4 Navegação GPS

The built-in GPS supports both online and offline maps, offering voice guidance and real-time traffic information to ensure a smooth journey.

Image: Features including WiFi, GPS navigation, and AHD backup camera.

Rádio 5.5 FM/RDS

The FM/RDS tuner provides access to radio stations, music, news, and traffic announcements with high clarity.

Câmera de ré AHD de 5.6 polegadas

The included AHD backup camera offers a 1280*720 resolution with super night vision, waterproof design (IP68), and reversing reference lines for safer parking maneuvers.

6. Manutenção

To ensure the longevity and optimal performance of your Hikity car radio, follow these maintenance guidelines:

• Limpeza: Use um pano macio e seco para limpar a tela e a parte externa. Evite produtos de limpeza abrasivos ou solventes.
• Atualizações de software: Periodically check for software updates to ensure the system runs efficiently and securely.
• Condições ambientais: Evite expor o aparelho a temperaturas extremas ou à luz solar direta por períodos prolongados.

7. Solução De Problemas

If you encounter any issues with your car radio, refer to the following common troubleshooting steps:

• Sem energia: Check all power connections and fuses. Ensure the car's ignition is on.
• Sem som: Verifique as conexões das caixas de som, as configurações de volume e a seleção da fonte de áudio.
• Tela sensível ao toque não responde: Tente reiniciar o aparelho. Se o problema persistir, pode ser necessário restaurar as configurações de fábrica (consulte as configurações).
• Perda de sinal GPS: Certifique-se de que a antena GPS esteja instalada corretamente e com uma conexão desobstruída. view do céu.
• Problemas de conexão Bluetooth: Delete previous pairings on both the radio and your phone, then attempt to pair again.

Para questões mais complexas, entre em contato com o suporte ao cliente.

8. Especificações

9. Garantia e Suporte

9.1 Informações de garantia

Este produto vem com um Garantia de 12 meses. This warranty covers manufacturing defects and ensures online consultation support with a 24-hour response time.

9.2 Suporte ao cliente

For any questions, technical assistance, or warranty claims, please contact Hikity Tech Hub. Our support team is available to assist you.

Image: How to contact customer support.

Você pode nos contatar por e-mail no seguinte endereço: hikityservices@163.com

Nosso objetivo é responder a todas as solicitações em até 24 horas.
