OttLite K83G56 High-Definition 13-Watt Wing-Shade Table Lamp Manual do usuário

Introdução

This manual provides instructions for the OttLite K83G56 High-Definition 13-Watt Wing-Shade Table Lamp. Este euamp is designed to provide clear, balanced illumination for various tasks, aiming to reduce eye fatigue and enhance visual clarity. It incorporates OttLite 508 Technology, which balances contrast and brightness to simulate natural daylight conditions.

Conteúdo da embalagem

Por favor, verifique se todos os itens estão presentes na embalagem:

• OttLite K83G56 Table Lamp Unidade
• 13-Watt Tube Bulb

Configurar

1. Desembale o Lamp: Remova cuidadosamente todos os componentes da embalagem.
2. Insira a lâmpada: Gently insert the provided 13-watt tube bulb into the lamp fixture. Ensure it is securely seated.
3. Posicione o Lamp: Coloque o lamp on a stable, flat surface. The weighted base provides stability, but ensure the lamp is not placed where it can be easily tipped over, especially when the gooseneck is extended.
4. Conectar à energia: Conecte o lampConecte o cabo de alimentação a uma tomada elétrica padrão.

Instruções de operação

• Ligar/desligar: Locate the toggle switch on the lamp's base. Flip the switch to the "ON" position to turn on the lamp, and to the "OFF" position to turn it off.
• Adjusting the Light Direction: O lamp features a flexible gooseneck and a tilting wing-shade. Gently bend the gooseneck to position the light source as desired. The wing-shade can be tilted to direct the light precisely onto your work area.
• Using the Pen Holder: O lamp base includes a built-in holder for pens and pencils, providing convenient storage for your writing tools.

Principais características

OttLite 508 Technology

The OttLite K83G56 lamp utilizes OttLite 508 Technology, which is engineered to provide a precise balance of contrast and brightness. This technology aims to replicate natural daylight, allowing for accurate color perception and clear detail visibility without the harsh glare or distortion often associated with standard indoor lighting. This helps in reducing eye strain and fatigue during extended use.

Design ajustável

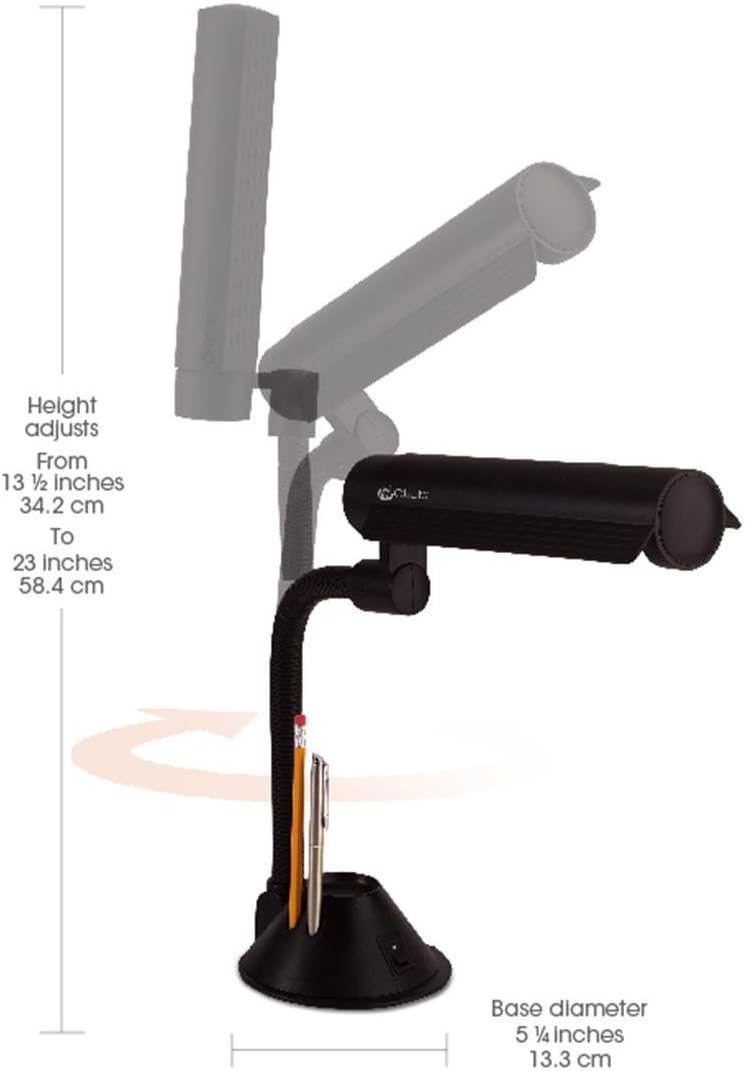

The flexible gooseneck allows for easy adjustment of the lamp's height and angle, ranging from 13.5 inches to 23 inches. The tilting wing-shade further enables precise light positioning, making it suitable for various tasks such as reading, crafting, or working at a desk.

Manutenção

Substituição de lâmpada

O lamp uses an energy-efficient 13-watt tube bulb, rated to last up to 10,000 hours. When replacing the bulb:

1. Garantir o lamp está desconectado da tomada.
2. Deixe a lâmpada antiga esfriar completamente antes de manuseá-la.
3. Gently remove the old bulb from its socket.
4. Insert the new 13-watt tube bulb, ensuring it is properly aligned and seated.

Limpeza

Para limpar o lamp, ensure it is unplugged. Wipe the surfaces with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the finish.

Solução de problemas

• Lamp Não liga:
  • Verifique se o cabo de alimentação está conectado firmemente à tomada.
  • Ensure the toggle switch is in the "ON" position.
  • Verify that the bulb is correctly inserted and not loose. If the bulb is old, it may need replacement.
• Lamp Appears Unstable or Tips Over:
  • Garantir o lamp is placed on a completely flat and stable surface.
  • When adjusting the gooseneck, try to maintain the lamp's center of gravity over the base to prevent tipping.
• A emissão de luz é fraca ou intermitente:
  • A lâmpada pode estar chegando ao fim de sua vida útil e precisar ser substituída.
  • Certifique-se de que a lâmpada esteja totalmente encaixada no soquete.

Especificações

Garantia e Suporte

The OttLite K83G56 lamp vem com um 2-year warranty for the lamp unidade e um 1-year warranty for the included bulb. For technical support, replacement parts, or warranty claims, please refer to the contact information provided on the OttLite official website ou sua documentação de compra.
