1. Introdução
This instruction manual provides detailed guidance for the safe installation, operation, and maintenance of your RABALUX 8270 Oslo Wall Lamp. Please read this manual thoroughly before installation and retain it for future reference. The RABALUX 8270 Oslo Wall Lamp combines an attractive design with robust materials, featuring a stainless steel construction that is weather-resistant with an IP44 protection rating and UV-resistant plastic components. Its design allows for easy assembly and integration into various outdoor settings.

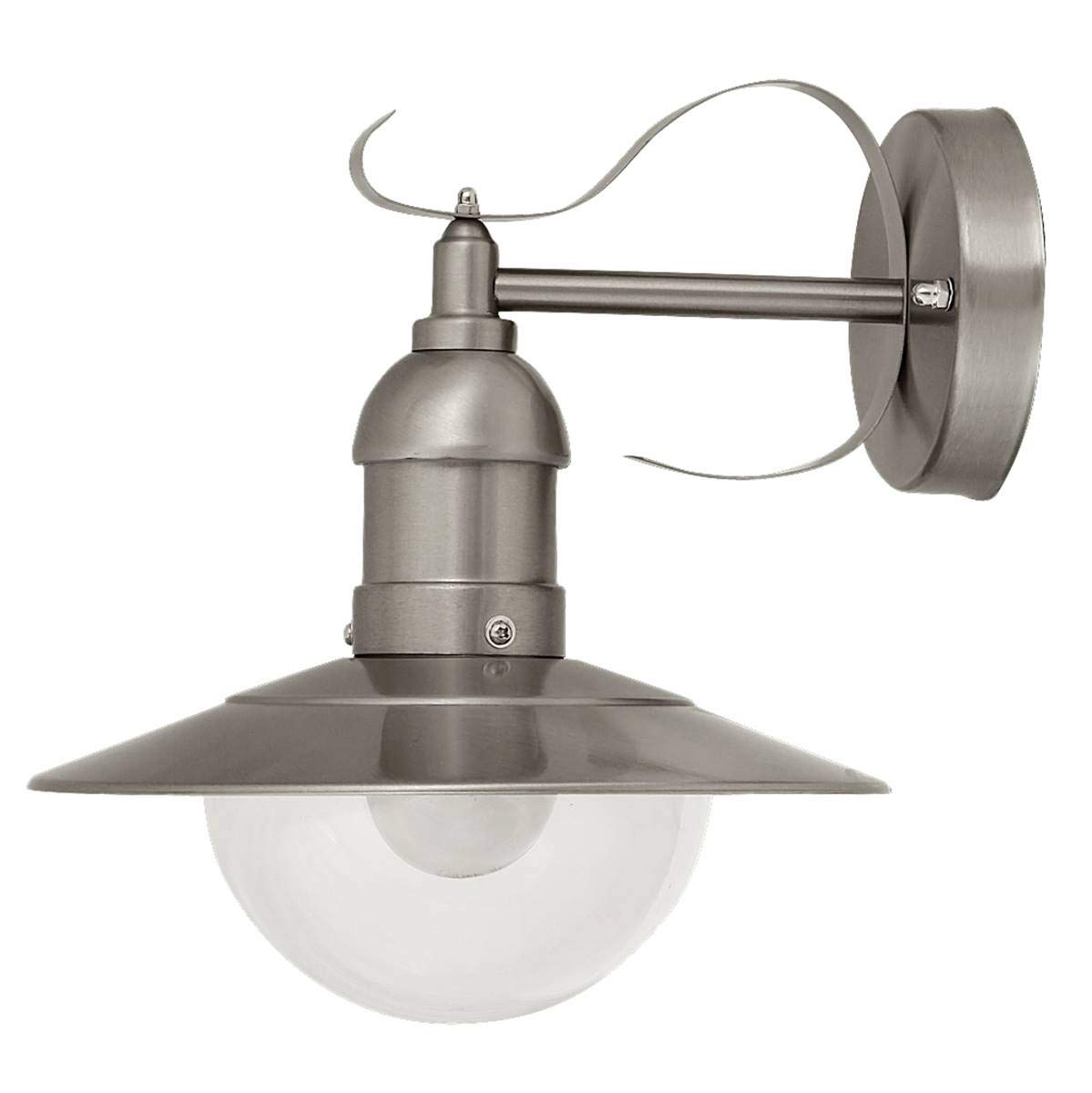

Image 1.1: RABALUX 8270 Oslo Wall Lamp, frente view. This image displays the complete wall lamp assembly, featuring a brushed stainless steel finish, a curved arm, and a spherical glass diffuser beneath a wide, flat shade.
2. Instruções de segurança
AVISO: Electrical installation should only be performed by a qualified electrician. Always disconnect the main power supply before attempting any installation, maintenance, or repair work.
- Ensure the power supply is switched off at the fuse box or circuit breaker before beginning installation.
- This product is designed for outdoor use only and has an IP44 rating, protecting against solid objects larger than 1mm and splashes of water from any direction.
- Não exceda a temperatura máximatage especificado para a lâmpada (60W E27).
- Ensure all electrical connections are secure and comply with local wiring regulations.
- O lamp deve ser devidamente aterrado.
- Mantenha os materiais de embalagem longe das crianças.
3. Conteúdo da embalagem
Verifique se todos os componentes estão presentes e sem danos antes de prosseguir com a instalação.
- 1 x RABALUX 8270 Oslo Wall Lamp
- 1 x Kit de ferragens para montagem (parafusos, buchas)
- 1 x Manual de Instruções (este documento)
Observação: A lâmpada E27 não está incluída e deve ser adquirida separadamente.
4. Configuração e instalação
Follow these steps carefully for proper installation. Refer to the diagrams for visual guidance.
Image 4.1: Dimensions of the RABALUX 8270 Oslo Wall Lamp. The diagram shows the lamp with a width of 280mm and a height of 265mm. The shade has a diameter of 240mm.

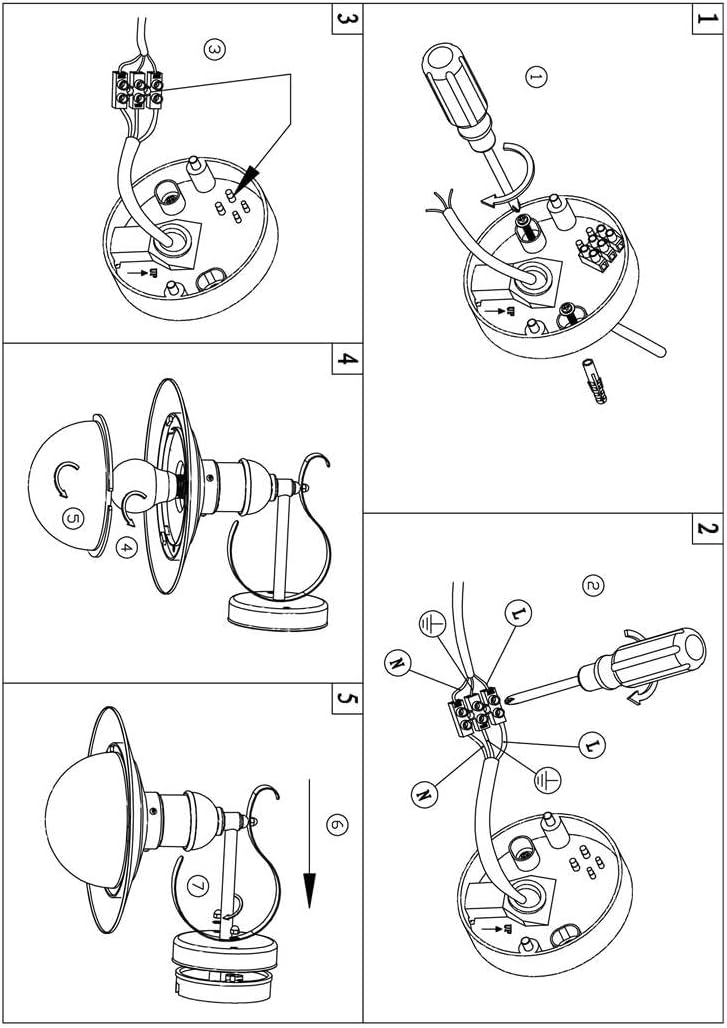

Image 4.2: Step-by-step installation guide for the RABALUX 8270 Oslo Wall Lamp. This image illustrates the process from mounting the base to securing the lamp and inserting the bulb.
- Preparation (Image 4.2, Step 1): Disconnect the main power supply. Mark the desired mounting position on the wall. Drill holes for the mounting bracket and insert wall plugs if necessary.
- Mounting the Base Plate (Image 4.2, Step 2): Proteja o lamp's base plate to the wall using the provided screws. Connect the electrical wires (Live (L), Neutral (N), and Earth (E)) to the corresponding terminals on the base plate. Ensure connections are tight and secure.
- Anexando o Lamp Body (Image 4.2, Step 3): Carefully attach the main lamp body to the mounted base plate, ensuring the wires are not pinched. Secure it with the retaining screws.
- Inserting the Bulb (Image 4.2, Step 4): Unscrew the glass diffuser. Insert an E27 bulb (max 60W) into the lamp suporte. Não apertar demais.
- Securing the Diffuser (Image 4.2, Step 5): Reattach the glass diffuser and the outer shade, ensuring they are securely fastened to protect the bulb and maintain the IP44 rating.
- Verificação final: Once installation is complete, restore power and test the lampfuncionalidade de.
5. Instruções de operação
The RABALUX 8270 Oslo Wall Lamp operates via a standard wall switch connected to its power supply. Once installed and powered, simply use the connected switch to turn the light on or off.
- Este euamp is compatible with E27 bulbs, including incandescent, LED, or energy-saving bulbs, up to a maximum of 60 watts.
- For optimal energy efficiency, consider using an LED E27 bulb.
6. Manutenção
Regular maintenance ensures the longevity and optimal performance of your wall lamp.
- Limpeza: Disconnect power before cleaning. Clean the lamp com um suave, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or plastic components.
- Substituição de lâmpada: Always disconnect power and allow the old bulb to cool completely before attempting to replace it. Unscrew the glass diffuser, replace the E27 bulb, and then securely reattach the diffuser.
- Inspeção: Inspecione periodicamente o lamp for any signs of damage, such as cracked housing, frayed wires, or loose connections. If any damage is found, disconnect power immediately and have it repaired by a qualified professional.
7. Solução De Problemas
If you encounter issues with your RABALUX 8270 Oslo Wall LampConsulte as seguintes etapas comuns de resolução de problemas:
| Problema | Possível causa | Solução |
|---|---|---|
| Lamp não liga | Sem fonte de alimentação Lâmpada com defeito Conexão de fiação solta | Verifique o disjuntor/fusível. Substitua a lâmpada por uma nova e funcional. Disconnect power and check wiring connections (consult an electrician if unsure). |
| Lamp pisca | Lâmpada solta Lâmpada incompatível Fiação defeituosa | Aperte a lâmpada. Ensure bulb is compatible with the lamp. Disconnect power and check wiring connections (consult an electrician if unsure). |
| Water inside diffuser | Improperly sealed diffuser | Disconnect power. Remove diffuser, dry thoroughly, and reattach ensuring a tight seal. Check for any cracks in the diffuser. |
Se o problema persistir após tentar essas soluções, entre em contato com o suporte ao cliente ou com um eletricista qualificado.
8. Especificações
- Número do modelo: 8270
- Marca: RABALUX
- Dimensões do produto: 28L x 24W x 28H cm (280 x 240 x 280 mm); 950 g
- Material: Metal, Plastic (Stainless Steel finish)
- Cor: Aço inoxidável
- Tipo de lâmpada: E27
- Max Wattage: 60 W
- Classe de proteção: IP44 (Resistente às intempéries)
- Uso específico: Apenas ao ar livre
- Terminar: Escovado
- Certificações: CE
- Montagem necessária: Sim
- Pilhas necessárias: Não
Image 8.1: Energy Efficiency Label for RABALUX 8270. This label indicates that the luminaire is compatible with bulbs of energy classes A++ to E.
9. Informações de garantia
This RABALUX product comes with a standard manufacturer's warranty. Please refer to your purchase documentation, receipt, or the official RABALUX website for specific terms, conditions, and duration of the warranty applicable to your region.
10. Suporte
For technical assistance, spare parts, or any further inquiries regarding your RABALUX 8270 Oslo Wall Lamp, please contact your retailer or visit the official RABALUX webSite com informações de contato do suporte ao cliente.
Website: www.rabalux.com (Por favor, verifique as informações da sua região) weblocal)
