1. Introdução
This manual provides essential information for the safe and efficient operation of your Keystone KSTAD70B 70-Pint Dehumidifier. This unit is designed to remove up to 70 pints of moisture from the air daily, suitable for rooms up to 4500 square feet. Key features include electronic controls with an LED display, a 24-hour timer, a transparent water level indicator, and a full bucket alert with automatic shutoff. It also offers a continuous draining option and a removable, easy-to-clean dust filter with a clean-filter alert. The auto-restart function preserves your settings after a power outage, and rolling casters facilitate easy movement.

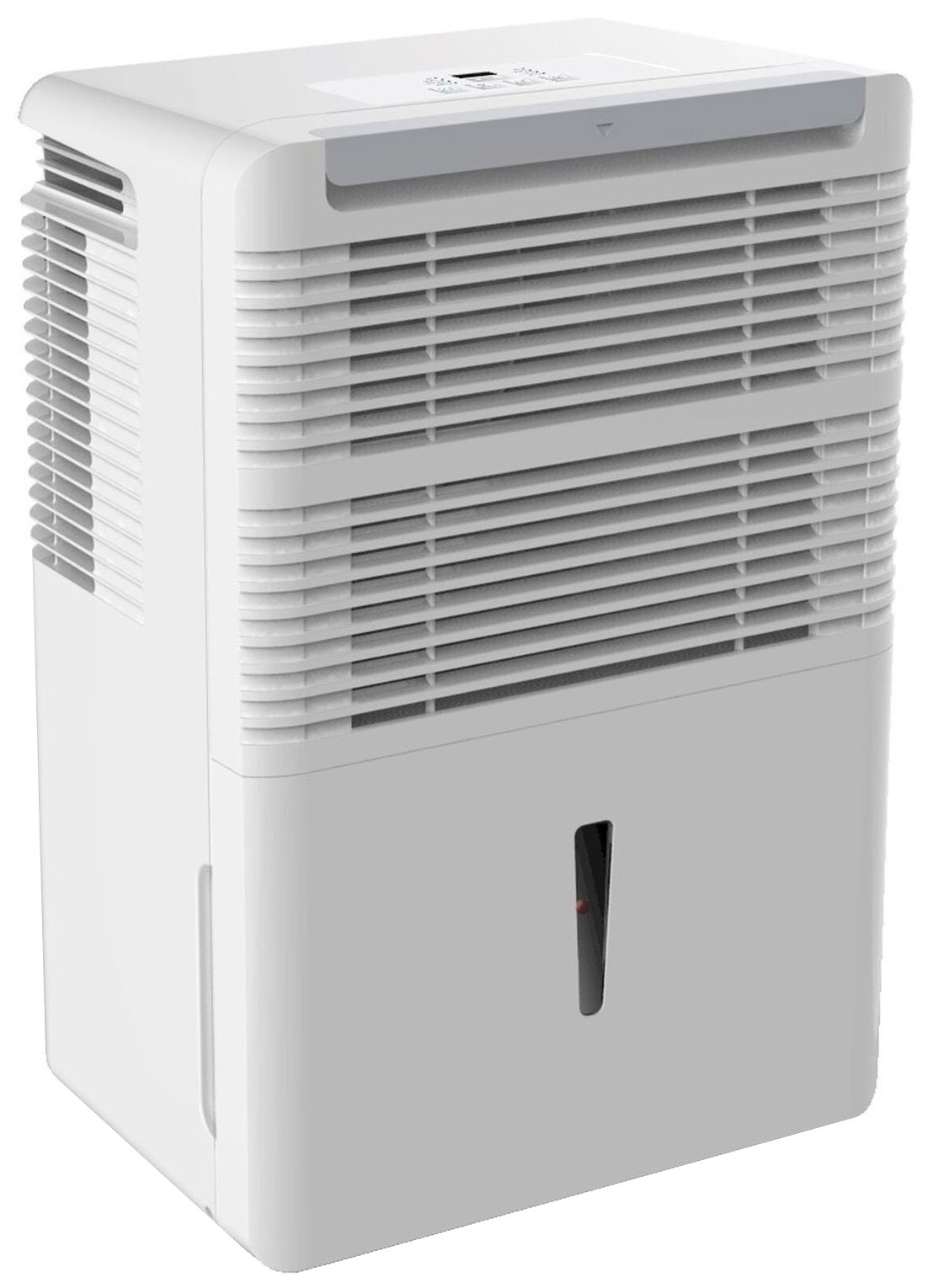

Figura 1: Frente view of the Keystone KSTAD70B Dehumidifier.
2. Informações de segurança
Please read all safety instructions before operating the dehumidifier to prevent injury or damage. Keep this manual for future reference.
- Always connect the unit to a properly grounded electrical outlet of the correct voltage.
- Não opere a unidade com um cabo de alimentação ou plugue danificado.
- Ensure adequate clearance (at least 12-18 inches) around the air intake and outlet to prevent overheating and ensure efficient operation.
- Não bloqueie as saídas de ar.
- Não utilize o desumidificador perto de água ou em ambientes excessivamente úmidos.
- Desconecte a unidade antes de limpar ou realizar qualquer manutenção.
- Este aparelho não se destina ao uso por pessoas (incluindo crianças) com capacidades físicas, sensoriais ou mentais reduzidas, ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instruções sobre o uso do aparelho de uma pessoa responsável pela sua segurança.
- Do not use chemical solvents or abrasive cleaners on the unit.
3. Configuração e posicionamento
3.1 Desembalagem
Retire cuidadosamente o desumidificador da embalagem. Guarde os materiais da embalagem para armazenamento ou transporte futuros. Inspecione a unidade para verificar se há danos causados pelo transporte.
3.2 Posicionamento
For optimal performance, place the dehumidifier in a location where air can circulate freely around it. The unit circulates air from the sides, not the top. Therefore, avoid placing it directly in a corner or against walls. Maintain a minimum clearance of 12-18 inches (30-45 cm) on all sides to ensure proper airflow.
3.3 Inicialização Inicial
Ligue o cabo de alimentação a uma tomada elétrica aterrada. O aparelho está agora pronto para uso.
4. Instruções de operação
4.1 Painel de controle sobreview
Figure 2: Control panel of the Keystone KSTAD70B Dehumidifier.
The control panel features an LED display and various buttons for setting the dehumidifier's functions:
- Botão de energia: Liga ou desliga a unidade.
- Botão Ventilador: Adjusts fan speed (typically Low, Medium, High).
- Botão do temporizador: Define o temporizador de 24 horas para ligar/desligar.
- Setas para cima/baixo: Adjust humidity level settings or timer duration.
- Indicador de filtro: Acende quando o filtro de ar precisa ser limpo.
- Indicador completo: Illuminates when the water bucket is full and needs emptying.
- Cont. (Continuous) Indicator: Illuminates when the unit is set for continuous operation.
- Modo turbo: Activates maximum dehumidification.
- Modo normal: Operação padrão de desumidificação.
- Auto degelo: Automatically defrosts the coils if ice builds up.
4.2 Definindo o nível de umidade desejado
Press the Up or Down arrow buttons to set your desired humidity level. The unit will operate until the set humidity is reached, then cycle on and off to maintain it. The recommended humidity range for comfort is typically between 45% and 55%.
4.3 Operação Contínua
To run the dehumidifier continuously, select the 'Cont.' setting. In this mode, the unit will operate regardless of the ambient humidity level. Note that when continuous operation is selected, the humidity setpoint buttons will not respond.
4.4 Função do temporizador
Use the Timer button to program the unit to turn on or off automatically after a set number of hours (up to 24 hours).
4.5 Auto-Restart
The unit features an auto-restart function that saves your settings. In the event of a power outage, the dehumidifier will automatically resume operation with the last settings once power is restored.
5. Manutenção
A manutenção regular garante o desempenho ideal e a longevidade do seu desumidificador.
5.1 Esvaziando o Balde de Água
When the water bucket is full, the 'Full' indicator light will illuminate, and the unit will automatically shut off. Carefully remove the bucket and empty the collected water. Reinsert the bucket firmly until it clicks into place to resume operation.
Figure 3: Removing the water collection bucket.
Figure 4: Transparent water level indicator.
5.2 Continuous Draining Option
For continuous operation without emptying the bucket, you can connect a standard garden hose (not included) to the unit's low-level drain. The unit includes an adapter with a clear hose that pushes onto a smooth plastic fitting inside the unit. This adapter has male hose threads for attaching a garden hose. Ensure the hose is routed downwards to a suitable drain to allow gravity to remove the water.
5.3 Limpando o Filtro de Ar
The 'Filter' indicator light will remind you when it's time to clean the air filter. A clean filter ensures efficient operation and better air quality. To clean, lift the filter straight up from the top at the front corner of the unit and slide it out. Wash the filter with warm, soapy water, rinse thoroughly, and allow it to air dry completely before reinserting.
Figura 5: Remoção do filtro de ar para limpeza.
6. Solução De Problemas
Before contacting support, try these common troubleshooting steps:
| Problema | Possível causa | Solução |
|---|---|---|
| O desumidificador não liga. | No power; power cord loose; 'Full' indicator on. | Check power supply; ensure cord is plugged in; empty water bucket. |
| O aparelho funciona, mas não desumidifica. | Air filter clogged; room temperature too low; unit size too small for area. | Clean air filter; ensure room temperature is above 41°F (5°C); consider unit placement. |
| A unidade é barulhenta. | Unidade desnivelada; obstrução do ventilador. | Place on a flat, stable surface; check for obstructions in fan area. |
| Vazamentos de água da unidade. | Water bucket not properly seated; continuous drain hose loose or clogged. | Ensure bucket is fully inserted; check continuous drain hose connection and clear any blockages. |
7. Especificações
| Recurso | Detalhe |
|---|---|
| Marca | Pedra angular |
| Nome do modelo | KSTAD70B |
| Capacidade de desumidificação | 70 Pintas por Dia |
| Tamanho de quarto recomendado | Até 4500 pés quadrados |
| Cor | Branco |
| Características especiais | Automatic Restart, Automatic Shutoff |
| Número de velocidades | 3 |
| Modo de operação | Normal, Turbo, Auto-Defrost |
| O quetage | 720 watts |
| Peso do item | 40 libras |
| Dimensões do produto (C x L x A) | 11.25 x 15.5 x 23.25 polegadas |
| Usos recomendados | residencial |
8. Informações de garantia
The Keystone KSTAD70B Dehumidifier comes with a Garantia de 1 ano on parts and labor, and a garantia limitada de 5 anos on the sealed system. Please refer to the physical warranty card included with your product for full terms and conditions.
9. Suporte ao cliente
For product registration, warranty claims, or technical assistance, please refer to the contact information provided in the physical instruction manual that came with your dehumidifier. Online registration or direct manufacturer contact information may not be readily available; therefore, retaining your original manual is important for support inquiries.
