Kawasaki FX691V-S00 22hp Twin Cylinder Vertical Engine User Manual

1. Produto acabadoview

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Kawasaki FX691V-S00 22hp Twin Cylinder Vertical Engine. This engine is designed for various outdoor power equipment applications, featuring a robust design and reliable performance.

Principais características:

• Engine Model: FX691V-ES00S
• Potência: 22.0 cv
• Deslocamento: 726cc
• Starter Type: Electric Shift Starter
• Crankshaft Orientation: Vertical
• Features: OHV (Overhead Valve) design, Fuel Pump, Oil Cooler, Snorkel Air Cleaner

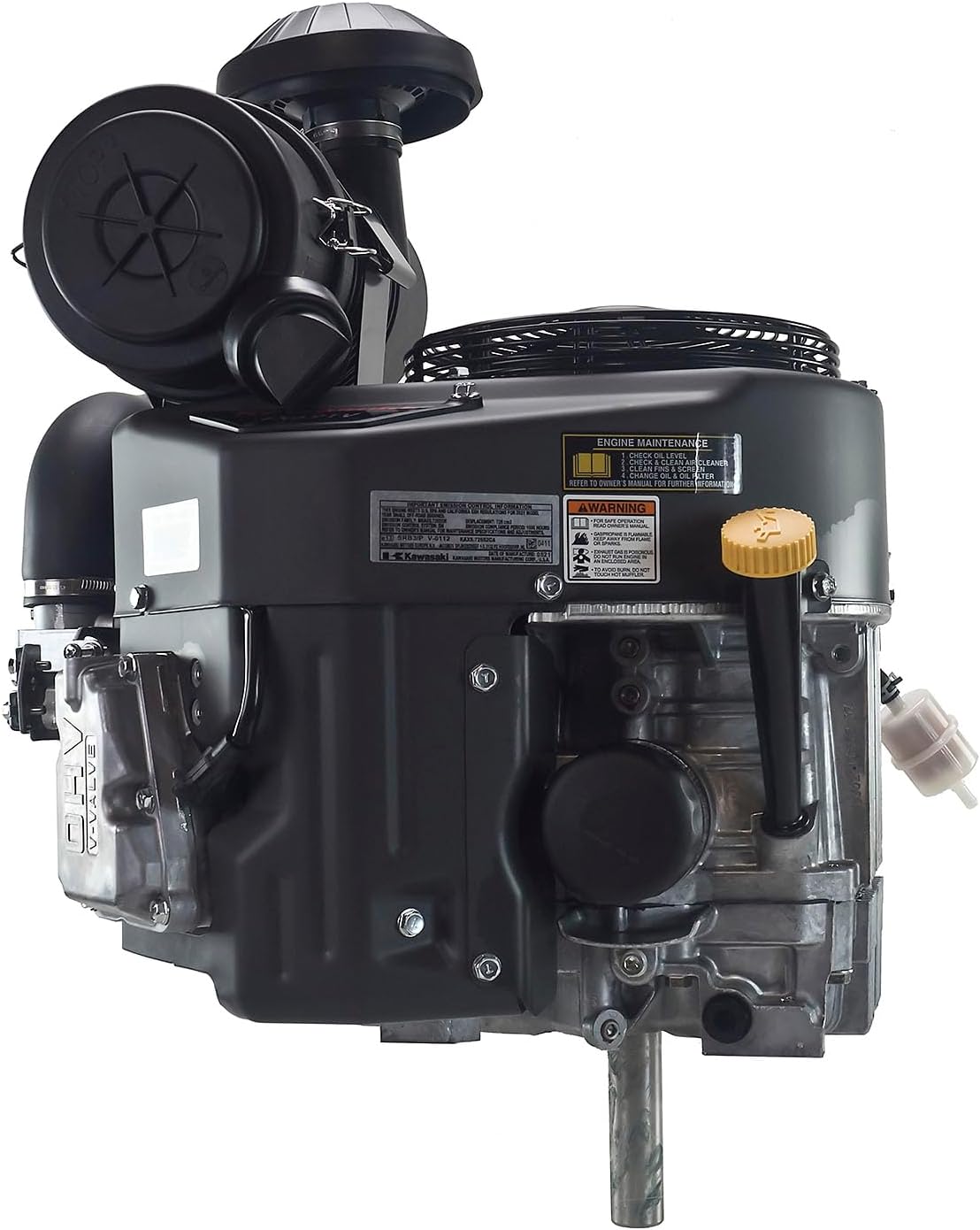

Figura 1: Lateral view of the Kawasaki FX691V-S00 engine, showing the air cleaner assembly and oil fill cap.

2. Configuração e instalação

Proper installation is crucial for the safe and efficient operation of your engine. Consult the equipment manufacturer's manual for specific installation instructions. Ensure all connections are secure and fluids are at appropriate levels before initial startup.

Verificações iniciais:

1. Montagem: Securely mount the engine to the equipment frame using appropriate hardware. Ensure proper alignment with the driven component.
2. Sistema de combustível: Connect the fuel lines from the fuel tank to the engine's fuel pump and carburetor. Verify there are no leaks. Use fresh, clean gasoline.
3. Nível de óleo: Fill the engine crankcase with the recommended type and amount of engine oil. Check the oil level using the dipstick. Do not overfill.
4. Conexões elétricas: Connect the battery to the electric starter system. Ensure all wiring is correctly routed and secured, and connections are tight.
5. Filtro de ar: Verify the snorkel air cleaner assembly is properly installed and sealed.

Figura 2: Traseira view of the engine, highlighting the OHV covers and fuel system components.

3. Instruções de operação

Always read and understand the safety precautions before operating the engine. Ensure the equipment is in a well-ventilated area and clear of obstructions.

Partida do motor:

1. Válvula de combustível: Open the fuel valve (if equipped).
2. Estrangular: Move the choke lever to the "CHOKE" position for cold starts. For warm starts, the choke may not be necessary.
3. Acelerador: Coloque a alavanca do acelerador na posição "RÁPIDO" ou "INICIAR".
4. Ignição: Turn the ignition key to the "START" position. Release the key once the engine starts. Do not crank for more than 5 seconds at a time.
5. Aquecimento: Once the engine starts, gradually move the choke lever to the "RUN" position as the engine warms up. Allow the engine to warm up for a few minutes before applying load.

Parando o motor:

1. Acelerador: Reduce the engine speed to idle.
2. Ignição: Turn the ignition key to the "OFF" position.
3. Válvula de combustível: Close the fuel valve (if equipped) for storage or extended periods of non-use.

4. Manutenção

Regular maintenance is essential for prolonging the life and ensuring the reliable performance of your Kawasaki engine. Always perform maintenance with the engine off and cool, and disconnect the spark plug wire to prevent accidental starting.

Maintenance Schedule (General Guidelines):

• Antes de cada uso: Check engine oil level. Inspect air cleaner for debris.
• A cada 25 horas ou anualmente: Change engine oil. Clean or replace air filter elements (especially the snorkel air cleaner). Inspect spark plugs.
• A cada 50 horas ou anualmente: Inspect fuel filter and fuel lines. Clean cooling fins.
• A cada 100 horas ou anualmente: Replace spark plugs. Adjust valve clearance (consult a qualified technician).

Specific Maintenance Points:

• Oil Cooler: Ensure the oil cooler is free from debris to maintain optimal engine temperature.
• Snorkel Air Cleaner: The snorkel design helps protect the engine in dusty conditions. Regularly inspect and clean or replace the air filter elements as per the schedule.
• Bomba de combustível: Periodically check fuel lines connected to the fuel pump for cracks or leaks.

Figura 3: Frente view of the engine, illustrating the cooling fan and air intake system.

5. Solução De Problemas

This section provides basic troubleshooting steps for common engine issues. For complex problems, consult a qualified Kawasaki service technician.

6. Especificações

Detailed technical specifications for the Kawasaki FX691V-S00 engine.

• Número do modelo: FX691V-S00 (also FX691V-ES00S)
• Potência: 22.0 cv
• Deslocamento: 726cc
• Cilindros: Cilindro duplo
• Tipo de válvula: OHV (válvula suspensa)
• Crankshaft Orientation: Vertical
• Dimensões do eixo: 1 1/8" x 4-5/16" Keyed Shaft
• Iniciando sistema: Electric Start (Electric Shift Starter)
• Entrega de combustível: Bomba de combustível
• Sistema de refrigeração: Air Cooled with Oil Cooler
• Filtragem de ar: Snorkel Air Cleaner
• Sistema de carregamento: 15 Amp
• Pilhas necessárias: No (refers to engine operation, external battery required for electric start)

Figure 4: Detail of the vertical keyed shaft, crucial for power transmission.

7. Garantia e Suporte

For warranty information, technical support, or to locate an authorized service dealer, please contact Kawasaki directly or visit their official website. Always provide your engine model and serial number when seeking assistance.

Oficial Kawasaki Website: Visit the Kawasaki Store on Amazon (for product information and parts)

Aviso da Proposta 65: Este produto pode conter substâncias químicas que o Estado da Califórnia reconhece como causadoras de câncer, defeitos congênitos ou outros danos reprodutivos. Para mais informações, acesse [link para o site do Estado da Califórnia]. www.P65Warnings.ca.gov.
