Siemens MC2442B1200EFV Meter-Load Center Combination Instruction Manual

1. Produto acabadoview

The Siemens MC2442B1200EFV is a meter-load center combination unit designed for residential and light commercial electrical service applications. This unit features 24 spaces and 42 circuits, with a 200 Amp main busbar rating, making it suitable for modern electrical demands, including solar-ready installations.

This model is specifically engineered to meet Title 24 compliance, which includes provisions for future solar electric installations. It is UL Listed and Outdoor Rated, ensuring safety and durability in various environmental conditions. The design incorporates specific hub types for installation: RX type hubs on the top endwall and HC type hubs on the bottom endwall, and is intended for underground feed only. It also meets EUSERC standards.

2. Configuração e instalação

Installation of the Siemens MC2442B1200EFV meter-load center combination must be performed by a qualified electrician in accordance with all national and local electrical codes and regulations. Ensure power is disconnected at the source before beginning any installation work.

2.1 Precauções de segurança

• Always de-energize the electrical system before installation or servicing.
• Utilize equipamento de proteção individual (EPI) adequado, incluindo luvas isolantes e óculos de segurança.
• Verify all connections are secure and properly torqued.
• Não instale em molhado ou damp locations unless specifically rated for such environments. This unit is Outdoor Rated.

2.2 Montagem da Unidade

The MC2442B1200EFV is designed for flush mounting. Prepare the wall opening according to the unit's dimensions. Secure the enclosure firmly to structural elements using appropriate fasteners. Ensure the unit is level and plumb.

2.3 Conexões de Fiação

This unit is designed for underground feed only. Connect the main service conductors to the appropriate lugs. The unit requires RX type hubs on the top endwall and HC type hubs on the bottom endwall for conduit connections. Install circuit breakers into the designated spaces, ensuring proper seating and connection to the busbar. The panel includes 2 reserved spaces on the load-side, permanently marked "For Future Solar Electric", to accommodate a double pole circuit breaker for future solar installations.

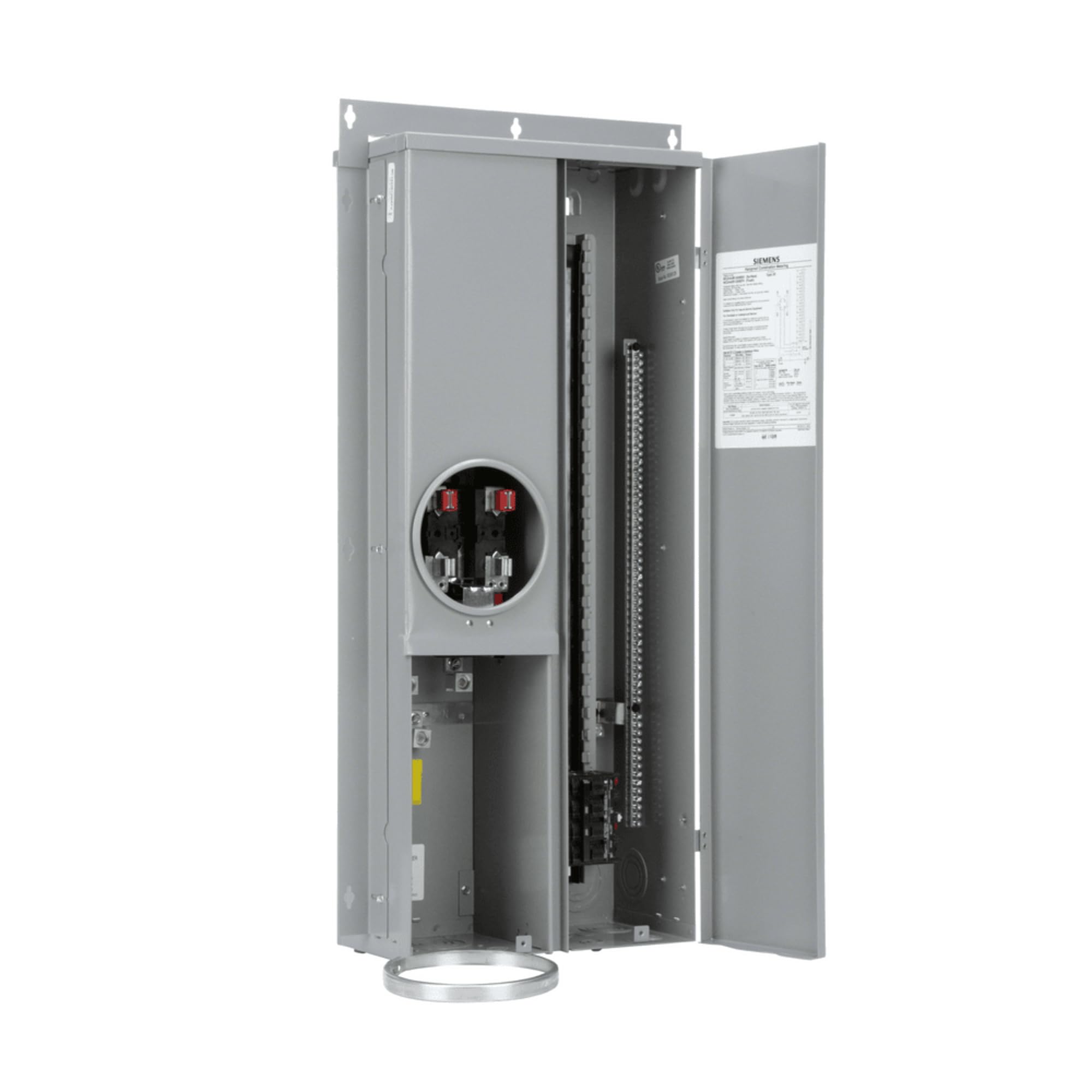

Image showing the Siemens MC2442B1200EFV meter-load center combination unit, designed for flush mounting and underground feed.

3. Instruções de operação

Once installed and energized by a qualified professional, the meter-load center operates automatically to distribute power and protect circuits. Individual circuit breakers protect specific circuits from overcurrents and short circuits.

3.1 Reinicializando um disjuntor desarmado

1. Locate the tripped circuit breaker. It will typically be in an intermediate position between ON and OFF.
2. Firmly push the breaker handle completely to the OFF position.
3. Push the breaker handle firmly to the ON position.
4. If the breaker trips immediately again, there may be an electrical fault. Do not attempt to reset it repeatedly. Consult a qualified electrician.

3.2 Operação Geral

Circuit breakers are designed to trip when an overload or short circuit occurs, protecting wiring and appliances. Avoid overloading circuits by distributing electrical loads appropriately. If a breaker frequently trips, it indicates an issue that requires investigation by a professional.

4. Manutenção

The Siemens MC2442B1200EFV meter-load center is designed for minimal maintenance. However, periodic inspection by a qualified electrician is recommended to ensure continued safe and efficient operation.

4.1 Recommended Checks (by a qualified electrician)

• Inspect for any signs of corrosion, loose connections, or damaged wiring.
• Ensure all circuit breakers are securely seated.
• Check for any unusual odors or discoloration, which could indicate overheating.
• Verify that the enclosure is free from debris and moisture.

4.2 Limpeza

Keep the exterior of the unit clean and free of dust. Use a dry, soft cloth for cleaning. Do not use abrasive cleaners or solvents. Ensure the area around the panel remains clear and accessible.

5. Solução De Problemas

This section provides basic troubleshooting steps for common issues. For any complex electrical problems, always consult a qualified electrician.

5.1 No Power to a Specific Circuit

• Check the Breaker: See Section 3.1 for instructions on resetting a tripped breaker.
• Verifique se há sobrecarga: Unplug some devices from the affected circuit and try resetting the breaker.
• Tropeços persistentes: If the breaker trips immediately after resetting, there is likely a short circuit or ground fault. Do not continue to reset it.

5.2 No Power to Entire Home/Building

• Check Main Breaker: Ensure the main circuit breaker in the load center is in the ON position.
• Check Utility Service: Verify if there is a power outage in your area by checking with your utility provider or neighbors.
• Consult Electrician: If the main breaker is ON and there is no utility outage, contact a qualified electrician immediately.

5.3 Unusual Noises or Smells

If you notice any buzzing, humming, burning smells, or visible arcing from the load center, immediately disconnect power if safe to do so (e.g., at the utility meter if accessible and safe) and contact a qualified electrician or your utility company. These are signs of serious electrical issues.

6. Especificações

7. Informações de garantia

Warranty information for the Siemens MC2442B1200EFV meter-load center combination is typically provided with the product at the time of purchase or can be obtained directly from Siemens. Please refer to the documentation included with your unit or visit the official Siemens website para obter termos e condições detalhados da garantia.

8. Suporte ao cliente

For technical assistance, installation queries, or any other support needs regarding your Siemens MC2442B1200EFV meter-load center combination, please contact Siemens customer support. Contact details can typically be found on the Siemens official website ou dentro da embalagem do produto.

It is recommended to have your product model number (MC2442B1200EFV) and any relevant purchase information ready when contacting support.
