1. Introdução

This manual provides detailed instructions for the installation, configuration, and maintenance of your ASRock FM2A58M-VG3+ R2.0 Micro ATX Motherboard. Please read this manual thoroughly before attempting any installation or configuration to ensure proper operation and to prevent damage to your system components.

2. Conteúdo da embalagem

Upon opening the motherboard package, verify that all items are present and in good condition. The standard package typically includes:

• ASRock FM2A58M-VG3+ R2.0 Motherboard
• I/O Panel Shield
• Cabos de dados SATA
• Guia de instalação rápida
• Support CD (containing drivers and utilities)

If any items are missing or damaged, contact your retailer for assistance.

3. Layout da placa-mãe

Familiarize yourself with the layout of the motherboard before installation. This section provides an overview of key components and connectors.

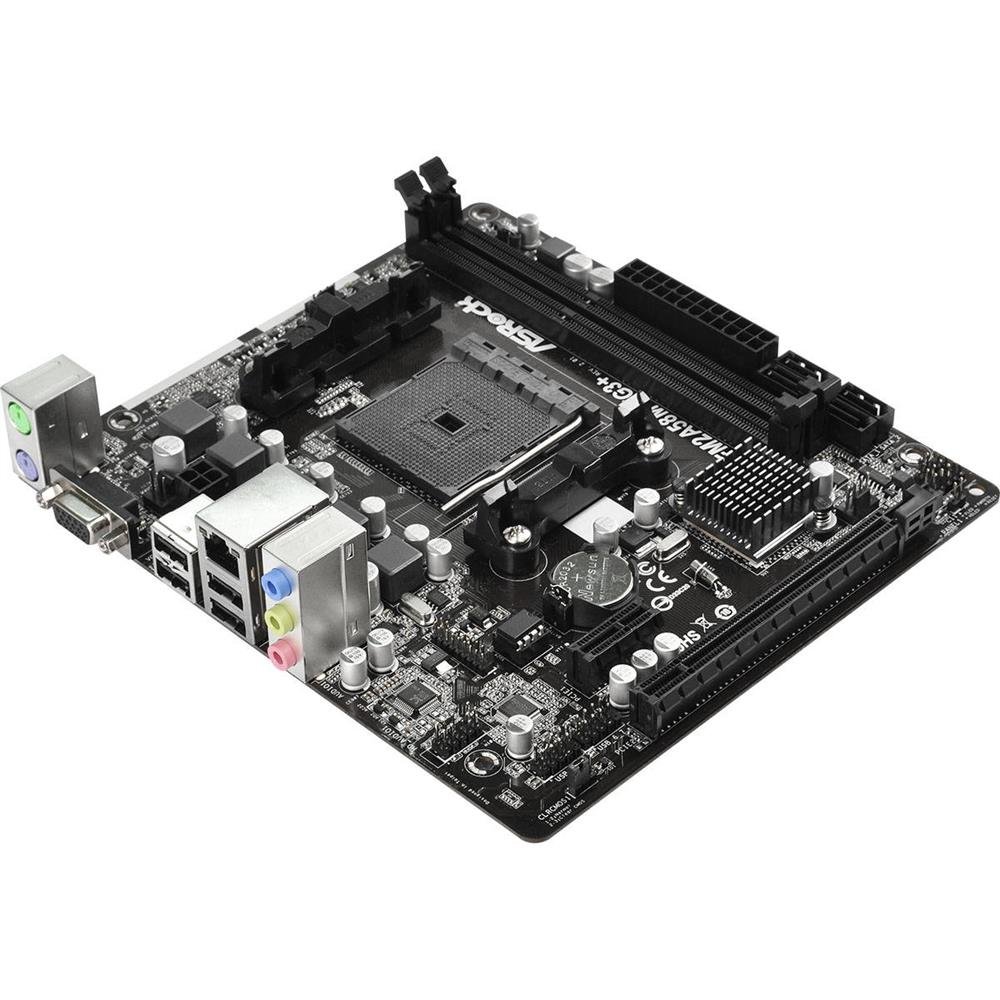

This image displays the ASRock FM2A58M-VG3+ R2.0 Micro ATX motherboard, highlighting its various components such as the CPU socket, DIMM slots, PCI-Express slots, and SATA ports.

Key areas include the CPU socket (FM2+), DDR3 DIMM slots, PCI-Express expansion slots, SATA ports, and various headers for front panel connectivity.

4. Configuração e instalação

4.1. Instalação da CPU

1. Abra a alavanca do soquete da CPU.
2. Align the CPU (AMD FM2/FM2+) with the socket, ensuring the golden triangle on the CPU matches the triangle on the socket.
3. Coloque o processador no soquete com cuidado, sem forçar.
4. Feche a alavanca do soquete para fixar a CPU.
5. Apply thermal paste to the CPU surface and install the CPU cooler according to its manufacturer's instructions.

4.2. Instalação de RAM (Memória)

1. Abra as travas em ambas as extremidades dos slots DIMM DDR3.
2. Alinhe o módulo de memória com o slot, certificando-se de que o entalhe no módulo coincida com a chave no slot.
3. Pressione firmemente ambas as extremidades do módulo de memória até que as presilhas se encaixem no lugar.

4.3. Motherboard Mounting

1. Instale o painel de E/S na abertura traseira do gabinete do seu computador.
2. Alinhe a placa-mãe com os espaçadores dentro do gabinete.
3. Fixe a placa-mãe com parafusos, certificando-se de que estejam firmemente encaixados, mas sem apertá-los em excesso.

4.4. Conectando Periféricos

• Conectores de alimentação: Conecte o conector de alimentação ATX de 24 pinos e o conector de alimentação ATX 12V de 4 pinos da sua fonte de alimentação à placa-mãe.
• Dispositivos SATA: Connect your storage drives (HDDs/SSDs) to the SATA2 ports using the provided SATA cables.
• Cabeçalhos do painel frontal: Connect the power button, reset button, HDD LED, power LED, and front panel USB/audio connectors to their respective headers on the motherboard. Refer to the motherboard diagram for exact locations.
• Placas de expansão: Install any PCI-Express graphics cards or other expansion cards into the appropriate slots and secure them.

5. Operando seu sistema

5.1. Configuração da BIOS/UEFI

Upon first boot, or if you need to adjust system settings, you can enter the BIOS/UEFI setup utility. Typically, this is done by pressing the DEL or F2 key during the Power-On Self-Test (POST) phase. The UEFI interface allows you to configure boot order, system time, CPU/memory settings, and other hardware parameters.

5.2. Instalação do driver

After installing your operating system, install the necessary drivers for the motherboard's components. These can be found on the included support CD or downloaded from the official ASRock website. Install drivers for chipset, audio, LAN, and any integrated graphics (if using an APU).

5.3. Instalação do sistema operacional

Insert your operating system installation media (USB drive or DVD) and follow the on-screen prompts to install your preferred operating system. Ensure the boot order in the UEFI is set to prioritize your installation media.

6. Manutenção

6.1. Limpeza

Regularly clean your computer's interior to prevent dust buildup, which can lead to overheating and component failure. Use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning.

6.2. Atualizações da BIOS

Verifique periodicamente o ASRock website for BIOS/UEFI updates. Updates can provide improved compatibility, stability, and new features. Follow the instructions provided by ASRock carefully when performing a BIOS update to avoid system instability or damage.

7. Solução De Problemas

Esta seção aborda problemas comuns que você pode encontrar.

• Sem energia: Ensure all power cables (24-pin ATX, 4-pin ATX 12V) are securely connected to the motherboard and power supply. Verify the power supply switch is on.
• Nenhuma exibição: Check that the monitor is connected to the correct video output (either integrated graphics or discrete graphics card). Reseat the graphics card and memory modules.
• Instabilidade/travamentos do sistema: This can be caused by incompatible RAM, overheating, or outdated drivers. Verify RAM compatibility, check CPU/GPU temperatures, and update all drivers.
• Erros no código POST: If your motherboard has a POST code display or emits beep codes, consult the ASRock website or the full manual for the meaning of these codes to diagnose the issue.
• USB Device Issues: Ensure USB devices are properly connected. If issues persist, try different USB ports or update USB drivers.

For more complex issues, refer to the comprehensive manual available on the ASRock support webou entre em contato com o suporte técnico da ASRock.

8. Especificações

Below are the technical specifications for the ASRock FM2A58M-VG3+ R2.0 Motherboard:

9. Garantia e Suporte

ASRock provides a limited warranty for its products. The duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For technical support, driver downloads, BIOS updates, and additional documentation, please visit the official ASRock website. You can also contact ASRock customer service for direct assistance.

Oficial da ASRock Website: www.asrock.com
