Winco PGS-1K Portable Gas Cooker Instruction Manual

1. Informações de segurança

Read all instructions and warnings carefully before using the Winco PGS-1K Portable Gas Cooker. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or death.

• Somente para uso externo: This appliance is designed for outdoor use in well-ventilated areas. Never use indoors, in tents, vehicles, or other enclosed spaces.
• Combustível: Use only standard 8 oz Butane DOT-2P canisters. Do not use any other type of fuel.
• Ventilação: Ensure adequate ventilation to prevent carbon monoxide buildup.
• Liberação: Maintain a minimum distance of 12 inches (30 cm) from the sides and rear of the cooker to any combustible materials.
• Superfície estável: Always operate the cooker on a firm, level, non-combustible surface.
• Crianças e animais de estimação: Keep children and pets away from the cooker during operation and while it is cooling down.
• Superfícies Quentes: The cooker's surfaces become extremely hot during use. Allow ample time for cooling before handling.
• Vazamentos de Gás: If you smell gas, immediately turn off the gas supply, extinguish any open flames, and move to a well-ventilated area. Do not attempt to ignite the cooker.
• Desligamento automático: The cooker features an automatic gas shut-off safety device. If activated, allow the cooker to cool before attempting to restart.
• CSA-US Listed: This product is CSA-US listed for commercial and outdoor use, indicating compliance with safety standards.

2. Produto acabadoview

The Winco PGS-1K is a portable gas cooker designed for efficient outdoor cooking. It features a single brass burner and comes with a durable carrying case for easy transport.

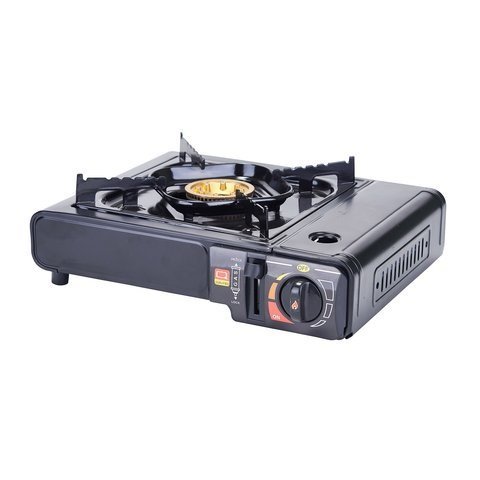

Image showing the Winco PGS-1K Portable Gas Cooker, a compact black unit with a brass burner, designed for portability. It is displayed alongside its black impact-resistant carrying case.

Componentes:

• Queimador de latão: Provides up to 9,500 BTUs of heat.
• Suporte para vasos: Integrated support for cookware.
• Compartimento de combustível: Houses the butane gas canister.
• Botão de controle: For ignition and flame adjustment.
• Ignição Eletrônica: For easy lighting.
• Safety Locking Device: Secures the butane canister.
• Estojo de transporte: Black impact-resistant hard plastic case for transport and storage.

3. Configuração

1. Descompacte: Remove the cooker and its components from the carrying case.
2. Colocação: Place the cooker on a stable, level, non-combustible surface in a well-ventilated outdoor area. Ensure adequate clearance from combustible materials.
3. Compartimento de combustível aberto: Open the fuel compartment cover located on the side of the cooker.
4. Inserir cartucho de butano: Align the collar of a standard 8 oz Butane DOT-2P canister with the guide in the fuel compartment. Push the canister in firmly until it clicks into place.
5. Lata de bloqueio: Engage the safety locking device (lever) to secure the butane canister. Ensure it is fully locked to prevent gas leaks.
6. Close Fuel Compartment: Close the fuel compartment cover.

4. Instruções de operação

1. Prepare os utensílios de cozinha: Place your pot or pan securely on the pot support.
2. Ignição: Turn the control knob counter-clockwise to the 'IGNITE' position. You should hear a click and see the burner ignite. If it does not ignite after a few attempts, turn the knob to 'OFF', wait a few seconds, and try again.
3. Ajustar Chama: Once ignited, continue turning the control knob counter-clockwise to increase the flame intensity, or clockwise to decrease it. The cooker offers a manually adjustable heat range up to 9,500 BTUs.
4. Culinária: Cook food as desired, monitoring the flame and adjusting as necessary.
5. Desligar: When finished cooking, turn the control knob fully clockwise to the 'OFF' position. Ensure the flame is completely extinguished.
6. Esfriar: Allow the cooker to cool completely before handling or storing. This may take 15-30 minutes.
7. Remove Butane Canister: Once cool, open the fuel compartment, disengage the safety locking device, and carefully remove the butane canister. Store the canister in a cool, dry place away from direct sunlight and heat.

5. Manutenção e Limpeza

Regular cleaning and maintenance will ensure the longevity and safe operation of your Winco PGS-1K Portable Gas Cooker.

• Limpeza do queimador: After the cooker has cooled, remove any food debris from the brass burner and pot support using a soft brush or cloth. Do not use abrasive cleaners.
• Limpando o Corpo: Wipe the exterior surfaces of the cooker with a damp pano e detergente suave. Seque bem.
• Armazenar: Ensure the cooker is completely clean and dry before storing it in its carrying case. Store in a cool, dry place away from direct sunlight and extreme temperatures. Always remove the butane canister before storage.
• Inspeção: Periodically inspect the cooker for any signs of damage, wear, or gas leaks. If any damage is found, do not use the cooker and contact customer support.

6. Solução De Problemas

If you encounter issues with your Winco PGS-1K Portable Gas Cooker, refer to the following common troubleshooting steps:

• Cooker Does Not Ignite:
  • Ensure the butane canister is correctly inserted and the safety locking device is engaged.
  • Check if the butane canister is empty and replace if necessary.
  • Verify the control knob is turned to the 'IGNITE' position.
  • Ensure the electronic igniter is sparking. If not, it may require service.
• Weak or Irregular Flame:
  • Check the butane canister level.
  • Ensure the burner is clean and free of obstructions.
  • Verify the control knob is adjusted correctly.
• Cheiro de gás:
  • IMEDIATAMENTE turn off the cooker and remove the butane canister.
  • Move to a well-ventilated area.
  • Check for proper canister connection. If the smell persists, do not use the cooker and contact customer support.
• Desligamento Automático Ativado:
  • This safety feature activates if internal pressure becomes too high. Turn off the cooker and allow it to cool completely before attempting to restart. Ensure proper ventilation and that the cooker is not overheating due to blocked vents or excessive heat.

If these steps do not resolve the issue, contact Winco customer support for further assistance.

7. Especificações

8. Vídeo oficial do produto

No official seller videos were provided for this product. Please refer to the written instructions and diagrams for guidance.

9. Garantia e Suporte

For warranty information, product support, or to inquire about replacement parts, please contact Winco customer service directly. Refer to the product packaging or the official Winco webPara obter as informações de contato mais atualizadas, acesse o site.

Guarde o comprovante de compra como prova para eventuais solicitações de garantia.
