Manual de Instruções da Fritadeira Compacta Cuisinart CDF-130 de 2 Quartos

1. Introdução e maisview

The Cuisinart CDF-130 2-Quart Compact Deep Fryer is designed for efficient deep-frying in smaller batches, ideal for individuals or small families. Featuring a 1500-watt immersion-style heating element, it ensures rapid heat-up and consistent temperatures up to 375°F for optimal frying results. This appliance is suitable for preparing a variety of foods, including potatoes, onion rings, seafood, chicken, and tempura. Its removable components, including the oil container, mesh basket, and lid, are designed for easy cleaning, with many parts being dishwasher-safe.

2. Instruções importantes de segurança

WARNING: When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before operating the deep fryer.
• Não toque em superfícies quentes. Use alças ou botões.
• To protect against electrical shock, do not immerse the control panel, cord, or plug in water or other liquids.
• É necessária supervisão rigorosa quando qualquer aparelho for usado por crianças ou perto delas.
• Unplug from outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts, and before cleaning the appliance.
• Não opere nenhum aparelho com um cabo ou plugue danificado, ou após o aparelho apresentar mau funcionamento ou ter sido danificado de alguma forma. Devolva o aparelho à assistência técnica autorizada mais próxima para exame, reparo ou ajuste.
• O uso de acessórios não recomendados pela Cuisinart pode causar ferimentos.
• Não utilize ao ar livre.
• Não deixe o cabo pendurado na borda da mesa ou do balcão, nem toque em superfícies quentes.
• Não coloque sobre ou perto de um queimador a gás ou elétrico quente, nem em um forno aquecido.
• Deve-se ter extremo cuidado ao mover um aparelho que contenha óleo quente ou outros líquidos quentes.
• Sempre conecte primeiro o plugue ao aparelho e, em seguida, ligue o cabo na tomada. Para desconectar, gire qualquer controle para a posição "desligado" e, em seguida, retire o plugue da tomada.
• Não utilize o aparelho para outro fim que não o pretendido.
• Ensure the magnetic power cord is securely attached to the unit before operation.
• Never move the deep fryer when oil is hot. Allow oil to cool completely before moving or cleaning.

3. Componentes do produto

The Cuisinart CDF-130 Deep Fryer consists of several key components designed for ease of use and maintenance:

• Carcaça de Aço Inoxidável: The main body of the fryer, providing durability and a sleek appearance.
• Removable Oil Container: A 2-quart stainless steel container that holds the frying oil, featuring a convenient pouring spout for easy oil management.
• Immersion-Style Heating Element: A 1500-watt element directly submerged in the oil for fast and consistent heating.
• Painel de controle: Located on the removable heating element, it includes a temperature control dial, power indicator light (red), and ready indicator light (green).
• Steel Mesh Basket: Equipped with a cool-touch handle, this basket is used to lower and raise food into and out of the hot oil. It can hold up to 1.3 pounds of food.
• Tampa: A stainless steel lid with a viewing window and vents to minimize splatter and contain odors.
• Magnetic Power Cord: A safety feature that easily detaches if accidentally tugged, preventing the fryer from being pulled over.

Figura 1: geral view of the Cuisinart CDF-130 Deep Fryer.

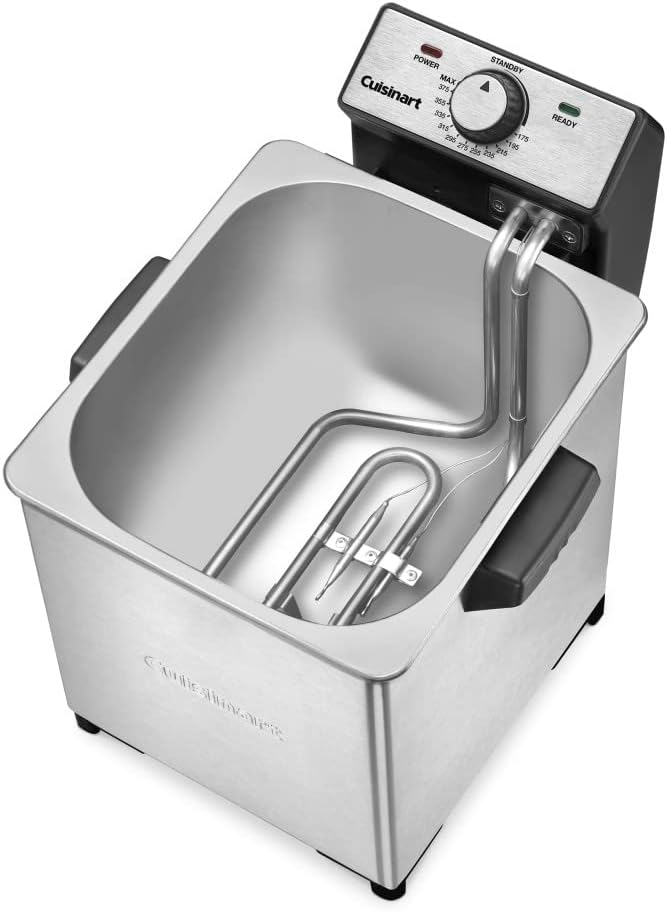

Figura 2: Interior view showing the removable oil container, immersion-style heating element, and mesh basket.

4. Configuração

1. Descompacte: Carefully remove all components from the packaging. Remove any protective films or stickers.
2. Componentes limpos: Before first use, wash the removable oil container, mesh basket, and lid in warm, soapy water. Rinse thoroughly and dry completely. The control panel and heating element should be wiped with a damp pano; não os mergulhe em água.
3. Montar: Place the clean oil container into the stainless steel housing. Insert the heating element assembly into the designated slots at the back of the oil container, ensuring it is securely seated.
4. Adicionar óleo: Fill the oil container with cooking oil (vegetable, canola, peanut, etc.) to a level between the MIN and MAX fill lines indicated on the inside of the container. The 2-quart capacity typically requires approximately 1.89 liters (or about 1 gallon) of oil.
5. Conecte a energia: Attach the magnetic power cord to the receptacle on the back of the control panel. Ensure a firm connection. Plug the power cord into a standard electrical outlet.

5. Instruções de operação

1. Óleo de pré-aquecimento: Turn the temperature control dial on the control panel to your desired frying temperature (e.g., 350°F for most foods, up to 375°F). The red 'POWER' indicator light will illuminate. The green 'READY' light will turn on once the oil has reached the set temperature. This typically takes about 10 minutes.
2. Preparar comida: While the oil is preheating, prepare your food items. Ensure food is dry to minimize splattering. For best results, do not overload the basket; fry in small batches (up to 1.3 lbs).
3. Cesto de carga: Place food into the mesh frying basket. You can rest the basket on the side hooks of the oil container to load it without submerging it in oil immediately.
4. Begin Frying: Carefully lower the loaded basket into the hot oil. Place the lid on the fryer to contain splatters and odors.
5. Monitor Frying: Fry food until it reaches the desired crispness and golden-brown color. The viewing window on the lid allows you to monitor progress without opening the lid.
6. Remover alimentos: Once cooked, carefully lift the basket and hook it onto the side of the oil container to allow excess oil to drain back into the container.
7. Servir: Transfer fried food to a plate lined with paper towels to absorb any remaining oil. Season immediately while hot.
8. Entre lotes: The fryer's immersion heating element quickly recovers temperature between batches, often in under 30 seconds, indicated by the 'READY' light.
9. Desligar: When finished frying, turn the temperature control dial to the 'OFF' position. Unplug the magnetic power cord from the wall outlet and then from the fryer.

6. Limpeza e Manutenção

Proper cleaning and maintenance ensure the longevity and optimal performance of your deep fryer. Always ensure the unit is unplugged and completely cool before cleaning.

1. Esfriar: Allow the oil to cool completely (several hours or overnight) before handling.
2. Remove Oil: Carefully remove the heating element assembly. Using the pouring spout on the oil container, pour the cooled oil into a suitable storage container or dispose of it responsibly.
3. Desmontar: Remove the oil container, mesh basket, and lid from the main housing.
4. Lavar as peças: The oil container, mesh basket, and lid are dishwasher-safe. Alternatively, wash them by hand in warm, soapy water, rinse thoroughly, and dry completely.
5. Clean Heating Element/Control Panel: Wipe the heating element and control panel with a damp cloth. Do not immerse these parts in water. Ensure they are completely dry before reassembly or storage.
6. Moradia Limpa: Limpe a carcaça externa de aço inoxidável com um pano.amp pano e seco.
7. Armazenar: Reassemble the dry components. The magnetic power cord can be detached for compact storage. Store the fryer in a cool, dry place.

7. Solução De Problemas

If you encounter issues with your Cuisinart CDF-130 Deep Fryer, refer to the following common troubleshooting tips:

• Fryer Not Heating:
  • Ensure the magnetic power cord is securely attached to both the fryer and the wall outlet. A loose connection can prevent heating.
  • Check if the temperature dial is set to a desired temperature and not 'OFF' or 'STANDBY'.
  • Verify that the heating element assembly is correctly seated in the oil container.
• Comida não crocante:
  • Ensure the oil has reached the correct temperature (green 'READY' light is on) before adding food.
  • Avoid overloading the basket. Frying too much food at once can lower the oil temperature significantly.
  • Make sure food items are as dry as possible before frying. Excess moisture can reduce crispiness.
• Excessive Splattering:
  • Always ensure food is dry before placing it in hot oil. Water reacts violently with hot oil.
  • Use the lid during frying to contain splatters.
• Oil Overheating/Smoking:
  • Ensure the temperature dial is set correctly for the type of oil and food being fried.
  • Do not exceed the maximum temperature recommended for your cooking oil.
  • If oil begins to smoke excessively, turn off the fryer immediately and allow it to cool.

8. Especificações

Figure 3: Product dimensions of the Cuisinart CDF-130 Deep Fryer.

9. Garantia e Suporte

This Cuisinart CDF-130 2-Quart Compact Deep Fryer comes with a Limited One Year Warranty. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official Cuisinart website.
