Centralite Pearl Thermostat (Model 3000-wC) User Manual

1. Introdução

The Centralite Pearl Thermostat is designed to provide precise temperature control with an intuitive touch interface. It integrates seamlessly with various smart home platforms using ZigBee connectivity, offering efficient management of residential HVAC systems. This manual provides essential information for installation, operation, and maintenance of your Pearl Thermostat.

2. Principais características

• Compatible with SmartThings, Spectrum, Cox, Time Warner Cable, Vera, and ZigBee platforms.
• Supports up to 2-stage calor e 2-stage cool HVAC systems.
• Designed for quick installation, typically within 15 minutes.
• Features a built-in power amplifier for extended wireless range.
• Equipped with responsive touch controls for user interaction.

3. Conteúdo da embalagem

Verifique se todos os itens estão presentes no seu pacote:

• Pearl Thermostat
• Parafusos de montagem (4)
• Pilhas AA (4)
• Guia de início rápido
• Etiquetas de fiação

4. Instalação

Antes de iniciar a instalação, certifique-se de que a energia do seu sistema de climatização esteja desligada no disjuntor para evitar choque elétrico.

4.1 Mounting the Backplate

1. Carefully remove your old thermostat from the wall. Note the wiring connections before disconnecting.
2. Mount the Pearl Thermostat backplate to the wall using the provided mounting screws. Ensure it is level.

4.2 fios

The Pearl Thermostat features quick-connect terminals for tool-free wiring. Match the wires from your HVAC system to the corresponding terminals on the thermostat backplate. Use the included wiring labels for identification.

Figura 1: Traseira view of the Pearl Thermostat backplate, illustrating battery compartments and quick-connect wiring terminals for HVAC system connection.

Common wiring configurations include:

• R/Rc/Rh: 24V AC power (usually red wire)
• C: Common wire (for continuous 24V power, often blue or black)
• W/W1: Heat (usually white wire)
• Y/Y1: Cool (usually yellow wire)
• G: Fan (usually green wire)
• O / B: Reversing valve for heat pumps

Insert each stripped wire end into its corresponding terminal until it is securely held.

4.3 Instalação da bateria

Insert the four AA batteries into the designated compartments on the back of the thermostat unit. Ensure correct polarity.

4.4 Attaching the Thermostat

Align the thermostat unit with the mounted backplate and gently push until it clicks into place. Restore power to your HVAC system at the circuit breaker.

5. Instruções de operação

The Pearl Thermostat features a clear LCD display and intuitive touch controls for easy operation.

Figura 2: Frente view of the Pearl Thermostat, highlighting the digital display and touch-sensitive buttons for Mode, Hold, and Fan functions.

5.1 Ajuste da temperatura

Use o + e - touch areas on the right side of the thermostat to increase or decrease the desired temperature set point.

Figure 3: User interaction with the Pearl Thermostat's touch screen to modify temperature settings.

Seleção de 5.2 modos

Pressione o MODO button to cycle through available operating modes: Heat, Cool, Auto, Off.

5.3 Função de retenção

Pressione o SEGURAR button to maintain the current temperature setting indefinitely, overriding any programmed schedules. Press again to release the hold and resume the schedule.

5.4 Controle do ventilador

Pressione o FAN button to cycle through fan settings: Auto (fan runs only when heating or cooling) or On (fan runs continuously).

6. Manutenção

6.1 Substituição da bateria

The Pearl Thermostat is powered by four AA batteries. When the battery level is low, a low battery indicator will appear on the display. To replace batteries:

1. Gently pull the thermostat unit off its backplate.
2. Remove the old AA batteries and dispose of them properly.
3. Insira quatro pilhas alcalinas AA novas, certificando-se da polaridade correta.
4. Reattach the thermostat unit to the backplate.

Regular battery replacement ensures uninterrupted operation and maintains ZigBee connectivity.

6.2 Limpeza

Limpe a superfície do termostato com um pano macio e seco.amp cloth. Avoid using abrasive cleaners or solvents, as these can damage the display and finish.

7. Solução De Problemas

If you encounter issues with your Pearl Thermostat, refer to the following common troubleshooting steps:

• Sem tela/energia: Check if the AA batteries are correctly installed and fully charged. Ensure power to the HVAC system is on at the circuit breaker.
• Sistema de climatização não responde: Verify that the wiring connections to the backplate are secure. Confirm the thermostat is in the correct operating mode (Heat/Cool/Auto).
• Connectivity Issues (ZigBee): Ensure your smart home hub is powered on and within range. Refer to your smart home hub's instructions for device pairing. You may need to initiate a re-pairing process.
• Leituras de temperatura incorretas: Certifique-se de que o termostato não esteja exposto à luz solar direta, correntes de ar ou fontes de calor que possam afetar seu sensor interno.
• Thermostat Not Responding to Touch: Gently clean the screen surface. If the issue persists, try removing the thermostat from its backplate, waiting 30 seconds, and reattaching it to perform a soft reset.

8. Especificações

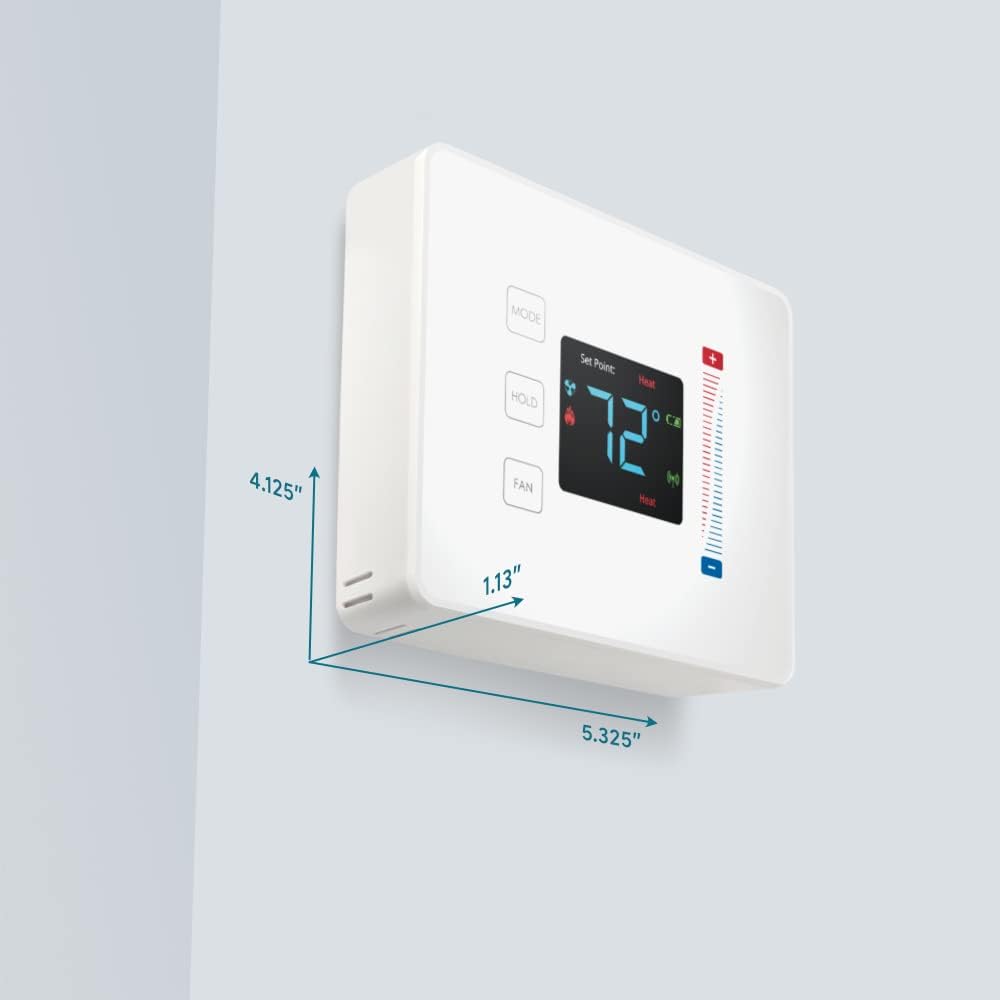

Figure 4: Dimensions of the Centralite Pearl Thermostat.

9. Garantia e Suporte

For warranty information and technical support, please refer to the documentation included with your product or visit the official Centralite webGuarde o comprovante de compra como prova de aquisição.
