Tunturi 14TUSRU150 Heart Rate Chest Strap User Manual

Introdução

The Tunturi 14TUSRU150 Heart Rate Chest Strap is designed to accurately monitor your heart rate during various indoor and outdoor training activities. This chest strap transmits heart rate data at a frequency of 5.4 kHz, making it compatible with a wide range of fitness equipment and heart rate receivers. It is a comfortable and reliable tool to help you optimize your workouts.

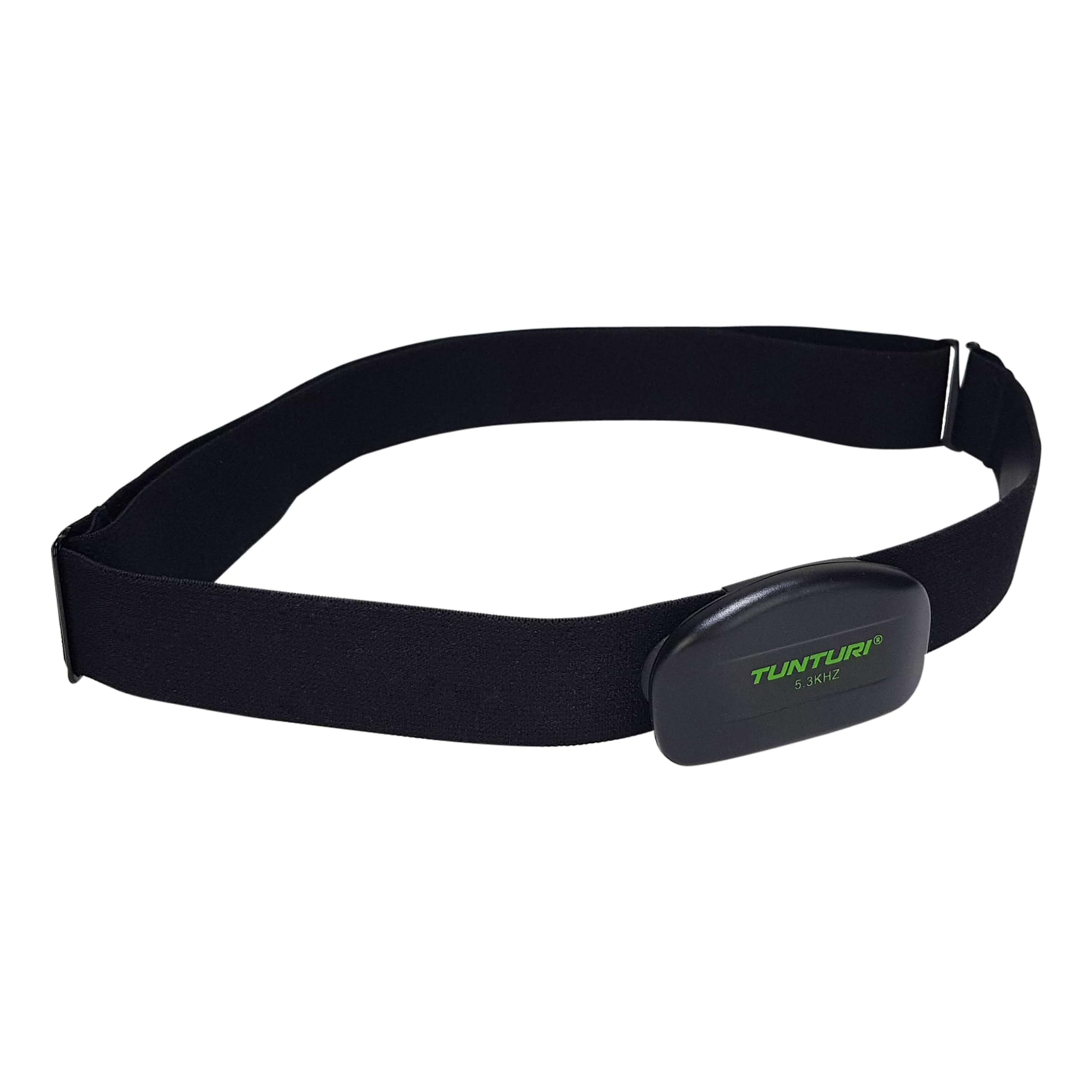

Image: The Tunturi 14TUSRU150 Heart Rate Chest Strap with its detachable sensor.

Configurar

Follow these steps to set up your Tunturi heart rate chest strap for first use:

1. Instalação da bateria: The heart rate sensor requires one CR2 battery (included).

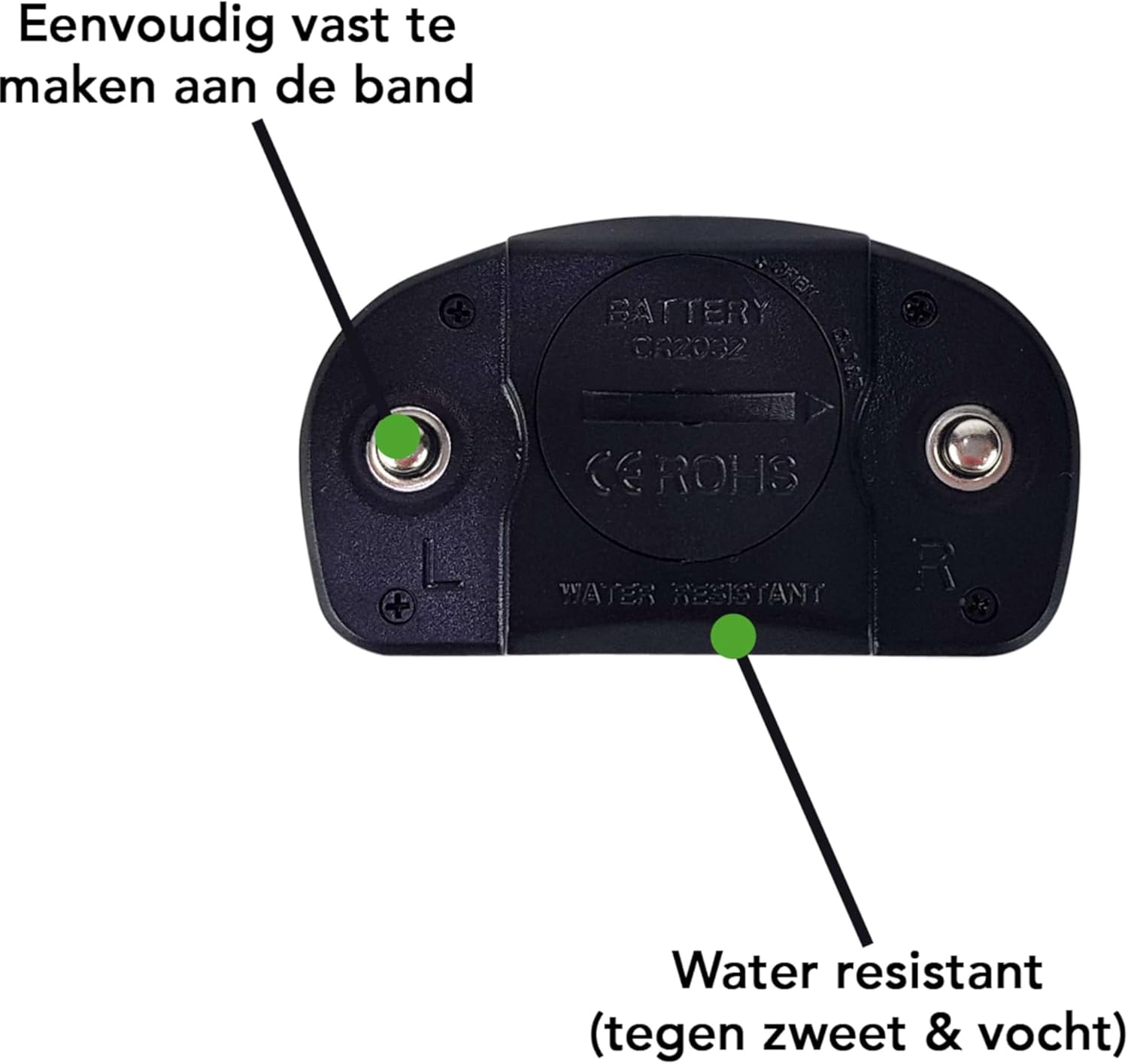

   Imagem: Traseira view of the sensor, indicating the battery compartment and water resistance.
   • Locate the battery compartment on the back of the sensor.
   • Use a coin to gently twist the battery cover counter-clockwise to open.
   • Insira a bateria CR2 com o lado positivo (+) voltado para cima.
   • Replace the cover and twist clockwise to secure.
2. Attach Sensor to Strap: Snap the heart rate sensor onto the two studs located on the elastic chest strap. Ensure a secure connection.


   Image: The sensor securely fastened to the chest strap.
3. Umedeça os eletrodos: Dampen the two electrode areas on the back of the strap with water or electrode gel. This ensures good contact with your skin for accurate heart rate detection.
4. Use a cinta peitoral: Adjust the elastic strap to fit snugly around your chest, just below your pectoral muscles. The sensor should be centered on your chest. The strap has a maximum length of 120 cm.

Instruções de operação

Once the chest strap is properly set up and worn, follow these steps to begin monitoring your heart rate:

1. Ativar receptor: Turn on your compatible fitness equipment (e.g., treadmill, exercise bike, heart rate watch) and ensure its heart rate receiving function is active.
2. Conexão automática: The Tunturi 14TUSRU150 chest strap transmits heart rate data using a 5.4 kHz frequency. Most compatible devices will automatically detect and connect to the chest strap once it is worn and transmitting.
3. Verifique a conexão: Check your fitness equipment's display to confirm that your heart rate is being detected and displayed.
4. Durante o exercício: Maintain a comfortable and secure fit of the chest strap throughout your workout for continuous and accurate heart rate monitoring.

Manutenção

Proper care and maintenance will extend the life of your Tunturi heart rate chest strap:

• Limpeza da alça: After each use, detach the sensor from the elastic strap. Rinse the elastic strap under running water and hang it to dry. Do not machine wash or tumble dry.
• Limpeza do sensor: Wipe the sensor clean with a damp cloth. Do not immerse the sensor in water. The sensor unit is water resistant, but not waterproof for submersion.
• Substituição da bateria: Replace the CR2 battery when the heart rate signal becomes intermittent or is no longer detected. Refer to the "Battery Installation" section under Setup for instructions.
• Armazenar: Store the chest strap and sensor in a cool, dry place when not in use. Do not store the sensor attached to the strap for extended periods, as this can drain the battery.

Solução de problemas

If you encounter issues with your Tunturi heart rate chest strap, consider the following solutions:

• No Heart Rate Signal:
  • Ensure the electrodes on the strap are sufficiently moistened.
  • Check that the sensor is securely snapped onto the strap.
  • Verifique se a bateria está instalada corretamente e se possui carga suficiente. Substitua-a, se necessário.
  • Confirm your fitness equipment is set to receive a 5.4 kHz heart rate signal.
  • Certifique-se de que não haja fortes interferências eletromagnéticas nas proximidades.
  • Adjust the strap position on your chest.
• Leituras imprecisas:
  • Re-moisten the electrodes.
  • Tighten the chest strap for a more secure fit.
  • Ensure the sensor is centered on your chest.
  • Avoid wearing the strap over clothing that might interfere with skin contact.
• Device Not Functioning (Weak Transmitter):
  • If the device consistently fails to transmit a signal or the signal is weak, even after battery replacement and proper setup, the transmitter might be faulty. In such cases, contact customer support.

Especificações

Garantia

Tunturi products are manufactured to high-quality standards. This product is covered by a limited warranty against manufacturing defects. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or visit the official Tunturi website.

Apoiar

For further assistance, technical support, or inquiries regarding your Tunturi 14TUSRU150 Heart Rate Chest Strap, please contact Tunturi customer service. Contact information can typically be found on the official Tunturi weblocal ou nos materiais de embalagem.
