DEWALT DCBL770X1 60V MAX Handheld Blower User Manual

1. Introdução

The DEWALT DCBL770X1 60V MAX Handheld Blower is designed for efficient debris clearing. This battery-powered leaf blower delivers powerful air volume and speed, featuring a variable speed trigger and speed lock for precise control. Its lightweight and ergonomic design ensures comfortable operation and minimizes user fatigue. This kit includes a 60V MAX* 3.0Ah battery, which is part of the FLEXVOLT system, allowing compatibility with both 60V MAX* and 20V MAX* tools.

Figure 1: DEWALT DCBL770X1 60V MAX Handheld Blower

2. Informações de segurança

Leia e compreenda sempre todos os avisos e instruções de segurança antes de utilizar este produto. O não cumprimento dos avisos e instruções pode resultar em choque elétrico, incêndio e/ou ferimentos graves.

Regras Gerais de Segurança:

• Use proteção ocular: Always wear eye protection that is marked to comply with ANSI Z87.1.
• Mantenha os espectadores afastados: Do not allow children or untrained individuals to operate this blower. Keep all bystanders, children, and pets at least 50 feet (15 meters) away from the operating area.
• Evite condições úmidas: Não utilize o soprador em condições de umidade ou chuva.
• Use Proper Batteries and Chargers: Only use DEWALT specified batteries and chargers. Using other batteries or chargers may create a risk of injury and fire.
• Inspecione antes de usar: Before each use, inspect the blower for any damaged parts. Do not operate if any part is damaged.
• Aderência Segura: Mantenha o cabo do soprador firmemente pressionado durante o funcionamento.

3. Conteúdo da embalagem

Your DEWALT DCBL770X1 60V MAX Handheld Blower package should include the following items:

• 1) DCBL770 Handheld Blower
• 1) Concentrator attachment
• 1) 60V MAX* 3Ah battery
• 1) Carregador

4. Montagem

Follow these steps to assemble your blower:

1. Conecte o tubo do soprador: Align the blower tube with the outlet on the main unit and push until it clicks securely into place.
2. Attach Concentrator Nozzle: For increased air speed and focused blowing, attach the concentrator nozzle to the end of the blower tube. Ensure it is firmly attached.

Figure 2: Blower with battery and concentrator nozzle attached

5. Configuração

Carregamento da bateria:

1. Insert the 60V MAX* 3Ah battery into the provided charger.
2. Conecte o carregador em uma tomada elétrica padrão.
3. Allow the battery to charge fully before first use. The indicator light on the charger will show the charging status.

Instalação da bateria:

1. Alinhe a bateria com a porta da bateria no soprador.
2. Slide the battery into the port until it locks securely into place. You should hear a click.
3. To remove the battery, press the release button on the battery and slide it out.

Figure 3: Battery inserted into the blower

6. Instruções de operação

Ligando o soprador:

1. Certifique-se de que a bateria esteja totalmente carregada e instalada com segurança.
2. Segure a alça com firmeza.
3. Press the variable speed trigger to start the blower. The airflow speed will increase as you press the trigger further.

Using the Speed Lock:

For continuous operation at a set speed, engage the speed lock feature:

1. While holding the trigger at the desired speed, push the speed lock lever forward.
2. Release the trigger. The blower will continue to operate at the locked speed.
3. Para desativar a trava de velocidade, basta pressionar o gatilho novamente.

Remoção de detritos:

• Direcione o bocal em direção aos detritos que deseja remover.
• Use a sweeping motion to move leaves, grass clippings, and other light debris.
• For stubborn or wet debris, utilize the concentrator nozzle to increase air speed up to 175 MPH.

Figure 4: Clearing debris with the blower at high speed

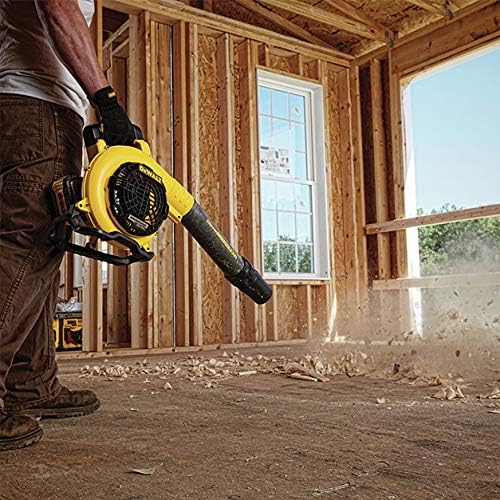

Figure 5: Blower in action clearing wood chips

7. Manutenção

A manutenção regular garante o desempenho ideal e prolonga a vida útil do seu soprador.

• Ventiladores de ar limpo: Keep the air vents free of debris to prevent overheating. Use a soft brush or cloth to clean.
• Inspect Nozzle and Tube: Periodically check the blower tube and nozzle for any blockages or damage. Clear any obstructions.
• Cuidados com a bateria: Armazene as baterias em local fresco e seco, longe da luz solar direta. Não armazene as baterias descarregadas por longos períodos.
• Limpeza geral: Limpe o exterior do soprador com anúncioamp pano. Não use produtos químicos agressivos ou produtos de limpeza abrasivos.
• Armazenar: Guarde o soprador em local seco e seguro, fora do alcance de crianças.

8. Solução De Problemas

If you encounter issues with your DEWALT blower, refer to the following common troubleshooting steps:

• Blower Not Starting:
  • Certifique-se de que a bateria esteja totalmente carregada e inserida corretamente.
  • Check if the battery is securely locked into the blower.
  • Verify that the trigger lock is disengaged.
• Reduced Airflow/Power:
  • Check the battery charge level; recharge if necessary.
  • Inspect the blower tube and nozzle for any blockages.
  • Ensure the air intake vents are clear of debris.
• Ruído/Vibração Incomum:
  • Desligue o soprador e remova a bateria.
  • Inspect the fan and internal components for any foreign objects or damage.
  • If the issue persists, contact DEWALT customer support.

9. Especificações

Figure 6: Airflow capacity and speed details

Figure 7: FLEXVOLT battery system highlighting dual voltage capacidade

Figure 8: Benefits of the DEWALT cordless blower

10. Garantia e Suporte

For detailed information regarding the product warranty, service, and support, please refer to the official DEWALT warranty documentation included with your purchase or visit the official DEWALT webGuarde seu comprovante de compra para eventuais solicitações de garantia.
