1. Introdução
Thank you for choosing the E-flite EFLUM5615 2500Kv motor. This motor is specifically designed as a replacement or upgrade for the UMX Cessna 182 remote control aircraft, providing reliable power and performance. This manual provides important information regarding the installation, operation, and maintenance of your new motor. Please read it thoroughly before use to ensure proper function and safety.

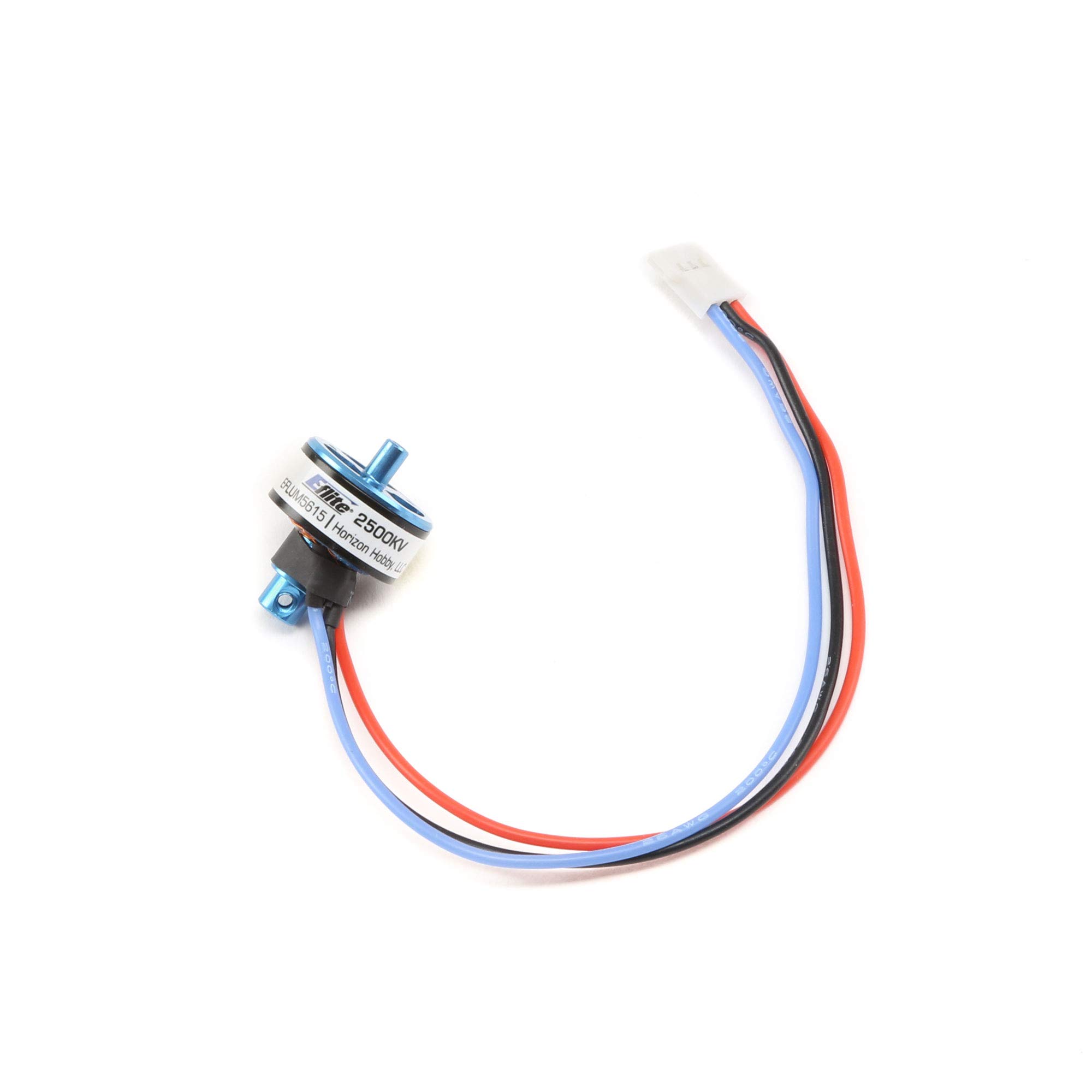

Image 1.1: The E-flite EFLUM5615 2500Kv motor. This image shows the compact brushless motor unit, typically used in small remote control aircraft.
2. Informações de segurança
Operating remote control aircraft and their components requires adherence to safety guidelines. Failure to do so can result in property damage or personal injury. Always observe the following precautions:
- Leia todas as instruções: Familiarize yourself with the product's features before operating.
- Recomendação de idade: This product is recommended for users 14 years and older. It is not a toy.
- Segurança da bateria: Always use recommended batteries and chargers. Incorrect use can lead to fire, injury, or property damage.
- Segurança da hélice: Keep hands, face, and loose clothing away from rotating propellers. A spinning propeller can cause severe injury.
- Motor temperature: Motors can become hot during operation. Allow the motor to cool before handling.
- Condições ambientais: Do not operate in adverse weather conditions or near obstacles.
- Inspeção regular: Periodically inspect all components for damage or wear. Replace damaged parts immediately.
3. Conteúdo da embalagem
The E-flite EFLUM5615 motor package typically includes:
- E-flite EFLUM5615 2500Kv Brushless Motor
- (Note: Additional mounting hardware or connectors may be included or sold separately depending on the specific kit.)
4. Especificações
Key specifications for the E-flite EFLUM5615 motor are provided below:
| Recurso | Detalhe |
|---|---|
| Marca | E-flite |
| Nome do modelo | EFLUM5615 |
| Avaliação Kv | 2500Kv |
| Peso do item | 13.61 g (0.48 onças) |
| Dimensões do produto | 4 x 3 x 0.8 polegadas (dimensões da embalagem) |
| Fabricante | Horizonte Hobby |
| Idade Recomendada | 14 anos ou mais |
5. Configuração e instalação
Proper installation is crucial for the performance and longevity of your motor. Always refer to your aircraft's specific manual for detailed installation steps, as procedures may vary.
- Preparação: Ensure your aircraft is powered off and the battery is disconnected before beginning any installation. Remove the propeller for safety.
- Remova o motor antigo (se aplicável): Carefully disconnect the existing motor's wires from the Electronic Speed Controller (ESC). Unscrew and remove the old motor from its mount.
- Instalar o novo motor: Secure the EFLUM5615 motor to the aircraft's motor mount using appropriate screws. Ensure the motor is firmly attached and aligned correctly. Avoid overtightening screws, which can damage the motor or mount.
- Connect to ESC: Connect the three motor wires to the ESC wires. The order of connection may affect the motor's rotation direction. If the motor spins in the wrong direction during initial testing, swap any two of the three motor wires.
- Instalação da hélice: Once the motor is securely mounted and wired, install the propeller according to your aircraft's manual, ensuring it is balanced and oriented correctly. Tighten the propeller nut securely, but do not overtighten.
- Teste inicial: With the propeller removed, connect the battery and perform a low-power test to confirm motor function and direction. Reinstall the propeller only after confirming correct operation.
6. Diretrizes Operacionais
To maximize the lifespan and performance of your E-flite motor, follow these operating guidelines:
- Compatibilidade da bateria: Use batteries that are compatible with your ESC and motor's voltage and current requirements. Refer to your aircraft's manual for recommended battery types.
- Propeller Matching: Ensure the propeller used is appropriate for the motor's Kv rating and the aircraft's design. An oversized or undersized propeller can lead to overheating or inefficient performance.
- Monitorar temperatura: During and after flights, check the motor's temperature. If it is excessively hot to the touch, it may indicate an issue such as an incorrect propeller, insufficient cooling, or an overloaded system.
- Smooth Throttle Input: Avoid sudden, aggressive throttle changes, especially during initial flights, to prevent unnecessary stress on the motor and ESC.
7. Manutenção
Regular maintenance helps ensure the reliability and longevity of your motor:
- Limpeza: Keep the motor free from dirt, dust, and debris. Use a soft brush or compressed air to clean the motor, especially around the bearings and cooling fins.
- Inspeção de rolamentos: Periodically check the motor bearings for smooth operation. If you notice any roughness or excessive play, the bearings may need replacement.
- Wire and Connector Check: Inspect all motor wires and connectors for signs of wear, fraying, or corrosion. Ensure connections are secure.
- Segurança de montagem: Verify that the motor remains securely mounted to the aircraft. Loose mounting can cause vibrations and damage.
8. Solução De Problemas
If you encounter issues with your E-flite EFLUM5615 motor, consider the following common troubleshooting steps:
| Problema | Possível causa | Solução |
|---|---|---|
| Motor não gira | Disconnected wires, faulty ESC, dead battery, radio interference. | Check all wire connections. Ensure battery is charged. Test with a different ESC or motor if possible. Check radio system. |
| O motor gira na direção errada. | Incorrect motor wire connection to ESC. | Troque quaisquer dois dos três fios do motor conectados ao ESC. |
| Motor superaquece | Oversized propeller, insufficient cooling, too high voltage, damaged bearings. | Use a smaller propeller. Ensure adequate airflow. Check battery voltage. Inspect and replace bearings if necessary. |
| Reduced power or inconsistent performance | Low battery, damaged propeller, loose connections, motor damage. | Charge battery. Replace damaged propeller. Secure all connections. Inspect motor for physical damage. |
9. Garantia e Suporte
E-flite products are manufactured by Horizon Hobby. For warranty information, technical support, or to purchase replacement parts, please visit the official Horizon Hobby website ou entre em contato com o departamento de atendimento ao cliente.
