YATO YT-21582 Punching Pliers Instruction Manual

1. Instruções de segurança

Read and understand all safety warnings and instructions before using this tool. Failure to follow the warnings and instructions may result in serious injury.

• Utilize equipamento de proteção individual adequado: Always wear safety glasses to protect your eyes from flying debris. Gloves are recommended to protect hands.
• Mantenha a área de trabalho limpa e bem iluminada: Áreas desorganizadas ou escuras são um convite a acidentes.
• Fixar a peça de trabalho: Ensure the material to be punched is stable and cannot shift during operation.
• Inspecione a ferramenta antes de usar: Check for any damage, loose parts, or wear. Do not use a damaged tool.
• Mantenha crianças e espectadores afastados: Distrações podem fazer você perder o controle.
• Não exagere: Mantenha sempre o pé e o equilíbrio adequados.
• Utilize a ferramenta correta para cada tarefa: Do not force the punching pliers to perform tasks for which they are not designed.
• Armazene as ferramentas adequadamente: Quando não estiver em uso, guarde a ferramenta em local seco e seguro, fora do alcance de crianças.
• Avoid sharp edges: Be aware of sharp edges on the tool and the punched material.

2. Produto acabadoview

The YATO YT-21582 Punching Pliers are a manual hand tool designed for creating precise holes in various materials. Constructed from durable alloy steel, these pliers offer reliable performance for tasks requiring hole punching. The ergonomic design ensures comfortable handling during use.

Figure 2.1: YATO YT-21582 Punching Pliers as supplied in their retail packaging.

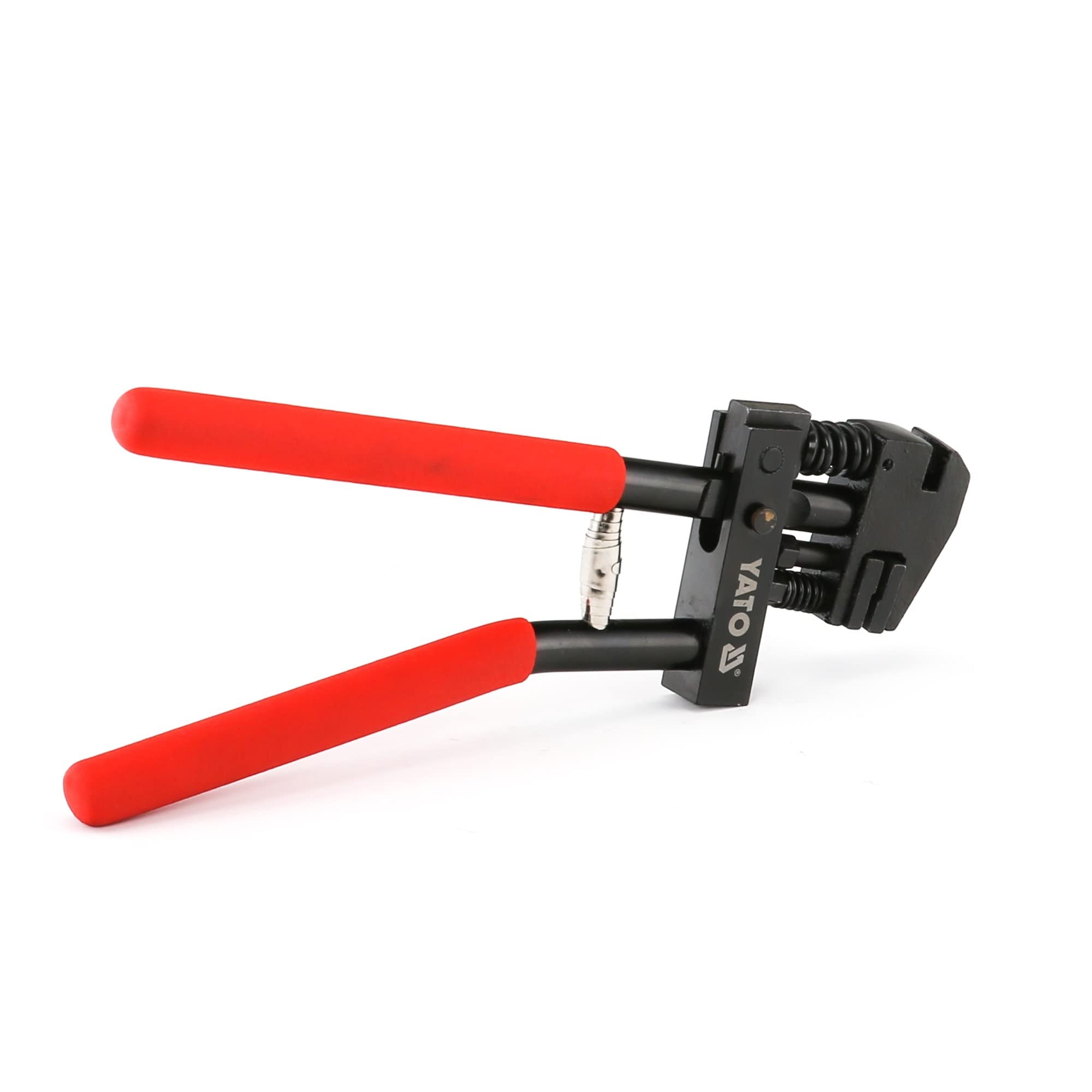

Figura 2.2: parte superior view of the YATO YT-21582 Punching Pliers, showing the handles and punching mechanism.

3. Configuração

The YATO YT-21582 Punching Pliers are designed for immediate use. No complex assembly is required. Before first use, inspect the tool for any signs of damage from shipping. Ensure all components are securely fastened.

• Unpack the tool: Retire cuidadosamente o alicate da embalagem.
• Familiarize yourself with the components: Identify the handles, punching head, and die.
• Limpe a ferramenta: Wipe down the pliers with a clean, dry cloth to remove any manufacturing residues or protective oils.
• Check for proper function: Gently squeeze the handles to ensure the punching mechanism operates smoothly without obstruction.

Observação: Some users may find the initial operation of switching between punching modes (if applicable) to be stiff. This typically eases with use. Refer to the "Operating Instructions" section for details on specific punching actions.

4. Instruções de operação

Follow these steps for safe and effective use of the YATO YT-21582 Punching Pliers:

1. Preparar a peça de trabalho: Place the material to be punched on a stable, flat surface. Ensure the area where the hole will be made is clear and accessible.
2. Position the Pliers: Open the pliers and position the punching head over the desired location on the material. Ensure the material is fully seated within the punching mechanism.
3. Aplicar pressão: Firmly and steadily squeeze the handles together. Apply even pressure until the punch cuts through the material. Avoid sudden jerking motions.
4. Liberar e remover: Once the hole is punched, release the handles and carefully remove the pliers from the workpiece. The punched material slug should fall free.
5. Inspect the Hole: Check the punched hole for cleanliness and accuracy. If necessary, deburr any rough edges on the material.

The YATO YT-21582 is capable of punching various hole shapes and sizes. The following diagram illustrates common hole dimensions:

Figure 4.1: Hole dimensions achievable with the YATO YT-21582 Punching Pliers. This includes a rectangular hole of approximately 13mm x 22mm and a circular hole of approximately 5mm diameter.

Observação: The specific punching capacity and available hole shapes depend on the installed dies. Ensure the correct die is selected for your application.

5. Manutenção

Proper maintenance ensures the longevity and optimal performance of your YATO YT-21582 Punching Pliers.

• Limpeza: After each use, wipe down the pliers with a clean, dry cloth to remove any dust, debris, or material residue. Pay special attention to the punching head and die area.
• Lubrificação: Periodically apply a light machine oil to the pivot points and moving parts of the pliers to ensure smooth operation and prevent rust. Do not over-lubricate.
• Inspeção: Regularly inspect the punching head and die for wear, dullness, or damage. A dull punch will produce ragged holes and require more force.
• Armazenar: Store the pliers in a dry environment to prevent corrosion. Keep them away from excessive moisture and extreme temperatures.

6. Solução De Problemas

If you encounter issues with your YATO YT-21582 Punching Pliers, refer to the following common problems and solutions:

7. Especificações

The following are the technical specifications for the YATO YT-21582 Punching Pliers:

• Modelo: YT-21582
• Marca: YATO
• Material: Liga de aço
• Cor: Preto
• Modo de operação: Manual
• Dimensões (C x L x A): Aproximadamente 31.6 x 11.2 x 3.2 cm (12.4 x 4.4 x 1.3 polegadas)
• Peso: Aproximadamente 1.15 kg (2.54 lbs)
• Typical Hole Dimensions:
  • Rectangular: 13 mm x 22 mm
  • Circular: Ø 5 mm

8. Garantia e suporte

YATO products are manufactured to high-quality standards. For information regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your purchase or contact your local YATO distributor or customer service department. Keep your proof of purchase for warranty purposes.

For further assistance, please visit the official YATO webou entre em contato com os canais de suporte ao cliente.
