Mount Plus MP-APM-06-01 Streaming Media Player Wall Mounting Bracket User Manual

Introdução

This manual provides instructions for the installation and use of the Mount Plus MP-APM-06-01 Streaming Media Player Wall Mounting Bracket. This adjustable bracket is designed to securely hold small, narrow media devices such as Apple TV, Roku, and Fire TV, weighing up to 11 lbs. It allows for discreet mounting behind a television, contributing to a clean and organized entertainment area.

Informações de segurança

• Leia todas as instruções cuidadosamente antes da instalação.
• Ensure the mounting surface can support the weight of the bracket and the device.
• Utilize ferramentas e equipamentos de segurança adequados durante a instalação.
• Não exceda a capacidade máxima de peso de 11 kg (5 lbs).
• Mantenha as peças pequenas longe das crianças.

Conteúdo da embalagem

Verifique se todos os componentes estão presentes antes de iniciar a instalação.

• 1x MP-APM-06-01 Wall Mounting Bracket
• 2x Drywall Screws
• 2 x âncoras de drywall
• 1x Cordão Elástico (para fixação do dispositivo)

Figure 1: Package Contents - Wall mounting bracket, screws, anchors, and elastic cord.

Configuração e instalação

The bracket can be installed on various wall types. Ensure you select the appropriate mounting hardware for your wall material.

Etapa 1: escolha o local de montagem

Select a location on the wall where you intend to mount the bracket. This is typically behind your television for a concealed setup. Use a level to ensure the bracket is straight.

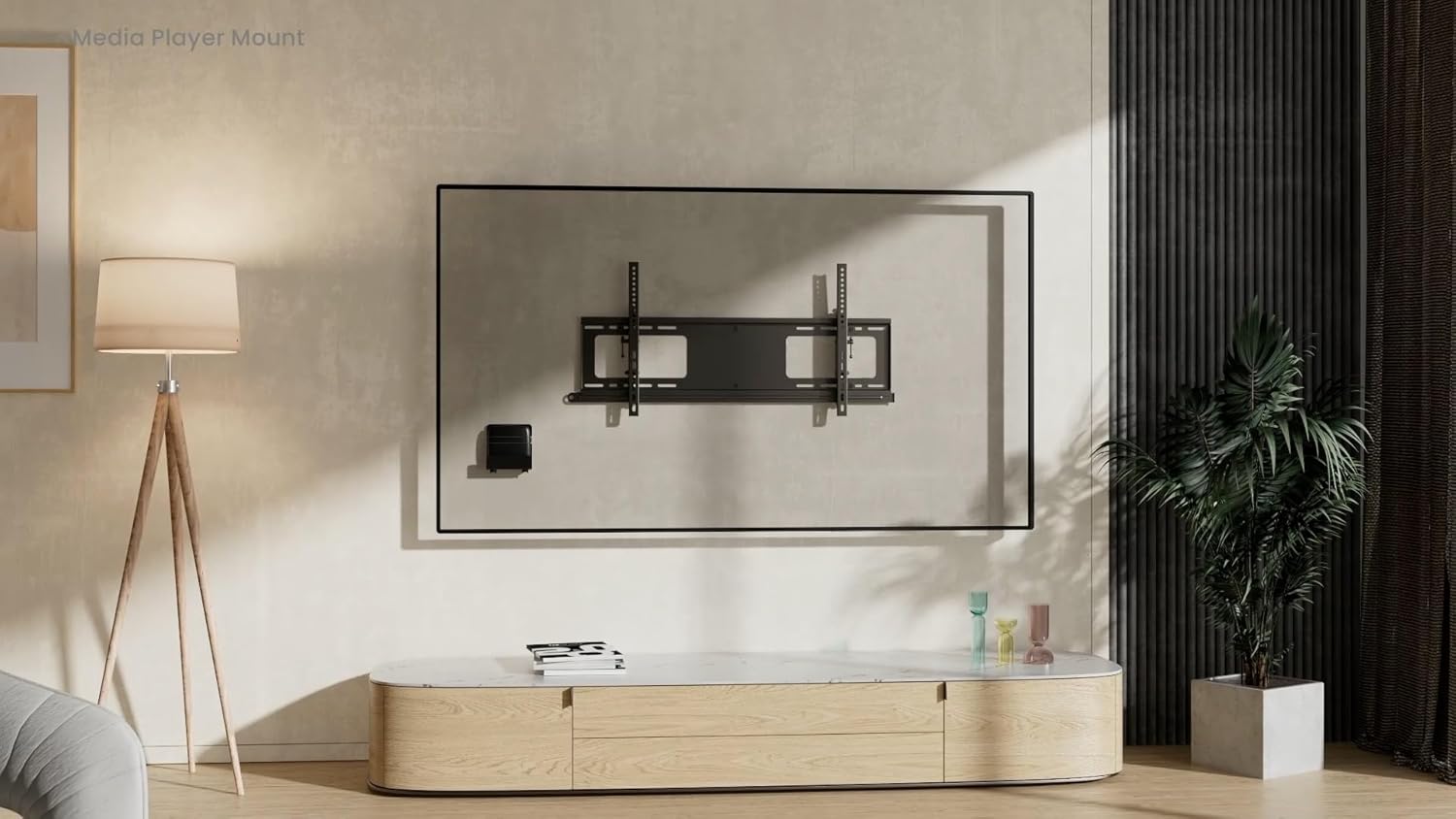

Figura 2: Example of bracket mounted on a wall next to a television.

Etapa 2: marque os furos de perfuração

Hold the bracket against the wall at the desired height and position. Use a pencil to mark the locations for the two mounting screws through the pre-drilled holes on the bracket.

Step 3: Drill Pilot Holes and Install Anchors (if applicable)

• Para vigas de madeira: Drill pilot holes using a suitable drill bit (e.g., 1/8 inch or 3mm). Secure the bracket directly with the provided screws.
• Para drywall: Drill pilot holes using a suitable drill bit for the provided drywall anchors. Insert the drywall anchors into the holes until flush with the wall surface.
• For Masonry/Concrete: Drill pilot holes using a masonry drill bit. Insert appropriate masonry anchors (not included) into the holes.

Etapa 4: prenda o suporte

Align the bracket with the pilot holes/anchors. Insert the screws and tighten them until the bracket is firmly secured to the wall. Do not overtighten.

Figure 3: Detail of the rotary knob for adjustment.

Instruções de operação

Adjusting and Securing Your Device

1. Ajustar largura: The bracket features a rotary knob design (Figure 3) that allows you to adjust the width to fit your device. Turn the knob to expand or contract the bracket's holding arms until it snugly fits your media player. The adjustable depth ranges from 23 mm to 37 mm.
2. Coloque o dispositivo: Carefully place your streaming media player into the adjusted bracket.
3. Dispositivo seguro: For added security, use the provided elastic cord to firmly hold your equipment within the bracket. Wrap the cord around the device and the bracket's securing points.
4. Cabos de conexão: The open construction of the bracket allows for easy access to ports for connecting power, HDMI, and other necessary cables.

Figura 4: Example of a device (Nintendo Switch) secured in the bracket.

Figure 5: Open construction allows for easy cable management.

The bracket's design ensures that remote control signals (Infrared, Radio Frequency, and Bluetooth) are not blocked when the device is mounted behind a TV.

Manutenção

• Periodically check the tightness of the mounting screws to ensure the bracket remains securely attached to the wall.
• Inspect the elastic cord for any signs of wear or damage. Replace if necessary.
• Limpe o suporte com um pano macio e seco. Evite produtos de limpeza abrasivos ou solventes.

Solução de problemas

• Device does not fit: Ensure your device's width is within the adjustable range of 23 mm to 37 mm. The bracket's height is a maximum of 10 inches.
• O suporte parece solto: Re-tighten the mounting screws. If mounted on drywall, ensure anchors are properly installed and not stripped. Consider relocating to a wood stud if possible for maximum stability.
• Remote control issues: The bracket is designed not to interfere with remote signals. Test your remote by holding your device behind the TV before final mounting to confirm functionality.

Especificações

Figure 6: Dimensional drawing of the MP-APM-06-01 bracket.

Garantia e Suporte

Para informações sobre garantia ou suporte técnico, consulte o site oficial do fabricante. webou entre em contato com o departamento de atendimento ao cliente. Guarde o comprovante de compra para acionar a garantia.
