DJI Mavic Air Drone Instruction Manual

1. Introdução e maisview

The DJI Mavic Air is a compact, foldable drone designed for portability and advanced aerial photography. It features a 3-axis gimbal with a 4K camera, 32 MP sphere panoramas, and intelligent flight modes for an enhanced user experience. This manual provides essential information for setting up, operating, and maintaining your Mavic Air drone.

Figure 1: DJI Mavic Air drone in Arctic White.

2. Conteúdo da embalagem

The DJI Mavic Air Fly More Combo package includes the following items:

• MAVIC AIR Aircraft
• MAVIC AIR Remote Controller
• Three Intelligent Flight Batteries
• MAVIC AIR Gimbal Protector
• Six pairs of Quick-Release Propellers
• Two Control Sticks
• MAVIC AIR Carrying Case
• Propeller Guards (set)
• MAVIC AIR Travel Bag
• MAVIC AIR Battery Charging Hub
• MAVIC AIR Battery to Power Bank Adapter
• Cabo RC (conector Lightning)
• Cabo RC (conector Micro USB padrão)
• Cabo RC (conector USB tipo C)
• Communication Cable (USB 3.0 Type-C)
• Adaptador USB
• Two RC Cable Sliders (large)
• Two RC Cable Sliders (small)
• Outros acessórios

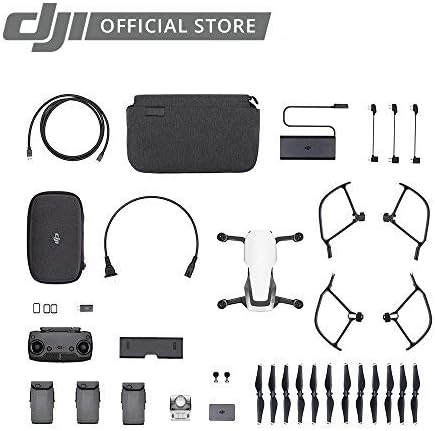

Figure 2: Contents of the DJI Mavic Air Fly More Combo.

3. Configuração

3.1 Unfolding the Aircraft

1. Gently unfold the front arms of the drone.
2. Unfold the rear arms. Ensure all arms click into place securely.

3.2 Instalação da bateria

1. Certifique-se de que a bateria de vôo inteligente esteja totalmente carregada.
2. Slide the battery into the battery compartment on the top of the aircraft until it clicks into place.

3.3 Configuração do Controle Remoto

1. Desdobre o dispositivo móvel clamps on the remote controller.
2. Attach your smartphone to the remote controller using the appropriate RC cable (Lightning, Micro USB, or USB Type-C).
3. Ensure the control sticks are securely screwed into place.

3.4 DJI GO 4 App

Download and install the DJI GO 4 app on your mobile device. This app is essential for controlling the drone, accessing flight modes, and viewing the camera feed.

4. Instruções de operação

4.1 Ligar/Desligar

• To power on the aircraft and remote controller, press the power button once, then press and hold it for two seconds.
• To power off, repeat the same procedure.

4.2 Decolagem e Pouso

• Decolagem automática: In the DJI GO 4 app, tap the auto-takeoff icon and confirm. The drone will ascend to a preset height.
• Decolagem manual: Push both control sticks to the bottom inner or outer corners to start the motors. Then, push the left stick up to ascend.
• Pouso automático: In the DJI GO 4 app, tap the auto-landing icon and confirm. The drone will descend and land automatically.
• Pouso manual: Pull the left control stick down slowly to descend. Once landed, hold the stick down for a few seconds to stop the motors.

Modos de voo 4.3

The Mavic Air offers various flight modes:

• P-Mode (Positioning): Provides GPS and vision positioning for stable flight and obstacle avoidance.
• S-Mode (Sport): Increases flight speed and agility, disabling obstacle avoidance. Use with caution.
• T-Mode (Tripod): Limits flight speed for precise control and stable shots.

4.4 Modos de Voo Inteligentes

Access these modes via the DJI GO 4 app:

• Fotos rápidas: Pre-programmed flight paths for cinematic shots (Rocket, Dronie, Circle, Helix, Asteroid, Boomerang).
• Faixa Ativa: Follows a selected subject automatically.
• TapFly: Tap a point on your screen, and the drone will fly to it while avoiding obstacles.
• SmartCapture: Control the drone with hand gestures for intuitive photo and video capture.

5. Características

• 32 MP Sphere Panoramas: Stitches 25 photos in eight seconds for crystal clear sphere panoramas.
• Lightweight and Compact Foldable Design: Fácil de transportar e armazenar.
• 3-Axis Gimbal & 4K Camera: Supports 4K video at 30 fps and 12 MP stills with Adobe DNG RAW support. The gimbal stabilizes the camera for smooth footage.
• Alcance de controle estendido: Control your drone from up to 6562 feet away.
• Bateria de voo inteligente: Provides up to 21 minutes of flight time per charge.
• Dedicated Remote Controller: Features a foldable, ergonomic design with detachable control sticks.
• 3-Directional Environment Sensing: Equipped with five vision sensors, GPS, GLONASS, ultrasonic range finders, and redundant sensors for safe flight and obstacle avoidance.
• Armazenamento interno de 8 GB: Allows for direct storage of photos and videos, expandable via microSD card.

Figure 3: The DJI Mavic Air in its folded, compact state.

6. Manutenção

6.1 Cuidados com a Hélice

• Regularly inspect propellers for cracks, bends, or damage. Replace damaged propellers immediately.
• Certifique-se de que as hélices estejam firmemente fixadas antes de cada voo.

6.2 Manutenção da bateria

• Guarde as baterias em local fresco e seco.
• Não sobrecarregue ou descarregue excessivamente as baterias.
• If storing for extended periods, discharge batteries to 50-60% capacity.

6.3 Proteção do Gimbal

Always attach the gimbal protector when transporting the drone to prevent damage to the camera and gimbal system.

7. Solução De Problemas

• Sem sinal de GPS: Ensure you are flying in an open area away from tall buildings or interference.
• Desconexão do aplicativo: Check the connection cable between your smartphone and the remote controller. Restart the app or drone if necessary.
• Obstacle Avoidance Not Working: Ensure vision sensors are clean and unobstructed. Obstacle avoidance may be limited in certain lighting conditions or flight modes (e.g., Sport Mode).
• Tempo de voo curto: Ensure batteries are fully charged. Cold weather can reduce battery performance.

8. Especificações

9. Garantia e Suporte

Para informações detalhadas sobre garantia e suporte técnico, consulte o site oficial da DJI. webou entre em contato com o serviço de atendimento ao cliente da DJI. Guarde seu comprovante de compra para eventuais solicitações de garantia.
