Kawasaki FS600V-S01 18.5hp Engine Instruction Manual

1. Introdução

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new Kawasaki FS600V-S01 18.5hp Air Cooled OHV 4-Cycle Twin Cylinder Vertical Gasoline Engine. This engine is designed for reliable performance in various applications. Please read this manual thoroughly before operating the engine to ensure proper usage and longevity.

• Modelo do motor: FS600V-FS01S
• Potência: 18.5
• Deslocamento: 603cc
• Tipo de partida: Recuo

2. Informações de segurança

Always prioritize safety when working with internal combustion engines. Failure to follow safety instructions can result in serious injury or death.

• Read and understand all instructions before operating the engine.
• Ensure adequate ventilation when running the engine to prevent carbon monoxide poisoning.
• Mantenha mãos, pés e roupas longe de peças móveis.
• Do not refuel the engine while it is running or hot.
• Armazene o combustível em recipientes aprovados, em local bem ventilado.
• Wear appropriate personal protective equipment (PPE), including eye protection and gloves.
• Keep children and pets away from the engine during operation.
• Desconecte o cabo da vela de ignição antes de realizar qualquer manutenção ou ajuste.

3. Configuração e instalação

Proper installation is crucial for the engine's performance and longevity. Consult the equipment manufacturer's manual for specific mounting and connection procedures.

1. Montagem: Securely mount the engine to the equipment frame using appropriate hardware. Ensure the mounting surface is level and stable.
2. Conexão do eixo: Connect the vertical shaft to the equipment's drive system. Ensure proper alignment and secure fastening.


   Imagem: Close-up view of the engine's vertical shaft, showing the keyway and threaded end for attachment to equipment.

3. Sistema de combustível: Connect the fuel lines from the equipment's fuel tank to the engine's fuel pump. This engine includes a fuel pump. Note: A fuel filter is not included with the engine and must be supplied by the installer or reused from the previous engine.
4. Enchimento de óleo: Fill the engine crankcase with the recommended type and amount of engine oil. Refer to the "Specifications" section for oil type and capacity. Do not overfill.
5. Filtro de ar: Install the air filter assembly. The engine comes with an air filter.
6. Conexões elétricas: Connect all necessary electrical wiring, including the starter, alternator (13 Amp), and ignition system, according to the equipment manufacturer's instructions.

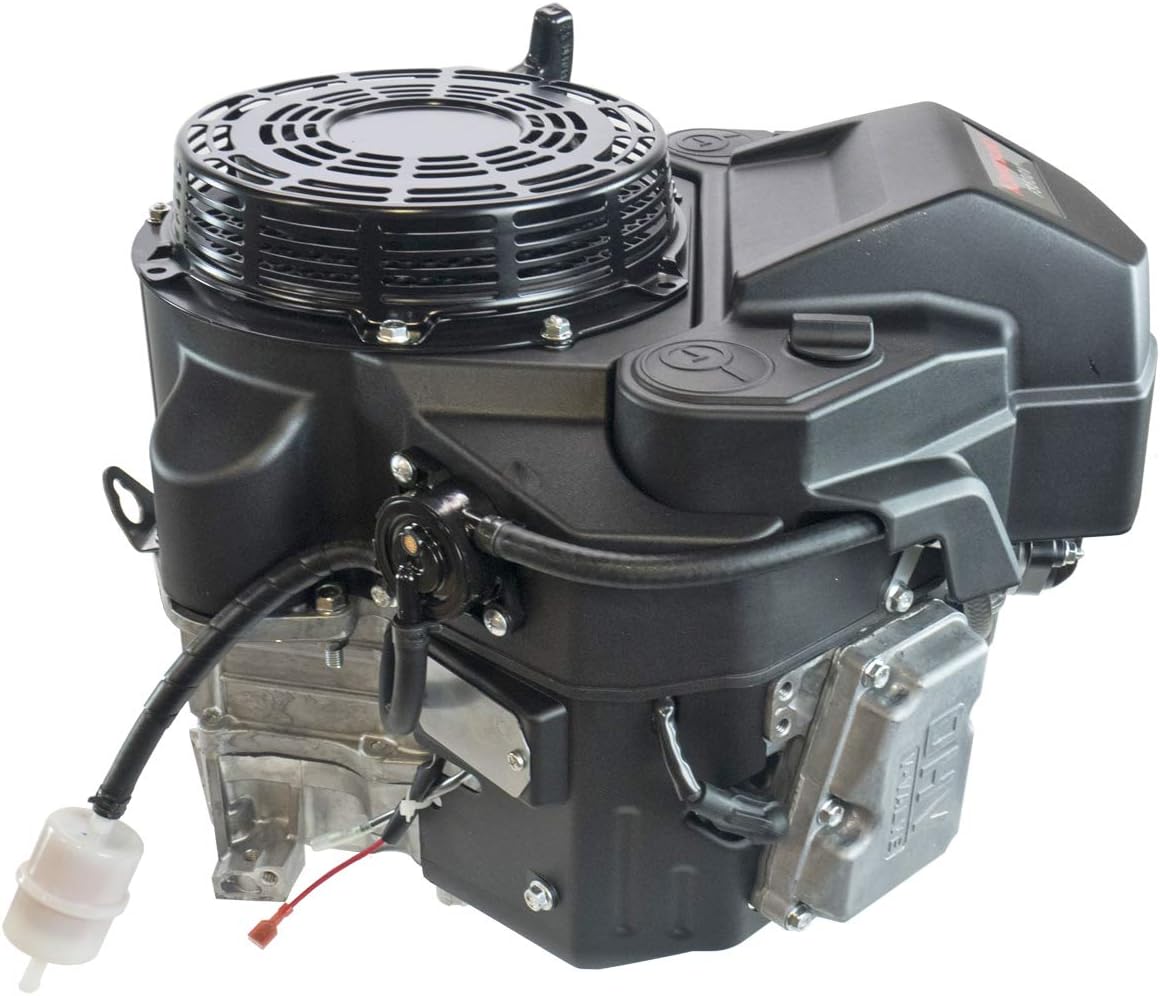

Imagem: Frente view of the Kawasaki FS600V-S01 engine, showing the air filter housing and recoil starter mechanism.

4. Instruções de operação

Follow these steps for starting and stopping your Kawasaki engine.

4.1 Verificação pré-operatória

• Check engine oil level and add if necessary.
• Ensure the fuel tank is filled with fresh, clean gasoline.
• Inspecione o filtro de ar para verificar se está limpo.
• Verify all connections (fuel, electrical, mechanical) are secure.

4.2 Partida do motor (partida manual)

1. Ensure the equipment is in neutral or disengaged.
2. Move the throttle lever to the "CHOKE" position (if cold) or "FAST" position (if warm).
3. Pull the recoil starter handle slowly until resistance is felt, then pull firmly and quickly.
4. Once the engine starts, gradually move the throttle lever from "CHOKE" to "FAST" or desired operating speed.

4.3 Parando o motor

1. Mova a alavanca do acelerador para a posição "LENTO" ou "MARCHA LENTA".
2. Mova a chave de ignição para a posição "DESLIGADO".

5. Manutenção

Regular maintenance ensures optimal performance and extends the life of your engine. Always refer to the full service manual for detailed procedures and schedules.

5.1 Óleo do motor

• Verifique o nível do óleo antes de cada uso.
• Troque o óleo do motor após as primeiras 5 horas de funcionamento e, em seguida, a cada 50 horas ou anualmente, o que ocorrer primeiro.
• Replace the oil filter during every oil change. This engine comes with an oil filter.

5.2 Filtro de ar

• Inspect the air filter element frequently, especially in dusty conditions.
• Clean or replace the air filter as needed. A dirty air filter can reduce engine performance and increase fuel consumption.

5.3 Sistema de combustível

• Ensure the fuel filter (if installed) is clean and free of debris. Replace as necessary.
• Utilize gasolina nova e sem chumbo.

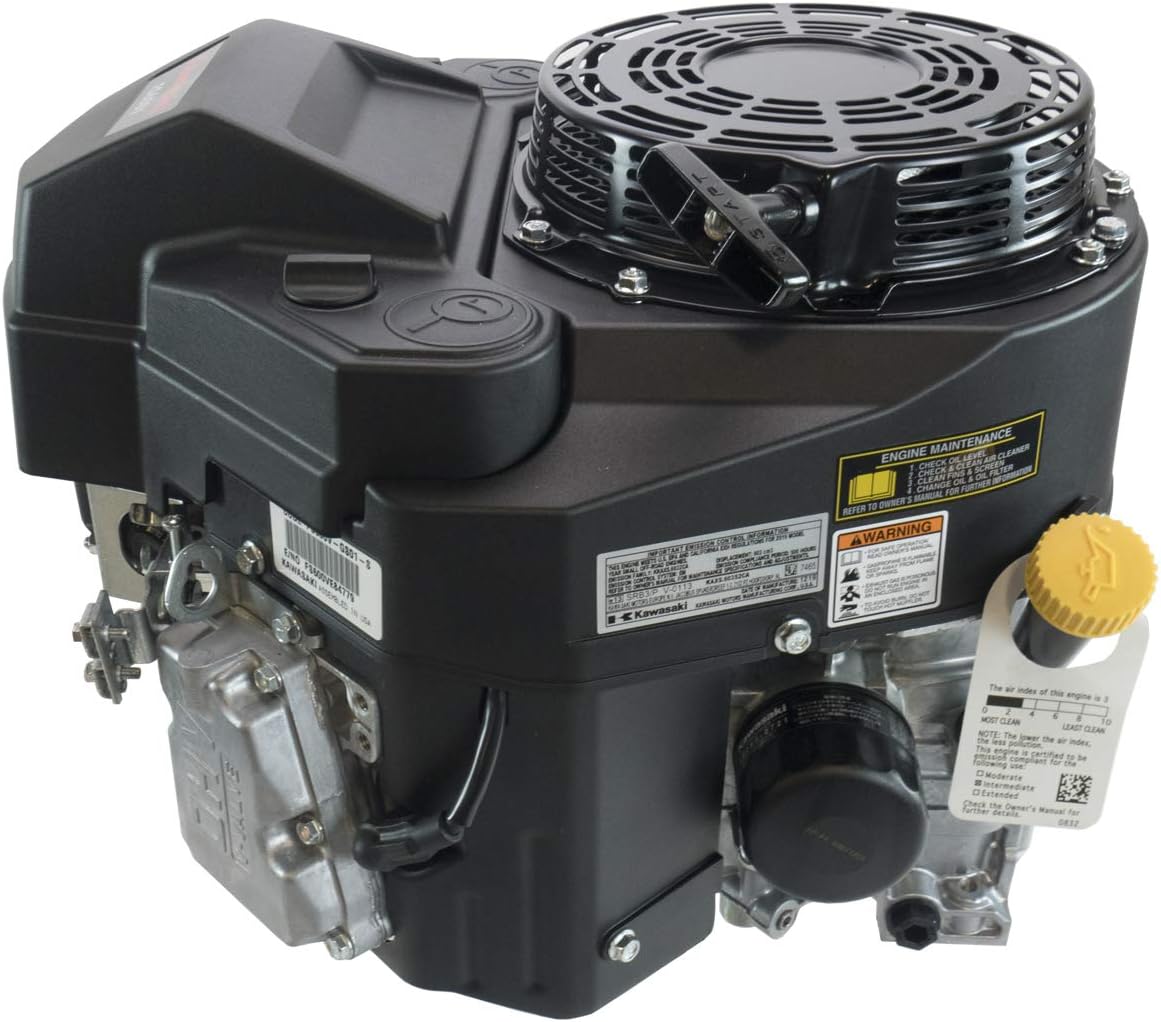

Imagem: Lado view of the Kawasaki FS600V-S01 engine, highlighting the oil filter location and various warning/instruction labels.

6. Solução De Problemas

This section provides basic troubleshooting steps for common engine issues. For complex problems, consult a qualified service technician.

7. Especificações

Key technical specifications for the Kawasaki FS600V-S01 engine.

Imagem: Traseira view of the Kawasaki FS600V-S01 engine, showing the exhaust side and various components.

8. Informações de garantia

For detailed warranty information, please refer to the official warranty statement provided by Kawasaki with your engine purchase. This document outlines the terms, conditions, and duration of the warranty coverage.

9. Suporte ao cliente

If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact Kawasaki customer support or an authorized Kawasaki service dealer. Refer to the official Kawasaki webPara obter os detalhes de contato, consulte o site ou a documentação da sua compra.
