Siemens LF98BIP50 iQ500 90 cm Stainless Steel Island Hood

1. Introdução

Thank you for choosing the Siemens LF98BIP50 iQ500 90 cm Stainless Steel Island Hood. This manual provides essential information for the safe and efficient use, installation, and maintenance of your new appliance. Please read these instructions carefully before installation and use, and keep them for future reference.

2. Informações de segurança

Observe sempre as seguintes precauções de segurança para evitar ferimentos pessoais ou danos ao aparelho:

• Certifique-se de que o aparelho seja instalado por um técnico qualificado, de acordo com as normas locais.
• Não utilize o exaustor sem que os filtros de gordura estejam devidamente instalados.
• Limpe regularmente os filtros de gordura para evitar riscos de incêndio.
• Não flambe sob o exaustor.
• Garanta ventilação adequada no ambiente quando o exaustor for utilizado simultaneamente com aparelhos que queimam gás ou outros combustíveis.
• O aparelho não se destina a ser utilizado por pessoas (incluindo crianças) com capacidades físicas, sensoriais ou mentais reduzidas ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instrução.
• Mantenha as crianças afastadas do aparelho.

3. Produto acabadoview

Características

• Modelo: LF98BIP50 iQ500
• Projeto: Decorative Island Hood, 90 cm, Stainless Steel
• Fluxo de ar: Maximum airflow of 867 m³/h
• Configurações de velocidade: 5 speeds, including 2 intensive modes
• Iluminação: Iluminação LED com eficiência energética
• Motor: High-performance and quiet iQ Drive motor
• Controlar: TouchControl for intuitive operation

Componentes

The Siemens LF98BIP50 island hood consists of the main hood body, grease filters, LED lighting, and a touch control panel.

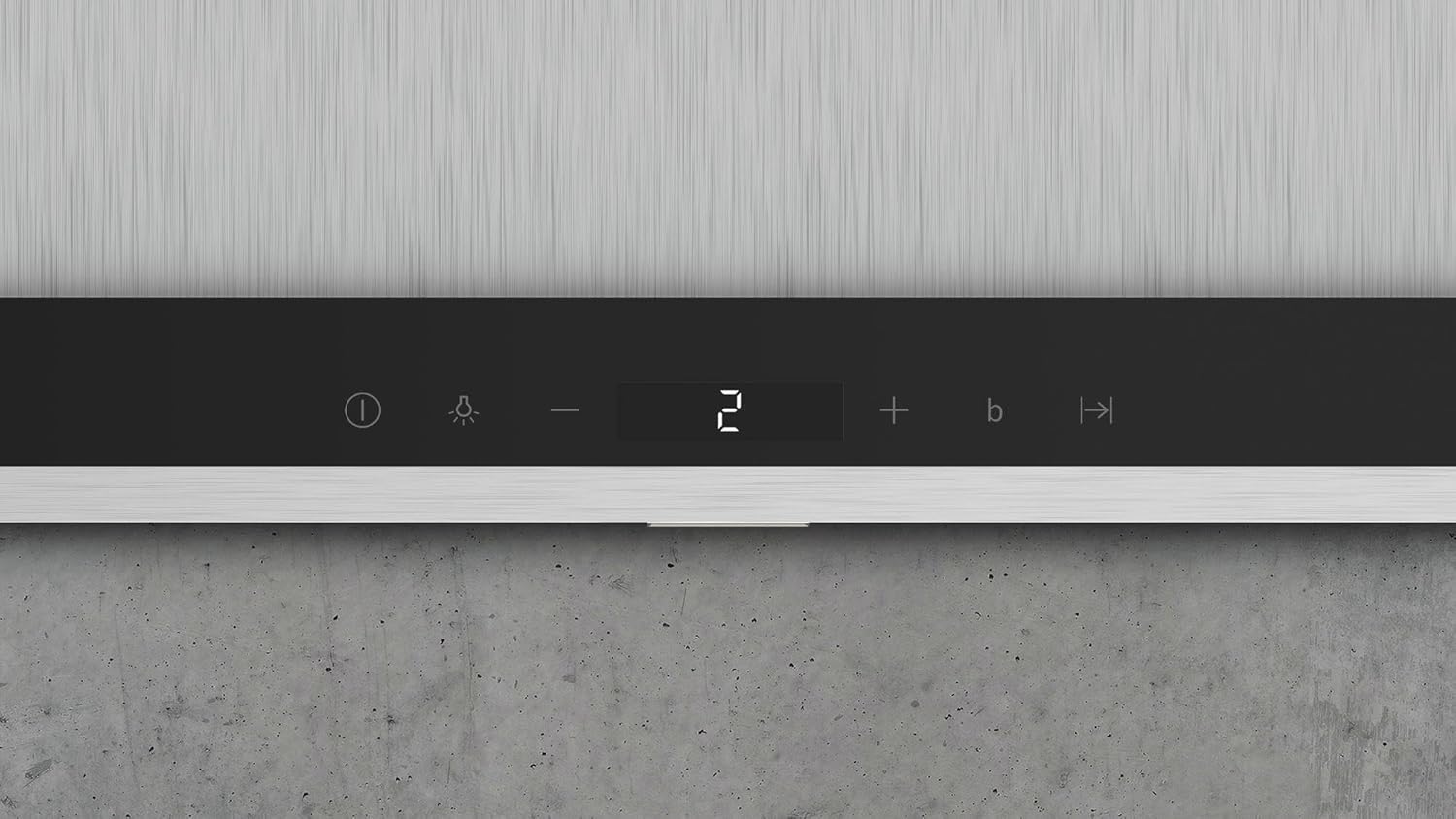

Figure 3.1: Control panel with touch buttons for various functions.

Figure 3.2: Underside of the hood showing grease filters and LED lighting.

Figura 3.3: Detalhado view of a metal grease filter.

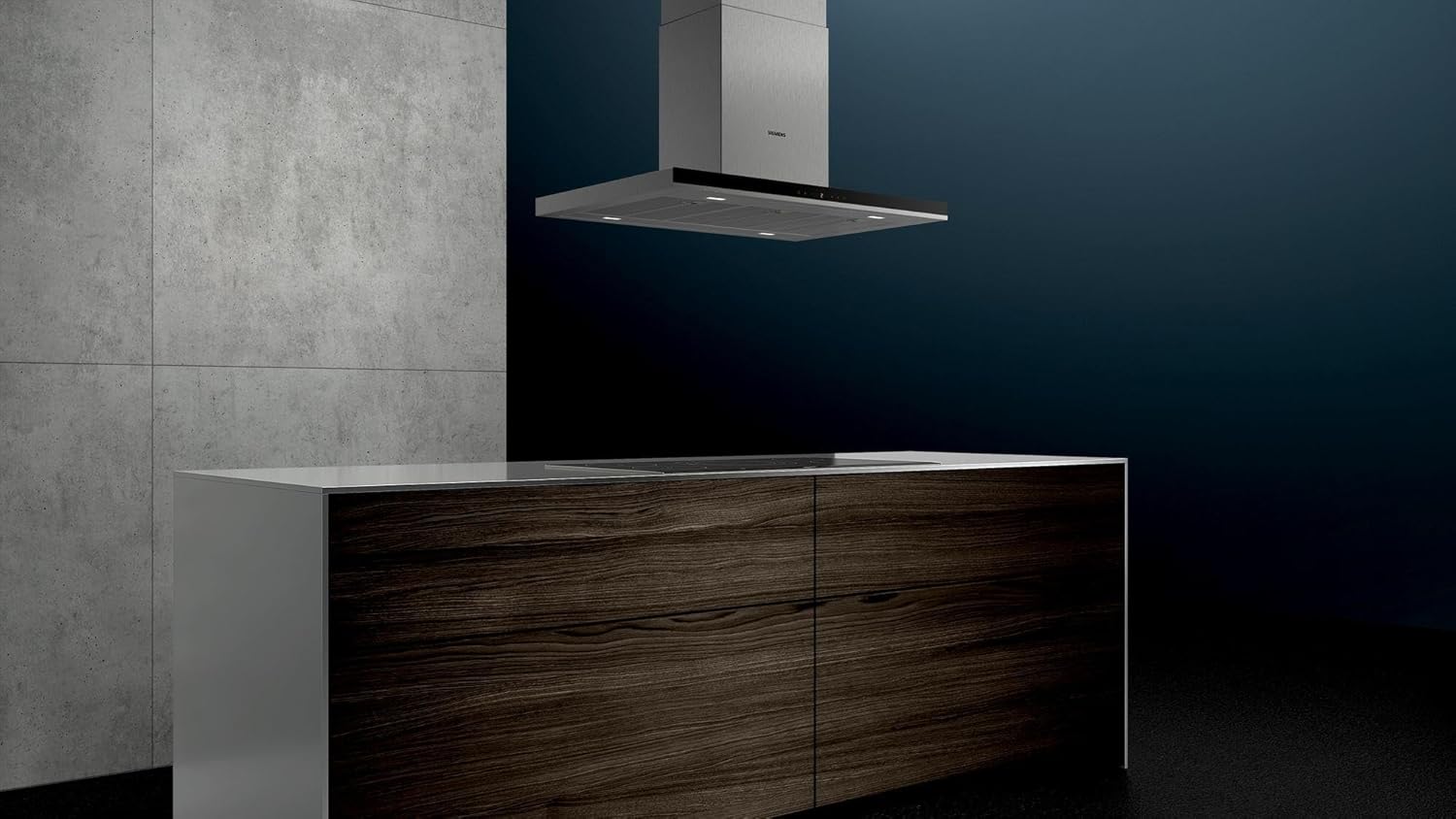

Figure 3.4: The Siemens LF98BIP50 island hood in a kitchen setting.

4. Configuração e instalação

The Siemens LF98BIP50 is designed for island mounting. Proper installation is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified professional.

Requisitos de instalação

• Tipo de montagem: Island mount
• Distância mínima livre: Refer to the diagrams for minimum distances from electric and gas cooktops.
• Canalização: Ensure proper ducting for exhaust air (Abluft) or recirculation (Umluft) setup.

Dimensões e montagem

Figure 4.1: Overall dimensions and clearances for installation (measurements in mm).

Figure 4.2: Internal mounting frame and ducting details (measurements in mm).

Figure 4.3: Height adjustment mechanism, adjustable in 20 mm increments (744-1044 mm).

The hood's height is adjustable in 20 mm increments, allowing for flexible installation between 744 mm and 1044 mm from the ceiling to the bottom edge of the hood, depending on the chosen mode (exhaust or recirculation).

5. Operação

The Siemens LF98BIP50 island hood features intuitive TouchControl for easy operation of its functions.

Funções do painel de controle

• Ligar/desligar: Pressione o botão liga/desliga para ligar ou desligar o exaustor.
• Ajuste de velocidade do ventilador: Use the '+' and '-' buttons to cycle through the 5 speed settings (3 standard, 2 intensive).
• Modo Intensivo: The intensive speed setting (often indicated by 'b' or a similar symbol) provides a temporary boost in extraction power for particularly strong cooking odors and vapors. It typically reverts to a lower speed after a set time.
• Controle de iluminação: Press the light button to turn the LED lighting on or off. Some models may allow for dimming.

For detailed instructions on specific functions and settings, refer to the full user manual provided with your appliance.

6. Manutenção e Limpeza

Regular maintenance ensures the longevity and optimal performance of your island hood.

Limpeza dos filtros de gordura

The metal grease filters should be cleaned regularly (approximately every 3-4 weeks, depending on usage) to maintain effective grease absorption and prevent fire hazards. They can typically be cleaned by hand with hot soapy water or in a dishwasher.

• To remove: Locate the release catches on the filters, press them, and carefully pull the filters downwards.
• To clean: Wash in a dishwasher (do not overload) or by hand.
• To reinstall: Ensure the filters are completely dry, then insert them back into their slots until they click into place.

Limpeza do Exterior

Clean the stainless steel surfaces with a soft cloth and a mild, non-abrasive stainless steel cleaner. Avoid using harsh chemicals, abrasive pads, or cleaners containing chlorine, as these can damage the finish.

Substituindo luzes LED

LED lights are designed for long life. If replacement is necessary, contact Siemens customer service or a qualified technician.

7. Solução De Problemas

If you encounter issues with your Siemens LF98BIP50 island hood, consult the following table for common problems and solutions before contacting service.

8. Especificações

9. Garantia e Suporte

For warranty information, service requests, or technical support, please refer to the warranty card included with your product or visit the official Siemens Home Appliances website. You can also contact Siemens customer service directly for assistance.

Recursos on-line: Eletrodomésticos Siemens
