1. Instruções importantes de segurança
Para reduzir o risco de incêndio, choque elétrico ou ferimentos ao usar seu aparelho, siga estas precauções básicas:
- Leia todas as instruções antes de usar o aparelho.
- Não armazene ou use gasolina ou outros vapores e líquidos inflamáveis nas proximidades deste ou de qualquer outro aparelho.
- Before cleaning or performing any maintenance, ensure the unit is unplugged from the power outlet.
- Não tente reparar ou substituir qualquer peça do seu aparelho, a menos que seja especificamente recomendado neste manual. Qualquer outra manutenção deve ser encaminhada a um técnico qualificado.
- Este aparelho não se destina ao uso por pessoas (incluindo crianças) com capacidades físicas, sensoriais ou mentais reduzidas, ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instruções sobre o uso do aparelho de uma pessoa responsável pela sua segurança.
- As crianças devem ser supervisionadas para garantir que não brinquem com o aparelho.
- Garanta ventilação adequada ao redor da unidade para evitar superaquecimento.
- Não danifique o circuito refrigerante.
- Descarte o aparelho de acordo com as normas locais para refrigerantes e gases inflamáveis.
2. Produto acabadoview
The Arctic King AWCA034ADB is a compact, freestanding wine cooler designed to store up to 34 standard wine bottles at optimal temperatures. It features a sleek black finish and an intuitive control panel.
Figura 2.1: Frente view of the Arctic King AWCA034ADB Wine Cooler, showcasing its black finish and glass door.
Figure 2.2: The wine cooler with its door open, revealing the interior with multiple wire racks designed for bottle storage.

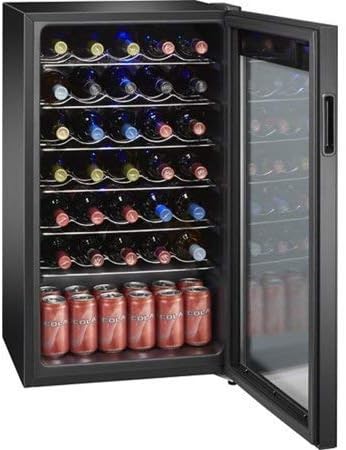

Figure 2.3: The wine cooler interior loaded with various wine bottles on the racks and beverage cans at the bottom.
Recursos do painel de controle
Figura 2.4: Uma análise detalhada view of the digital control panel located on the top of the wine cooler door.
- Exibição de temperatura: Mostra a temperatura interna atual.
- Botões de ajuste de temperatura (para cima/para baixo): Used to increase or decrease the desired temperature.
- Botão de luz: Controls the interior LED light.
- Botão de bloqueio: Engages or disengages the control panel lock to prevent accidental changes.
3. Instalação
Desembalando
- Remova todos os materiais de embalagem, incluindo a base de espuma e a fita adesiva.
- Inspect the unit for any damage. Report any damage to the retailer immediately.
- Limpe as superfícies internas e externas com um pano macio e detergente neutro antes de usar.
Requisitos de localização
- Place the wine cooler on a flat, level, and sturdy surface capable of supporting its weight when fully loaded.
- Allow at least 5 inches (12.7 cm) of space between the back and sides of the unit and any adjacent walls to ensure proper air circulation.
- Avoid placing the unit in direct sunlight or near heat sources such as ovens, radiators, or heating vents.
- Do not install in areas where the temperature can drop below 50°F (10°C) or rise above 90°F (32°C).
Conexão elétrica
- Ensure the power outlet is properly grounded and provides the correct voltage (refer to the specifications section).
- Não use um cabo de extensão ou adaptador com este aparelho.
- Plug the unit directly into a dedicated wall outlet.
Nivelando a unidade
The wine cooler has adjustable leveling legs at the bottom. Turn the legs clockwise to raise the unit or counter-clockwise to lower it. Ensure the unit is level to prevent vibrations and ensure proper door sealing.
4. Instruções de operação
Arranque inicial
After installation, allow the unit to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, let the unit run empty for approximately 24 hours to reach its set temperature and stabilize.
Configurando a temperatura
- The control panel display will show the current internal temperature.
- To adjust the temperature, press the 'Up' or 'Down' arrow buttons. The temperature range is typically between 40°F (5°C) and 65°F (18°C).
- The display may not light up continuously. Pressing any button will illuminate the display to show the current settings and allow adjustments.
- Once the desired temperature is set, the display will flash briefly and then return to showing the actual internal temperature.
Luz interior
Press the 'Light' button on the control panel to turn the interior LED light on or off. This light is for viewing the contents and should not be left on for extended periods as it can slightly affect internal temperature.
Bloqueio do painel de controle
To prevent accidental changes to settings, press and hold the 'Lock' button for a few seconds to engage or disengage the control panel lock. A lock icon will appear on the display when activated.
Loading the Wine Cooler
- Arrange bottles to allow for proper air circulation. Do not overload the shelves.
- Ensure bottles do not touch the back wall or block the internal fan (if present).
- The cooler is designed to hold up to 34 standard 750ml wine bottles. Larger or irregularly shaped bottles may reduce total capacity.
5. Manutenção e Limpeza
Limpeza do interior
- Desligue a unidade antes de limpá-la.
- Wash the interior surfaces with a solution of warm water and baking soda (2 tablespoons of baking soda to 1 quart of water).
- Clean the shelves and racks with a mild detergent solution.
- Rinse and dry thoroughly before plugging the unit back in.
Limpeza do Exterior
- Limpe a parte externa com um pano macio e detergente neutro.
- Do not use abrasive cleaners or harsh chemicals, as they can damage the finish.
- Limpe a borracha de vedação da porta regularmente para garantir uma vedação adequada.
Interrupção de energia
Em caso de falta de energiatage, the wine cooler will typically retain its temperature settings. However, prolonged outages may affect the internal temperature. Avoid opening the door frequently during an outage para preservar a temperatura interna.
Férias e armazenamento
- For short vacations, leave the cooler operating.
- For long periods of absence, unplug the unit, clean the interior, and leave the door slightly ajar to prevent odors and mold growth.
6. Solução De Problemas
Review the following common issues and their potential solutions before contacting customer support.
| Problema | Possível causa | Solução |
|---|---|---|
| O refrigerador não funciona. | Sem energia; disjuntor desarmado; cabo de alimentação não totalmente conectado. | Check power supply; reset circuit breaker; ensure cord is securely plugged in. |
| A temperatura não é suficientemente fria. | Door not closed properly; excessive door openings; unit located near heat source; poor ventilation; temperature setting too high. | Ensure door is fully closed and sealed; reduce door openings; relocate unit; ensure adequate clearance; lower temperature setting. |
| Excessive humidity inside. | Door not sealing correctly; frequent door openings; high ambient humidity. | Inspect door gasket for damage or misalignment; ensure unit is level; reduce door openings. |
| A porta não fecha completamente. | Unit not level; door gasket obstructed or damaged; shelves are out of position. | Adjust leveling legs; clear or replace door gasket; reposition shelves correctly. |
| Display is off until a button is pressed. | Esta é uma operação normal. | The display is designed to conserve energy by turning off when inactive. Press any button to activate it. |
| Vibrations or excessive noise. | Unit not level; loose components; unit touching a wall. | Adjust leveling legs; check for loose parts; ensure adequate clearance from walls. |
7. Especificações
| Modelo | AWCA034ADB |
| Marca | Rei do Ártico |
| Capacidade | 34 Wine Bottles (25.5 Liters) |
| Dimensões (L x P x A) | 17.3 x 19.3 x 33.2 polegadas |
| Tipo de instalação | Freestanding |
| Cor | Preto |
| Número de portas | 1 |
| Dobradiças de porta | Não reversível |
| Recurso especial | Design compacto |
8. Garantia e Suporte ao Cliente
For warranty information or technical assistance, please refer to the warranty card included with your product or contact Arctic King customer support. Keep your purchase receipt as proof of purchase for any warranty claims.
For further inquiries or support, please visit the official Arctic King webou entre em contato com o serviço de atendimento ao cliente.
