Introdução
This manual provides essential instructions for the safe and effective operation, assembly, maintenance, and troubleshooting of your WEN PW3100 Gas Pressure Washer. Please read this manual thoroughly before using the product and keep it for future reference.
Image: The WEN PW3100 Gas Pressure Washer, showcasing its overall design with the engine, pump, hose reel, and wheels.
Informações de segurança
AVISO: O não cumprimento destas instruções de segurança pode resultar em ferimentos graves ou danos materiais.
- Always wear appropriate protective gear, including eye and ear protection.
- Keep hands and body away from the spray path.
- Do not point the spray at people or animals.
- Always unplug and turn off the machine before cleaning or performing maintenance.
- Ensure the pressure washer is on a stable, level surface during operation.
- Do not operate the pressure washer indoors or in poorly ventilated areas due to exhaust fumes.
- Use apenas acessórios e peças de reposição aprovados.
Conteúdo da embalagem
Verifique se todos os componentes estão presentes e sem danos:
- WEN PW3100 Gas Pressure Washer Unit
- High-Pressure Hose (30 feet)
- Spray Gun with Wand
- Nozzles: 0° (Red), 15° (Yellow), 25° (Green), 40° (White), Soap (Black)
- Engine Oil (often included, but verify)
- Manual de instruções
Montagem e configuração
Follow these steps to assemble and prepare your pressure washer for first use:
- Fixe a alça: Secure the handle to the main unit using the provided hardware.
- Instale as rodas: Attach the 12-inch wheels to the axle.
- Adicione óleo do motor: Remove the oil fill cap/dipstick and carefully add the recommended 4-stroke engine oil (30W for temperatures above 40°F) until it reaches the full mark. Do not overfill.
- Adicionar combustível: Fill the fuel tank with fresh, unleaded gasoline (E-10 or better is recommended). Do not use E85.
- Conecte a mangueira de alta pressão: Attach one end of the high-pressure hose to the pump outlet and the other end to the spray gun. Ensure connections are secure.
- Conectar o abastecimento de água: Connect a garden hose to the water inlet on the pump. Ensure the water supply is turned on fully before starting the engine to prevent pump damage.
- Anexe o bico: Select the desired quick-connect nozzle and insert it into the end of the spray wand until it clicks into place.
Image: The spray gun and wand assembly, ready for high-pressure hose connection.
Imagem: Close-up view of the pressure washer pump, showing the water inlet and high-pressure outlet connections.
Operação
Partida do motor:
- Certifique-se de que a válvula de combustível esteja na posição "LIGADO".
- Mova a alavanca do afogador para a posição "AFOGADOR" (para partidas a frio).
- Gire a chave de ignição para a posição "LIGADO".
- Puxe firmemente a alavanca de arranque retrátil até o motor ligar.
- Assim que o motor ligar, mova gradualmente a alavanca do afogador para a posição "LIGADO".

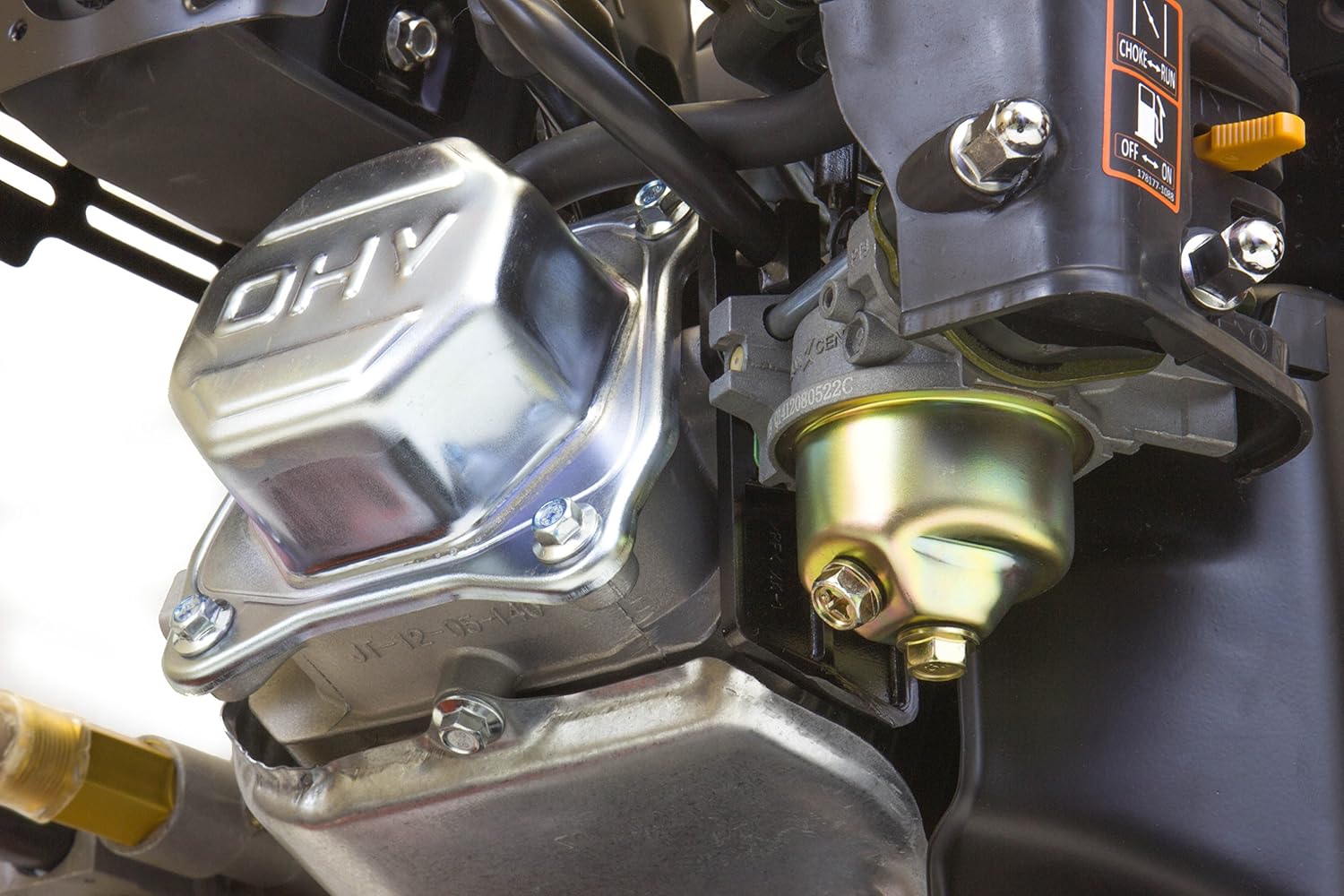

Image: Detail of the engine, showing the OHV cover, carburetor, and the fuel valve/choke/engine switch controls.
Usando a lavadora de alta pressão:
- With the engine running, squeeze the trigger on the spray gun to begin spraying.
- Adjust the distance and angle of the spray to suit the cleaning task.
- For detergent application, use the black soap nozzle and ensure the detergent tank is filled.
Desligando:
- Solte o gatilho da pistola de pulverização.
- Gire a chave de ignição para a posição "DESLIGADO".
- Desligue a válvula de combustível.
- Desligue o fornecimento de água.
- Aperte o gatilho da pistola de pulverização para liberar qualquer pressão restante no sistema.
Guia de seleção de bicos
The WEN PW3100 includes five quick-connect nozzles, each designed for specific cleaning tasks:
- 0° Red Nozzle (Pencil Jet): Provides a concentrated, high-impact stream for tough spots and stubborn stains. Use with extreme caution as it can damage surfaces.
- 15° Yellow Nozzle (Chisel Tip): Offers a powerful, narrow spray for stripping paint, removing grease, and cleaning metal surfaces.
- 25° Green Nozzle (Fan Spray): A versatile, medium-intensity spray suitable for general cleaning of wood, siding, brick, and concrete.
- 40° White Nozzle (Wide Fan Spray): Delivers a gentle, wide spray for cleaning delicate surfaces like patio furniture, boats, and cars.
- Black Soap Nozzle: Used for applying detergents. It operates at a lower pressure to allow the pressure washer to draw soap from the onboard tank.
Image: A visual guide illustrating the different spray patterns and recommended applications for each nozzle type (0°, 15°, 25°, 40°, and Soap).
Image: Close-up of the red (0°) and yellow (15°) quick-connect nozzles stored on the unit.
Image: Close-up of the green (25°), white (40°), and black (soap) quick-connect nozzles stored on the unit.
Manutenção
A manutenção regular garante o desempenho ideal e prolonga a vida útil da sua lavadora de alta pressão.
- Óleo do motor: Verifique o nível do óleo do motor antes de cada utilização. Troque o óleo após as primeiras 5 horas de funcionamento e, em seguida, a cada 50 horas ou anualmente.
- Filtro de ar: Inspecione e limpe o filtro de ar regularmente. Substitua-o se estiver danificado.
- Vela de ignição: Inspecione e limpe a vela de ignição anualmente. Substitua-a se necessário.
- Sistema de combustível: Use a fuel stabilizer if storing the unit for more than 30 days. Drain the fuel tank and carburetor if storing for extended periods.
- Filtro de entrada de água: Clean the water inlet filter screen regularly to prevent debris from entering the pump.
- Cuidados com a bomba: Never run the pump dry. Always ensure a constant water supply. If the unit will be stored in freezing temperatures, use a pump protector/antifreeze.
- Mangueira e conexões: Inspect the high-pressure hose and all connections for wear or leaks before each use.
Solução de problemas
Consulte esta seção para obter informações sobre problemas comuns e suas soluções.
| Problema | Possível causa | Solução |
|---|---|---|
| O motor não pega | No fuel; Engine switch OFF; Choke incorrect; Spark plug issue; Low oil. | Add fuel; Turn engine switch ON; Adjust choke; Check/replace spark plug; Add oil. |
| Baixa pressão | Abastecimento de água insuficiente; Bocal entupido; Ar na bomba; Mangueira dobrada. | Ensure full water flow; Clean/replace nozzle; Bleed air from pump; Straighten hose. |
| O motor funciona mal | Combustível velho; Filtro de ar entupido; Vela de ignição suja. | Esvazie e reabasteça com combustível novo; Limpe/troque o filtro de ar; Limpe/troque a vela de ignição. |
| Sem sucção de detergente | Detergent tank empty; Soap nozzle not installed; Clogged detergent line. | Fill tank; Install black soap nozzle; Clean detergent line. |
Especificações
Key technical specifications for the WEN PW3100 Gas Pressure Washer:
- Modelo: PW3100
- Pressão: 3100 PSI
- Taxa de fluxo: 2.5 GPM (galões por minuto)
- Motor: 208cc 4-stroke OHV
- Comprimento da mangueira: 30 pés
- Tamanho da roda: 12 polegadas
- Capacidade do tanque de detergente: 32 fluid ounces (approx. 2.5 Gallons)
- Dimensões (C x L x A): 21" x 21" x 40"
- Peso do item: 74.8 libras
- Conformidade: Em conformidade com CARB

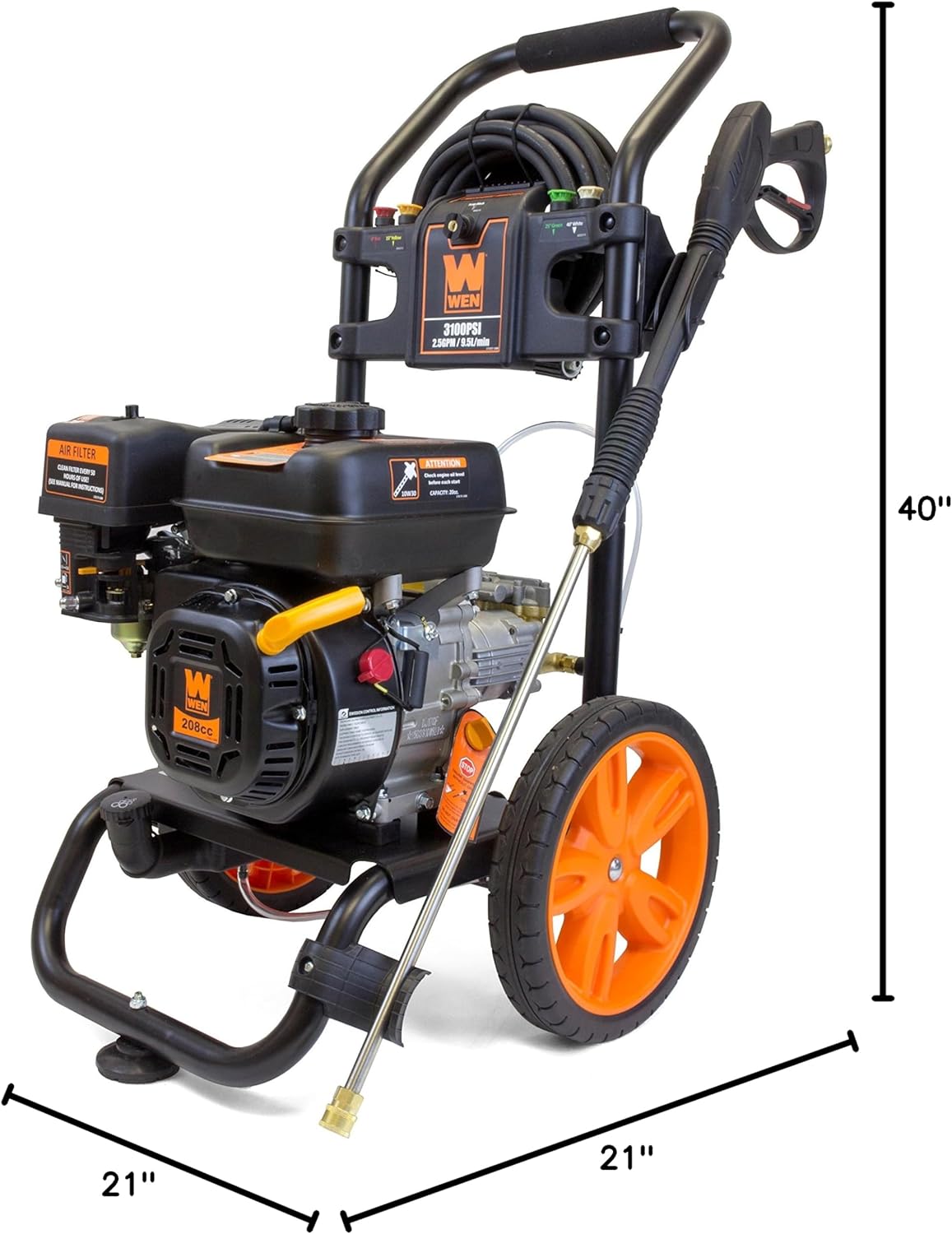

Image: Diagram showing the overall dimensions of the WEN PW3100 Gas Pressure Washer: 21 inches length, 21 inches width, and 40 inches height.
Garantia e Suporte
For warranty information, technical assistance, or to order replacement parts, please refer to the official WEN website or contact WEN customer service directly. Keep your purchase receipt for warranty claims.
